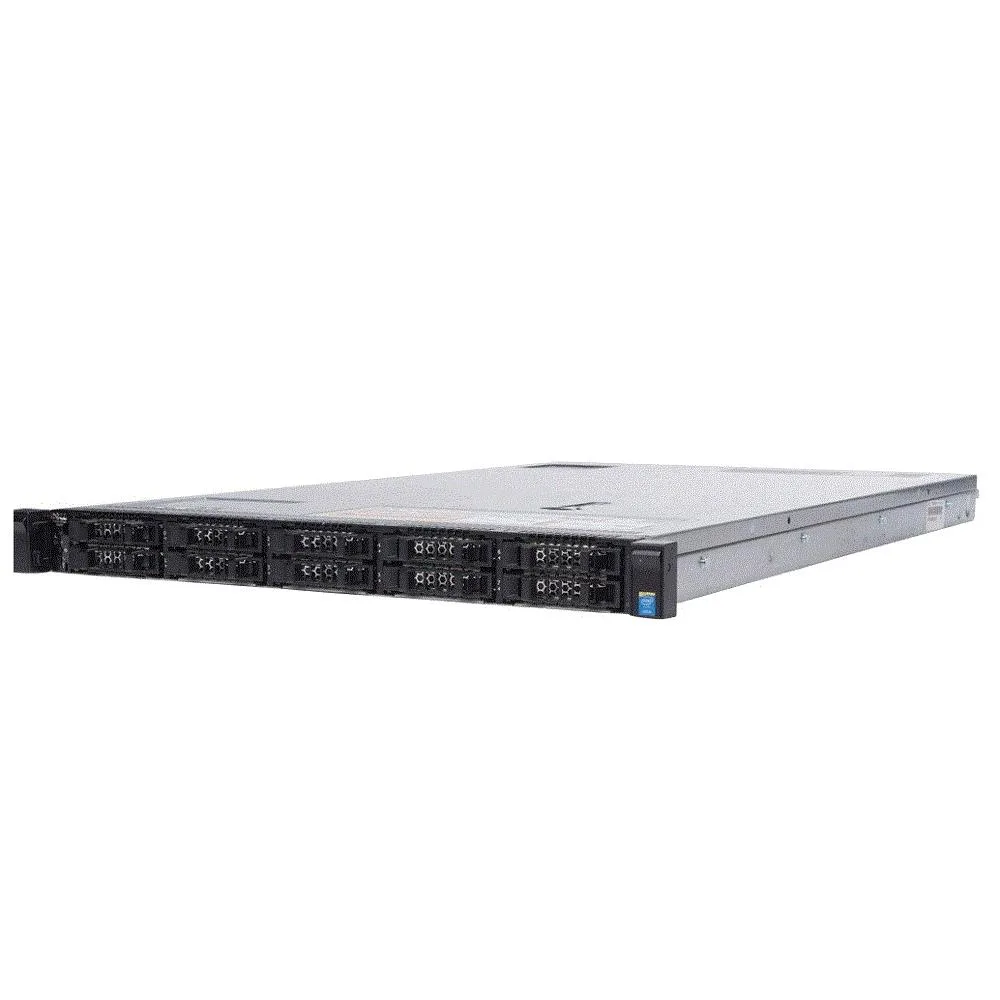

Silver 1U rack server front with ten drive bays and power indicators

DELL

DELL PowerEdge R630 1U rack server E5-2650 V3 10C 2.3GHz 24GB DDR4 2x 300GB 15K SAS H330

SKU CH-V84C-AZ5W9

A 1U rack server with a 10-core Xeon E5-2650 V3 at 2.3GHz, 24GB DDR4, two 300GB 15K SAS drives and an H330 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 24GB

HDD 2 x 300GB 15K

  • None
  • 2 x 300GB 15K
  • 10-core Xeon at 2.3 GHz powers multi-threaded workloads
  • 24 GB DDR4 memory supports up to 1536 GB capacity
  • Dual 300 GB 15K SAS drives deliver high-speed storage
  • H330 RAID controller enables RAID 0/1/5/10/50/60
  • Dual 750 W redundant power supplies ensure uptime

1U rack server for dense compute

The Dell PowerEdge R630 fits a single Xeon E5-2650 V3 ten-core processor at 2.3 GHz with 24 GB of DDR4 memory into a 1U chassis. It ships with two 300 GB 15K SAS drives and an H330 RAID controller supporting RAID 0, 1, 5, 10, 50 and 60. The platform targets workloads that need high core density and fast local storage in minimal rack space.

Dual redundant power and ten drive bays

Two hot-swap 750 W power supplies provide redundancy without extra cabling. The ten-bay 2.5-inch front panel accepts SAS or SATA drives, leaving room to expand capacity up to 14 TB per drive. Three PCIe 3.0 slots plus a dedicated PERC slot allow additional networking or acceleration cards, while the four-port 1 GbE daughter card handles baseline connectivity.

Efficient cooling in a shallow chassis

The 1U form factor uses high-speed system fans to move air across the processor, memory and drive bays. Redundant power supplies share the thermal load, reducing peak temperatures under sustained utilisation. Acoustic output is typical for a rack-optimised server and power draw scales with the configured processor and drive count.

Öne çıkanlar

  • 10-core Xeon at 2.3 GHz powers multi-threaded workloads
  • 24 GB DDR4 memory supports up to 1536 GB capacity
  • Dual 300 GB 15K SAS drives deliver high-speed storage
  • H330 RAID controller enables RAID 0/1/5/10/50/60
  • Dual 750 W redundant power supplies ensure uptime

Teknik özellikler

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size24GB
Memory TypeDDR4
Max Memory Capacity24GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Bu modelin diğer sürümleri

Aynı seriden 2 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How much memory can the 24 DIMM slots accept with the installed E5-2650 V3 processor?

The board has 24 DDR4 slots, but the single E5-2650 V3 limits total capacity to 24 GB, matching the installed amount.

What is the sustained thermal output of the dual 750 W redundant supplies when the server runs 24/7?

Two hot-swap 750 W units share the load; each can deliver its full rating continuously, so cooling must handle the combined draw.

Which drive interface do the two installed 300 GB 15K disks use to connect to the H330 controller?

The 2.5-inch drives are 12 Gbps SAS and plug directly into the H330 RAID controller.
