iStarUSA Inc.
iStarUSA Inc. D-300SEA-RD 3U Rackmount Server Chassis Red Bezel
A 3U rackmount server chassis with four 5.25-inch bays, two external 3.5-inch bays, one internal 3.5-inch bay, seven expansion slots, front USB 2.0 ports, a 60mm fan and a red aluminium bezel
- Chassis TypeRackmount
- Form Factor3U
- ColorBlack
- Case MaterialAluminum / Steel
- Motherboard Compatibility12 x 9.6 (ATX, microATX)
- External 5.25" Drive Bays4
- 3U rackmount height fits standard server cabinets
- 4 external 5.25" bays plus 3 internal 3.5" bays for storage
- 7 expansion slots support full-length add-in cards
- 1U or 2U PSU compatibility for flexible power options
- Front bezel key lock secures physical access
3U Rackmount Chassis for ATX Boards
The iStarUSA D Storm D-300SEA-RD is a 3U rackmount server chassis built from aluminum and steel with a black finish and red aluminum bezel. It accepts ATX and microATX motherboards up to 12 x 9.6 inches and provides seven expansion slots for add-in cards. A front bezel key lock adds physical security for shared rack environments.
Four 5.25-Inch Bays Plus Internal Storage

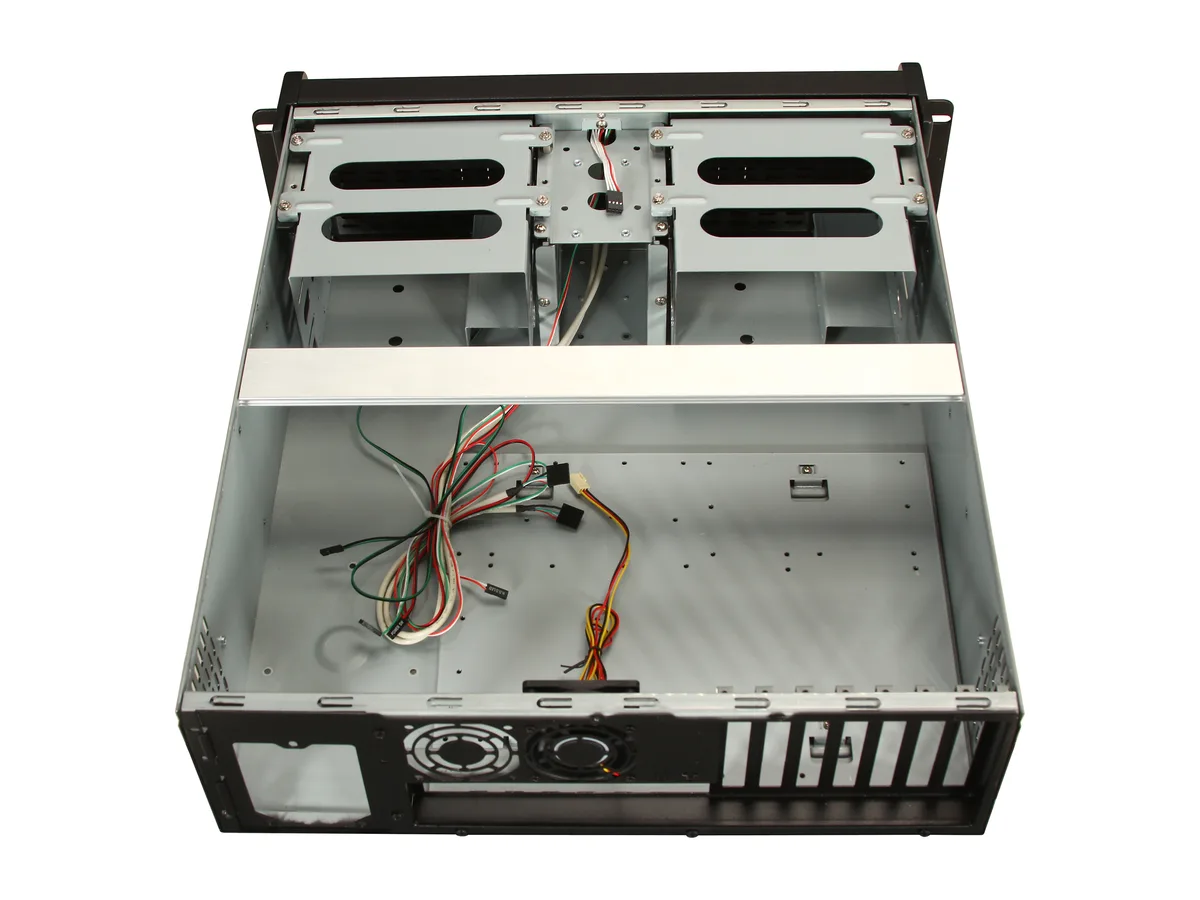

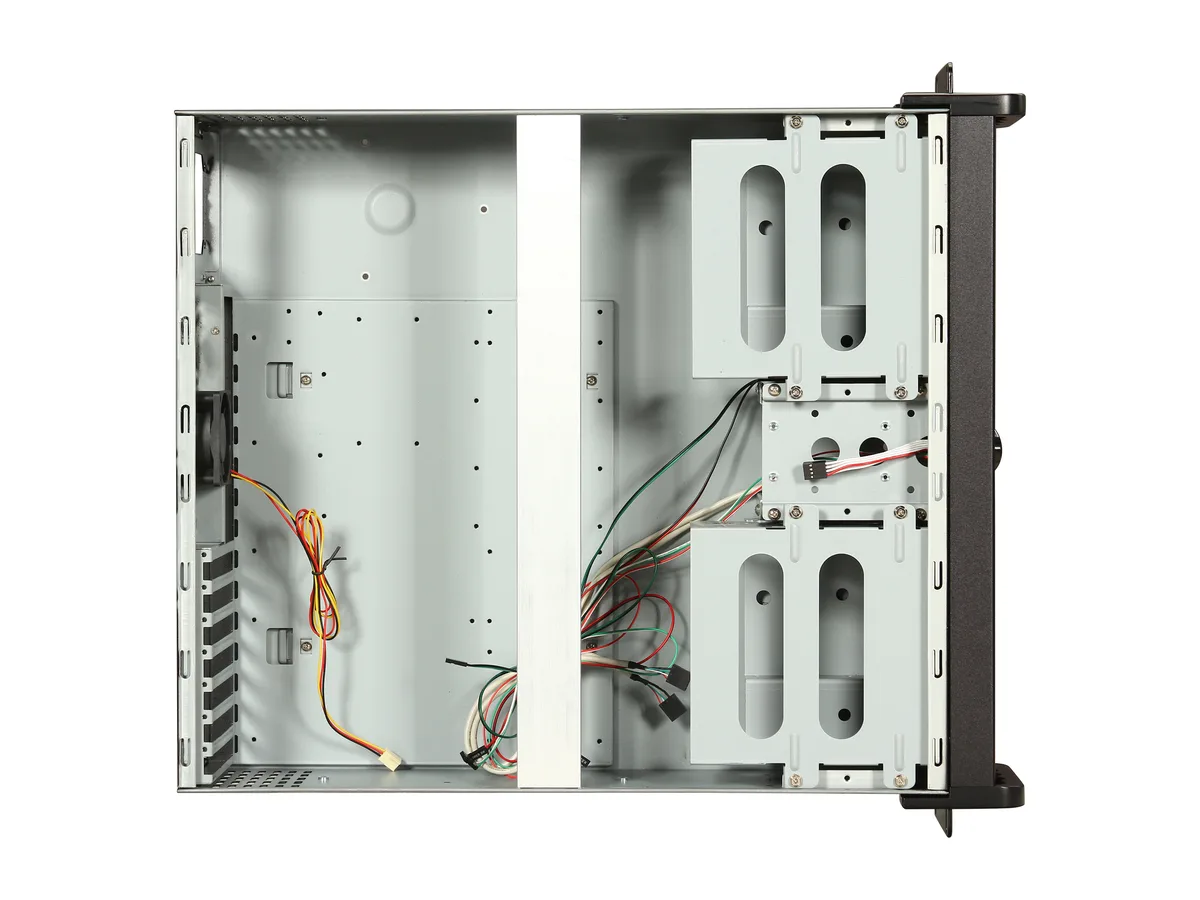

Four external 5.25-inch bays and two external 3.5-inch bays give ample room for optical drives, hot-swap cages or front-access storage. A single internal 3.5-inch bay holds a fixed drive. Builds needing more than three total 3.5-inch drives or any 2.5-inch mounts will require adapters or a different chassis.
Single 60mm Fan With Sensor-Dependent Alerts
Cooling relies on one 60mm fan; the front panel shows power, HDD, temperature and fan status lights, but temperature and fan alarms only function when the optional TC-ISF08 sensor board is installed. The chassis supports 1U or 2U power supplies. Front I/O is limited to two USB 2.0 ports with no USB 3.0 or audio headers.
Öne çıkanlar
- 3U rackmount height fits standard server cabinets
- 4 external 5.25" bays plus 3 internal 3.5" bays for storage
- 7 expansion slots support full-length add-in cards
- 1U or 2U PSU compatibility for flexible power options
- Front bezel key lock secures physical access
Teknik özellikler
| Brand | iStarUSA |
|---|---|
| Series | D Storm |
| Model | D-300SEA-RD |
| Chassis Type | Rackmount |
| Form Factor | 3U |
| Color | Black |
| Case Material | Aluminum / Steel |
| Motherboard Compatibility | 12 x 9.6 (ATX, microATX) |
| External 5.25" Drive Bays | 4 |
| External 3.5" Drive Bays | 2 |
| Internal 3.5" Drive Bays | 1 |
| Expansion Slots | 7 |
| Front Ports | 2 x USB 2.0 |
| 60mm Fans | 1 |
| Features | Red Bezel Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) Switches: Power, Reset Supported PSU Type: 1U, 2U Security: Front Bezel Key Lock Material: Material of Front Bezel: Aluminum alloy Material of Handle: SECC Zinc-Coated Steel Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
| Dimensions | 19.00" x 5.25" x 20.80" |
| Kargo ağırlığı | 12.45 kg |
| Koli boyutu | 679 × 559 × 267 mm |
Bu modelin diğer sürümleri
Aynı seriden 3 tane daha
Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.
iStarUSA Inc.
iStarUSA Inc. D-300-FS 3U rackmount server chassis
- Rackmount
- 3U
$215,99
0.00276882BTC
Stokta
Bu ürünle ilgili sorular
Will my ATX board measuring 12 x 9.6 inches fit in this 3U rackmount chassis?
Yes, the chassis supports motherboards up to 12 x 9.6 inches, covering both ATX and microATX form factors.
How can I confirm the cooling and temperature sensors are active after assembly?
The front panel includes Temperature and Fan LEDs; they illuminate only when the optional TC-ISF08 sensor board is installed and detects readings.
Which drive brackets and power supply must I source separately for a full build?
The unit provides four 5.25-inch, two external 3.5-inch and one internal 3.5-inch bays plus seven expansion slots; rails and a 1U or 2U power supply are not included.
