Small green circuit board with a silver camera sensor, CS-mount lens, and two ribbon cables attached

KEHIPI

KEHIPI HQ Camera IMX477 12.3MP CS-Mount IR-Cut

SKU CH-RYKT-B5E9H

12.3 MP Sony IMX477 sensor with automatic IR-cut switching for day and night vision on Raspberry Pi

  • 3 MP IMX477 sensor captures detailed 4056 × 3040 images
  • Automatic IR-cut switching delivers clear day and night vision
  • Records 2028 × 1080 at 50 fps and 1332 × 990 at 120 fps
  • Works with Raspberry Pi 5, 4, 3, Zero 2 W and Compute Module
  • Includes CS-mount lens plus 300 mm 22-pin and 15-to-22-pin cables

Raspberry Pi HQ Camera IMX477

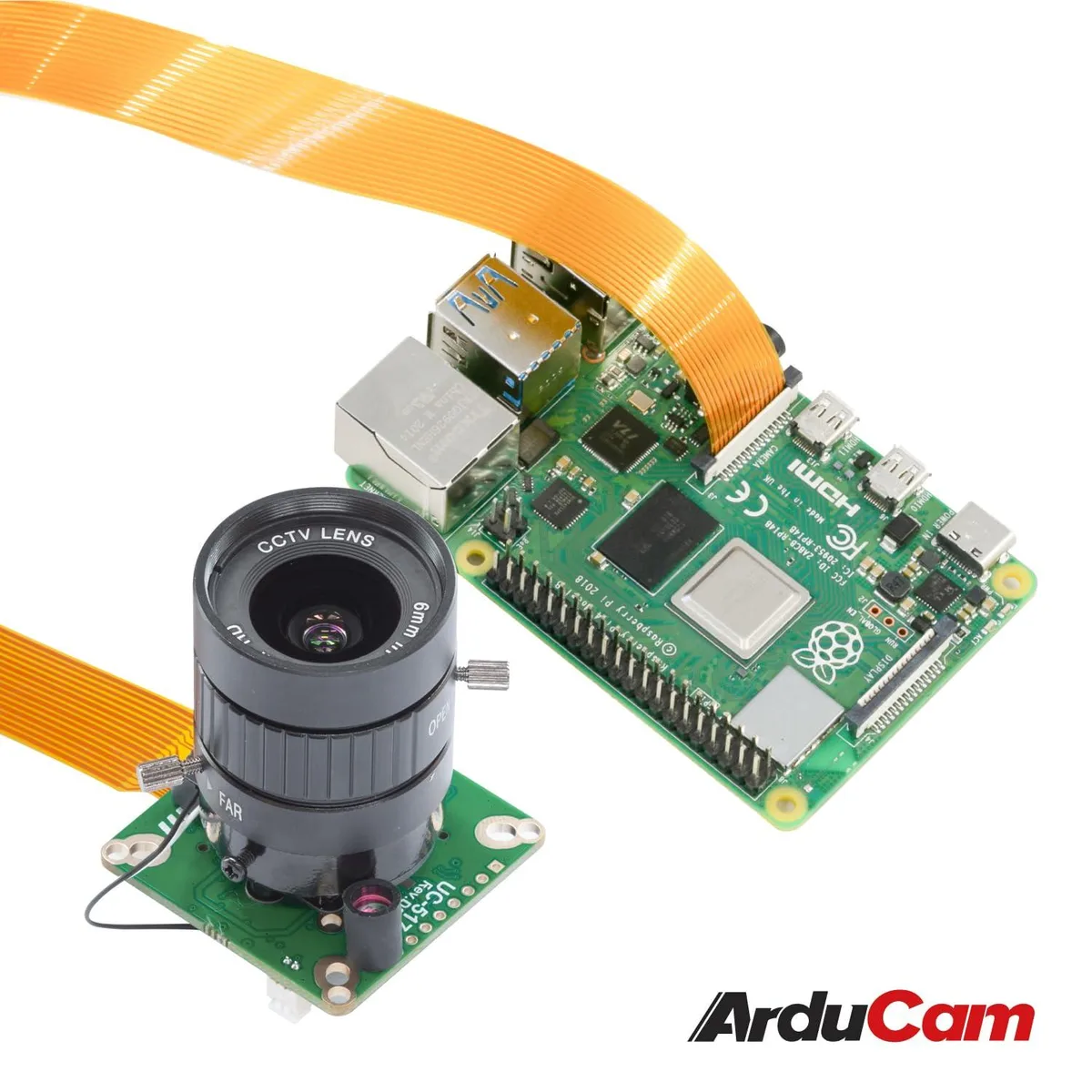

This 12.3 megapixel camera module uses the Sony IMX477 sensor to deliver higher resolution than 8 megapixel alternatives. It targets Raspberry Pi developers and makers who need detailed stills or video for projects such as 3D printer monitoring, computer vision or AI tasks like facial recognition. The board works with every Raspberry Pi model that has a camera connector, including Pi 5, 4, 3, Zero and Zero 2W.

Video modes and OS support

The sensor captures 4056 by 3040 pixel stills and supports 2028 by 1080 at 50 frames per second, 2028 by 1520 at 40 frames per second and 1332 by 990 at 120 frames per second. Automatic IR cut switching enables usable footage in both daylight and low light. The module requires Raspberry Pi OS Bullseye from 28 January 2022 or later with libcamera; legacy OS releases are not supported.

CS mount lens and dual cables

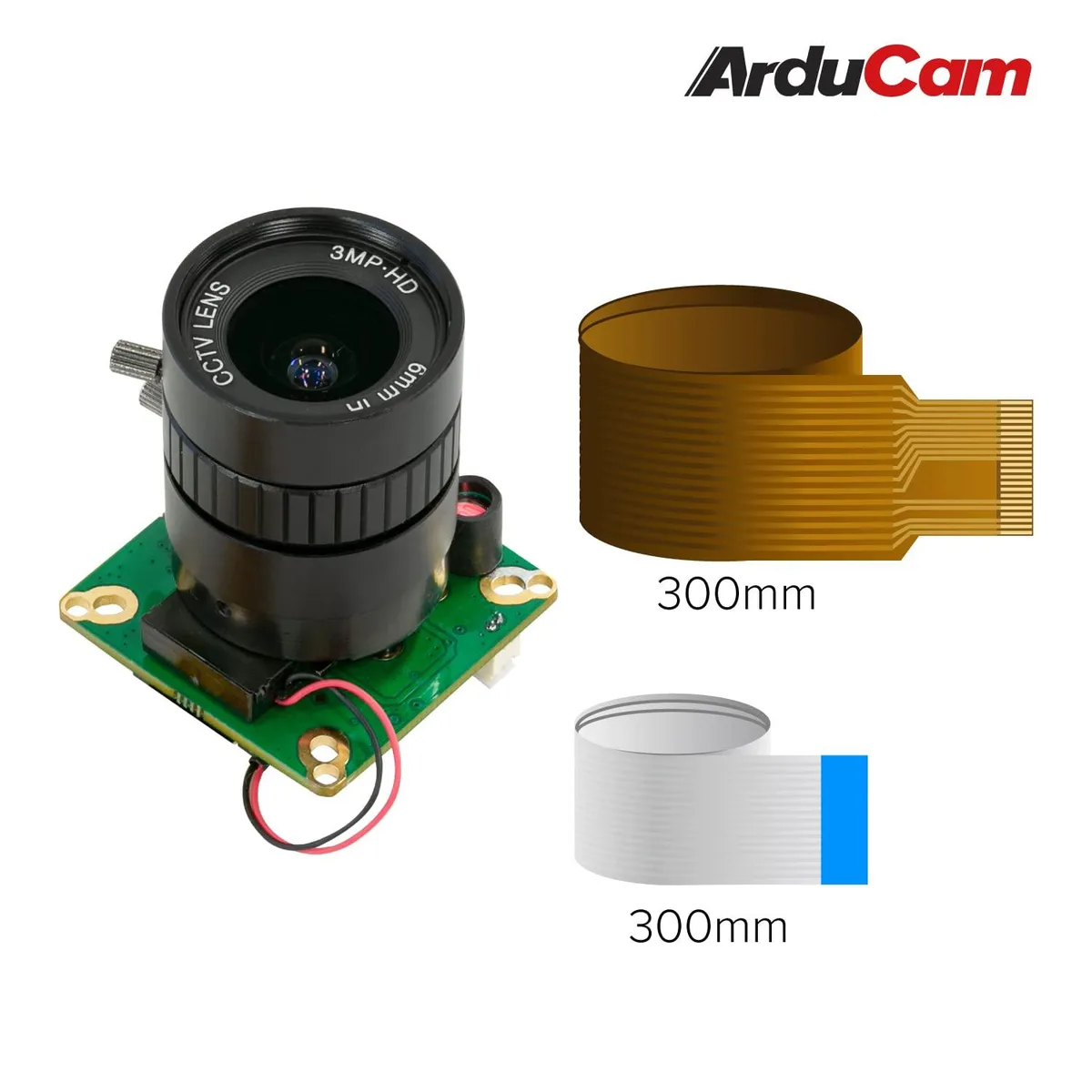

A CS mount lens is included so you can attach standard CCTV or machine vision optics for the field of view your application demands. Two 300 millimetre FPC cables ship in the box: a 22 pin cable for Pi Zero boards and a 15 pin to 22 pin cable for full size Pi A and B series plus Compute Module boards. This removes the need to source separate interconnects for different Pi form factors.

Öne çıkanlar

  • 3 MP IMX477 sensor captures detailed 4056 × 3040 images
  • Automatic IR-cut switching delivers clear day and night vision
  • Records 2028 × 1080 at 50 fps and 1332 × 990 at 120 fps
  • Works with Raspberry Pi 5, 4, 3, Zero 2 W and Compute Module
  • Includes CS-mount lens plus 300 mm 22-pin and 15-to-22-pin cables

Teknik özellikler

BrandArducam
ModelHQ Camera

Bu ürünle ilgili sorular

Which lens mount and cables come with the 12.3MP IMX477 module?

The package includes a CS-mount lens, a 300mm 22-pin FPC cable for Pi Zero and Zero 2W, and a 300mm 15-pin to 22-pin FPC cable for Pi A, B series and Compute Module boards.

What video modes does the IMX477 sensor actually deliver on a Raspberry Pi?

The sensor supports 4056×3040 stills and video modes of 2028×1080 at 50fps, 2028×1520 at 40fps and 1332×990 at 120fps when used with a compatible Pi and libcamera.

Which camera connector standard does the board use and what does that limit?

The module connects via the standard Raspberry Pi 15-pin or 22-pin MIPI CSI interface, so it works on any Pi with a CSI port but cannot be used on boards lacking that connector.
