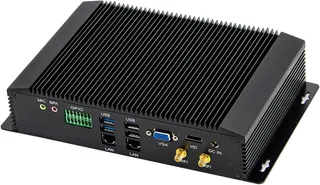

Black fanless mini PC with mounting ears and industrial ports

partaker

Partaker I27 barebone mini PC i7-8550U/8565U 8GB 128GB

SKU CH-DMJF-FVP3G

Fanless industrial mini PC with Intel Core i7 8th Gen, 8 GB RAM, 128 GB SSD, six COM ports, dual LAN and Windows 11 Pro pre-installed

  • ColorBlack
  • CPU TypeIntel Core i7 8th Gen

CPU Type Intel Core i7-8565U

Group 8GB / 128GB SSD

  • Quad-core i7 handles demanding industrial workloads
  • Fanless design runs silently in harsh environments
  • Windows 11 Pro pre-installed for immediate deployment

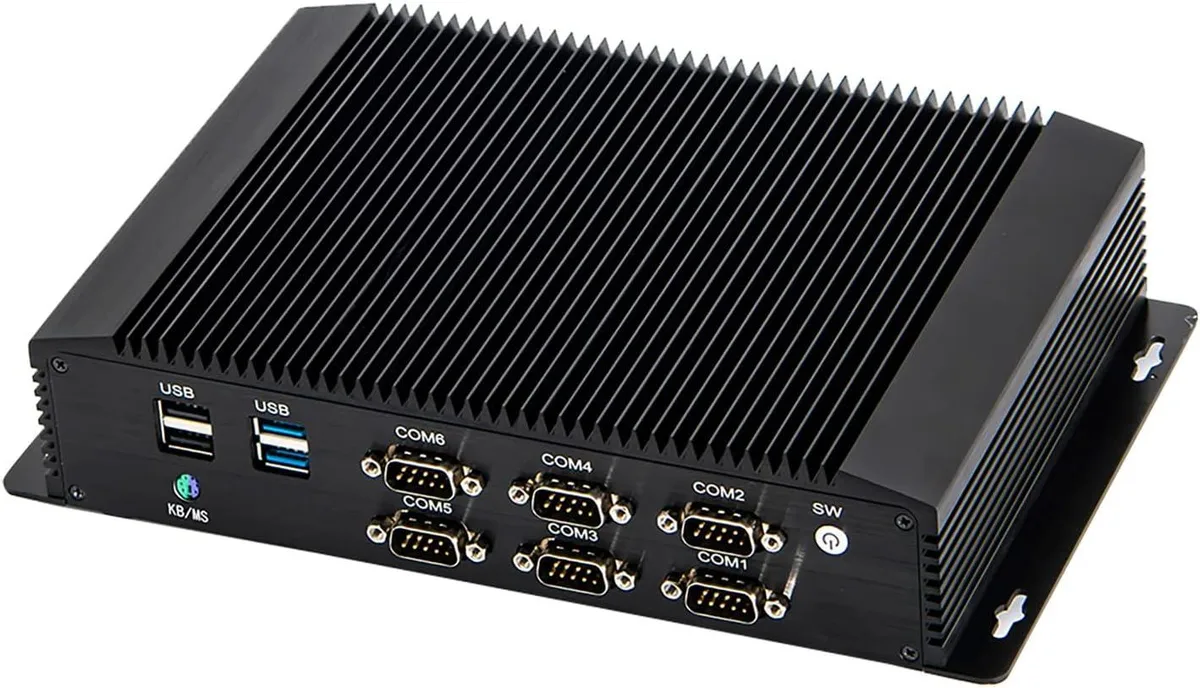

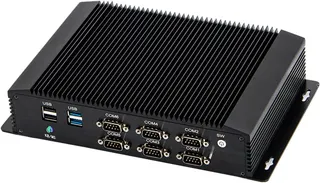

  • Six COM ports with RS232/422/485 switching
  • Compact 230 x 175 x 50 mm aluminium chassis

Industrial Mini PC with 8th Gen Intel Core i7

The Partaker I27 is a fanless barebone mini PC built around an Intel Core i7 8550U or 8565U processor. It ships with 8 GB of DDR4-2400 memory and a 128 GB mSATA SSD. Windows 11 Pro 64-bit comes pre-installed for immediate deployment. The aluminium chassis measures 230 x 175 x 50 mm and weighs 1.25 kg.

Suited for 24/7 industrial control

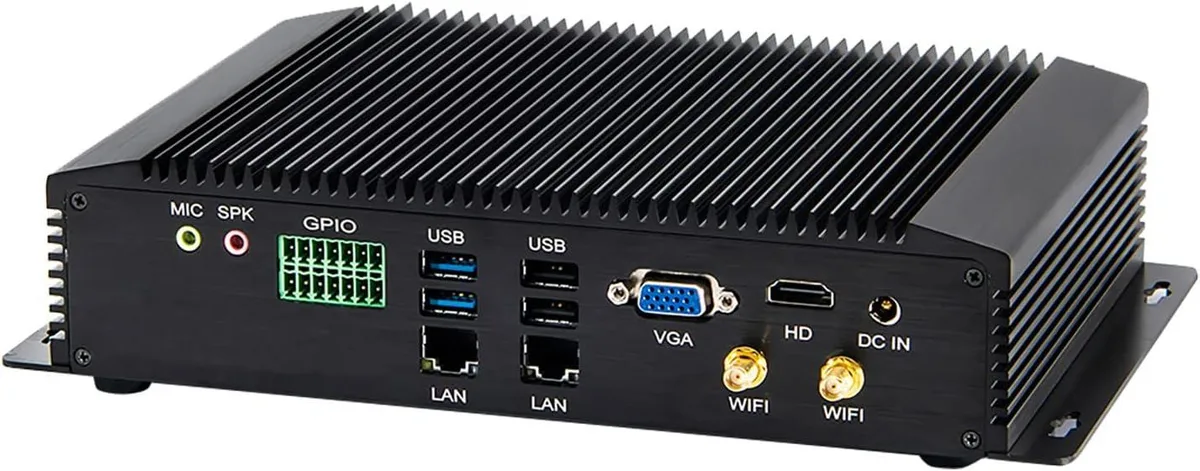

This unit targets automation, signage and remote monitoring tasks that need six COM ports with RS232, RS422 and RS485 switching, dual Intel I213 LAN, GPIO and a SIM slot for 4G. Buyers who need active cooling, discrete graphics or a larger number of high-speed USB ports should consider other form factors.

Straightforward bench setup

The package includes the power supply, cord and Wi-Fi antennas, so the system powers on as soon as DC 12 V is applied. Installation issues usually involve configuring the BIOS for COM port modes or the watchdog timer, and ensuring the mSATA or M.2 2280 drive is seated before first boot.

Öne çıkanlar

  • Quad-core i7 handles demanding industrial workloads
  • Fanless design runs silently in harsh environments
  • Windows 11 Pro pre-installed for immediate deployment
  • Six COM ports with RS232/422/485 switching
  • Compact 230 x 175 x 50 mm aluminium chassis

Teknik özellikler

ColorBlack
CPU TypeIntel Core i7 8th Gen

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

What power supply is required to run this Partaker I27 unit?

The unit ships with a 12 V 5 A DC power adapter that accepts 100-240 V AC input, so no separate supply is needed.

Can I keep using my RS-422 and RS-485 serial devices with the six COM ports?

Yes, COM1 and COM2 support RS-232, RS-422 and RS-485 with BIOS-selectable switching, while the remaining four ports provide standard RS-232.

How do I confirm the system is operating correctly after first power-on?

Windows 11 Pro boots automatically, the fanless chassis stays silent, and the front-panel power LED shows solid blue when the watchdog and auto-recovery functions are active.
