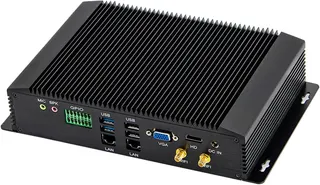

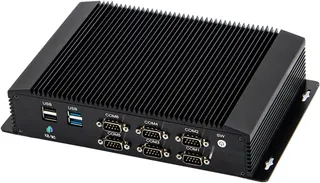

Black fanless aluminium mini PC with mounting ears, compact rectangular shape

partaker

partaker I27 i7 8550U/8565U 32GB 512GB barebone mini PC

SKU CH-FQ6R-WY5PZ

Fanless industrial mini PC with an Intel Core i7 processor, 32 GB DDR4 memory, 512 GB storage, six serial ports and dual LAN for 24/7 operation

  • ColorBlack
  • CPU TypeIntel Core i7 8th Gen

CPU Type Intel Core i7-8565U

Group 32GB RAM+512GB SSD

  • Fanless design enables silent 24/7 operation at just 15W power draw
  • Intel Core i7 8550U/8565U quad-core CPU delivers strong compute for industrial workloads
  • 32GB DDR4-2400 memory plus 512GB SSD provides ample capacity out of the box
  • Six COM ports with RS232/422/485 switching and 8-bit GPIO suit diverse automation gear
  • Dual Intel i213 LAN plus Wi-Fi 802.11ac and SIM slot ensure reliable connectivity

Industrial fanless mini PC

The Partaker I27 is a fanless industrial barebone built around an Intel Core i7 8550U or 8565U quad-core processor. It ships with 32 GB DDR4-2400 memory and a 512 GB SSD, running Windows 11 Pro out of the box. The aluminium chassis measures 230 x 175 x 50 mm and weighs 1.25 kg, rated for continuous 24/7 operation from -10 °C to 60 °C.

Replaces bulky DIN-rail boxes

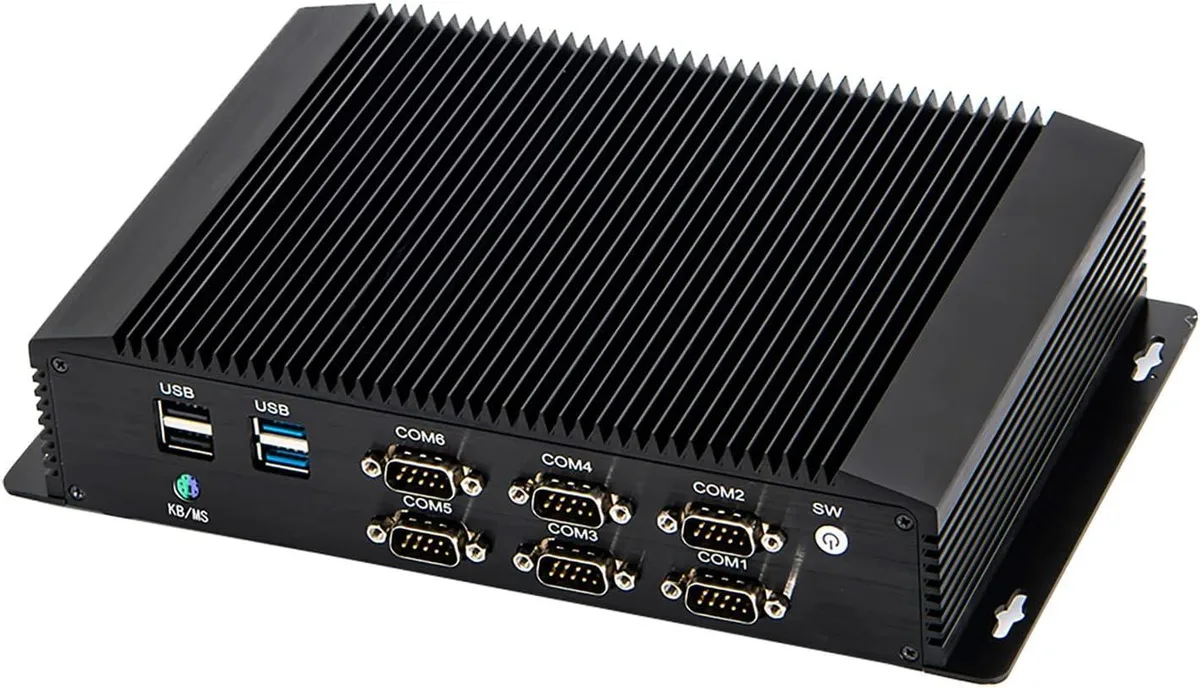

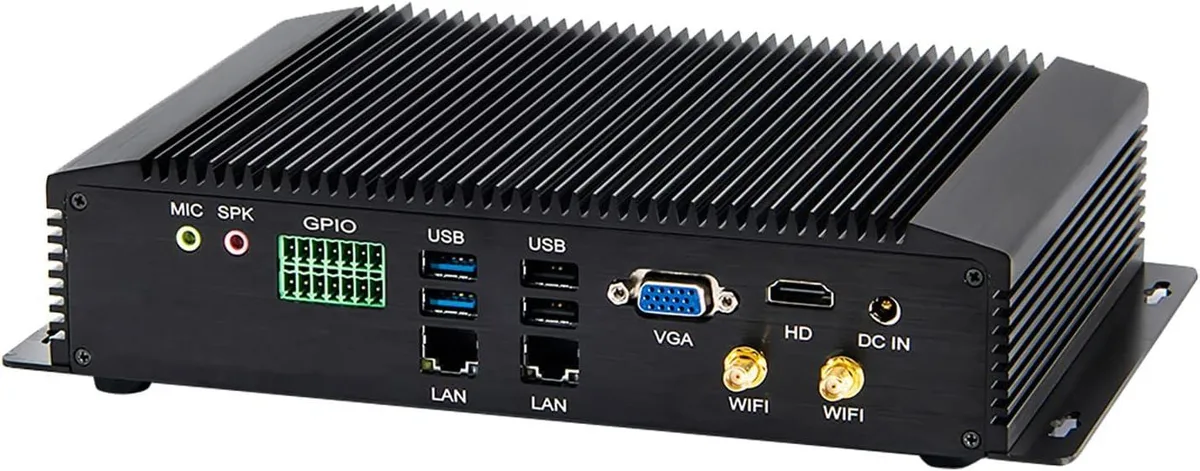

This unit consolidates six COM ports with RS232, RS422 and RS485 BIOS-switchable modes, dual Intel I213 LAN, GPIO, VGA and HDMI into a single silent enclosure. The jump is worth it when legacy serial gear, dual-display signage or watchdog-monitored automation must share one compact device without moving parts. Buyers who need more internal drive bays or discrete graphics should look elsewhere.

Mounts with integrated ears

Installation uses the built-in mounting ears and the supplied 12 V 5 A adapter; the DC jack accepts 100-240 V AC input. A SIM slot sits on the board for optional 4G modules, while the mSATA, M.2 2280 and 2.5-inch SATA bays share bandwidth — plan the storage layout before closing the case. The watchdog timer and wake-on-LAN settings are configured in BIOS, not in Windows.

Öne çıkanlar

  • Fanless design enables silent 24/7 operation at just 15W power draw
  • Intel Core i7 8550U/8565U quad-core CPU delivers strong compute for industrial workloads
  • 32GB DDR4-2400 memory plus 512GB SSD provides ample capacity out of the box
  • Six COM ports with RS232/422/485 switching and 8-bit GPIO suit diverse automation gear
  • Dual Intel i213 LAN plus Wi-Fi 802.11ac and SIM slot ensure reliable connectivity

Teknik özellikler

ColorBlack
CPU TypeIntel Core i7 8th Gen

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

What mounting points does the Partaker I27 use to secure it in a cabinet?

The unit has integrated mounting ears on its 230 x 175 x 50 mm aluminium chassis for direct screw fixation.

Which BIOS setting must be enabled so the six COM ports switch between RS232, RS422 and RS485?

Enable the soft-switching option for COM1 and COM2 in BIOS; the remaining ports follow the same mode selection.

How do I replace the wireless module if I need a different 4G modem later?

Open the case, locate the M.2 slot with the onboard SIM socket, swap the Wi-Fi card and attach the supplied antennas.
