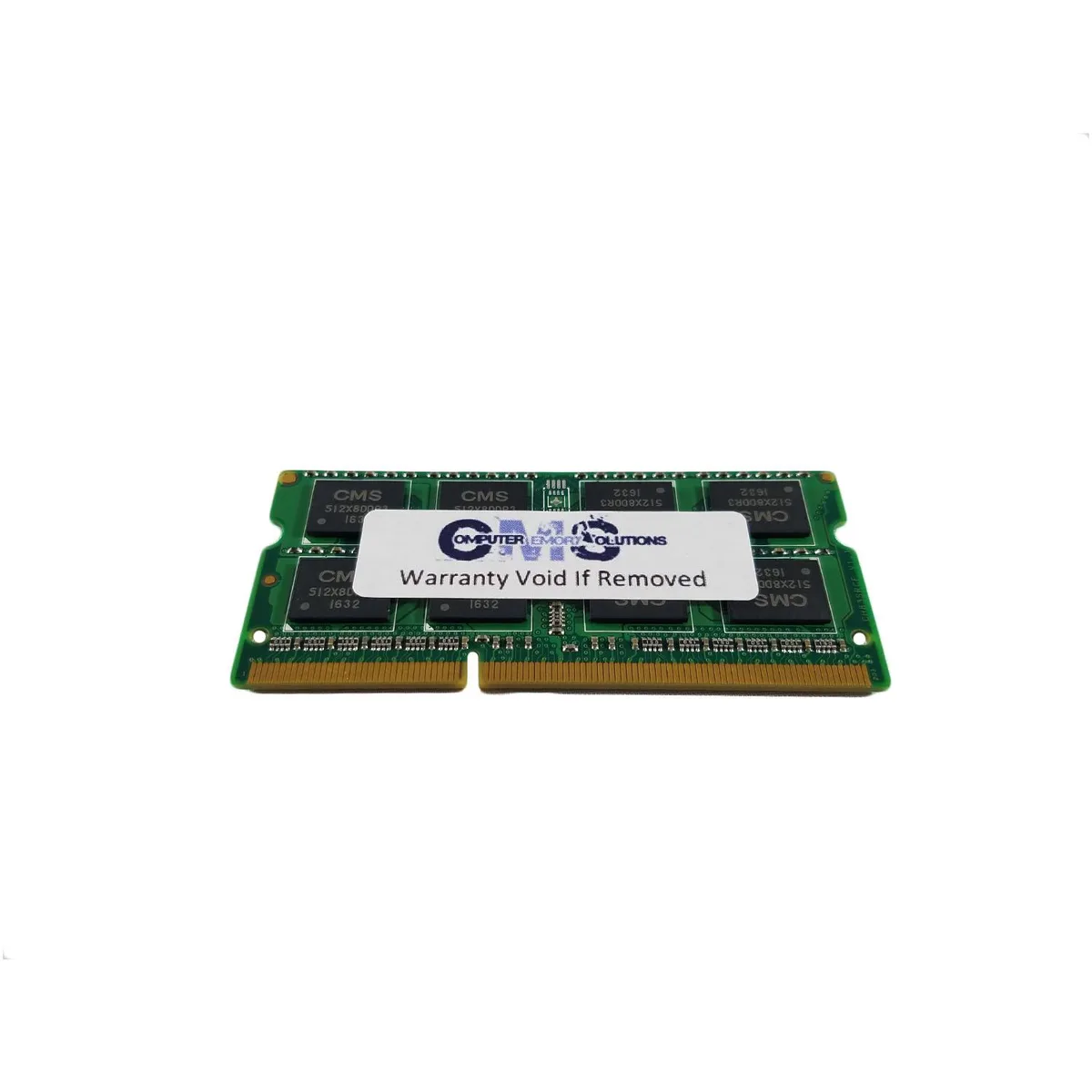

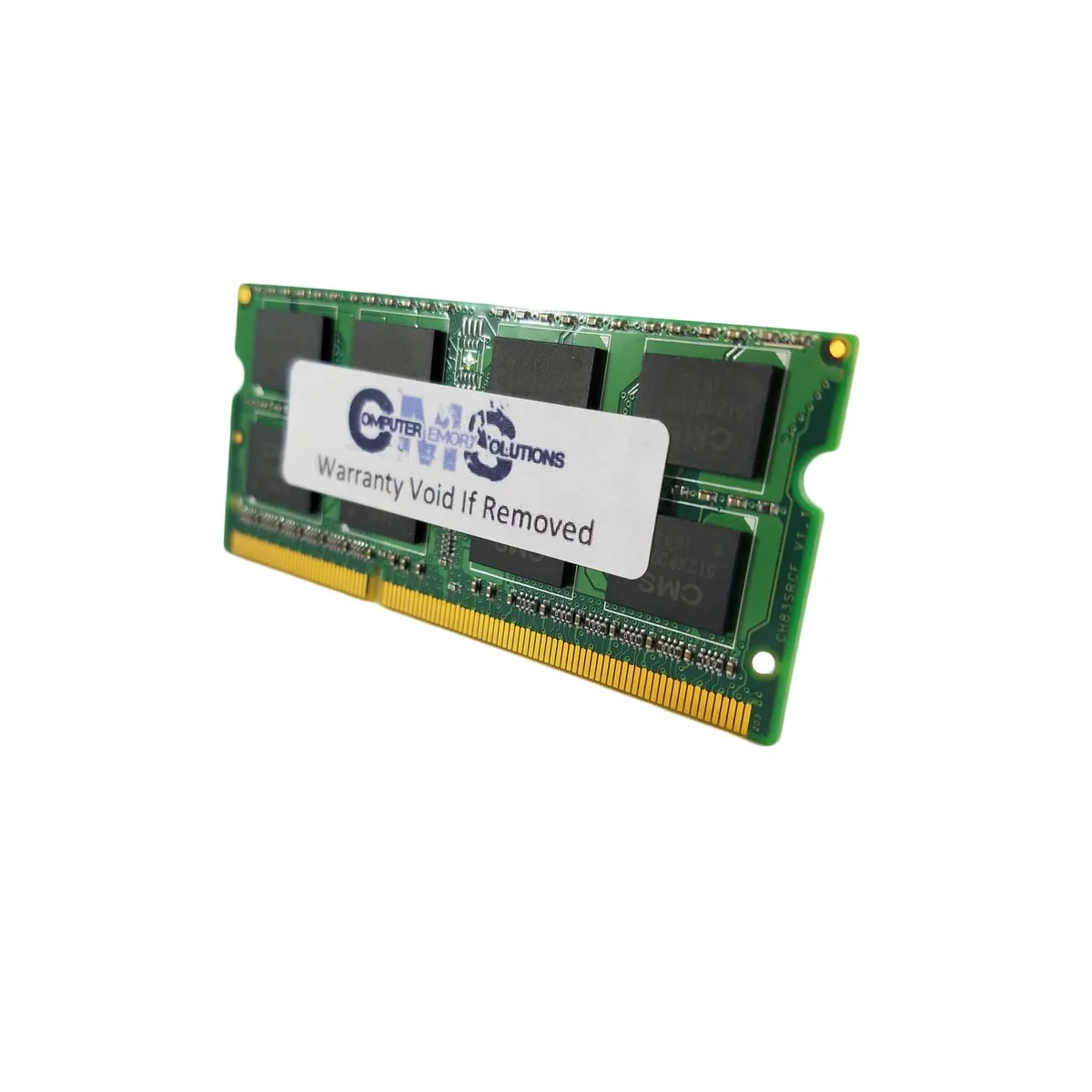

Green rectangular circuit board with gold edge connector and black memory chips

Computer Memory Solutions

Computer Memory Solutions 8GB DDR3 12800 1600MHz NON ECC SODIMM memory upgrade

SKU CH-WYZE-EZSYP

8GB DDR3L SODIMM running at 1600 MHz with CL11 timing and 1.35 V for Intel NUC5 series

  • Capacity8GB
  • Type204-Pin DDR3 SO-DIMM
  • SpeedDDR3L 1600 (PC3L 12800)
  • CAS LatencyCL11
  • Timing11-11-11
  • Voltage1.35V
  • 8GB capacity expands multitasking headroom for Intel NUC mini PCs
  • DDR3L 1600 MHz speed matches factory memory specifications exactly
  • Low 1.35V voltage reduces power draw and heat in compact chassis
  • CL11 11-11-11 timings deliver responsive latency for everyday workloads
  • 204-pin SODIMM form factor installs directly into both NUC memory slots

Targeted NUC upgrade

This 8 GB DDR3L SODIMM is built for Intel NUC5i7RYH, NUC5PGYH, NUC5PPYH and NUC5CPYH units. It suits owners who need a single-module capacity increase without mixing kits. The 1.35 V operation matches the factory specification for these small-form-factor PCs.

204-pin unbuffered layout

The stick uses a standard 204-pin SO-DIMM edge connector and carries no heat spreader, so it fits the tight NUC socket without clearance issues. CL11 11-11-11 timings and 1600 MHz speed keep the memory controller at its native rate. Major-brand chips and Computer Memory Solutions validation reduce the chance of boot-time incompatibility.

Replaces 4 GB or 8 GB factory modules

Systems shipping with 4 GB modules gain headroom for multitasking and virtual machines when moved to 8 GB per slot. The jump is worthwhile when the workload regularly exceeds the original capacity, but it adds no benefit if the board already runs two 8 GB sticks at the 16 GB maximum.

Акценти

  • 8GB capacity expands multitasking headroom for Intel NUC mini PCs
  • DDR3L 1600 MHz speed matches factory memory specifications exactly
  • Low 1.35V voltage reduces power draw and heat in compact chassis
  • CL11 11-11-11 timings deliver responsive latency for everyday workloads
  • 204-pin SODIMM form factor installs directly into both NUC memory slots

Спецификации

BrandComputer Memory Solutions
ModelCM10246412800SODRL
Capacity8GB
Type204-Pin DDR3 SO-DIMM
SpeedDDR3L 1600 (PC3L 12800)
CAS LatencyCL11
Timing11-11-11
Voltage1.35V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemIntel Nuc5I7Ryh, Nuc5Pgyh, Nuc5Ppyh, Nuc5Cpyh
Package Content1 Memory RAM Stick

Въпроси за този артикул

Does the DDR3L 1600 (PC3L 12800) interface run at 1.35 V in the listed Intel NUC models?

Yes, the module is rated DDR3L 1600 at 1.35 V and the compatible NUC5i7RYH, NUC5PGYH, NUC5PPYH and NUC5CPYH platforms support that voltage.

Will the 204-pin SO-DIMM fit the two memory sockets in those NUC units?

The stick uses the standard 204-pin SO-DIMM form factor, which matches the two SO-DIMM slots in each listed NUC.

What is the correct way to seat the module so the retention clips lock?

Insert the module at roughly a 30-degree angle until the gold contacts disappear, then press down firmly until both side clips click into the notches.
