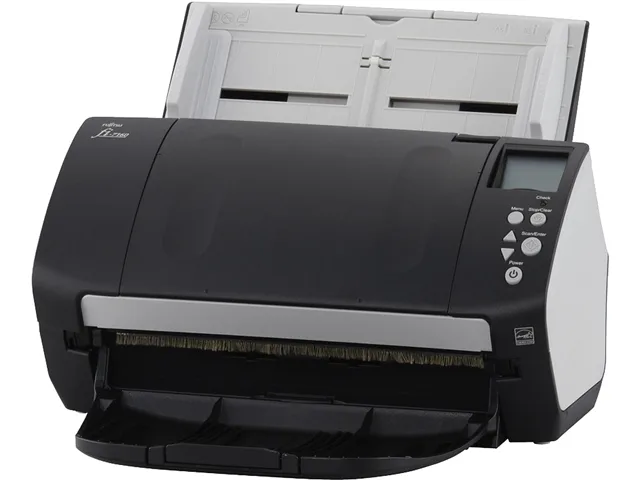

Rectangular white and grey document scanner with top paper tray and front output slot

Fujitsu

Fujitsu FI-7160 PA03670-B055 60 ppm 120 ipm 600 dpi 80-sheet ADF duplex document scanner

SKU CH-TXAS-YHEQF MPN PA03670-B055

Duplex document scanner captures 60 ppm simplex and 120 ipm duplex at 300 dpi with an 80-sheet ADF and 600 dpi optical resolution

  • TypeDuplex
  • Element TypeColor CCDs (Color Charge Coupled Device)
  • Light SourceWhite LED Array
  • Scanning SpeedSimplex: 60 ppm (200 dpi / 300 dpi) Duplex: 120 ipm (200 dpi
  • Optical Resolution600 dpi
  • Max. Document Size8.5" x 14"

Option FI-7160 (PA03670-B055)

  • Scans up to 60 ppm simplex and 120 ipm duplex for fast throughput
  • 80-sheet ADF handles large batches without reloading
  • 600 dpi optical resolution captures fine detail
  • Duplex scanning digitises both sides in one pass
  • USB 3.0 interface provides high-speed connectivity

Fujitsu FI-7160 60 ppm Duplex Scanner

The Fujitsu FI-7160 is a colour CCD document scanner built for offices that need to digitise high volumes of mixed paper. Its 80-sheet automatic document feeder handles sizes from 2.00" x 2.13" up to 8.50" x 14.00" and supports long documents up to 220 inches. It connects via USB 3.0 and includes PaperStream IP and Capture software for OCR and barcode reading.

USB 3.0 Speed and 600 dpi Optical Limit

The scanner delivers up to 60 ppm simplex and 120 ipm duplex at 200 or 300 dpi, but optical resolution tops out at 600 dpi so finer detail requires interpolation. USB 3.0 bandwidth supports these rates, yet sustained throughput will drop if the host PC falls below the recommended i5 2.5 GHz processor and 4 GB RAM. Daily duty cycle is rated at 4,000 pages.

Desktop Setup with Included Software Bundle

Installation uses the supplied Setup DVD-ROM and USB cable; the scanner draws up to 38 W from the included AC adapter and enters sleep mode at 1.8 W. Common issues arise when the ADF picks up sticky notes or labels, though the feed mechanism is designed to reduce jams. Ensure the operating environment stays between 5 and 35 °C and 20 to 80 % relative humidity for reliable operation.

Акценти

  • Scans up to 60 ppm simplex and 120 ipm duplex for fast throughput
  • 80-sheet ADF handles large batches without reloading
  • 600 dpi optical resolution captures fine detail
  • Duplex scanning digitises both sides in one pass
  • USB 3.0 interface provides high-speed connectivity

Спецификации

BrandFujitsu
Seriesfi Series
ModelFI-7160 (PA03670-B055)
TypeDuplex
Element TypeColor CCDs (Color Charge Coupled Device)
Light SourceWhite LED Array
Scanning SpeedSimplex: 60 ppm (200 dpi / 300 dpi)
Duplex: 120 ipm (200 dpi / 300 dpi)
Optical Resolution600 dpi
Max. Document Size8.5" x 14"
Automatic Document Feeder (ADF)Yes
ADF Capacity80 Sheets (A4: 80.00 g/m2 or 20.00 lbs.)
Document Size:
Minimum: 50.80 mm x 54.00 mm (2.00" x 2.13") (Landscape / Portrait)
Maximum: 216.00 mm x 355.60 mm (8.50" x 14.00")
Long Document: 210.00 mm x 5588.00 mm (8.27" x 220.00") (18.30 ft.)
USB PortsUSB 3.0 (backward compatible)
Power Requirements100 to 240 VAC +/- 10%
Power ConsumptionOperating mode: 38 Watts or less
Sleep mode: 1.8 Watts or less
Auto Standby (Off) mode: 0.35 Watt or less
Operating Systems SupportedWindows 8.1 (32-bit / 64-bit)
Windows 8 (32-bit / 64-bit)
Windows 7 (32-bit / 64-bit)
Windows Vista (32-bit / 64-bit)
Windows XP (32-bit / 64-bit)
Windows Server 2012 (64-bit)
Windows Server 2012 R2 (64-bit)
Windows Server 2008 (32-bit / 64-bit)
Windows Server 2008 R2 (64-bit)
FeaturesDaily Duty Cycle: 4,000 Pages
Minimum PC Specification: Paper Stream IP i5 2.5 MHz Processor, 4 GB RAM
Operating Environment:
Temperature: 5 to 35 degrees Celsius (42 to 95 degrees Fahrenheit)
Relative Humidity: 20% - 80% (non-condensing)
Features:
USB 3.0 for forward compatibility
Continuous hard and embossed card scanning up to 1.40 mm thick
Ultrasonic Double-feed Detection sensor for security against lost images
Scan sticky notes, taped receipts, and labels while securing against multifeeds
Long document support up to 5.60 m (18.30 ft.) in PaperStream IP
Dimensions6.40" x 11.80" x 6.70"
Weight9.26 lbs.
Package ContentsADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM, Getting Started Guide
Software IncludedPaperStream IP (TWAIN / ISIS) Driver
Software Operation Panel
Error Recovery Guide
PaperStream Capture
ScanSnap Manager for fi Series
ABBYY FineReader for ScanSnap
Scanner Central Admin Agent
Тегло на пратката5.97 kg
Размери на опаковката523 × 307 × 277 mm

Други версии на този модел

1 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

Which version of the Fujitsu FI-7160 should I choose if I need the current model?

The PA03670-B055 is the model listed; the manufacturer notes it has been replaced by the PA03670-B085, so the B085 is the current version.

What does the 120 ipm duplex speed mean for everyday scanning?

At 200 or 300 dpi the scanner captures both sides of a page in a single pass, giving up to 120 images per minute — roughly two pages every second.

How does the USB 3.0 interface affect transfer speed in practice?

USB 3.0 provides enough bandwidth for the 60 ppm simplex and 120 ipm duplex rates at 300 dpi, and it remains compatible with older USB ports.
