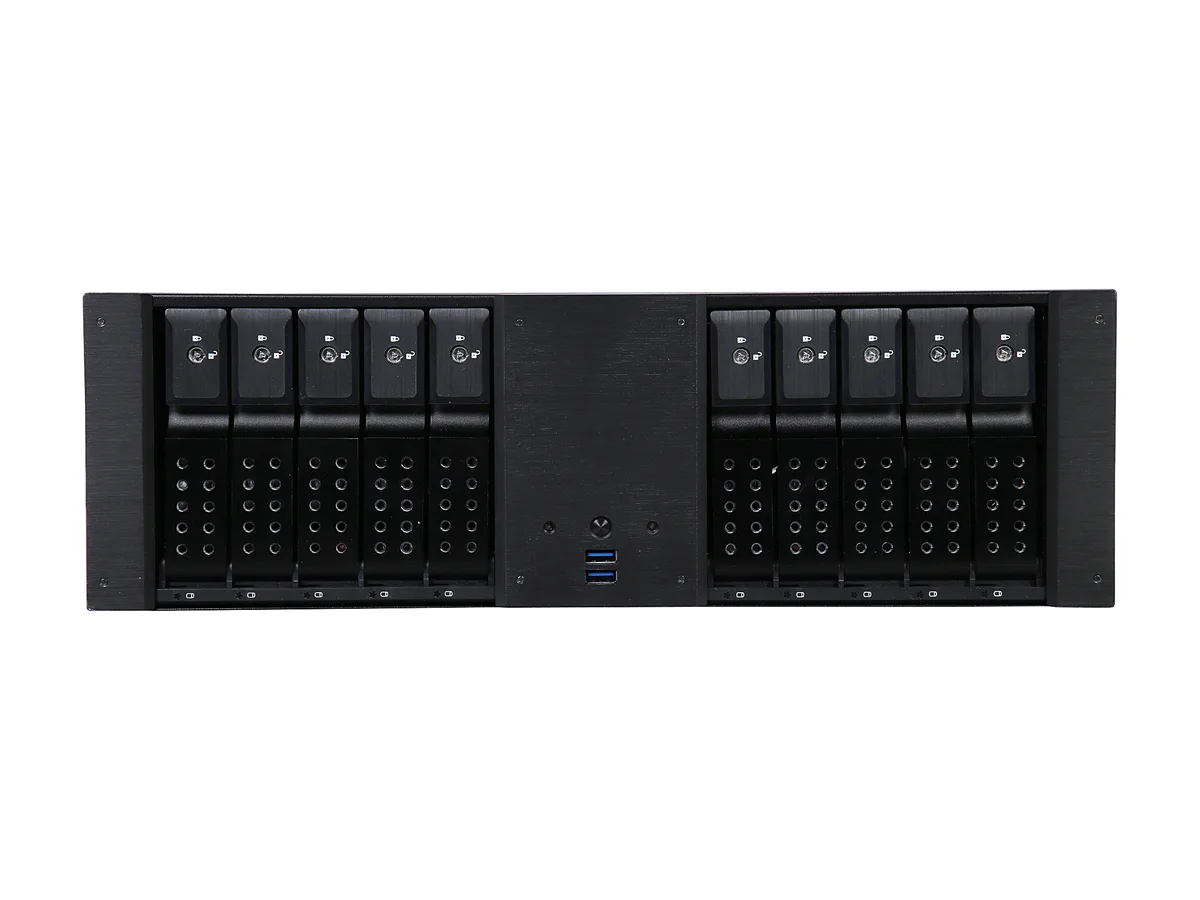

Black 3U rackmount server chassis with ten front hot-swap 3.5-inch drive bays and aluminum front panel

iStarUSA Inc.

iStarUSA Inc. D-3100HN 3U server chassis 10× 3.5" hotswap bays

SKU CH-TS0V-4PENV MPN D-3100HN

3U rackmount chassis holds ten trayless hot-swap 3.5" bays plus one internal bay, supports ATX and microATX boards, and includes dual 80 mm fans

  • Chassis TypeRackmount
  • Form Factor3U
  • ColorBlack
  • Case MaterialAluminum
  • Motherboard Compatibility12 x 9.6 (ATX, microATX)
  • Hot-Swap Drive Bays3.5": 10

Model D-3100HN

  • Ten trayless hot-swap 3.5" bays enable rapid drive changes
  • Front dual USB 3.0 ports give quick peripheral access
  • Aluminium front panel adds rigidity and clean aesthetics
  • Rackmount or desktop convertible design fits diverse deployments
  • Two 80 mm fans deliver direct airflow across drives

3U rackmount with 10 hot-swap bays

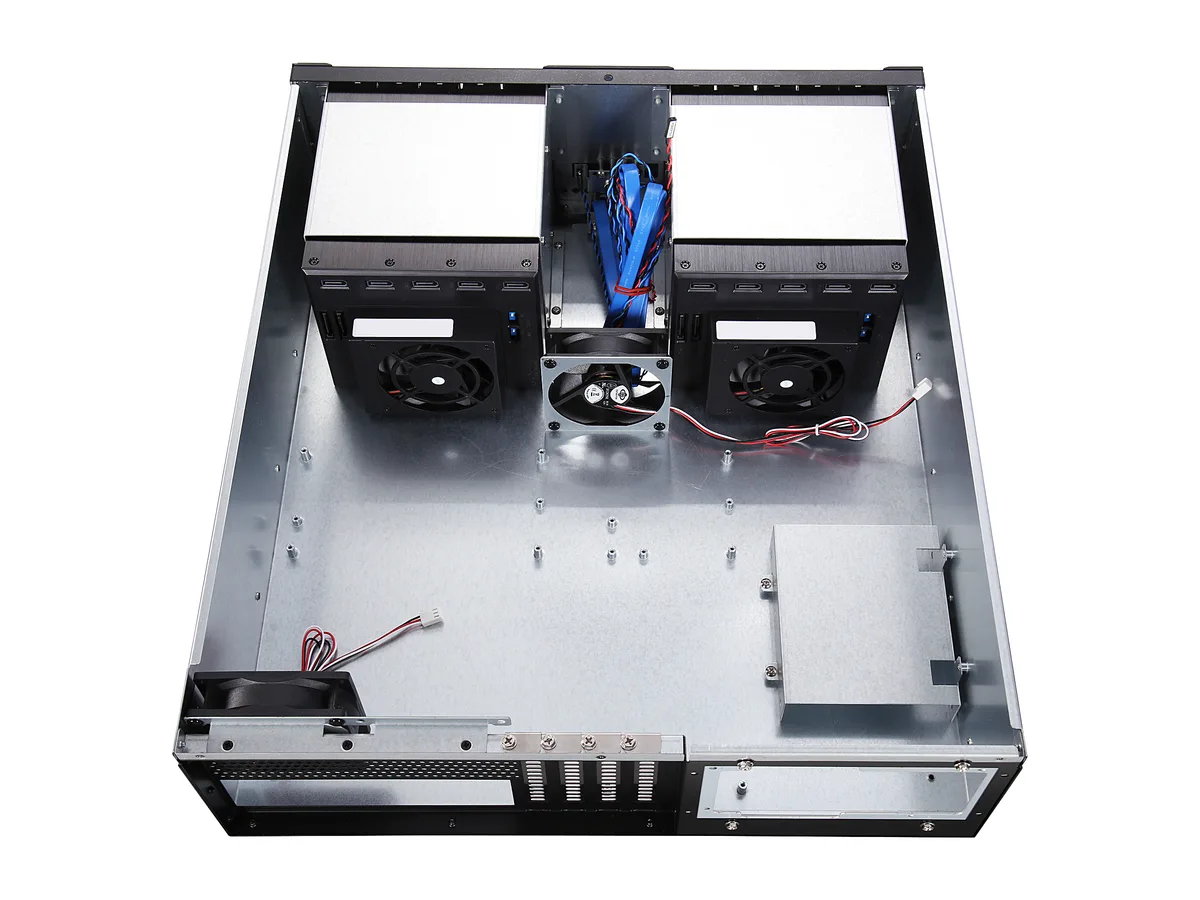

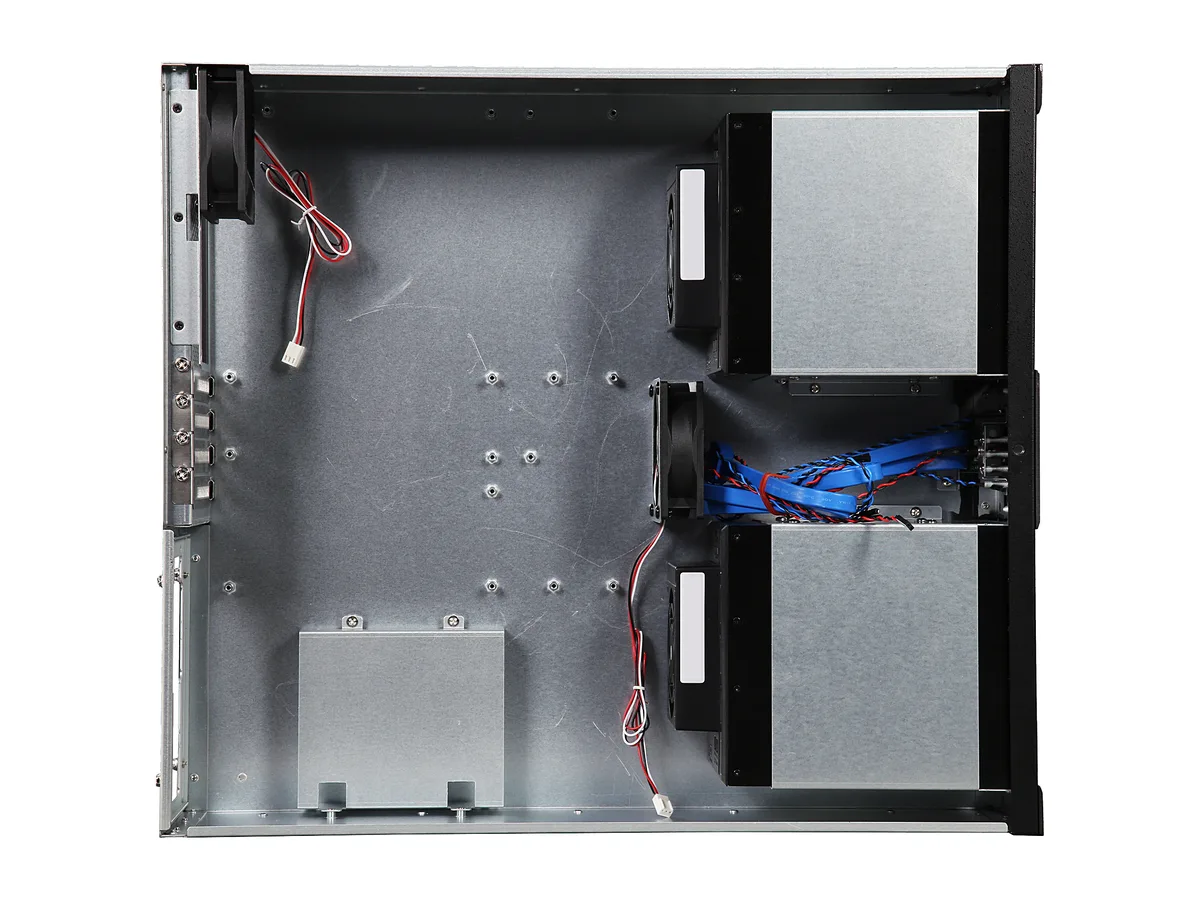

The iStarUSA D-3100HN is a 3U rackmount server chassis built around ten trayless 3.5-inch hot-swap drive bays and one internal 3.5-inch bay. It accepts ATX and microATX motherboards up to 12 by 9.6 inches and includes four expansion slots. Two 80mm fans and front USB 3.0 ports complete the core feature set for storage-focused deployments.

Storage servers needing high bay density

This chassis suits builders who need many 3.5-inch drives in a compact 3U envelope and value trayless hot-swap convenience. It is not for systems that require more than four expansion slots or motherboards larger than the stated ATX and microATX dimensions. Buyers needing 5.25-inch optical bays or 2.5-inch-only drive configurations should consider other form factors.

Ten trayless 3.5-inch hot-swap bays

The defining specification is the ten front-accessible 3.5-inch bays that support SAS I/II and SATA I/II/III drives at up to 6.0 Gb/s without trays. This bay count and trayless mechanism determine whether the chassis matches a given storage capacity and serviceability requirement.

Акценти

  • Ten trayless hot-swap 3.5" bays enable rapid drive changes
  • Front dual USB 3.0 ports give quick peripheral access
  • Aluminium front panel adds rigidity and clean aesthetics
  • Rackmount or desktop convertible design fits diverse deployments
  • Two 80 mm fans deliver direct airflow across drives

Спецификации

BrandiStarUSA
ModelD-3100HN
Chassis TypeRackmount
Form Factor3U
ColorBlack
Case MaterialAluminum
Motherboard Compatibility12 x 9.6 (ATX, microATX)
Hot-Swap Drive Bays3.5": 10
Internal 3.5" Drive Bays1

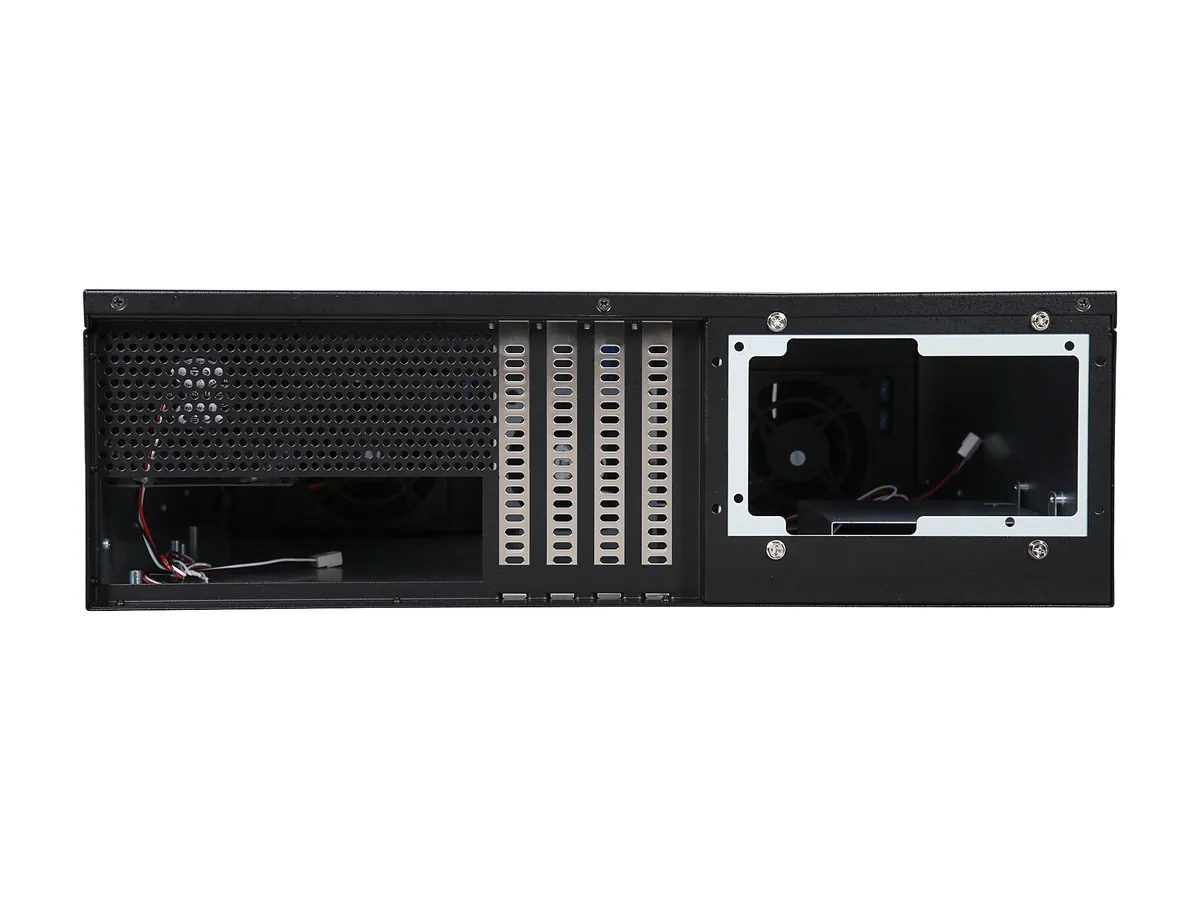

Expansion Slots4
Front Ports2x USB 3.0
80mm Fans2
Features10x Hotswappable and Trayless 3.5" Drive Bays
Rackmount or Desktop Convertible
Compatible with PS2 and PS3 Power Supply
PS2 mini Redundant PSU Compatible
Aluminum Sleek Front Panel
Front 2x USB 3.0 ports
Power & HDD Indicators in the Front
Dimensions5.22" x 18.98" x 20.43"
Weight23.00 lbs.
Тегло на пратката10.09 kg
Размери на опаковката602 × 549 × 262 mm

Други версии на този модел

1 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

Does the chassis come with drive trays or do I need to buy them separately?

The ten 3.5" bays are trayless, so no separate trays are required for hot-swap drives.

Which drive interface should I choose for the ten hot-swap bays, SAS or SATA?

The backplane accepts 3.5" SAS I/II and SATA I/II/III drives, so either interface works; pick SAS for dual-port redundancy or SATA for lower cost.

What does the 6.0 Gb/s rating mean for drive performance in this chassis?

It indicates the backplane supports SATA III speeds, so a 6 Gb/s drive will run at its full native transfer rate.
