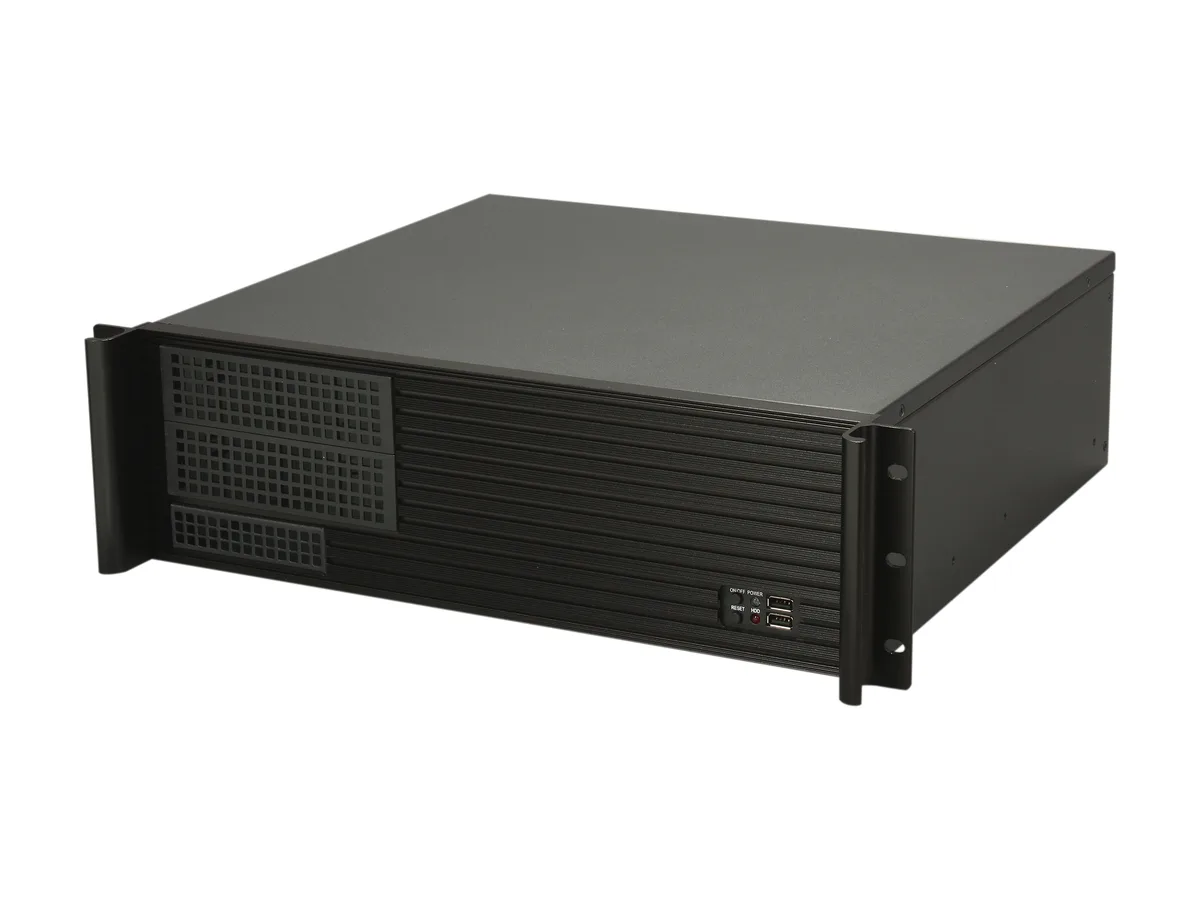

Black 3U aluminium rackmount chassis, front bezel with two 5.25in bays, one 3.5in bay, USB 2.0 ports, power and reset switches

iStarUSA Inc.

iStarUSA Inc. D-313ASE-MATX 3U rackmount server chassis

SKU CH-YZXX-N0QRD MPN D-313ASE-MATX

A 3U aluminium rackmount chassis holding a microATX board, two 5.25in external bays, one external and four internal 3.5in bays, four full-height slots and front USB 2.0 ports

  • Chassis TypeRackmount
  • Form Factor3U
  • ColorBlack
  • Case MaterialAluminum
  • Motherboard Compatibility9.6" x 9.6" (microATX)
  • External 5.25" Drive Bays2

Model D-313ASE-MATX

  • 3U rack height fits standard 19" cabinets
  • 15-inch depth saves space in short racks
  • aluminium construction reduces weight and aids cooling
  • four internal 3.5" bays plus two 5.25" bays for storage density
  • front USB 2.0 ports give easy peripheral access

Compact 3U rackmount chassis for microATX builds

The iStarUSA D-313ASE-MATX is a 3U aluminium rackmount server chassis designed for microATX motherboards measuring 9.6" x 9.6". It provides a compact 15in. depth profile suitable for space-constrained server rooms or industrial environments. The black finish and lockable front bezel offer a professional appearance with basic physical security.

Straightforward installation

The chassis accepts a standard ATX PS2 power supply and supports four full-height expansion slots for add-on cards. Drive installation uses two external 5.25" bays, one external 3.5" bay and four internal 3.5" bays. Front-panel access includes two USB 2.0 ports, power and reset switches, plus power and HDD activity indicators. Optional cooling mounts accept 80mm or 60mm fans, but no fans are included.

MicroATX board compatibility defines the fit

Only motherboards matching the 9.6" x 9.6" microATX form factor will mount correctly in this chassis. Builders needing ATX or E-ATX board support, or those requiring more than four expansion slots, must choose a different enclosure. The 15in. depth also limits the length of graphics cards or storage controllers that can be installed.

Акценти

  • 3U rack height fits standard 19" cabinets
  • 15-inch depth saves space in short racks
  • aluminium construction reduces weight and aids cooling
  • four internal 3.5" bays plus two 5.25" bays for storage density
  • front USB 2.0 ports give easy peripheral access

Спецификации

BrandiStarUSA
ModelD-313ASE-MATX
Chassis TypeRackmount
Form Factor3U
ColorBlack
Case MaterialAluminum
Motherboard Compatibility9.6" x 9.6" (microATX)
External 5.25" Drive Bays2
External 3.5" Drive Bays1
Internal 3.5" Drive Bays4
Expansion Slots4
Front Ports2 x USB 2.0
FeaturesIndicators: Power, HDD
Switches: Power, Reset
Security: Front Bezel
Material of Front Bezel: Aluminum
Material of Handle: Aluminum
Material of Main Chassis: Aluminum
Color of Front Bezel: Black
Color of Main Chassis: Black
Air Filter: Yes
Power and Reset Switchth
Support ATX PS2 Power Supply
Support 4 x Full Height Add-on Cards
Aluminum Chassis
Dimensions5.25" x 19.00 x 17.55"
Тегло на пратката6.35 kg
Размери на опаковката544 × 544 × 259 mm

Други версии на този модел

2 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How can I confirm the D-313ASE-MATX is operating correctly once installed?

The front panel has power and HDD LED indicators that light up when the system is running and drive activity occurs.

What comes with the D-313ASE-MATX and what must I source separately?

The chassis includes a front bezel with air filter, two front USB 2.0 ports, power and reset switches, and supports microATX boards up to 9.6 x 9.6 inches; power supply, motherboard, drives and add-on cards are not included.

Which drive bay configuration suits my storage needs in the D-313ASE-MATX?

It provides two external 5.25-inch bays, one external 3.5-inch bay and four internal 3.5-inch bays for mixed optical and hard drive setups.
