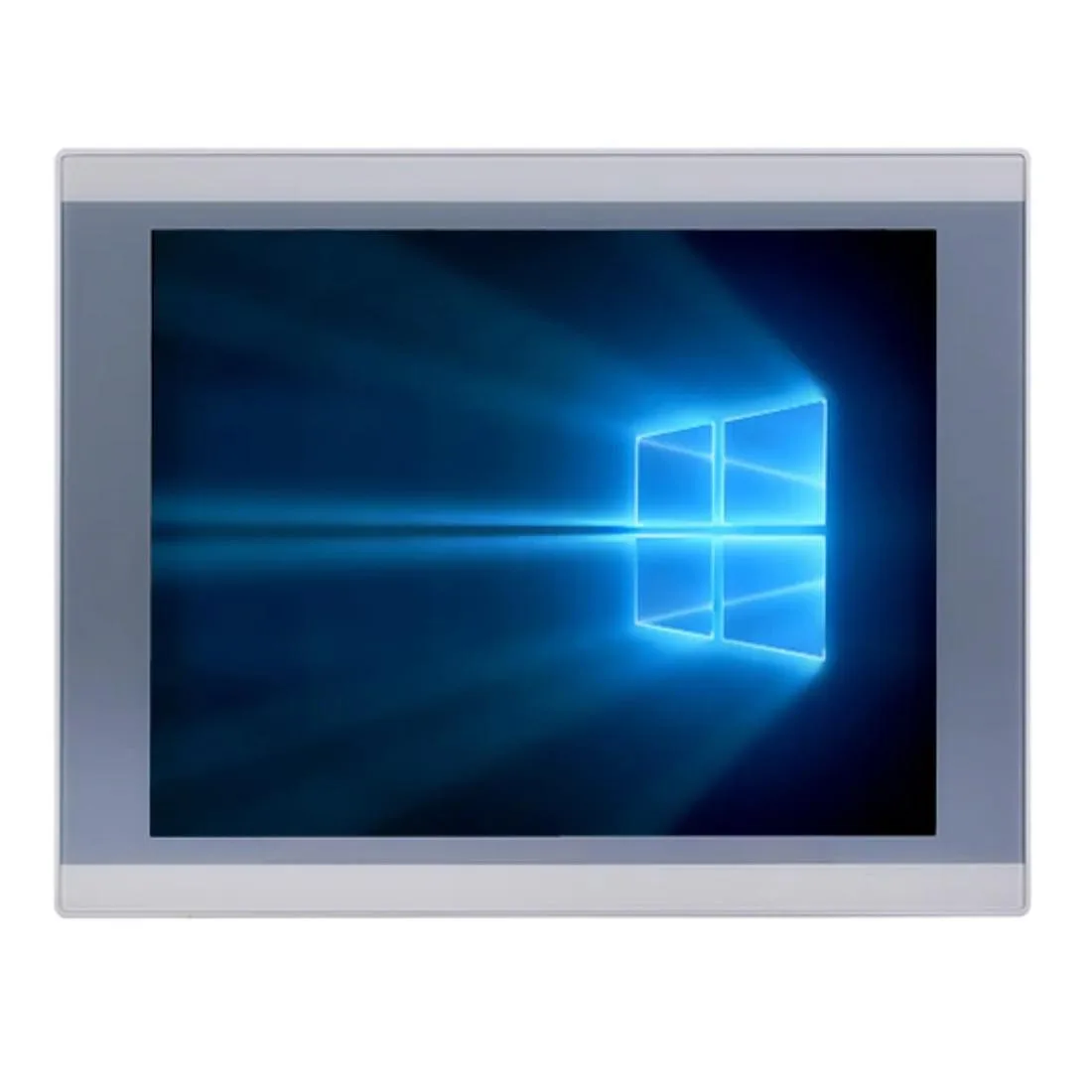

Silver 12.1-inch industrial all-in-one panel PC with IP65 front and capacitive touch screen

partaker

partaker A1 12.1" all-in-one PC i5-1135G7 32GB 512GB 1TB

SKU CH-GV47-SXFR6

12.1" IP65 industrial panel PC with 10-point capacitive touchscreen, Intel Core i5-1135G7, 32GB DDR4, 512GB SSD and 1TB HDD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

Зачертаните версии съществуват, но не се предлагат тук.

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch screen handles multi-finger input
  • Fanless aluminium alloy chassis runs silently 24/7
  • 32 GB DDR4 memory with room to expand to 64 GB
  • Dual storage: 512 GB SSD plus 1 TB HDD installed

Industrial 12.1-inch touch panel PC

The Partaker A1 integrates an Intel Core i5-1135G7 processor with 32GB DDR4 memory, a 512GB SSD and a 1TB HDD behind a 12.1-inch IP65-rated front panel. Its 10-point projected capacitive touchscreen and fanless aluminium chassis target factory automation, kiosk and embedded deployments that demand continuous 24/7 operation in dusty or wet environments. Windows 11 Pro ships pre-installed for immediate deployment.

Fanless cooling and wide temperature range

The aluminium alloy chassis dissipates heat silently without moving parts, supporting ambient temperatures from 0 to 50°C when the SSD is primary and 0 to 40°C with the HDD active. A 12V DC input accepts 100-240V AC via the included adapter, and the watchdog timer offers 255 levels of system monitoring. Low acoustic output suits noise-sensitive control rooms or medical settings.

Upgrades from smaller sealed panels

The A1 replaces legacy 10-inch or non-touch industrial PCs where extra screen area, dual LAN ports and two serial COM ports simplify PLC and sensor connectivity. The jump is justified when an application needs 32GB RAM headroom, combined SSD and HDD storage, or expansion via M.2 Key E for WIFI6 and Key B for 5G with a SIM slot. Buyers who require a brighter display than 350cd/m² or a wider operating range than 0-50°C should evaluate other models.

Акценти

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch screen handles multi-finger input
  • Fanless aluminium alloy chassis runs silently 24/7
  • 32 GB DDR4 memory with room to expand to 64 GB
  • Dual storage: 512 GB SSD plus 1 TB HDD installed

Спецификации

ModelA1-PA-121TPC-CE6B(I5B)-32G512G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How do I install this 12.1" panel PC and what step is often missed?

Cut a 301 x 229 mm opening, secure the embedded buckle kits, connect 12 V DC, and remember to enable the auto power-on after power failure setting in BIOS so the unit restarts without a button press.

What maintenance or replacement will the 12.1" touchscreen need later?

The backlight is rated for a minimum of 30,000 hours and the 10-point capacitive touch layer for 200 million touches; plan a panel swap once brightness drops below usable levels.

What limit appears first during sustained 24/7 operation with the 1 TB HDD installed?

Operating temperature is capped at 40 °C when the HDD is used, so the thermal ceiling will be reached before the SSD-only 50 °C limit or the watchdog timer threshold.
