Compact 12.1 inch industrial all-in-one panel PC with aluminium fanless chassis and projected capacitive touchscreen

partaker

Partaker A1 12.1" i7-6500U 8GB 256GB all-in-one PC

SKU CH-W9H3-XRYSY

12.1" IP65 industrial all-in-one with i7-6500U, 8GB DDR3, 256GB SSD, 10-point touch and fanless cooling

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • GPU/VGA TypeIntel HD Graphics 520
  • Memory Capacity8GB DDR3
  • SSD256GB

Memory Capacity 8GB DDR3

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch for precise multi-finger input
  • Fanless aluminium chassis runs silently 24/7
  • i7-6500U with 8 GB DDR3L handles industrial workloads
  • 256 GB SSD plus three expansion slots for storage growth

Industrial Panel PC for 24/7 Operation

The Partaker A1 is a 12.1" all-in-one computer built for continuous industrial use. Its IP65-rated front panel resists dust and water jets, while the fanless aluminium chassis runs silently. A 10-point projected capacitive touchscreen and Intel Core i7-6500U processor with 8GB DDR3L RAM and 256GB SSD handle demanding control and monitoring tasks.

Connectivity Limits of HD, VGA and Dual LAN

Video output relies on HD and VGA ports, so the maximum external resolution is 1024 x 768 at 60 Hz. Two Gigabit LAN ports provide redundant wired networking but there is no built-in wireless; a Mini PCIe slot with SIM holder accepts optional Wi-Fi or 4G modules. Four USB ports (two 3.0, two 2.0) and two COM ports cover legacy and modern peripherals.

Fanless Build and Embedded Mounting Implications

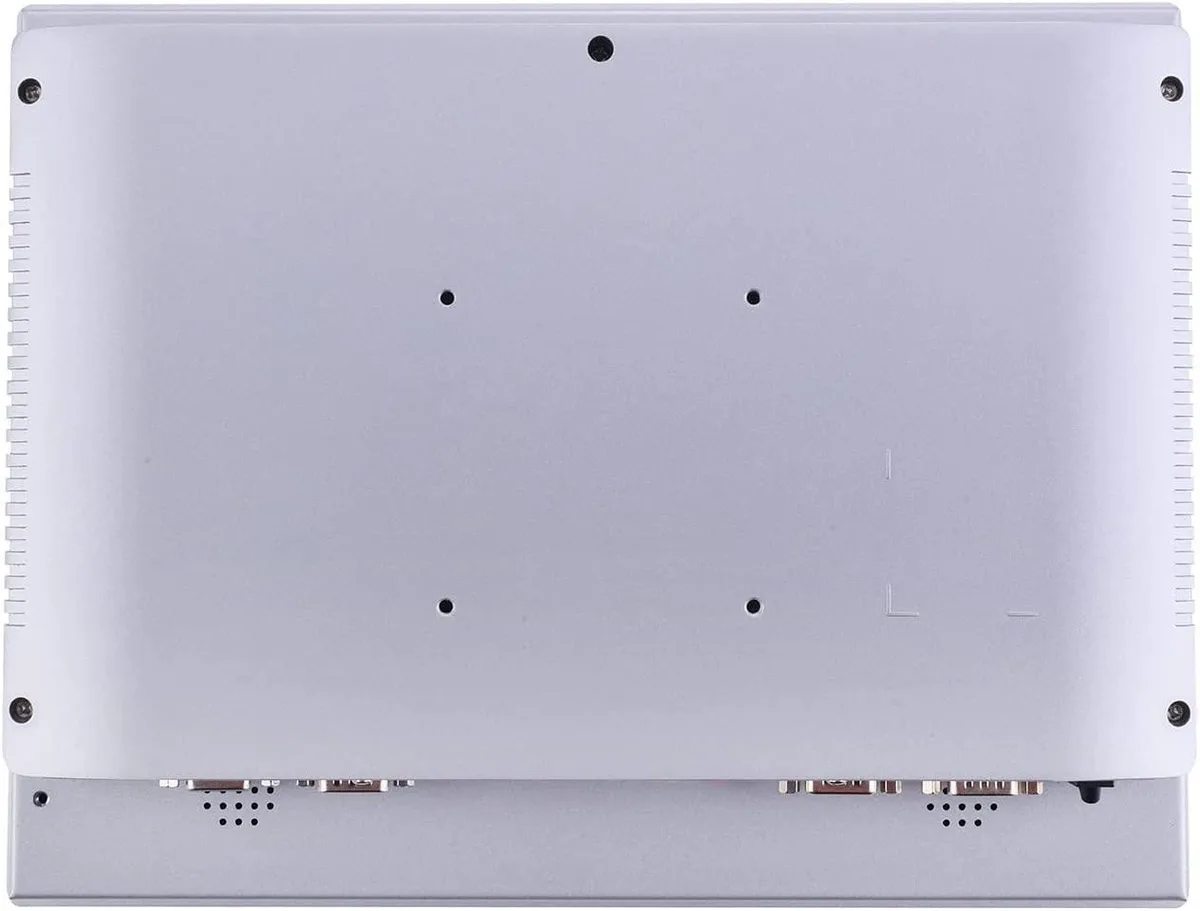

Passive cooling means zero moving parts and an operating range of 0 to 50 °C with the installed SSD. The unit weighs 3.1 kg and fits a 301 x 229 mm cut-out for embedded, wall, desktop or cantilever mounting. DC 12 V input accepts 100–240 V AC via the supplied adapter, and the aluminium frame doubles as a heatsink for long-term reliability.

Акценти

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch for precise multi-finger input
  • Fanless aluminium chassis runs silently 24/7
  • i7-6500U with 8 GB DDR3L handles industrial workloads
  • 256 GB SSD plus three expansion slots for storage growth

Спецификации

ModelA1-PA-121TPC-CE6B(I76)-8G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

Should I choose the 8 GB DDR3 configuration or upgrade to the 16 GB maximum?

The unit ships with 8 GB DDR3L-1600 across two SODIMM slots and supports a maximum of 16 GB, so you can add another module later if workloads demand more memory.

What does the i7-6500U’s 3.10 GHz turbo mean for daily industrial workloads?

The dual-core processor reaches 3.10 GHz on turbo, giving responsive performance for HMI, SCADA and light edge-computing tasks while the fanless aluminium chassis keeps operation silent.

Which video outputs does the HDMI port support and what resolution can it drive?

HDMI and VGA are both available; the integrated Intel HD Graphics 520 drives the internal 1024 x 768 panel and can output up to 4K on an external display via HDMI.
