Silver 12.1 inch industrial panel PC with resistive touchscreen and fanless aluminium housing

partaker

partaker A2 12.1" Industrial Panel PC i5 6th Gen 2.0GHz 8GB DDR3 512GB SSD

SKU CH-66RW-XZ72K

A 12.1" IP65-rated industrial panel PC with Intel Core i5 6th Gen, 8GB DDR3, 512GB SSD, resistive touchscreen and fanless aluminium housing

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel Iris Graphics 540

GPU Intel Iris Graphics 540

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

Зачертаните версии съществуват, но не се предлагат тук.

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis operates silently in harsh environments
  • Intel Core i5 6th Gen 2.0 GHz with 8 GB DDR3L handles industrial workloads
  • 512 GB SSD provides fast, reliable storage with no moving parts
  • 1" resistive touchscreen rated for 200 million touches

Industrial 12.1" Panel PC

The Partaker A2 is a compact all-in-one computer built for embedded industrial use. It integrates an Intel Core i5 6th Gen processor at 2.00GHz with 8GB DDR3L memory and a 512GB SSD. The 12.1" TFT LED display features a high-temperature 5-wire resistive touchscreen protected to IP65 on the front panel. Fanless aluminium alloy construction enables silent operation in dusty or vibration-prone environments.

Sustained thermal performance

Fanless cooling relies on the aluminium chassis to dissipate heat from the i5 processor and Intel Iris Graphics 540 during continuous duty. The system is rated for 0–50°C operating temperature with the installed SSD, dropping to 0–40°C if a mechanical hard drive is added later. Backlight life is specified at a minimum of 30000 hours. The resistive touch layer is tested to 200 million touches, supporting long-term reliability in high-cycle applications.

Interface and expansion limits

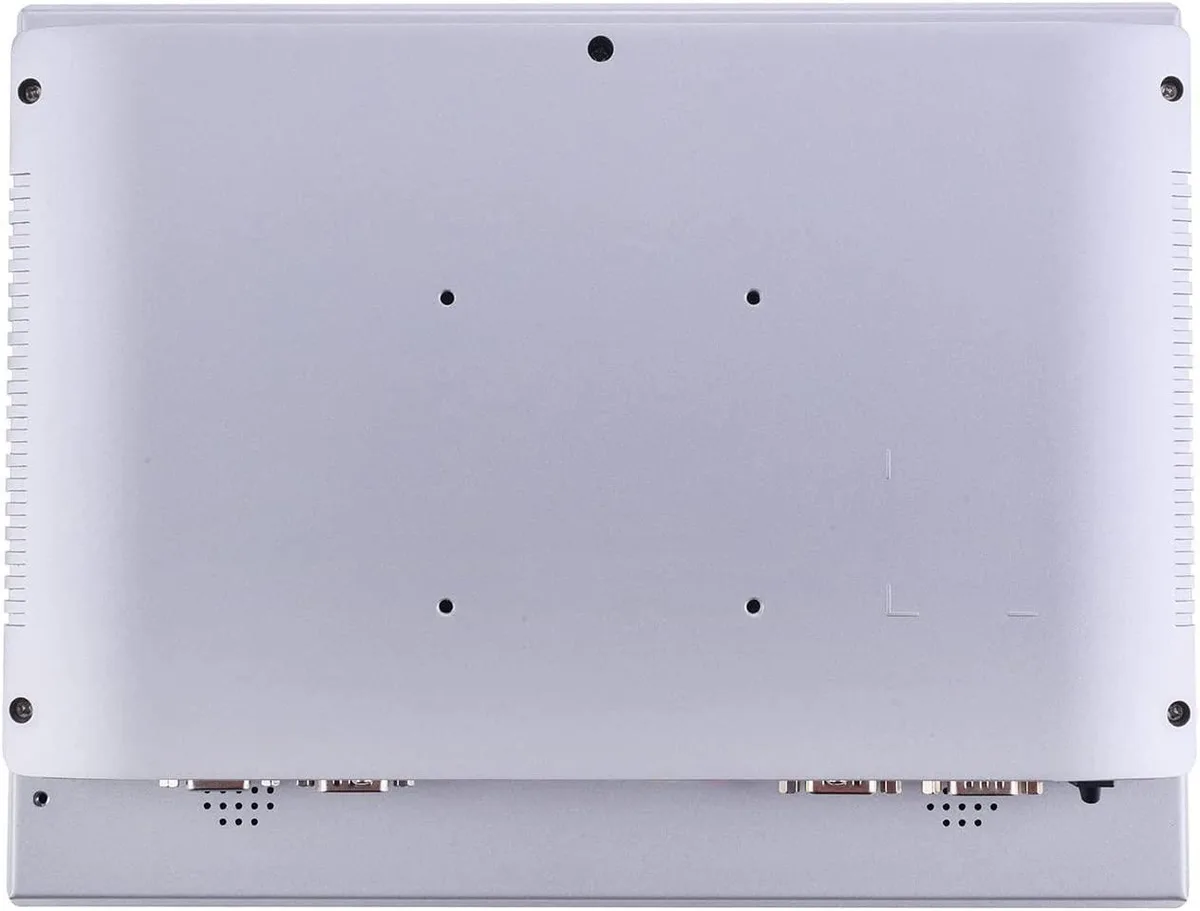

Video output is provided through one HDMI and one VGA port for dual-display configurations. Networking uses a single LAN port; wireless connectivity requires a Mini PCIe card and SIM slot, neither included. Storage expansion allows one mSATA SSD and one 2.5" SATA drive. Four USB ports (two 3.0, two 2.0) and two COM ports handle peripheral and legacy serial connections. The unit mounts via embedded buckles or VESA 75 pattern.

Акценти

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis operates silently in harsh environments
  • Intel Core i5 6th Gen 2.0 GHz with 8 GB DDR3L handles industrial workloads
  • 512 GB SSD provides fast, reliable storage with no moving parts
  • 1" resistive touchscreen rated for 200 million touches

Спецификации

ModelA2-PA-121TPC-CE5B(I56)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU Name2.00GHz
GPU/VGA TypeIntel Iris Graphics 540
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How much heat does the fanless aluminium chassis produce when the i5 6th Gen runs at 2.0 GHz continuously?

The fanless aluminium housing dissipates heat passively; the unit is rated for 0 – 50 °C operating temperature with the SSD installed.

Which cables or peripherals must I already have to power and operate the panel PC out of the box?

A 12 V DC supply is required; the package includes the AC-DC adapter, power cord and embedded mounting buckles.

Can the VGA and HDMI ports drive a second monitor while the built-in 12.1" 1024×768 screen stays active?

Yes, both VGA and HDMI outputs are present and can mirror or extend the desktop alongside the internal panel.
