15-inch IP65 industrial all-in-one panel PC with resistive touchscreen, fanless aluminium chassis

partaker

partaker A5 15" IP65 i7-8565U 8GB DDR4 128GB all-in-one PC

SKU CH-GAEM-JZWMP

A 15-inch IP65-rated industrial all-in-one with a high-temperature 5-wire resistive touchscreen, Intel Core i7-8565U processor, 8GB DDR4 memory and 128GB storage

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • HDDNo

Memory Capacity 8GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 8GB DDR4

SSD

HDD None

  • 1TB
  • None

Зачертаните версии съществуват, но не се предлагат тук.

  • IP65 front panel resists dust and water in harsh environments
  • 5-wire resistive touchscreen works reliably from 0 to 50 °C
  • Intel i7-8565U up to 4.60 GHz handles 24/7 industrial workloads
  • Fanless aluminium cooling runs silently with no moving parts
  • Expandable to 64 GB DDR4 via two SODIMM slots

Industrial panel PC for harsh environments

The Partaker A5 is a 15-inch all-in-one computer with an IP65-rated front panel designed for dusty or wet industrial settings. It runs on an Intel Core i7-8565U processor with 8GB of DDR4 memory and a 128GB SSD, offering fanless passive cooling for silent 24/7 operation. Windows 11 Pro comes preinstalled for immediate deployment.

Resistive touch and fixed 1024 x 768 resolution

The 5-wire resistive touchscreen works with gloves or stylus input and withstands 35 million touches, but the panel resolution is fixed at 1024 x 768 with 350 cd/m² brightness. Video output is limited to HDMI and VGA ports, while storage expansion relies on mSATA, M.2 2280, and a 2.5-inch SATA bay. Two LAN ports and dual COM ports handle legacy industrial networking.

Check mounting cut-out and DC power before ordering

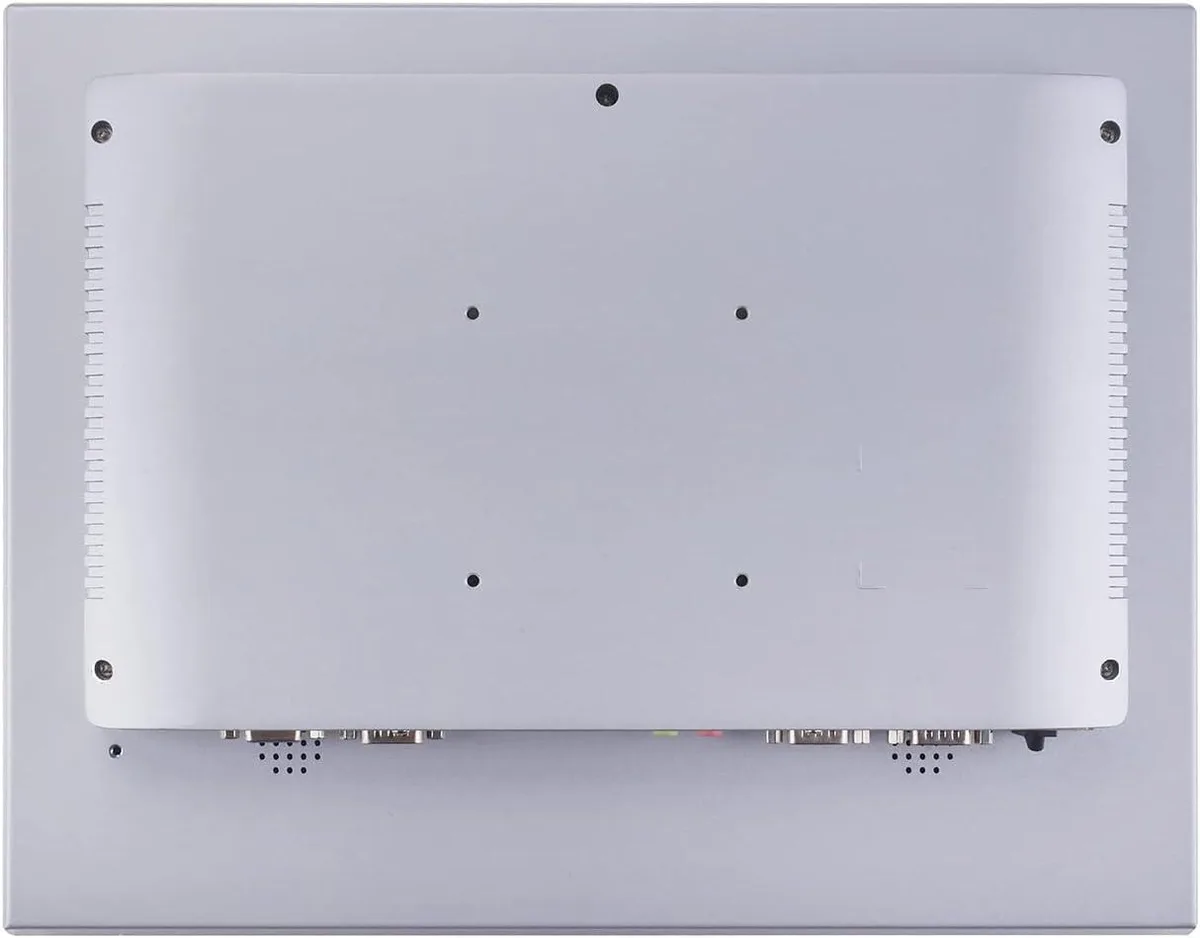

The unit requires a 348 x 272 mm panel cut-out for embedded installation and operates on a 12 V DC supply from the included 100-240 V AC adapter. Operating temperature ranges from 0 to 50 °C with an SSD fitted. Verify that your enclosure depth accommodates the 54 mm chassis and that legacy COM or VGA peripherals match the available I/O.

Акценти

  • IP65 front panel resists dust and water in harsh environments
  • 5-wire resistive touchscreen works reliably from 0 to 50 °C
  • Intel i7-8565U up to 4.60 GHz handles 24/7 industrial workloads
  • Fanless aluminium cooling runs silently with no moving parts
  • Expandable to 64 GB DDR4 via two SODIMM slots

Спецификации

ModelA5-PA-150TPC-CE5A(I78)-8G128G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
HDDNo
Screen Size15"
TouchscreenYes

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

Should I pick the 8 GB DDR4 model or plan for the 64 GB maximum?

The unit ships with 8 GB DDR4-2400 in two SODIMM slots and supports up to 64 GB total.

What does the i7-8565U 4.60 GHz boost mean for daily industrial workloads?

The quad-core processor reaches 4.60 GHz single-core turbo, giving strong burst performance for HMI, SCADA and PLC tasks while the fanless chassis keeps noise at zero.

Which display interfaces are available and what resolution do they support?

HDMI and VGA ports drive external monitors up to 1024 x 768 on the built-in panel; higher resolutions depend on the connected display and cable quality.
