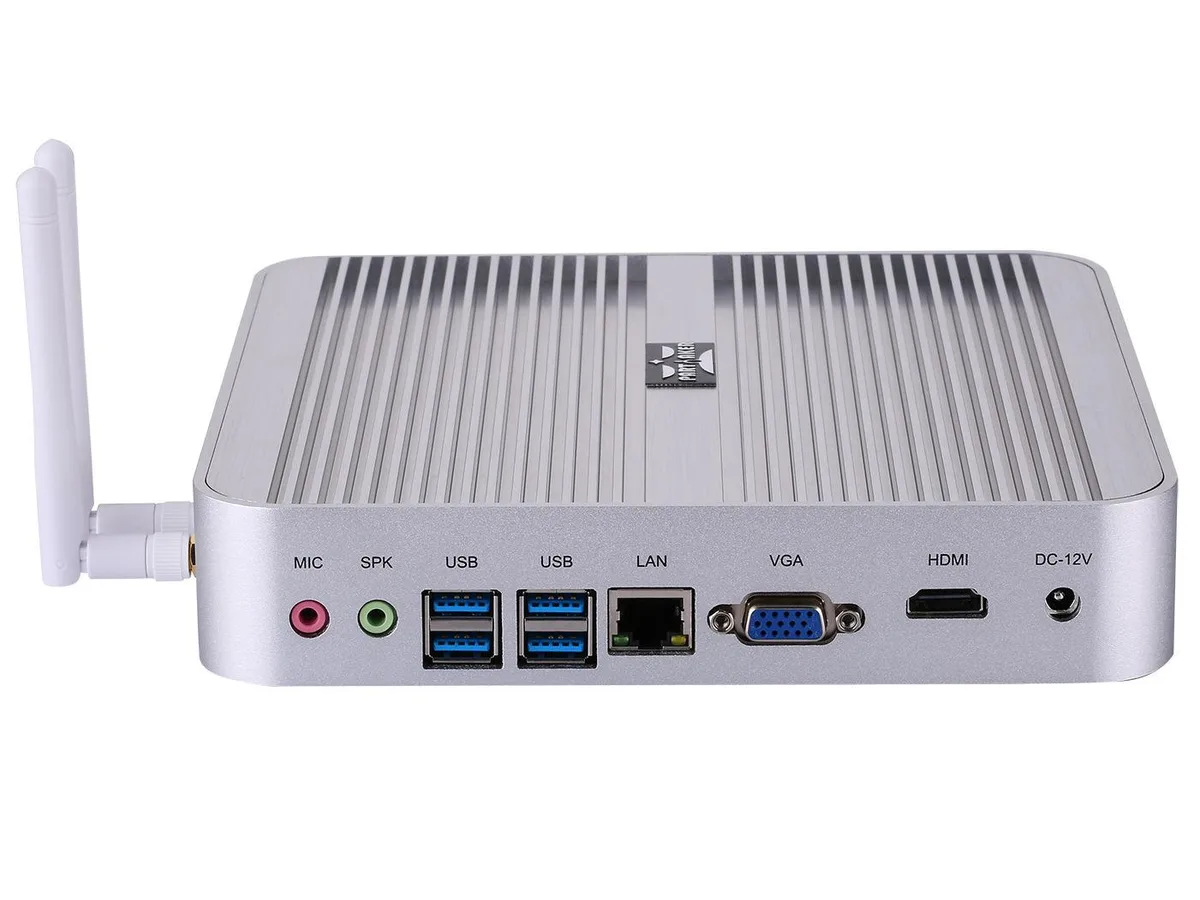

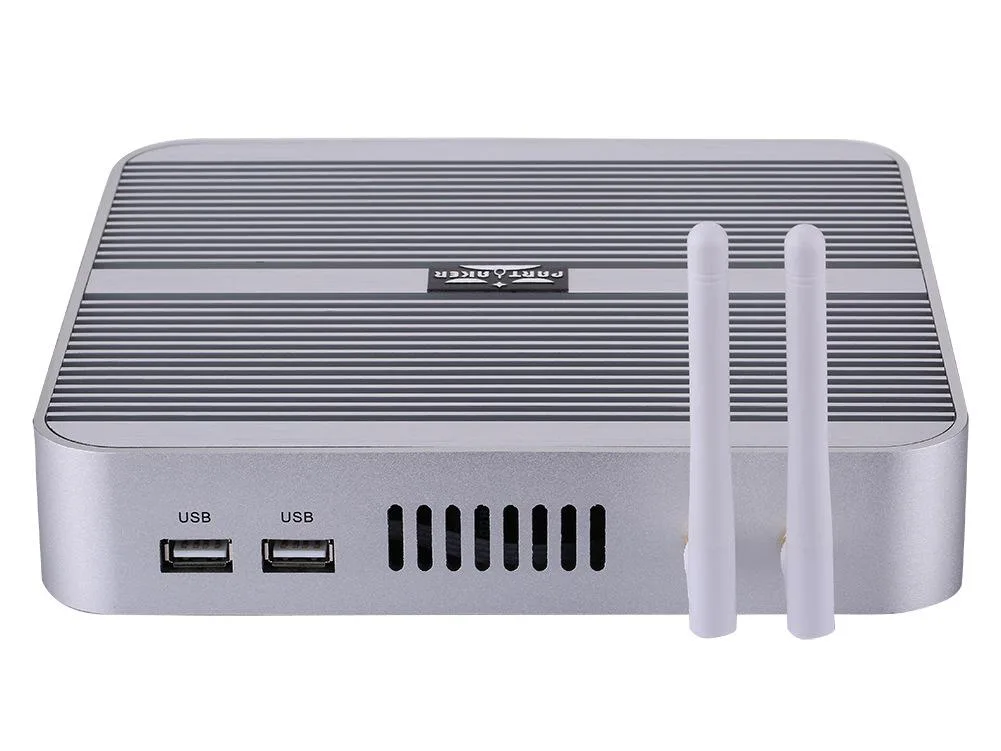

Silver fanless aluminium mini PC, compact square chassis with vertical stand and Wi-Fi antennas

partaker

Partaker B1 barebone mini PC i5 8th Gen 32GB 512GB

SKU CH-HT2D-VTXMH

Fanless mini desktop with Intel Core i5 8th Gen, 32 GB DDR4, 512 GB SSD, Windows 11 Pro, dual 4K display support and Gigabit LAN

  • ColorSilver
  • CPU TypeIntel Core i5 8th Gen

Group 32GB RAM+512GB SSD

  • Silent operation with fanless 15W passive cooling
  • Ready-to-use Windows 11 Pro pre-installed system
  • Dual 4K display via HDMI 1.4 and VGA
  • 32GB DDR4 memory and 512GB SSD installed
  • Compact 197 x 197 x 37mm aluminium chassis

Fanless mini PC with 8th Gen Core i5

The Partaker B1 is a compact barebone system built around an Intel Core i5 8th generation processor, supplied with Windows 11 Pro already installed. It ships with 32 GB of DDR4 memory and a 512 GB SSD, so it is ready for office, kiosk or light industrial workloads without further assembly.

Passive cooling at 15 W TDP

A fanless aluminium chassis dissipates heat silently, keeping the system at 15 W typical power draw. The supplier notes roughly 1–2 kWh per week with eight hours of daily use, and the operating temperature range spans 0 °C to 70 °C.

Dual 4K display via HDMI 1.4 and VGA

The HDMI 1.4 port drives 4096 × 2304 at 24 Hz, while VGA provides a second independent or mirrored output. Buyers who need higher refresh rates at 4K or a DisplayPort connection should look elsewhere.

Акценти

  • Silent operation with fanless 15W passive cooling
  • Ready-to-use Windows 11 Pro pre-installed system
  • Dual 4K display via HDMI 1.4 and VGA
  • 32GB DDR4 memory and 512GB SSD installed
  • Compact 197 x 197 x 37mm aluminium chassis

Спецификации

ColorSilver
CPU TypeIntel Core i5 8th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How do I attach the optional VESA mount to the rear of the B1 mini PC?

The chassis has an optional VESA mounting interface; secure the bracket with four screws aligned to the rear pattern, then hang the unit — the step most people skip is tightening all four screws evenly so the fanless case sits flat against the wall.

Which storage slots can I upgrade later on the Partaker B1?

The board provides one mSATA slot, one M.2 2280 slot supporting SATA or NVME, and one 2.5-inch SATA bay for an additional SSD or HDD.

What is the first thermal limit reached during sustained load on the fanless i5 system?

The operating temperature ceiling is 70 °C; under continuous heavy workloads the passive aluminium chassis will hit this limit before any throttling or shutdown occurs.
