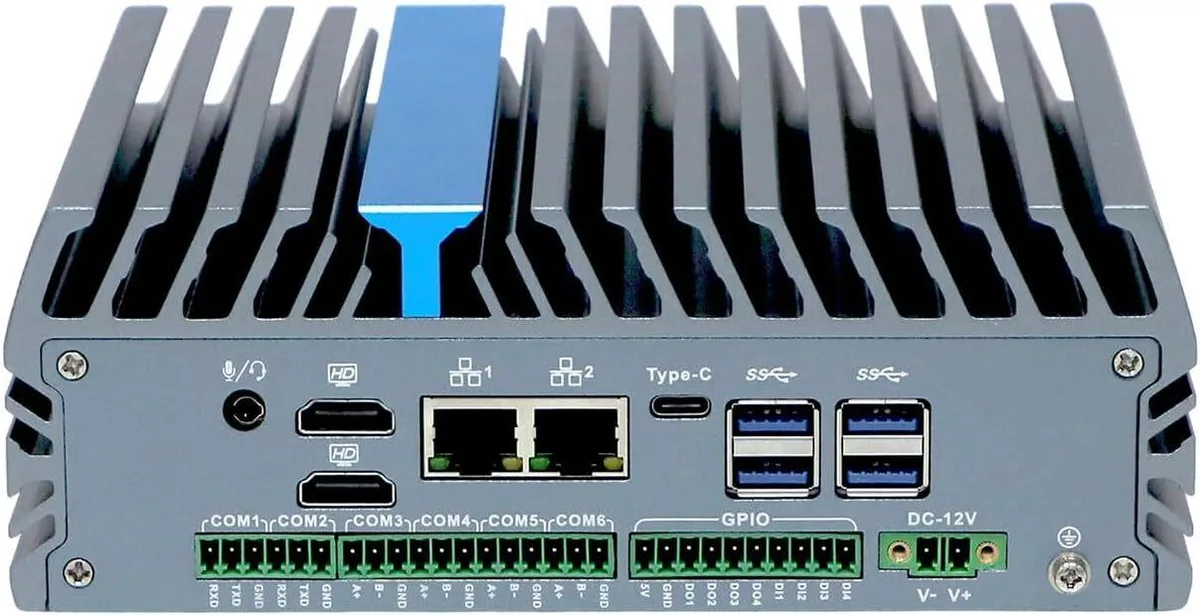

Compact gray aluminum mini PC, fanless, 186 by 140 by 66 mm

partaker

partaker I18 N100 16G 512G barebone mini PC

SKU CH-JBH7-VGF8B

Fanless industrial mini PC with an Intel N100 quad-core processor, 16 GB DDR5 memory, 512 GB storage, dual 2.5G Ethernet, six COM ports and isolated GPIO for automation and signage

  • ColorGray
  • CPU TypeIntel Processor

I18 CPU N100 16GB RAM / 512GB SSD

  • Silent fanless aluminium cooling handles -20°C to 50°C industrial ranges
  • Quad-core N100 processor reaches 3.4 GHz turbo with DDR5 4800 MHz memory
  • Dual 2.5G Intel I226-V Ethernet plus six COM ports for automation
  • Triple 4K 60 Hz output via two HDMI and one Type-C
  • Wide 12 V DC Phoenix input supports wake-on-LAN, PXE and watchdog 0-255

Industrial fanless mini PC

The Partaker I18 is a compact barebone system built around the Intel N100 quad-core processor with a 3.4 GHz turbo frequency. Its all-aluminium chassis dissipates heat silently across a -20 °C to 50 °C operating range, making it suitable for factory floors, digital-signage kiosks and medical carts where moving parts are a liability. The unit ships with 16 GB of DDR5 memory and a 512 GB SSD installed, ready for immediate deployment.

Dual 2.5G Ethernet with industrial I/O

Two Intel I226-V controllers provide 2.5 Gbps wired networking for deterministic data transfer in automation cells. Six COM ports (two RS-232, four RS-485) and eight opto-isolated GPIO lines (9–24 V) connect directly to PLCs, sensors and legacy machinery without additional adapters. Expansion is handled by one M.2 2280 slot, one M.2 2230 slot and a full-size Mini PCIe bay with a Nano-SIM holder for 4G or Wi-Fi modules.

Triple 4K display headroom

Integrated Intel UHD Graphics drives three independent 4K 60 Hz outputs — two HDMI and one USB-C — covering multi-monitor HMIs or video walls. The single DDR5 SODIMM slot is already populated at the 16 GB maximum, so memory cannot be increased beyond the factory configuration. Storage headroom remains via the 2.5-inch SATA bay and the second M.2 slot for additional drives.

Акценти

  • Silent fanless aluminium cooling handles -20°C to 50°C industrial ranges
  • Quad-core N100 processor reaches 3.4 GHz turbo with DDR5 4800 MHz memory
  • Dual 2.5G Intel I226-V Ethernet plus six COM ports for automation
  • Triple 4K 60 Hz output via two HDMI and one Type-C
  • Wide 12 V DC Phoenix input supports wake-on-LAN, PXE and watchdog 0-255

Спецификации

ColorGray
CPU TypeIntel Processor

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What does the 3.4 GHz turbo speed mean for everyday workloads on the Intel N100?

The quad-core processor reaches 3.4 GHz on burst tasks while the fanless aluminium chassis keeps it silent from -20 °C to 50 °C.

How do the two 2.5G Ethernet ports perform when both are active?

Dual Intel I226-V controllers deliver 2.5 Gbps each, so aggregated throughput scales with your switch and cabling.

What clearance is needed for the 186 x 140 x 66 mm chassis and wall-mount brackets?

The unit fits in a 186 mm wide by 140 mm deep footprint; wall brackets add minimal depth and DIN-rail clips are optional.
