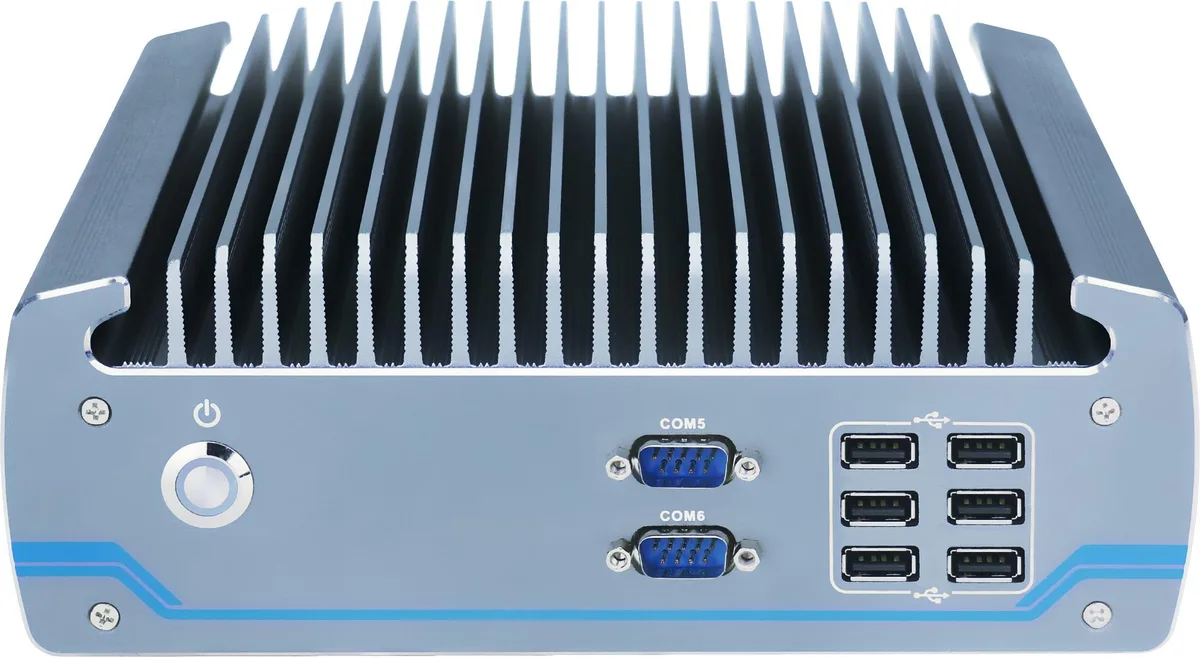

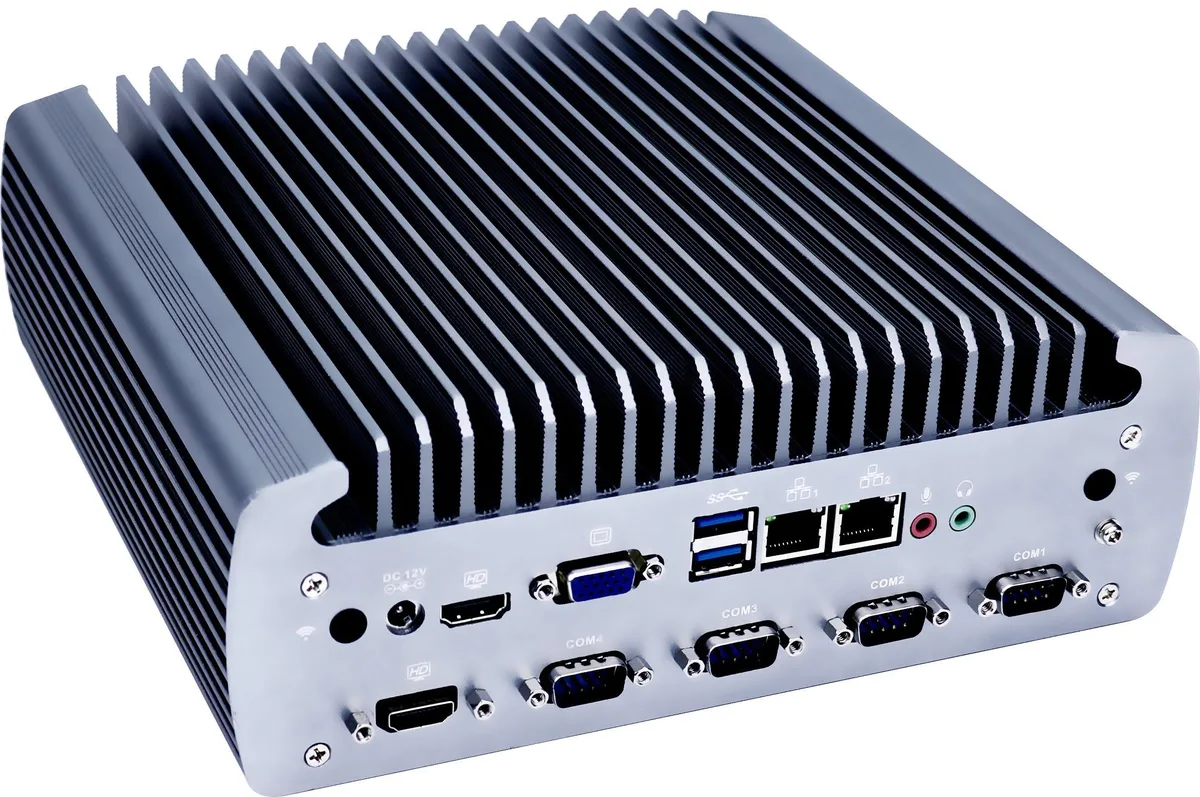

Compact gray aluminium mini PC with fanless finned chassis

partaker

partaker I21 barebone mini PC i3-8100T 16G 512G

SKU CH-Q2F4-4BFR7

Fanless industrial mini PC with Core i3-8100T, 16 GB DDR4, 512 GB SSD, dual LAN, VGA, dual HDMI, six COM ports and eight USB ports

  • ColorGray
  • CPU TypeIntel Core i3 8th Gen

CPU Type Intel Core i3

Group 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently in industrial settings
  • Core i3-8100T quad-core CPU delivers 3.1 GHz processing power
  • 16 GB DDR4 memory installed, expandable to 32 GB
  • 512 GB SSD plus M.2 and 2.5-inch bays for storage growth
  • Dual Gigabit LAN, six COM ports and eight USB for extensive connectivity

Industrial Fanless Mini PC

The Partaker I21 is a fanless embedded computer built around an onboard Intel Core i3 8100T processor with four cores and four threads at 3.1 GHz. It ships with 16 GB of DDR4 memory and a 512 GB SSD installed in the M.2 2280 slot. The aluminium chassis acts as a heatsink for silent operation in industrial or commercial settings.

Installation And Common Issues

The unit supports desktop, wall-mount and embedded mounting with a DC 12 to 19 V input range and an optional 9 to 36 V wide-voltage option. Memory upgrades use two SODIMM slots accessible inside the chassis, while storage can be expanded via the second 2.5 inch bay or the Mini PCIe slot. Builders must verify antenna clearance for wireless cards and confirm COM port pin-outs before wiring RS232, RS422 or RS485 devices.

Capacity And Headroom

The system handles up to 32 GB of DDR4 2133 or 2400 memory for multitasking headroom. Dual HDMI and VGA outputs drive three independent displays for signage or monitoring workloads. Six COM ports and eight USB ports provide extensive legacy and peripheral connectivity. The platform runs out of expansion when both the M.2 slot and Mini PCIe slot are occupied, limiting further I/O or storage additions.

Акценти

  • Fanless aluminium chassis runs silently in industrial settings
  • Core i3-8100T quad-core CPU delivers 3.1 GHz processing power
  • 16 GB DDR4 memory installed, expandable to 32 GB
  • 512 GB SSD plus M.2 and 2.5-inch bays for storage growth
  • Dual Gigabit LAN, six COM ports and eight USB for extensive connectivity

Спецификации

ColorGray
CPU TypeIntel Core i3 8th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How do I verify the Partaker I21 is running correctly after connecting power and a display?

Power on the unit, confirm the metal switch LED lights, and check that the BIOS screen appears on the connected VGA or HDMI monitor.

What components are included with the Partaker I21 barebone and what must I add?

The barebone includes the chassis, motherboard with soldered i3-8100T CPU, 16 GB DDR4 RAM, 512 GB M.2 SSD, and DC power adapter; no extra parts are required for basic operation.

Should I choose the 16 GB RAM and 512 GB SSD configuration or add more memory and storage?

The installed 16 GB DDR4 and 512 GB M.2 SSD suit most embedded tasks; add a second SODIMM up to 32 GB total or a 2.5" SATA drive only if your workload demands extra capacity.
