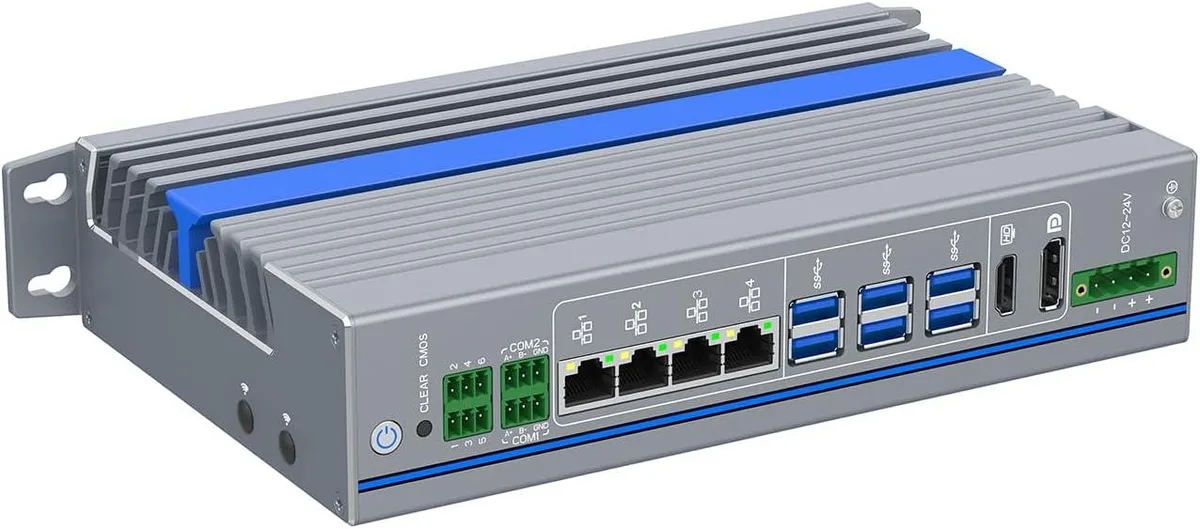

Gray fanless aluminum mini PC, book-style form factor, 265 x 146 x 50 mm

partaker

partaker I24 barebone mini PC Core i7-12700T 16 GB 256 GB

SKU CH-EV7B-KGDCY

Fanless industrial mini PC with a 12-core i7-12700T, 16 GB DDR5, 256 GB storage, four Gigabit LAN ports, dual 4K video outputs and rugged -20 °C to 50 °C operation

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I24 CPU I7 12700T 16GB RAM / 256GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • 12-core i7-12700T delivers up to 4.70 GHz for heavy workloads

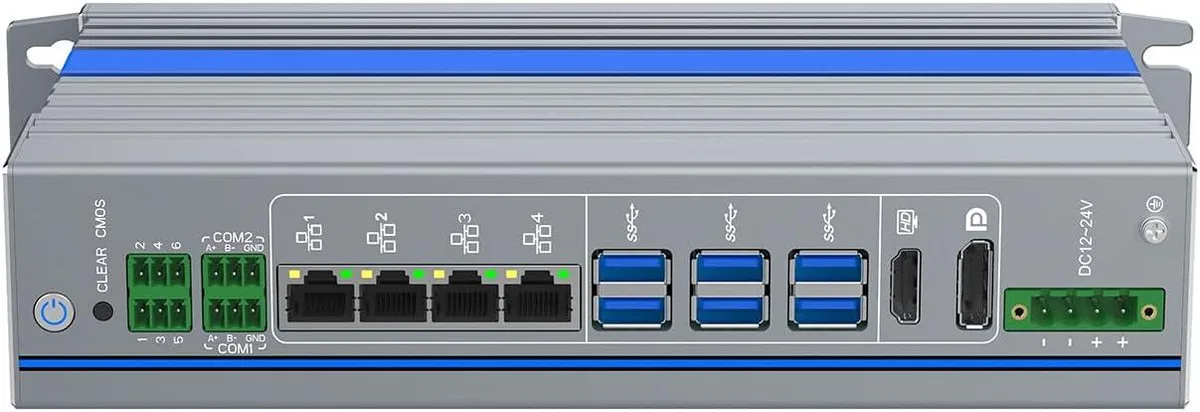

  • Four Gigabit LAN ports plus two isolated RS-485 links for industrial networking
  • Dual 4K 60 Hz outputs via HDMI and DP drive multiple displays
  • 16 GB DDR5 and 256 GB NVME SSD ready for immediate deployment

Industrial Barebone for Automation and Edge Tasks

The Partaker I24 is a fanless mini PC built around an Intel Core i7-12700T processor with 16 GB of DDR5 memory and a 256 GB SSD. Its all-aluminum chassis operates silently from -20 °C to 50 °C, making it suitable for continuous industrial automation, medical imaging, or logistics deployments where dust and vibration rule out active cooling.

Suits integrators needing rugged I/O

This unit fits builders who require four Gigabit LAN ports, two optically isolated RS-485 interfaces, and dual 4K display outputs for HMI or surveillance. It does not suit buyers who need internal 2.5-inch drive bays, a PCIe x16 slot for discrete graphics, or a consumer-oriented feature set such as integrated Wi-Fi or Bluetooth.

35 W base TDP defines thermal envelope

The processor carries a configurable 35-69 W TDP, so the fanless design must dissipate up to 69 W passively through the aluminum case. Installers must verify that the mounting location provides adequate airflow to keep surface temperatures within the rated operating range.

Акценти

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • 12-core i7-12700T delivers up to 4.70 GHz for heavy workloads
  • Four Gigabit LAN ports plus two isolated RS-485 links for industrial networking
  • Dual 4K 60 Hz outputs via HDMI and DP drive multiple displays
  • 16 GB DDR5 and 256 GB NVME SSD ready for immediate deployment

Спецификации

ColorGray
CPU TypeIntel Core i7 12th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What clearance does the 265 x 146 x 50 mm fanless aluminum body need for passive cooling?

The chassis relies on surface air flow across its fins; allow several centimeters of open space on every face and do not block the top or side surfaces.

Which screw pattern on the rear secures the included book-style bracket for vertical wall mounting?

Align the four threaded holes on the back panel with the bracket, then tighten the supplied screws — the default orientation is vertical flat against the wall.

When should the CMOS be cleared with the dedicated switch on the I/O panel?

Use the Clear CMOS button if the unit fails to post after a BIOS change or memory upgrade; power off, press the switch once, then restart.
