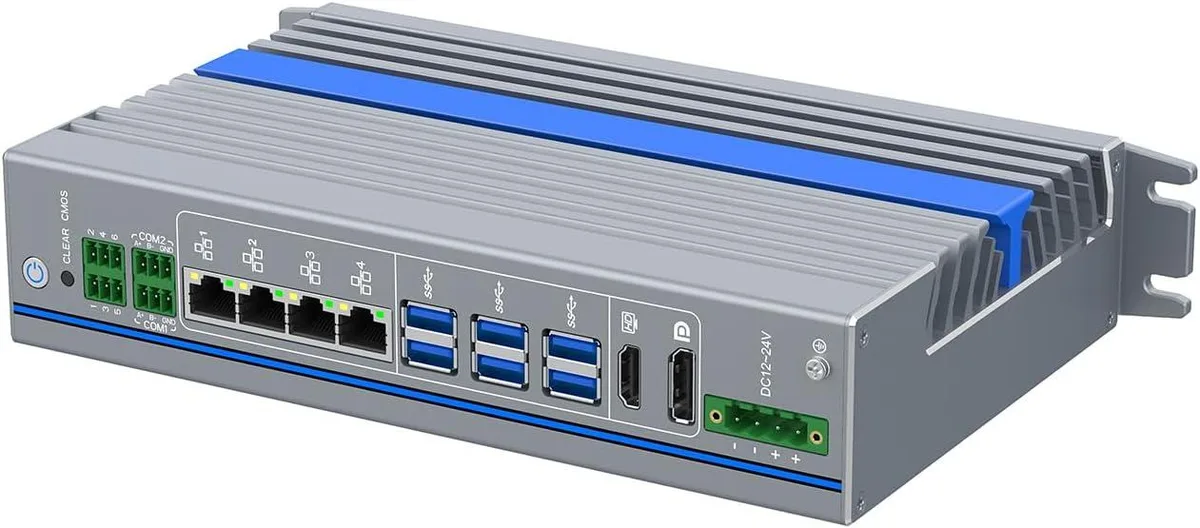

Gray aluminium fanless mini PC, book-style, 265 x 146 x 50 mm

partaker

Partaker I24 Core i7-12700T 32GB 512GB barebone mini PC

SKU CH-366M-73RZT

Fanless industrial mini PC with a 12-core i7-12700T, 32 GB DDR5, 512 GB SSD, four Gigabit LAN ports and dual 4K video outputs

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I24 Q670 I7 12700T 32GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Intel Core i7-12700T with 12 cores and 20 threads up to 4.70 GHz
  • 32 GB DDR5 4800 memory and 512 GB M.2 NVMe/SATA storage

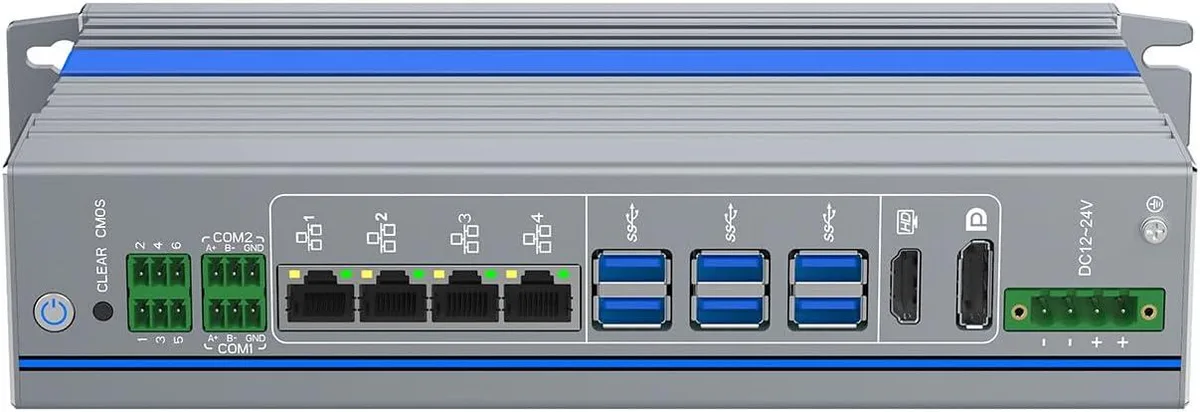

  • Four Gigabit LAN ports plus two optically isolated RS485 links
  • Dual 4K output at 3840 x 2160 60 Hz via HDMI and DP

Industrial fanless mini PC

The Partaker I24 is a book-style barebone system built around an Intel Core i7 12700T processor with 12 cores and 20 threads. It ships with 32 GB of DDR5 4800 MT/s memory and a 512 GB M.2 SSD. The aluminium chassis is rated for continuous operation from -20 °C to 50 °C at up to 95 % humidity, targeting 24/7 industrial automation, medical imaging and logistics deployments.

Passive cooling and power envelope

Fanless construction eliminates moving parts and provides dustproof operation in harsh environments. The CPU carries a configurable TDP of 35 W to 69 W, cooled entirely by the all-aluminium body with surface airflow. The unit accepts a wide DC 12 V to 24 V input through a 4-pin Phoenix terminal and includes an external 100-240 V AC adapter rated at 12 V 10 A.

Q670 chipset with vPro and RAID

The Intel Q670 platform adds Intel vPro manageability (with a supported CPU) and hardware RAID support under Windows, features absent from the H610 variant. Expansion includes two RS-485 optically isolated ports, four Gigabit LAN ports, six USB 3.0 ports, HDMI and DisplayPort for dual 3840x2160 @ 60 Hz output, plus internal Mini PCIe with Nano SIM for 4G or Wi-Fi and an mSATA slot. Buyers who need active cooling or a smaller footprint should look elsewhere.

Акценти

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Intel Core i7-12700T with 12 cores and 20 threads up to 4.70 GHz
  • 32 GB DDR5 4800 memory and 512 GB M.2 NVMe/SATA storage
  • Four Gigabit LAN ports plus two optically isolated RS485 links
  • Dual 4K output at 3840 x 2160 60 Hz via HDMI and DP

Спецификации

ColorGray
CPU TypeIntel Core i7 12th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How do I mount the I24 using the included book-style bracket, and which orientation do installers often get wrong?

The supplied bracket is designed for vertical flat wall mounting with the I/O panel facing outward; mounting it upside-down blocks the convection path through the aluminum fins and can raise chassis temperature above the 50 °C limit.

Which memory modules will need replacement if I later expand to the 64 GB maximum?

The unit ships with 32 GB installed as two DDR5 4800 MT/s SODIMMs; reaching 64 GB requires removing both and inserting a matched pair of 32 GB DDR5 4800 MT/s modules.

At what sustained power draw does the fanless chassis hit its thermal ceiling first?

The 35–69 W TDP range means continuous loads near the upper end will saturate the passive aluminum body before the CPU throttles, especially at the 50 °C ambient limit.
