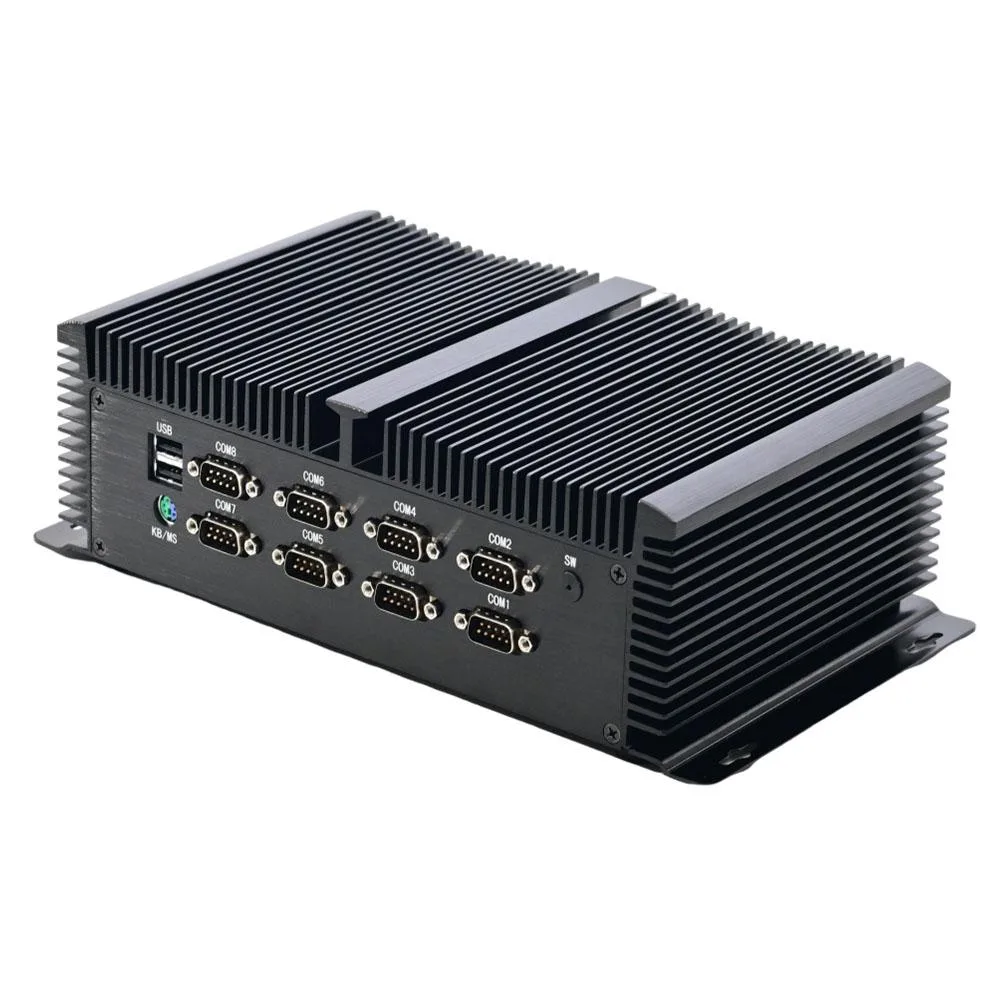

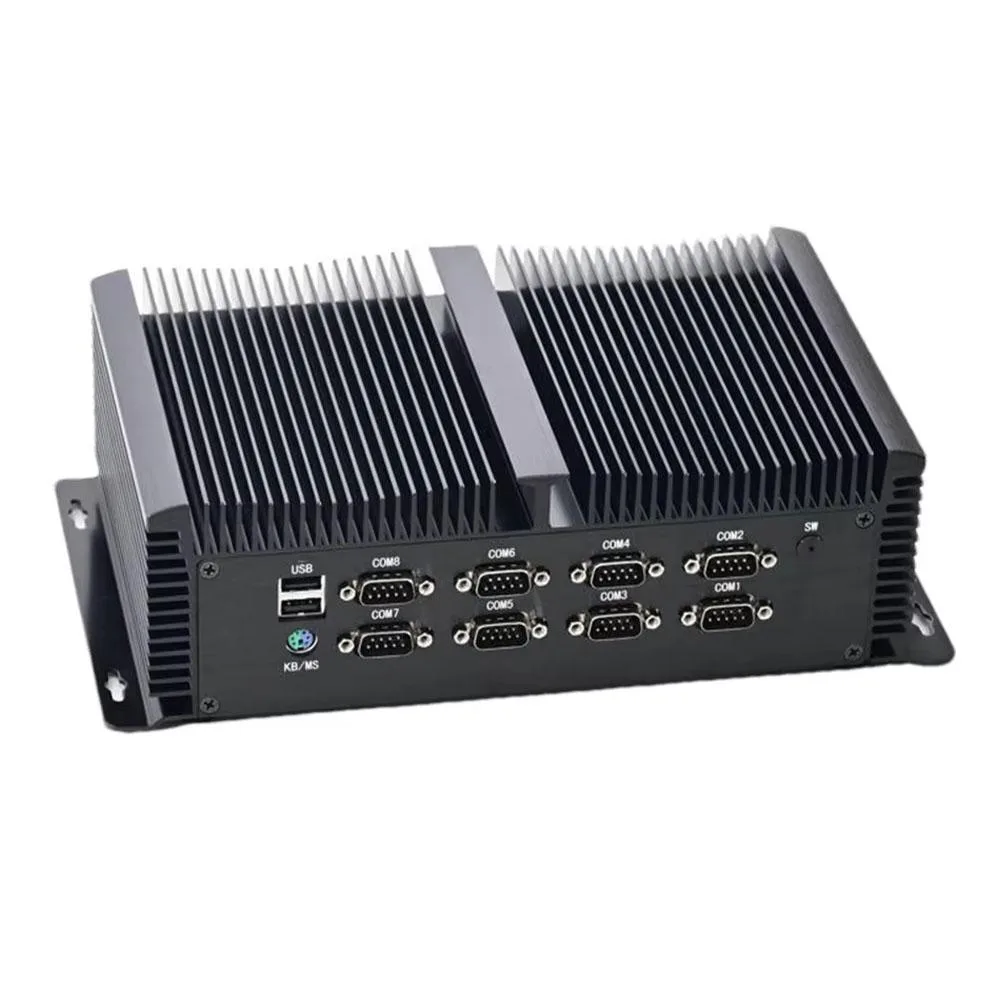

Black fanless aluminium mini PC with mounting ears

partaker

partaker I6 barebone mini PC i5-1235U 8GB DDR5 512GB NVME

SKU CH-YEGD-QGCX7

Fanless industrial mini PC with an Intel Core i5-1235U, 8 GB DDR5, 512 GB NVMe, triple 2.5G LAN, eight COM ports and triple-display output

  • ColorBlack
  • CPU TypeIntel Core i5 12th Gen

CPU Type Intel Core i5-1235U

Group 8GB / 512GB SSD

  • Fanless aluminium chassis runs 24/7 from -10 °C to 60 °C
  • Triple 2.5 GbE LAN plus eight COM ports with RS485/422 option
  • Three video outputs — two HDMI 1.4 and one DP 1.4 — drive independent screens
  • 12th-generation Core i5-1235U reaches 4.40 GHz within a 45 W envelope
  • Dual DDR5 SO-DIMM slots and two M.2 2280 NVMe bays plus one SATA 3.0 bay

Industrial Fanless Mini PC

The Partaker I6 is a fanless barebone built around an Intel Core i5-1235U processor with 8GB of DDR5 memory and a 512GB NVME drive. Its aluminium chassis dissipates heat without moving parts, making it suitable for continuous 24/7 operation in industrial environments. Triple 2.5G LAN ports and eight COM ports provide extensive connectivity for automation and networking tasks.

Upgrade From Legacy Fan-Cooled Units

This system replaces older fan-cooled industrial PCs that accumulate dust and require regular maintenance. The jump is worth it when deploying in temperature ranges from -10°C to 60°C or when silent operation is mandatory. Support for triple simultaneous displays via two HDMI 1.4 and one DP 1.4 simplifies multi-monitor visualisation setups.

Check Power And Expansion Needs

Verify that a 19V DC supply matches your infrastructure before ordering. Confirm the two SO-DIMM DDR5 slots and two M.2 2280 NVME bays meet your memory and storage expansion plans. Ensure the single SATA 3.0 port and mini PCIe slots align with any additional wireless or storage modules you intend to install.

Акценти

  • Fanless aluminium chassis runs 24/7 from -10 °C to 60 °C
  • Triple 2.5 GbE LAN plus eight COM ports with RS485/422 option
  • Three video outputs — two HDMI 1.4 and one DP 1.4 — drive independent screens
  • 12th-generation Core i5-1235U reaches 4.40 GHz within a 45 W envelope
  • Dual DDR5 SO-DIMM slots and two M.2 2280 NVMe bays plus one SATA 3.0 bay

Спецификации

ColorBlack
CPU TypeIntel Core i5 12th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What wall-mount clearance does the 255 x 155 x 80 mm aluminum chassis need for the optional long screws?

The unit measures 255 x 155 x 80 mm and includes mounting ears; allow enough depth behind the bracket for the 80 mm thickness plus the screw length you choose.

Which BIOS setting converts COM1 and COM2 to RS485 or RS422 during initial setup?

Enter AMI BIOS at boot, locate the serial-port mode options for COM1 and COM2, and select RS485 or RS422 as required.

When should the SO-DIMM DDR5 modules be upgraded if the workload outgrows the installed 8 GB?

Two SO-DIMM slots support up to 64 GB total; add matching DDR5 modules when memory pressure appears.
