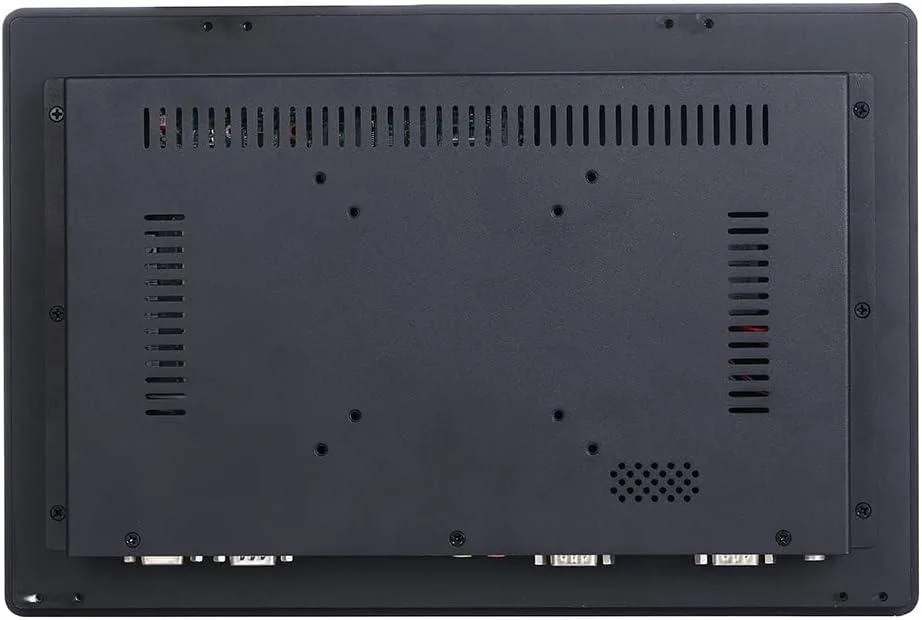

Black 14-inch industrial all-in-one panel PC with IP65 front, fanless aluminium chassis, projected capacitive touchscreen

partaker

partaker Z10 14" IP65 i5-1135G7 8GB DDR4 128GB SSD

SKU CH-SMKT-XBDGH

A 14 inch IP65 panel PC with Core i5-1135G7, 8GB DDR4, 128GB SSD, 10-point touch and fanless cooling

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 8GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 64GB DDR4
  • 8GB DDR4

SSD 128GB

Зачертаните версии съществуват, но не се предлагат тук.

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium cooling runs silently from 0 to 50 °C
  • 10-point capacitive touchscreen rated for 200 million touches
  • Intel Core i5-1135G7 up to 4.2 GHz with 8 GB DDR4-3200
  • Dual LAN, HDMI, VGA, 4 USB and 2 COM ports for industrial connectivity

Industrial panel PC with IP65 front

The Partaker Z10 is a 14-inch all-in-one computer built around an Intel Core i5-1135G7 processor and Intel Iris Xe graphics. It ships with Windows 11 Pro, 8GB of DDR4-3200 memory and a 128GB M.2 SSD. The fanless aluminium chassis and IP65-rated front panel are designed for continuous operation in dusty or wet industrial environments.

Suits machine interfaces and kiosks.

This unit fits factory automation, HMI terminals and self-service kiosks that need a 10-point capacitive touchscreen rated for 200 million touches and an operating range of 0 to 50°C. Buyers who need a larger display, higher brightness than 200 cd/m², discrete graphics performance or a battery-backed mobile form factor should look at other product classes.

Mounting kits and expansion slots simplify

The box includes a power adapter and hardware for embedded, wall-mount, desktop or cantilever installation. Inside, a second 2.5-inch SATA bay and two M.2 slots (Key B for 5G with SIM, Key E for WiFi 6) allow storage and wireless upgrades without opening the sealed front enclosure.

Акценти

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium cooling runs silently from 0 to 50 °C
  • 10-point capacitive touchscreen rated for 200 million touches
  • Intel Core i5-1135G7 up to 4.2 GHz with 8 GB DDR4-3200
  • Dual LAN, HDMI, VGA, 4 USB and 2 COM ports for industrial connectivity

Спецификации

ModelZ10-I5 1135G7-8G128G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity8GB DDR4
SSD128GB
HDDNo
Screen Size14"
TouchscreenYes

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

Do I need to buy a separate power supply to run the Partaker Z10?

No, the unit ships with a 12 V DC adapter that accepts 100-240 V AC at 50-60 Hz, so it works from a standard mains socket without extra hardware.

Can I keep using my VGA-only monitor alongside the Z10's built-in 14" 1600x900 display?

Yes, the Z10 provides both HDMI and VGA outputs, so a legacy VGA monitor can be connected as a second screen while the internal panel runs at its native resolution.

How do I confirm the 10-point capacitive touchscreen is functioning correctly after installation?

Open Windows 11 touch settings and run the built-in calibration test; all ten simultaneous touch points should register across the 14" panel, which is rated for 200 million touches.
