Black and silver 4U rackmount server chassis with eight front hot-swap drive bays

Rosewill

Rosewill RSV-AI01 4U server chassis 8 hot-swap bays 11 slots

SKU CH-W711-V6ZFJ MPN RSV-AI01

A 4U rackmount chassis with eight hot-swap 3.5" bays, eleven expansion slots and support for up to four GPUs

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack / Silver
  • Case MaterialSGCC, 1.0mm
  • Motherboard Compatibility12" x 13" E-ATX; 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and b
  • Power SupplySupports ATX power supply

Chassis Type 4U · 8 HS Bays · 5 Fans · 25.59" Depth · E-ATX

Зачертаните версии съществуват, но не се предлагат тук.

  • Supports up to four GPUs for AI workloads
  • Eight hot-swap 3.5-inch SATA SAS bays at 12Gbps
  • Three hot-swap 12038 PWM fans plus two 8038 rear fans

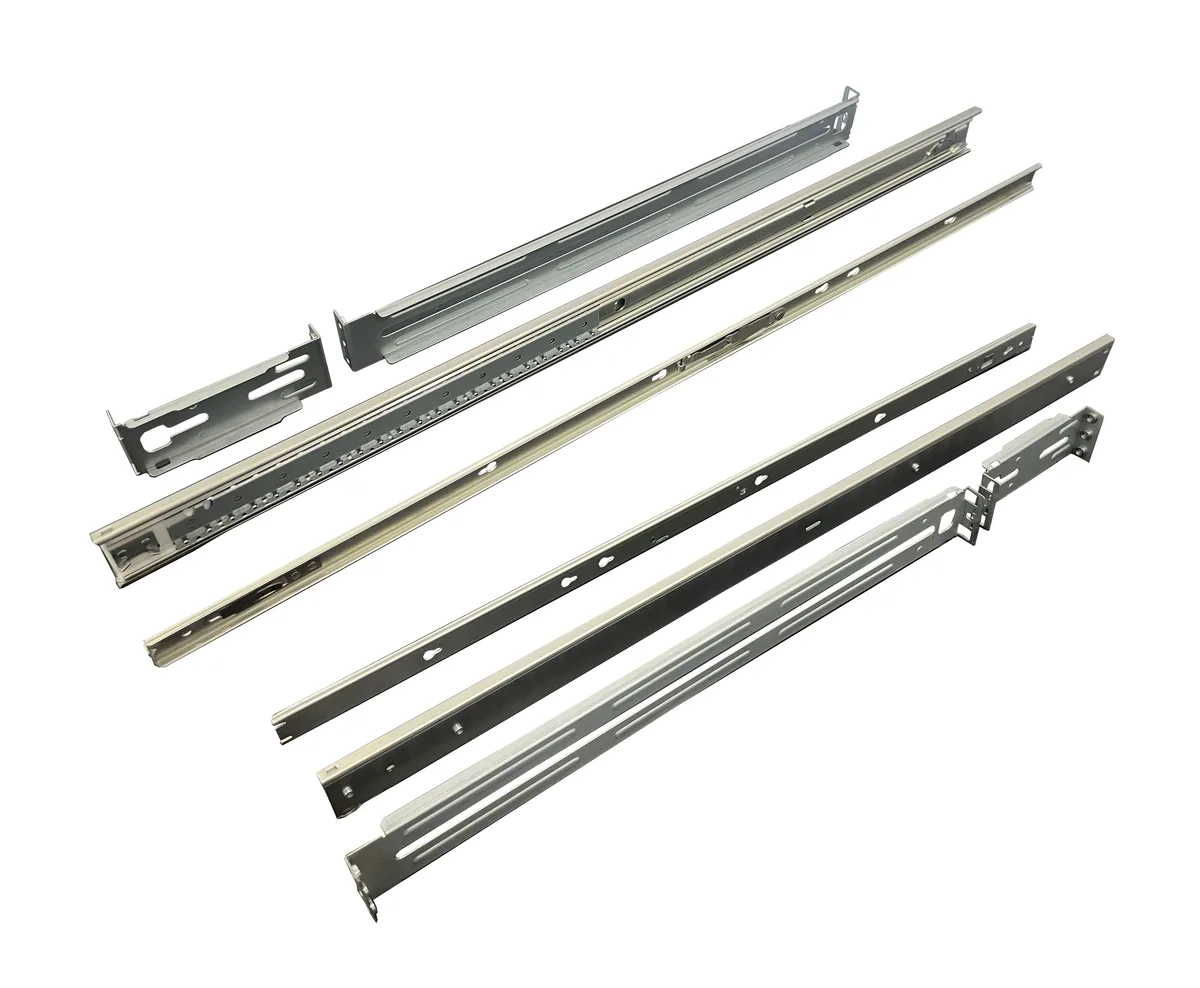

  • Pre-installed rail kit fits standard 19-inch racks
  • Front USB 3.2 Type-C and two USB 3.0 ports

4U Rackmount Chassis for GPU Workloads

The Rosewill RSV-AI01 is a 4U rackmount server chassis built for compute-intensive tasks such as AI training and high-end gaming. It accommodates E-ATX, ATX and Mini-ATX motherboards and provides eleven expansion slots. The black and silver SGCC steel frame includes a pre-installed rail kit for standard 19-inch racks.

Upgrade from Tower or 2U Enclosures

This chassis replaces tower cases that cannot fit multiple full-length accelerators or 2U units limited to low-profile cards. The jump is worthwhile when a build requires up to four double-slot GPUs, eight hot-swap drive bays with SGPIO monitoring, and front-access USB 3.2 Type-C connectivity in a rackmount footprint.

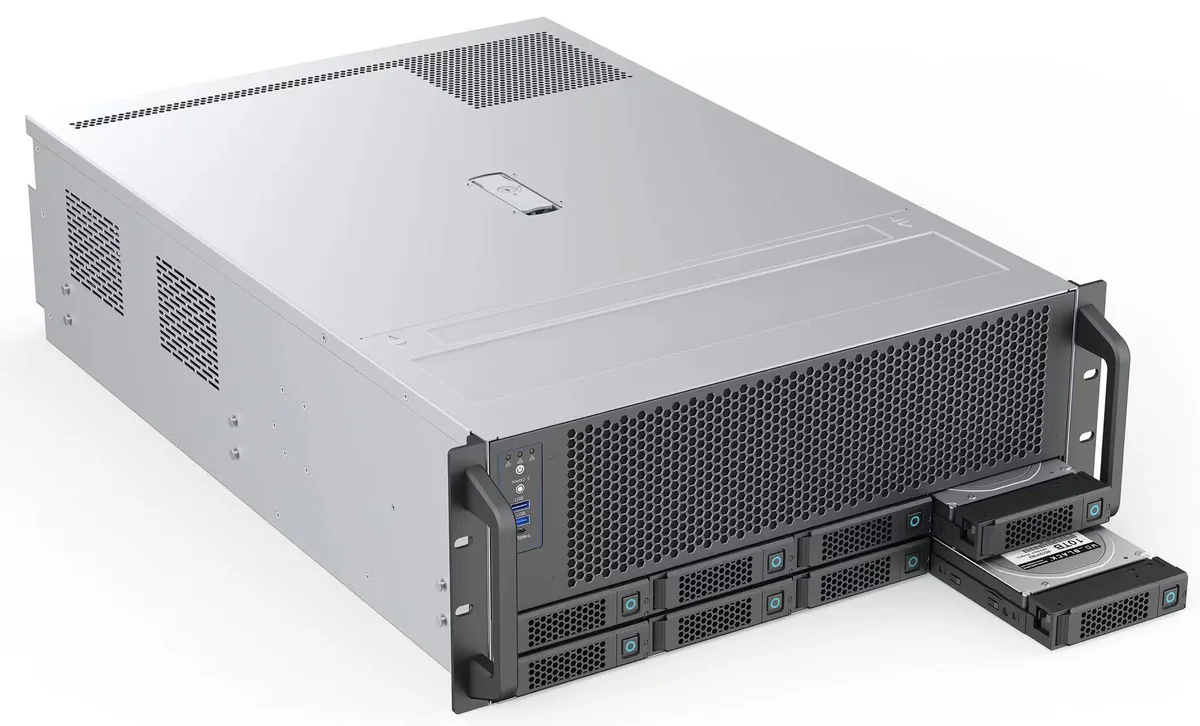

Eight Hot-Swap Bays and Four Internal 2.5 Inch Slots

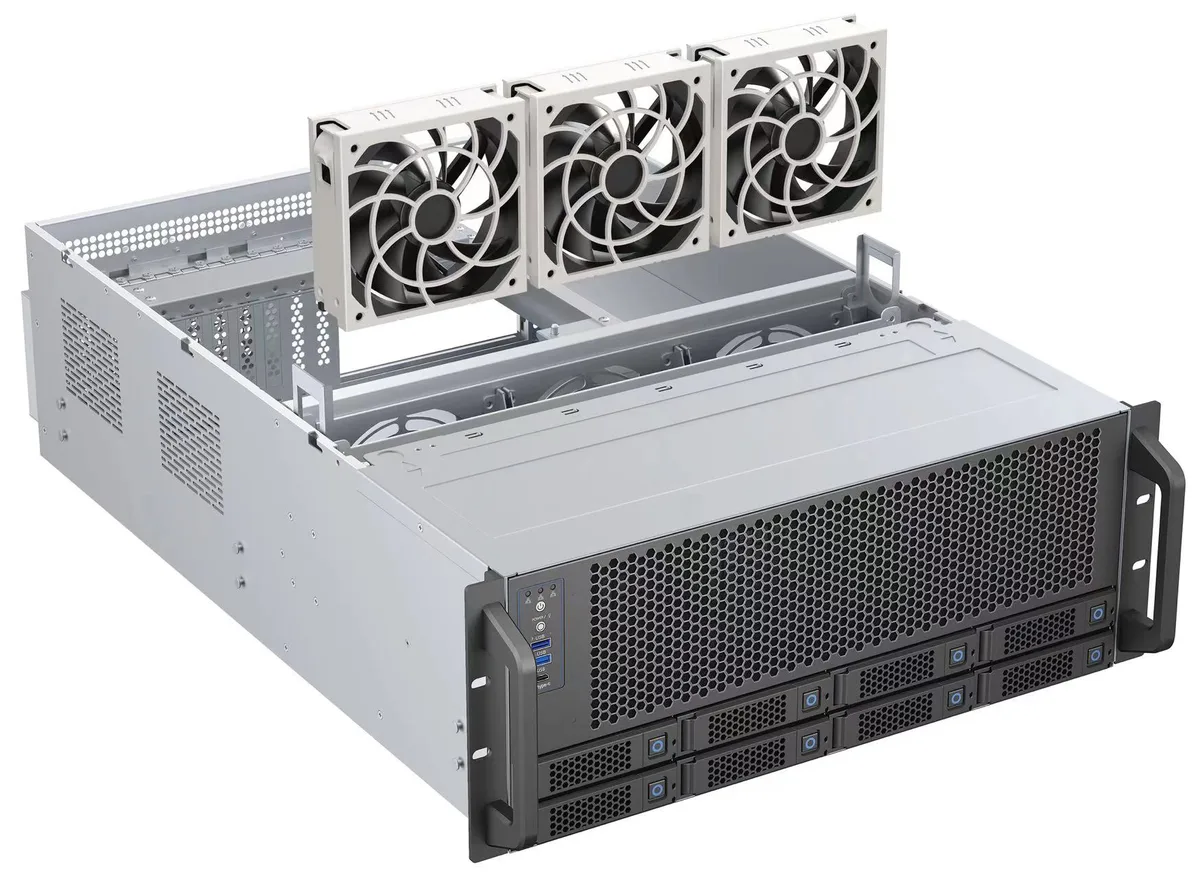

The front cage accepts eight 3.5-inch or 2.5-inch SATA or SAS drives operating at up to 12Gbps, while four additional internal 2.5-inch positions support boot or cache devices. Cooling headroom is set by three hot-swap 12038 PWM fans and two rear 8038 fans; CPU cooler height drops from 148mm to 115mm and GPU length from 400mm to 330mm when the GPU holder is installed.

Акценти

  • Supports up to four GPUs for AI workloads
  • Eight hot-swap 3.5-inch SATA SAS bays at 12Gbps
  • Three hot-swap 12038 PWM fans plus two 8038 rear fans
  • Pre-installed rail kit fits standard 19-inch racks
  • Front USB 3.2 Type-C and two USB 3.0 ports

Спецификации

BrandRosewill
ModelRSV-AI01
Chassis TypeRackmount
Form Factor4U
ColorBlack / Silver
Case MaterialSGCC, 1.0mm
Motherboard Compatibility12" x 13" E-ATX; 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power SupplySupports ATX power supply
LED IndicatorsPower status, HDD activity, 2 x LAN activity
Hot-Swap Drive Bays8 (SFF8643 with SGPIO and Temperature Control)
Internal 2.5" Drive Bays4
Expansion Slots11
Max CPU Cooler HeightWith GPU holder: 115mm / Without GPU holder: 148mm
Max GPU LengthMax. Length: With fan 330mm / Without fan: 400mm
Max. Height: With GPU holder: 117mm / Without GPU holder: 154mm
Max PSU Length250 mm PS2 (ATX)
Front Ports2 x USB 3.0 / 1 x USB 3.2 Type C
Fan OptionsMiddle: hot swap 3 x 12038 PWM (3 x two ball bearing fan included)
Rear: 2 x 8038 (2 x two ball bearing fan included)
FeaturesRosewill 4U Server Chassis: A Powerful Platform for AI and Gaming
The Rosewill 4U Server Chassis is a high-performance solution designed to handle demanding workloads, particularly in AI and gaming applications. This robust 4U rackmount case supports up to four GPUs, ensuring optimal performance for intensive AI training and inference tasks.
Equipped with eight hot-swappable 3.5" SATA/SAS drive bays and four 2.5" SSD, the chassis offers ample storage capacity for large datasets and virtual machines. The 12Gbps interface and SGPIO support enable high-speed data transfer and intelligen
Dimensions437.5mm x 176.5 mm x 650mm (17.22" x 6.95" x 25.60")
Weight17.00kg (37.48 lbs.)
Тегло на пратката21.23 kg
Размери на опаковката838 × 584 × 337 mm

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What rack depth and rail clearance does the RSV-AI01 need?

The chassis is 650 mm deep and fits a standard 19-inch rack; the included rail kit mounts directly to the rack posts for a 4U space.

How are the 12038 hot-swap fans installed, and what step is often missed?

Slide each 12038 PWM fan into the middle hot-swap bay until it clicks; the step many miss is seating the SGPIO connector so the chassis can monitor fan speed and temperature.

Which fan modules will need replacement first, and how are they swapped?

The three 12038 middle fans and two 8038 rear fans are all hot-swap; pull the failed module out and push the new two-ball-bearing unit in without powering down.
