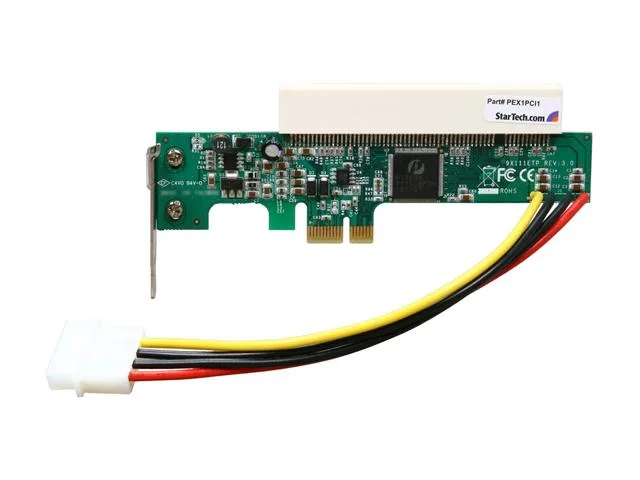

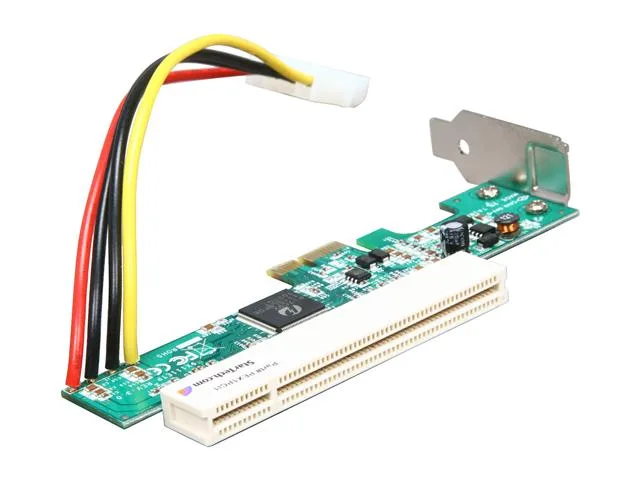

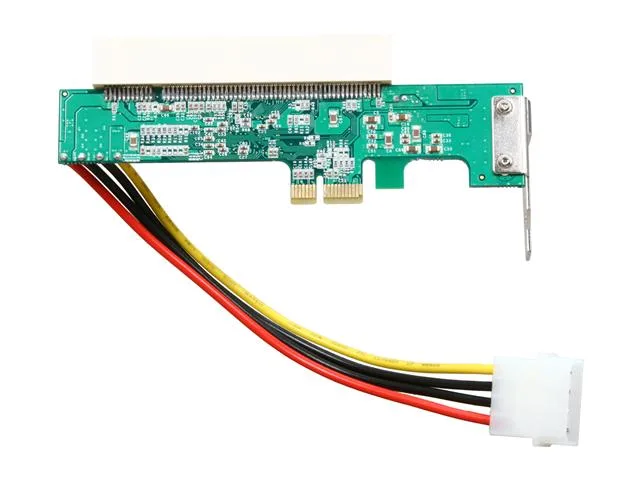

Green PCB expansion card with PCIe x1 edge connector and low-profile PCI slot bracket

STARTECH

STARTECH PEX1PCI1 PCI Express to PCI Adapter expansion card

SKU CH-VQXE-1WVA1 MPN PEX1PCI1

Adds a PCI slot to a PCI Express x1 lane for legacy cards, compliant with PCI 2.2 and PCIe-to-PCI bridge 1.0 specs

  • TypePCI Express to PCI Card
  • Operating Systems SupportedWIN 2000/XP/Vista
  • FeaturesCompliant with PCI BUS PM Interface spec Revision 1.1 Compli
  • Weight0.26

Type PCI Express to PCI Card

  • PCI Express to PCI Card
  • PCI to PCI Express

Зачертаните версии съществуват, но не се предлагат тук.

  • Install low-profile PCI cards in a standard PCIe x1 slot
  • Bridge compliant with PCI Express to PCI spec 1.0
  • Meets PCI Local Bus spec 2.2 for broad compatibility
  • Supports PCI Bus Power Management Interface spec 1.1
  • Works with Windows 2000, XP and Vista

PCIe x1 to PCI Slot Adapter

The StarTech PEX1PCI1 adapter card lets you install half-height PCI interface cards into a standard PCI Express x1 expansion slot. It bridges legacy PCI peripherals to modern motherboards that no longer provide native PCI connectivity.

Builders migrating older PCI cards

This adapter suits technicians and hobbyists who need to keep using specialised PCI sound cards, network adapters or I/O controllers on newer platforms. It will not help users whose expansion cards require a full-height bracket or a different electrical interface than the one specified.

PCI Express to PCI Bridge spec 1.0

The card complies with the PCI Express to PCI/PCI-X Bridge specification 1.0 and PCI Local Bus specification 2.2. Verifying that the target PCI card operates within these bridge parameters is the single check that decides whether the adapter will work.

Акценти

  • Install low-profile PCI cards in a standard PCIe x1 slot
  • Bridge compliant with PCI Express to PCI spec 1.0
  • Meets PCI Local Bus spec 2.2 for broad compatibility
  • Supports PCI Bus Power Management Interface spec 1.1
  • Works with Windows 2000, XP and Vista

Спецификации

BrandStarTech.com
ModelPEX1PCI1
TypePCI Express to PCI Card
Operating Systems SupportedWIN 2000/XP/Vista
FeaturesCompliant with PCI BUS PM Interface spec Revision 1.1
Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0
Compliant with PCI Local BUS spec Revision 2.2
Compliant with PCI-to-PCI Bridge Architecture spec Revision 1.2
Innovative Bracket Design Adapts and Secures the Existing Low Profile Bracket of the PCI Card
LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
PCI Bus Power Management interface 1.1
PCI Express base spec 1.0a compliant
Weight0.26
Тегло на пратката0.11 kg
Размери на опаковката175 × 147 × 33 mm

Въпроси за този артикул

How do I install the PEX1PCI1 adapter in a PCI Express slot?

Insert the card into an available PCI Express x1 slot, secure the bracket, and connect the LP4 power connector to supply power to the installed PCI card.

What maintenance will the PEX1PCI1 require over time?

No routine maintenance is required; ensure the LP4 power connector remains firmly seated and keep the slot free of dust for reliable operation.

What limits sustained throughput on the PEX1PCI1?

The PCI Express x1 link and PCI Local Bus 2.2 specification cap bandwidth, so sustained transfers cannot exceed the x1 lane and 2.2 bus limits.
