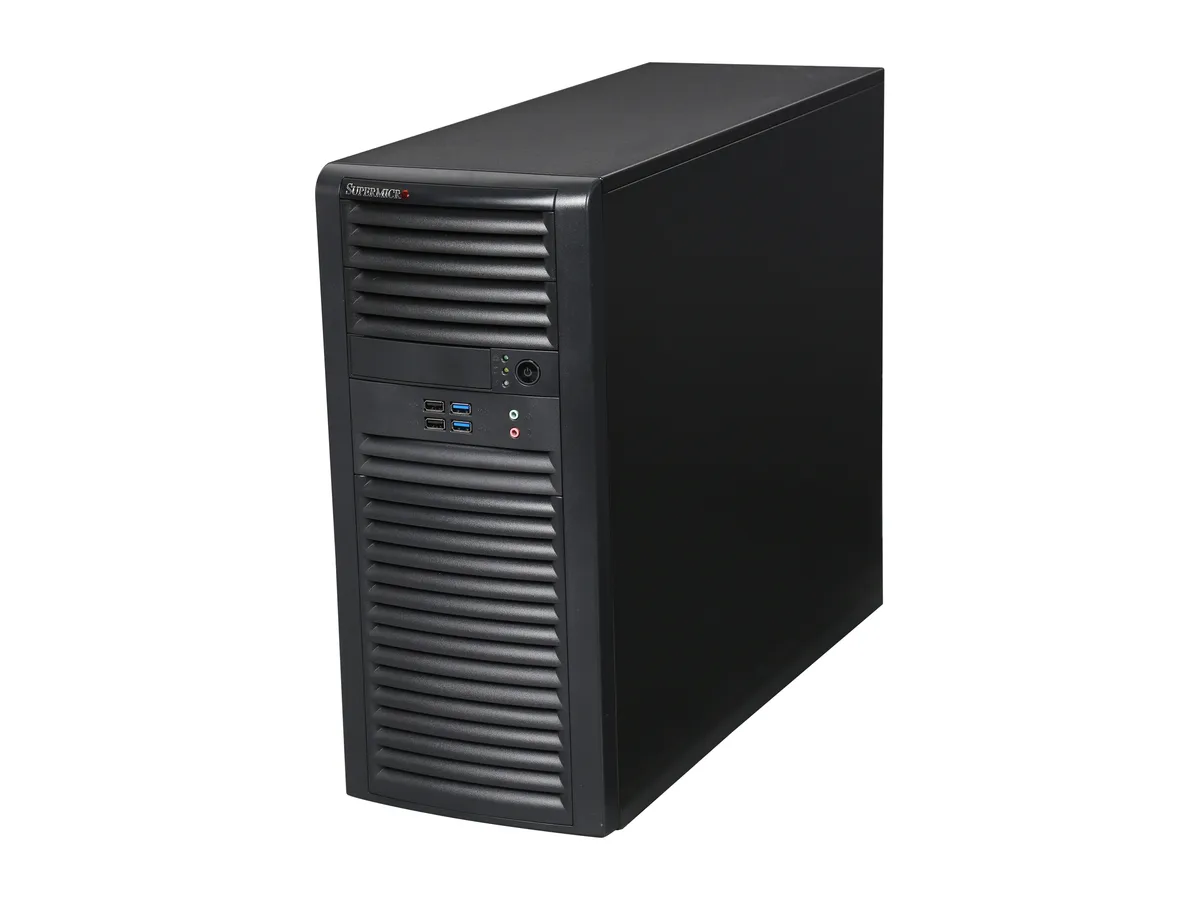

Black mid-tower server chassis with front USB and audio ports

Supermicro

Supermicro CSE-732D4-903B 900W mid-tower server chassis

SKU CH-T7AS-ETZ6M MPN CSE-732D4-903B

A mid-tower server chassis with a 900W 80 PLUS Gold power supply, four 3.5-inch SAS/SATA bays, and seven full-height expansion slots

  • Chassis TypeTower
  • Form FactorMid-tower
  • ColorBlack
  • Motherboard CompatibilityATX
  • Supports EATX, ATX and MicroATX boards for flexible builds
  • 900 W 80 PLUS Gold supply delivers efficient power
  • Four rotatable 3.5″ SAS/SATA bays simplify drive maintenance
  • Seven full-height slots accommodate long expansion cards

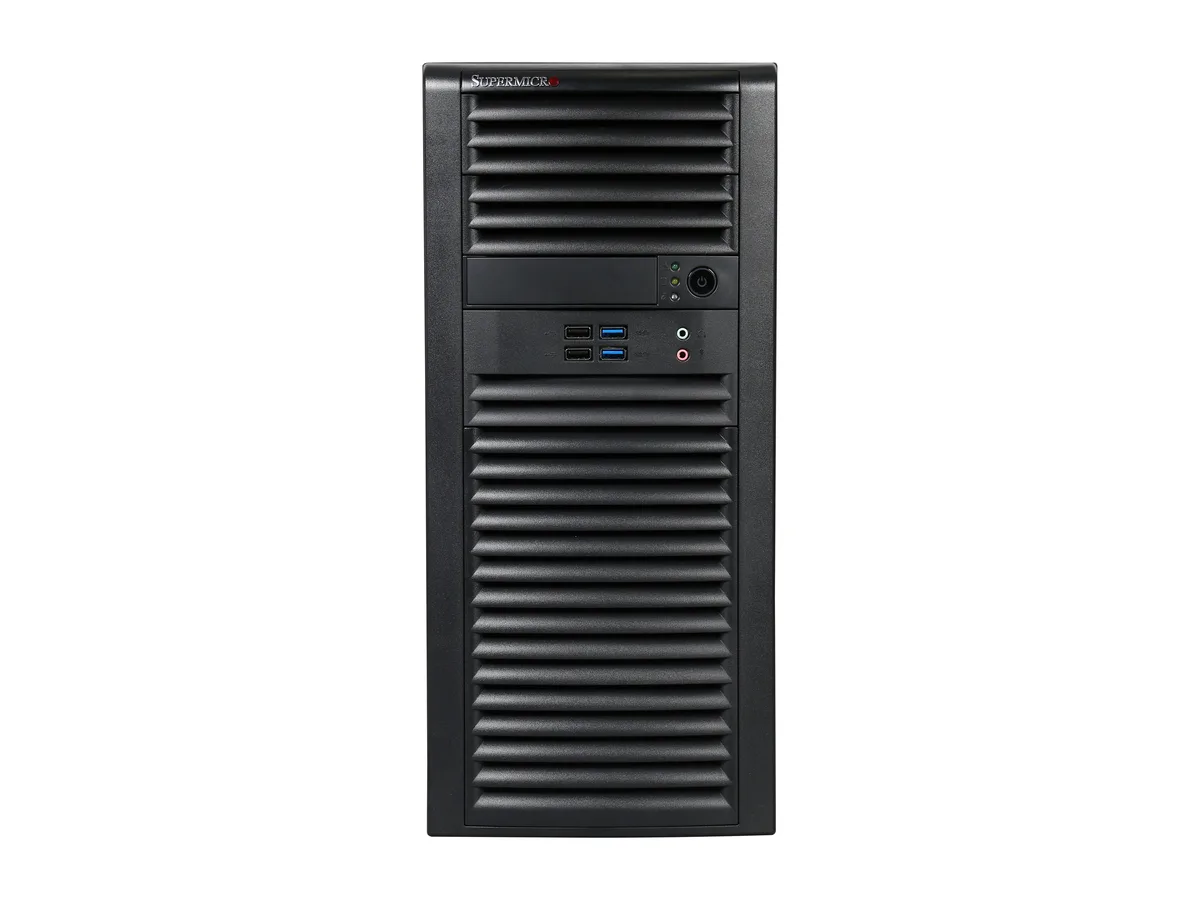

  • Front USB 3.0 and USB 2.0 ports give quick peripheral access

Supermicro 900W mid-tower server chassis

This black mid-tower chassis supports EATX, ATX and Micro-ATX motherboards for single or dual Intel and AMD processors. It includes a 900W 80 PLUS Gold certified power supply with PMBus monitoring and a 120mm rear exhaust fan running at 1850rpm. The unit ships without CPU, motherboard, drives or memory.

Who this suits and who should look elsewhere

Builders needing a compact tower with room for four 3.5-inch SAS or SATA drives and up to seven full-height expansion cards will find the layout practical. Front-panel access provides two USB 3.0, two USB 2.0 and two HD audio ports. Buyers who want more internal drive bays, additional cooling fans or a redundant power supply must choose a different chassis.

Rotatable four-bay drive cage decides fit

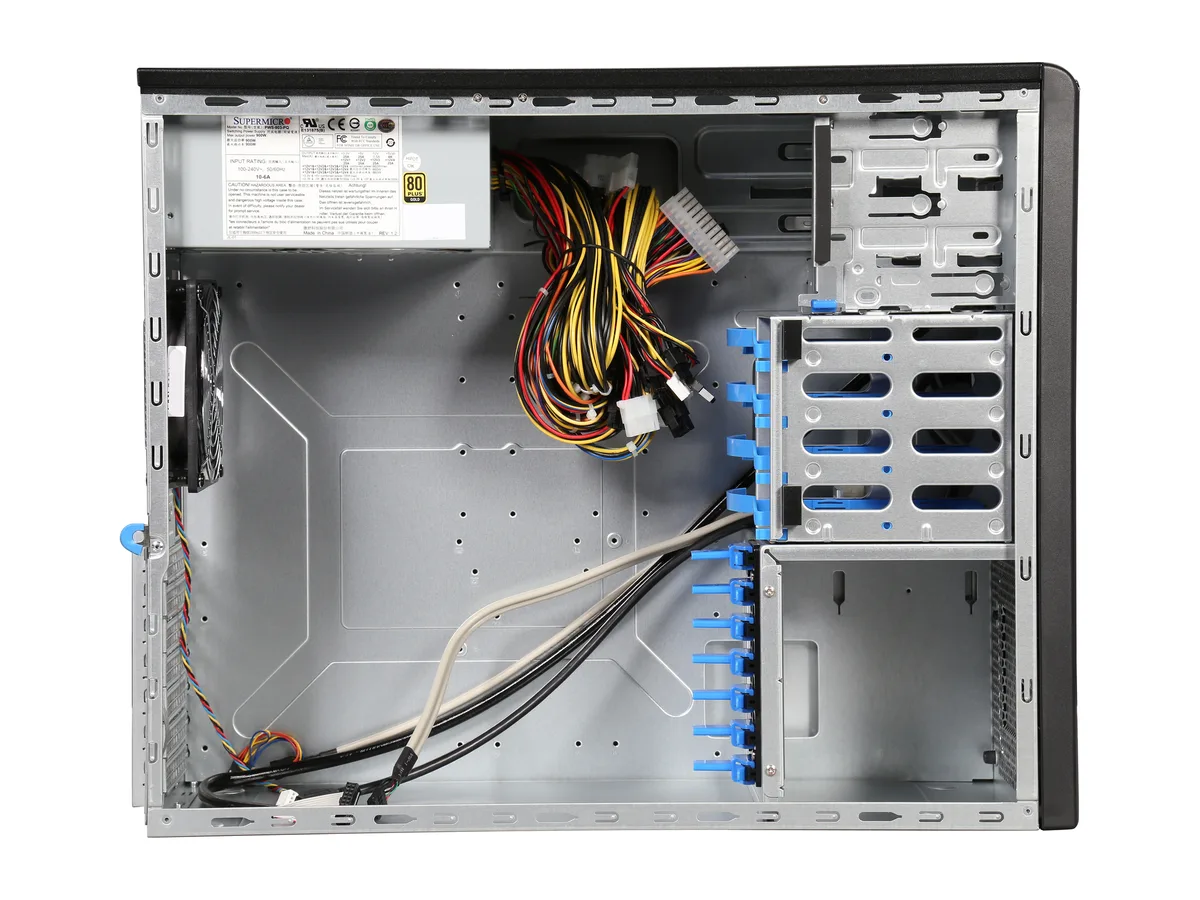

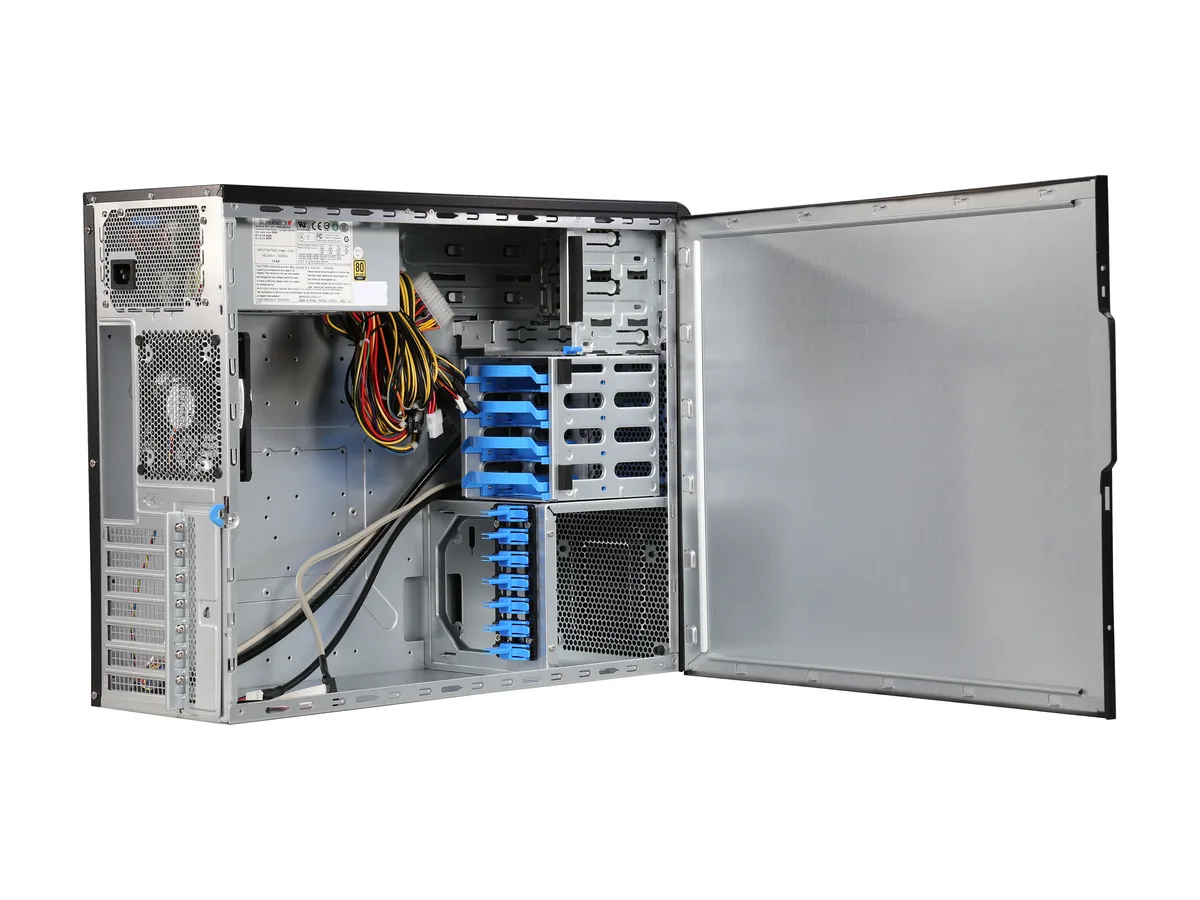

The internal cage holds four 3.5-inch SAS or SATA drives and rotates 90 degrees to adapt to airflow or cable routing needs. Peripheral bays add two 5.25-inch and one 3.5-inch external slots. If your build requires more than four internal 3.5-inch bays or hot-swap trays, this chassis will not meet the requirement.

Акценти

  • Supports EATX, ATX and MicroATX boards for flexible builds
  • 900 W 80 PLUS Gold supply delivers efficient power
  • Four rotatable 3.5″ SAS/SATA bays simplify drive maintenance
  • Seven full-height slots accommodate long expansion cards
  • Front USB 3.0 and USB 2.0 ports give quick peripheral access

Спецификации

BrandSuperMicro
SeriesSuperChassis
ModelCSE-732D4-903B
Chassis TypeTower
Form FactorMid-tower
ColorBlack
Motherboard CompatibilityATX
Тегло на пратката14.11 kg
Размери на опаковката640 × 536 × 305 mm

Въпроси за този артикул

Which motherboard form factors fit the CSE-732D4-903B mid-tower chassis?

The chassis accepts EATX boards up to 12.0 x 13.0 inch, standard ATX at 12.0 x 10.0 inch and MicroATX at 9.6 x 9.6 inch.

Can I keep my existing 3.5-inch SAS or SATA drives when moving to this chassis?

Yes, four internal 3.5-inch SAS/SATA bays are provided on a 90° rotatable cage, plus one external 3.5-inch peripheral bay for additional drives.

How do I verify the 900W power supply is operating correctly after assembly?

The front panel includes power status, hard drive activity, network activity and system overheat LEDs; a steady power LED with no overheat indication shows the PSU is delivering power normally.
