Supermicro CSE-813MF2TQC-505CB 1U server chassis
A 1U desktop chassis housing four 3.5" hot-swap SAS/SATA bays with a 500W 80Plus Platinum supply
- Chassis TypeDesktop
- Form Factor1U
- ColorSilver
- Motherboard CompatibilityMotherboard support size: (12" x 10") (9.6" x 9.6")
- Power Supply500W
- Hot-Swap Drive Bays4 x 3.5" hot-swap SAS/SATA drive bay with SES2
- 1U form factor fits dense rack deployments
- 500W 80Plus Platinum supply delivers efficient power
- Four 3.5" hot-swap bays with SES2 enable drive changes without downtime
- Four 40mm PWM fans provide active cooling
- Supports motherboards up to 12" x 10
Compact 1U server chassis
The Supermicro CSE-813MF2TQC-505CB is a 1U desktop server chassis in silver that fits motherboards up to 12 by 10 inches. It ships with a 500W 80Plus Platinum power supply featuring PMbus monitoring and four 40x28mm PWM fans for active cooling.
Storage-focused deployments
The chassis suits builders who need four hot-swap 3.5-inch SAS or SATA bays backed by a 12Gbps backplane and SES2 enclosure management in a shallow rack profile. It does not suit workloads requiring additional full-height expansion cards or 2.5-inch drive density beyond the four bays provided.
Single full-height expansion slot
Only one full-height expansion slot is available, so the choice of add-in card — whether a RAID controller, NIC or GPU — must be the primary design decision before selecting this platform.
Акценти
- 1U form factor fits dense rack deployments
- 500W 80Plus Platinum supply delivers efficient power
- Four 3.5" hot-swap bays with SES2 enable drive changes without downtime
- Four 40mm PWM fans provide active cooling
- Supports motherboards up to 12" x 10
Спецификации
| Brand | SUPERMICRO |
|---|---|
| Series | SuperChassis |
| Model | CSE-813MF2TQC-505CB |
| Chassis Type | Desktop |
| Form Factor | 1U |
| Color | Silver |
| Motherboard Compatibility | Motherboard support size: (12" x 10") (9.6" x 9.6") |
| Power Supply | 500W |
| Hot-Swap Drive Bays | 4 x 3.5" hot-swap SAS/SATA drive bay with SES2 |
| Expansion Slots | 1 full height expansion slot(s) |
| 40mm Fans | 4 x 40x28mm PWM fan(s) Optional 2 x 40x28mm PWM fan(s) |
| Features | 1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") 4 x 3.5" hot-swap SAS/SATA drive bay with SES2 1U 4-Port 12Gbps Backplane Support 4x3.5 1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum 1 full height expansion slot(s) 4 x 40x28mm PWM fan(s) Optional 2 x 40x28mm PWM fan(s) |

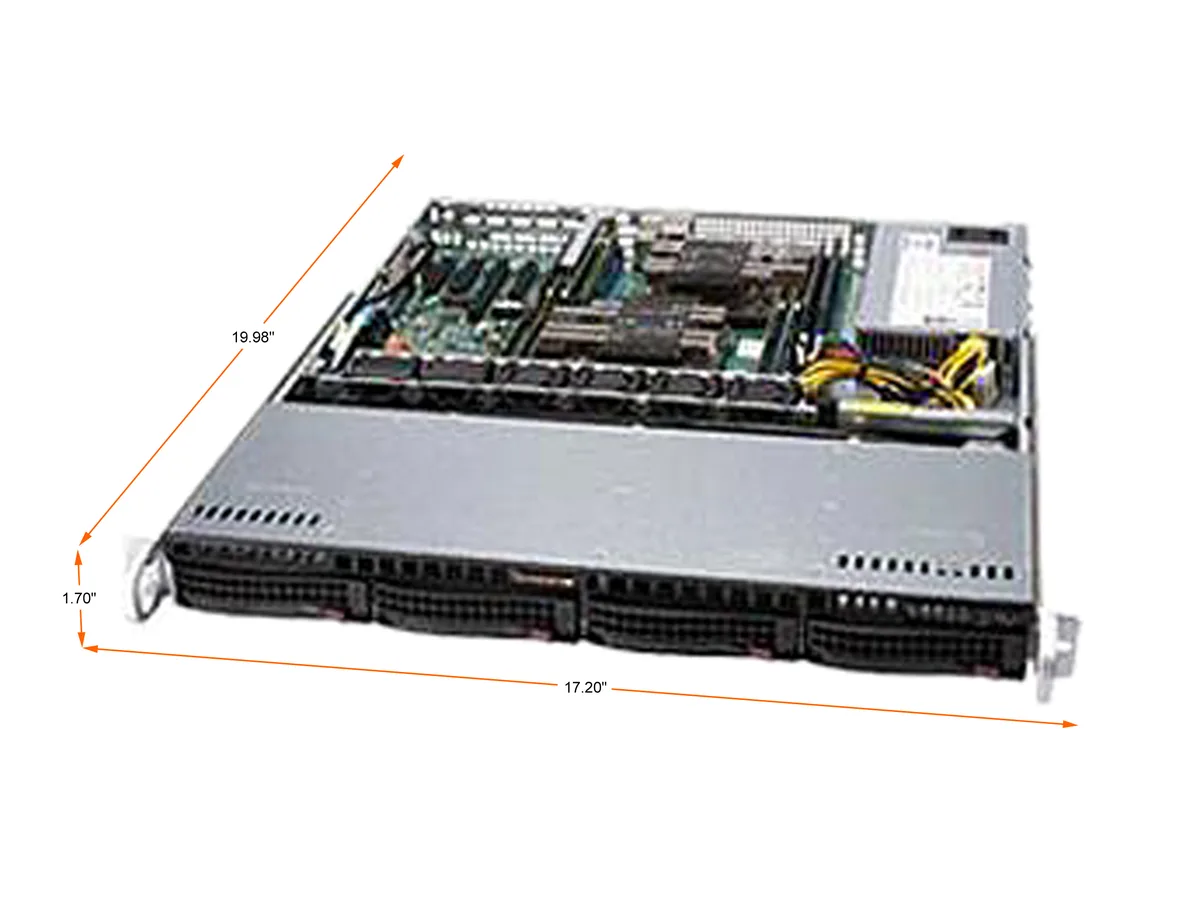

| Dimensions | 1.70" x 17.20" x 19.98" |
| Weight | 31.00 lbs. |
| Тегло на пратката | 14.97 kg |
| Размери на опаковката | 754 × 594 × 216 mm |
Въпроси за този артикул
How do I confirm the 500W power supply is reporting its status through PMbus after installation?
The 500W multi-output power supply includes PMbus support; use a compatible management tool or BMC to read its telemetry and verify it is operating within normal parameters.
Which components are included and which must be sourced separately for this 1U desktop chassis?
The chassis ships with a 500W 80Plus Platinum power supply, a 4-port 12Gbps backplane, four 40x28mm PWM fans installed, and mounting hardware for up to four 3.5-inch SAS/SATA hot-swap drives; motherboard, CPU, memory, drives and add-in cards are not included.
Which motherboard form factors fit the CSE-813MF2TQC-505CB?
The chassis supports motherboards up to 12 x 10 inches and 9.6 x 9.6 inches, covering standard ATX and micro-ATX server boards that match those dimensions.
