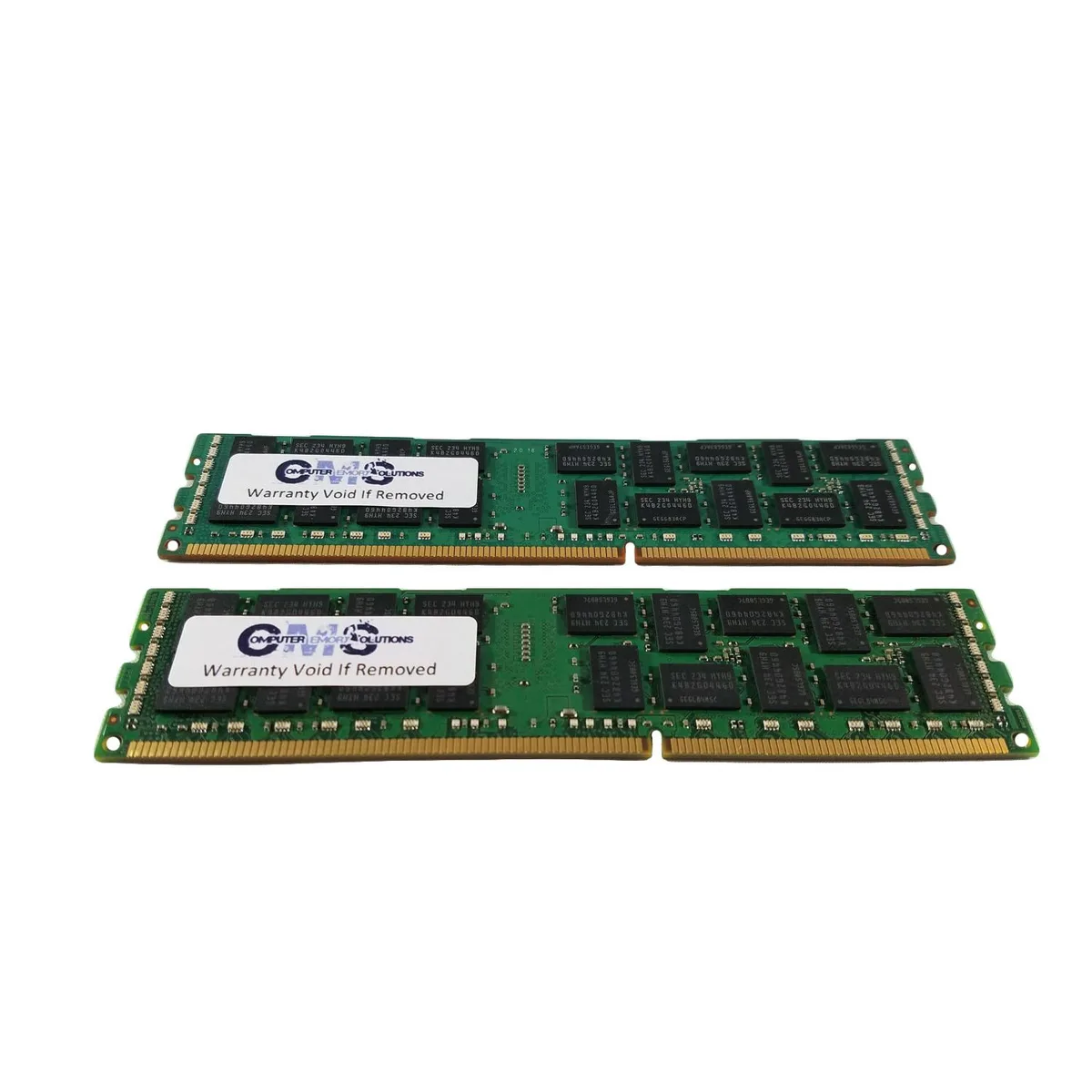

Two green DDR3 ECC registered DIMM sticks with black chips

Computer Memory Solutions

Computer Memory Solutions CM5127210600ECCR2R4H 8GB (2x4GB) DDR3 1333MHz ECC Registered DIMM

SKU CH-FQ17-80VF2

An 8 GB DDR3-1333 ECC registered DIMM kit (2×4 GB, CL9, 1.5 V) validated for the HP ProLiant ML350 G6 server

  • Capacity8GB (2 x 4GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1333 (PC3 10600)
  • CAS LatencyCL9
  • Timing9-9-9
  • Voltage1.5V
  • ECC registered design protects data integrity in server workloads
  • 1333 MHz DDR3 speed matches ProLiant ML350 G6 specifications
  • 2Rx4 dual-rank organisation maximises capacity per DIMM slot
  • 2×4 GB kit enables dual-channel performance out of the box
  • 5 V standard voltage ensures broad platform compatibility

Server ECC Registered Memory Kit

This 8 GB kit contains two 4 GB DDR3 registered DIMMs rated at 1333 MHz with CL9 timing. It is built for the HP/Compaq ProLiant ML350 G6 and carries ECC plus register buffering for data integrity in server workloads. The modules run at 1.5 V and use a 2Rx4 organisation.

Upgrade From Unbuffered Or Lower Capacity

The ML350 G6 accepts either registered or unbuffered ECC DIMMs but does not support mixing the two types. Installing this registered kit replaces any existing unbuffered modules and adds capacity up to the platform limits of 144 GB with 8 GB dual-rank RDIMMs or 192 GB with 16 GB quad-rank RDIMMs. The jump is worthwhile when the workload needs the higher densities that registered memory enables.

DDR3 Platform Limits And Clock Scaling

On this platform the memory controller automatically reduces speed to 1066 MHz or 800 MHz depending on the Xeon model and how many banks are populated. Quad-rank modules in the second triple-channel bank drop to 800 MHz and the third bank must remain empty. Unbuffered ECC is restricted to two triple-channel banks per processor on Xeon 55xx series systems.

Istaknuto

  • ECC registered design protects data integrity in server workloads
  • 1333 MHz DDR3 speed matches ProLiant ML350 G6 specifications
  • 2Rx4 dual-rank organisation maximises capacity per DIMM slot
  • 2×4 GB kit enables dual-channel performance out of the box
  • 5 V standard voltage ensures broad platform compatibility

Specifikacije

BrandComputer Memory Solutions
ModelCM5127210600ECCR2R4H
Capacity8GB (2 x 4GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1333 (PC3 10600)
CAS LatencyCL9
Timing9-9-9
Voltage1.5V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderBased on Current Inventory (If Required Please Contact)
Compatible SystemHp/Compaq Proliant Ml350 G6
Package Content2 Memory RAM Sticks

Pitanja o ovom artiklu

Will the 240-pin DDR3 DIMMs fit the HP/Compaq ProLiant ML350 G6 memory slots?

Yes, the 240-pin DDR3 form factor matches the ML350 G6 DIMM sockets exactly.

What is the correct way to install the two 4GB registered ECC modules in the ML350 G6, and what mistake should I avoid?

Populate one module per channel in identical bank order; do not mix these registered DIMMs with any unbuffered ECC modules in the same server.

When should I expect to replace the 1.5V DDR3-1333 ECC registered kit in a production ML350 G6?

Replace only if memory diagnostics report correctable ECC errors rising over time or if a module fails POST; otherwise the limited lifetime warranty covers the kit for the server's service life.
