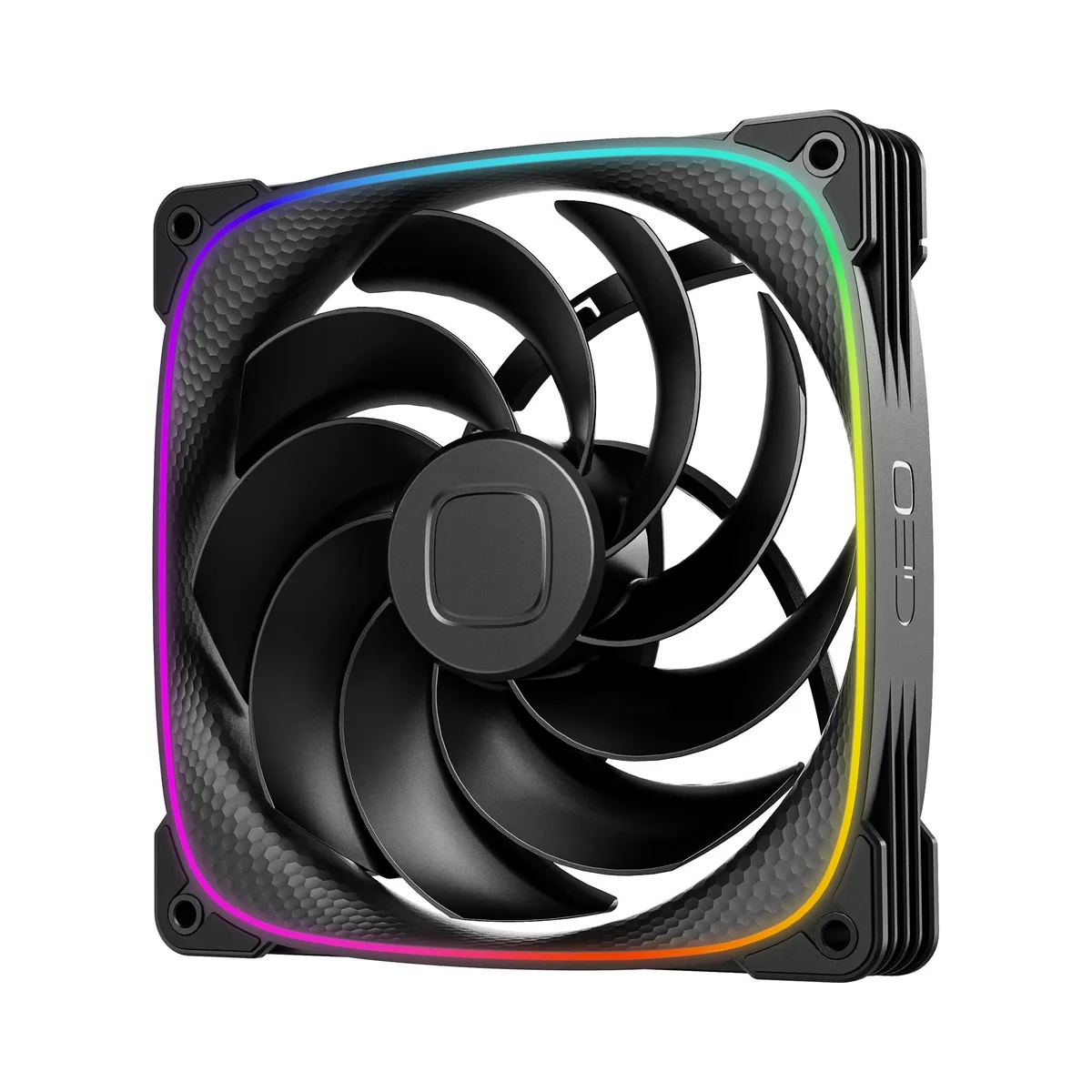

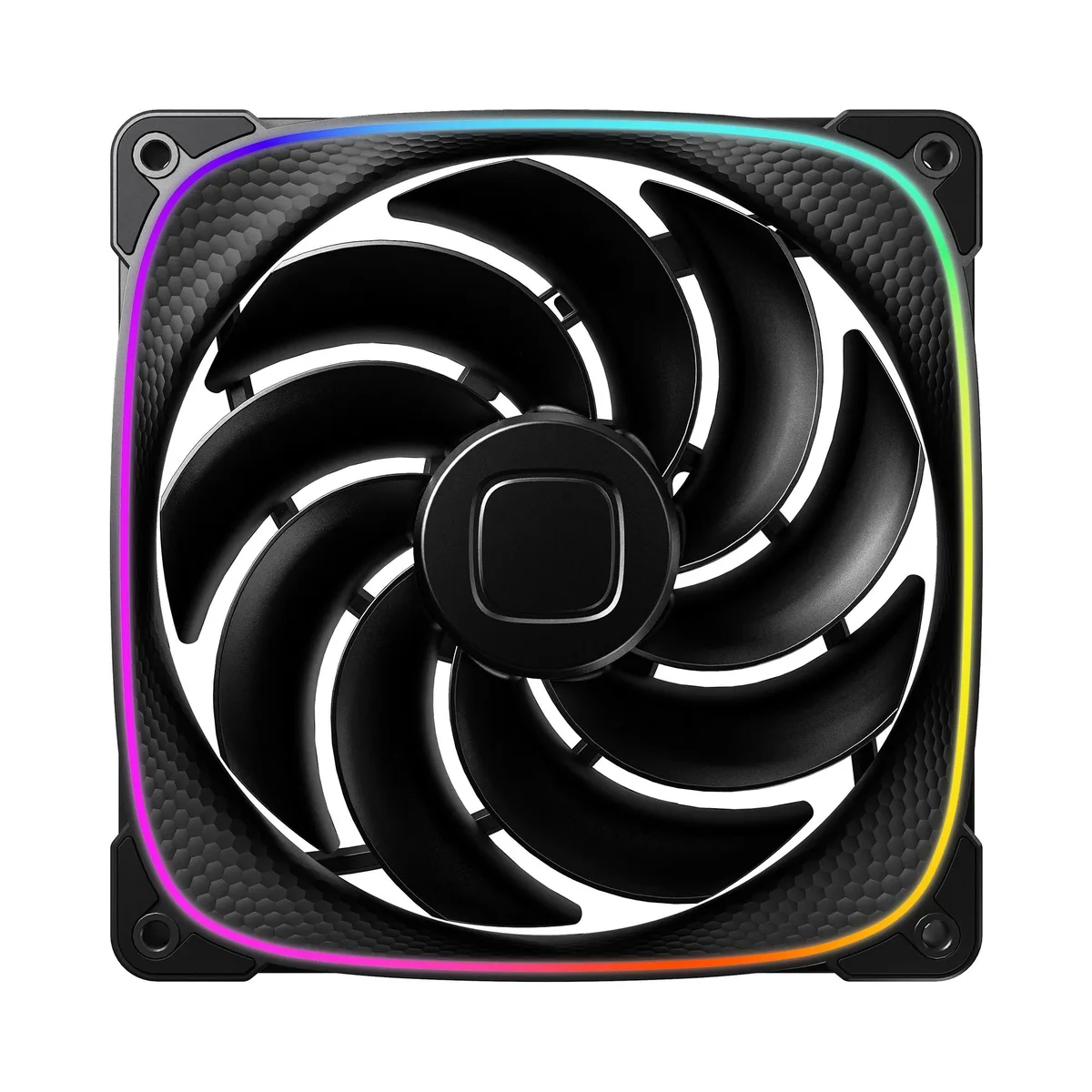

Three black 140mm reverse-blade fans with dual ARGB rings

Geometric Future

Geometric Future Squama 2503R 140mm case fan 3-pack

SKU CH-X9JH-BDYVD

Three 140 mm reverse-blade fans with addressable RGB dual light loops, PWM speed control from 800 to 2400 rpm, 91.15 CFM airflow, 2.63 mm H₂O pressure and 34 dB(A) noise

  • Fan Size140mm
  • Fan Thickness25
  • Bearing TypeHydro Dynamic Bearings
  • RPM800~2400
  • Air Flow91.15
  • Air Pressure2.63

Color Black

Model Squama 2503R 140x25mm Reverse

Option 3 Packs

  • Reversed blades pull air in from the front for versatile intake mounting
  • Hydro dynamic bearings deliver quiet operation at up to 34 dB(A)
  • Squama particle frame cuts turbulence to boost airflow to 91.15 CFM and 2.63 mm H₂O
  • 4-pin PWM adjusts speed from 800 to 2400 RPM for balanced performance
  • Dual addressable RGB loops sync with 5V motherboard headers for custom lighting

Three-pack reversed-blade 140mm fans

The set contains three 140mm case fans with a 25mm frame and reversed blades that can serve as intake fans while showing the front face. Hydro Dynamic Bearings and a patented Squama particle texture on the frame reduce turbulent noise while improving airflow and pressure efficiency. PWM control adjusts speed between 800 and 2400 RPM. Dual addressable RGB light loops on each fan connect to a standard 5 V 3-pin header for motherboard synchronisation.

Builders who want coordinated lighting

Suitable for systems that need matched intake or exhaust fans with addressable RGB effects and a wide speed range for quiet or high-performance curves. The reversed blade design is a specific aesthetic and functional choice; builders who prefer conventional blade orientation or single-loop lighting should look at other models. The three-fan pack also assumes enough 140mm mounting points for all units.

91.15 CFM airflow at 2.63 mm H2O static pressure

Peak airflow reaches 91.15 CFM with 2.63 mm H2O of static pressure at the maximum 2400 RPM setting, while noise stays at 34 dB(A). This single figure set determines whether the fans can move enough air through restrictive radiators or dense mesh panels for a given thermal target.

Istaknuto

  • Reversed blades pull air in from the front for versatile intake mounting
  • Hydro dynamic bearings deliver quiet operation at up to 34 dB(A)
  • Squama particle frame cuts turbulence to boost airflow to 91.15 CFM and 2.63 mm H₂O
  • 4-pin PWM adjusts speed from 800 to 2400 RPM for balanced performance
  • Dual addressable RGB loops sync with 5V motherboard headers for custom lighting

Specifikacije

Fan Size140mm
Fan Thickness25
Bearing TypeHydro Dynamic Bearings
RPM800~2400
Air Flow91.15
Air Pressure2.63
Noise Level34
Power ConnectorPWM 4Pin
ColorBlack
LEDAddressable RGB
Dimensions140mm

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How loud are these 140mm fans at full 2400 RPM speed?

The fans reach a maximum of 34 dB(A) at 2400 RPM, with a minimum speed of 800 RPM for quieter operation.

Does my motherboard need a 5V 3-pin ARGB header to control the dual lighting loops?

Yes, the addressable RGB lighting requires a standard 5V 3-pin ARGB header on the motherboard or a compatible controller.

Will the 2.63 mm H₂O static pressure work well on my older thick radiator?

The 2.63 mm H₂O pressure rating and 91.15 CFM airflow are designed for radiators and heatsinks, providing strong airflow through restrictive fins.
