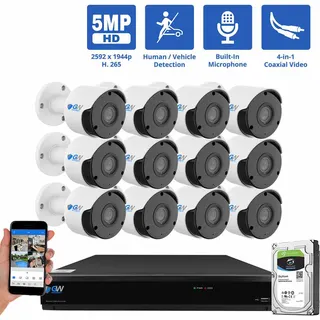

Black DVR unit with twelve bullet cameras, cables and accessories

GW Security Inc.

GW Security GW9516XVR 16 Channel 4K DVR Kit 12 x 5MP Cameras 1TB HDD

SKU CH-3FQ7-ZXXFZ

Records 16 channels at 4K 2160p with H.265 compression and includes 12 5MP cameras with AI face, human and vehicle detection, built-in microphones, 86° view and 100 ft night vision

  • TypeDVR Kit
  • Camera TypeAnalog Camera
  • Camera inputs16 Channel
  • Video Input16 x BNC Ports
  • Audio Input16CH input
  • Resolution Recording4K 2160p/1920p/1520p/1080p

Camera inputs 16 Channel

  • 4K 3840x2160 HDMI output delivers ultra-clear monitoring
  • 12 cameras at 5MP 2592TVI capture 2.5X 1080p detail
  • AI face human vehicle detection cuts false alerts
  • 6mm lens 86° view with 100 feet night vision
  • H.265 compression stores more footage on 1TB HDD

16-Channel 4K DVR Kit with 12 Cameras

The GW Security GW9516XVR kit provides a 16-channel digital video recorder paired with twelve 5MP bullet cameras. It records at up to 4K 2160p resolution across all channels using H.265 HEVC compression. The system includes a pre-installed 1TB hard drive for local storage and supports motion, continuous, scheduled and alarm-based recording modes. AI-powered face, human and vehicle detection helps filter alerts.

BNC Wiring and 4K Output Limits

Video travels over sixteen BNC ports using the supplied pre-made cables, six at 60 feet and six at 100 feet. The DVR outputs 4K 3840 x 2160 resolution through a single HDMI port and also offers a VGA connection. Audio is captured via built-in camera microphones and fed through sixteen channel inputs, with one RCA output for playback. ONVIF compliance allows integration with compatible third-party software.

Check Cable Runs and Monitor Inputs

Verify that the 60-foot and 100-foot BNC cable lengths reach every mounting location from the recorder position. Confirm your display accepts 4K 2160p input over HDMI or 1080p over VGA to match the DVR output capabilities. Ensure you have a free router port for the included 10-foot Ethernet cable to enable remote viewing and push notifications. The kit includes twelve cameras; four additional channels remain open for future expansion.

Istaknuto

  • 4K 3840x2160 HDMI output delivers ultra-clear monitoring
  • 12 cameras at 5MP 2592TVI capture 2.5X 1080p detail
  • AI face human vehicle detection cuts false alerts
  • 6mm lens 86° view with 100 feet night vision
  • H.265 compression stores more footage on 1TB HDD

Specifikacije

BrandGW Security
SeriesPlug N Play
ModelGW9516XVR
TypeDVR Kit
Camera TypeAnalog Camera
Camera inputs16 Channel
Video Input16 x BNC Ports
Audio Input16CH input
Resolution Recording4K 2160p/1920p/1520p/1080p
Recording Frame Rate4K 2160P/1920P/1520P/1080P @ all channels
Recording ModeMotion Detective / Continues / Time Schedule / Alarm
Recording CompressionNew Technology : H.265 HEVC
Video Output1 x VGA, 1 x HDMI up to 4K
Audio OutputRCA x 1
ONVIFYes
Resolution Display4K (3840 x 2160P)
Max Resolution4K 8MP (3840 x 2160)
Display Frame Rate4K 2160P/1920P/1520P/1080P @ all channels
Built-In HDDYes
Storage Capacity1TB HDD
Backup DeviceLocal: USB2.0 (faster video files transfer and backup) / Online: download video through internet
Network ConnectionRJ45
Network ProtocolRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/P2P/ONVIF
Network RemoteComputers (Windows & Mac), Smartphones （iPhone & Android）, and Tablets are All Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing)
Features4K (3840x2160) DVR : Support up to 8MP BNC CCTV cameras
Operating SystemLinux (embedded)
Power SupplyNo Power Adapter for Camera Needed. PoE ports is supporting video signal and power through a single Ethernet cable (Ethernet cables are all included in the package)
Bundled Camera Number12
Bundled Camera SpecGW537HDMIC: 5MP CCTV Microphone Camera, 3.6mm Wide Angle Lens, 18pcs SMD LED, 100 feet IR Distance. H.265/H.264 Video Compression. 5MP@15fps, 4M@30fps, 2M@30fps high resolution
Camera Horizontal Resolution5 MP
Kit Feature OtherH.265 is the latest video compression standard which brings extensive possibilities and optimism to the HD-IP Camera by addressing H.264 problems such as shortage of bandwidth, improving transmission efficiency and delivers ultra HD image quality. • Compared with current H.264, the H.265 is able to double the data compression ratio, while improve video quality with low bit-rate, this enables IP camera to deliver smooth Superb HD video with low bandwidth, which in turn, reducing the network bandwidth, and video storage size.
Dimensions14.9 x 13.4 x 2 inches
Weight8 lb
Package ContentsDVR with selected HDD, CCTV cameras, DVR power adapter, USB mouse, Remote Control, Ethernet cables, Mouting screws, User manual CD, Specification sheet, One year warranty

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How many cameras are included and how many channels does the DVR support?

The kit includes 12 cameras and the DVR supports 16 channels so you can add up to four more cameras later.

What recording resolution will I actually get from the 5MP cameras on this 4K DVR?

Each camera captures at 5MP 2592×1920 and the DVR records that resolution at up to 2160p across all channels.

Does the system use BNC cables and what lengths are supplied?

Yes, it uses pre-made BNC cables and the box contains six 60-foot and six 100-foot runs.
