Small green circuit board with ATX power connectors and pin headers

MCDODO

MCDODO ATX Remote PC Power Control Board for Comet GL-RM1 and GL-RM1PE

SKU CH-KKM3-YP3V6

ATX remote power control board enables remote boot, crash recovery and forced reboot for Comet GL-RM1 and GL-RM1PE KVM units

  • TypeSingle Board Computers
  • Remote power-on from full shutdown via ATX header
  • Hardware crash recovery without OS dependence
  • Direct motherboard control through Comet KVM integration
  • Minutes to install on standard ATX boards
  • Continuous uptime for kiosks and industrial PCs

Remote ATX Power Control Board for Comet KVM

This add-on board connects a Comet GL-RM1 or GL-RM1PE KVM to a motherboard ATX header giving remote power-on and forced-reboot capability. It is intended for system administrators who manage headless servers digital signage players or industrial PCs that must recover from a crash without on-site staff.

OS-Independent Hardware Reset Over Ethernet

Control travels through the Comet KVM over the network so the host operating system does not need to be responsive. The board can toggle the power button pins and hold the reset line to force a cold boot even when the OS is frozen or powered off completely. Functionality stops if the network link to the Comet unit is lost or the Comet itself loses power.

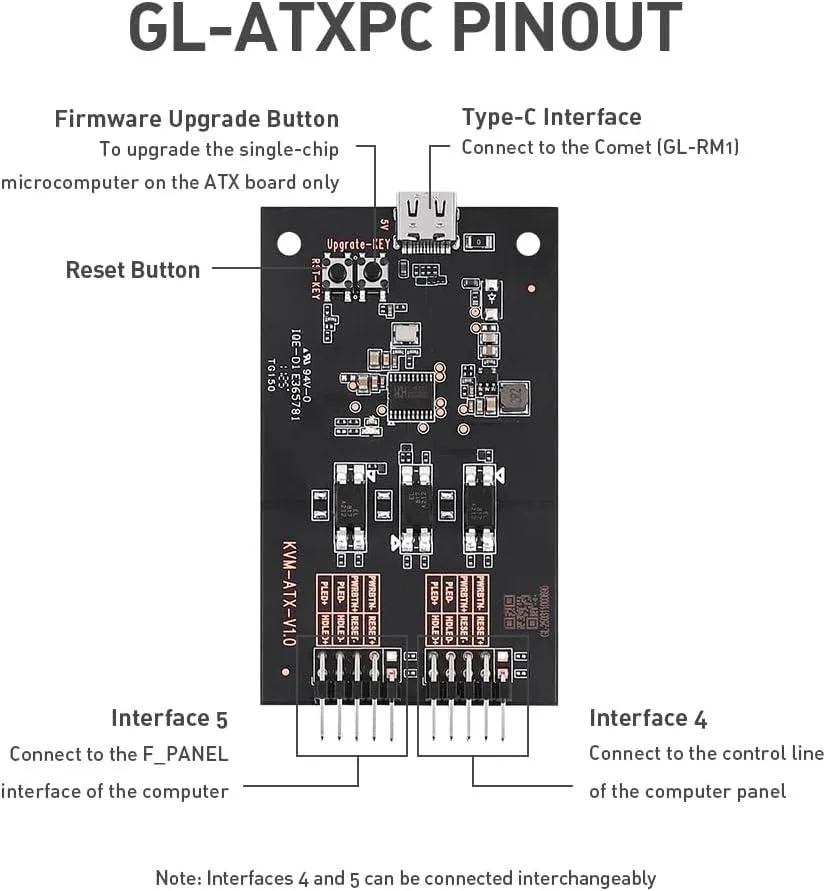

Simple Header Wiring With Polarity Sensitivity

Installation requires plugging the supplied cable onto the motherboard front-panel header matching the power-switch and reset-switch pins. Reversing the connector or using the wrong pin pair will prevent the board from signalling the motherboard. No driver or software configuration is needed on the host machine beyond enabling the KVM in the Comet interface.

Istaknuto

  • Remote power-on from full shutdown via ATX header
  • Hardware crash recovery without OS dependence
  • Direct motherboard control through Comet KVM integration
  • Minutes to install on standard ATX boards
  • Continuous uptime for kiosks and industrial PCs

Specifikacije

TypeSingle Board Computers

Pitanja o ovom artiklu

Is this control board compatible with both the Comet GL-RM1 and the Comet PoE GL-RM1PE?

Yes, the board is designed as an accessory for both the Comet GL-RM1 and the Comet PoE GL-RM1PE, providing remote power control for either device.

Can this board power on a computer that is completely shut down, not just in sleep mode?

It connects directly to the motherboard ATX header, allowing you to power on a fully turned-off system remotely without physical access.

Does the board require an operating system to be running to reboot a frozen machine?

No, it operates at hardware level through the motherboard connection, so it can force a reboot even when the OS has crashed or is unresponsive.
