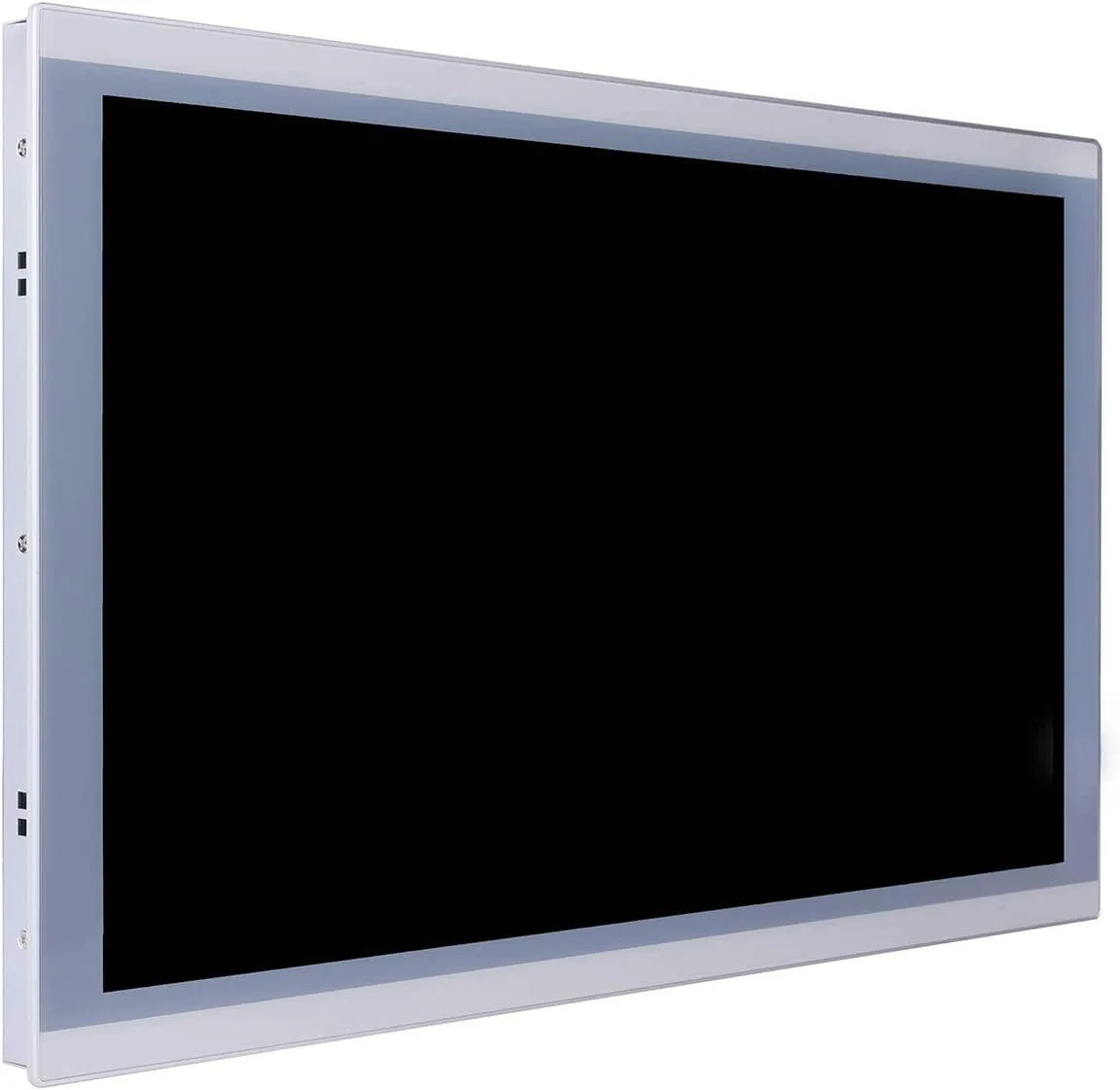

Silver 18.5 inch industrial all-in-one touchscreen panel PC with fanless aluminum alloy chassis

partaker

Partaker A12-PA-190TPC-CE6B(I53) 18.5" all-in-one PC 8GB 512GB

SKU CH-03M6-JPA6Z

An 18.5" industrial panel PC with IP65 front protection, 10-point capacitive touch, fanless aluminium cooling and an Intel Core i5 3rd Gen CPU, 8GB DDR3L and 512GB SSD for 24/7 embedded deployment

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU Name1.70GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • IP65 front panel resists dust and water ingress
  • 10-point projected capacitive touch enables precise multi-touch control
  • Fanless aluminium alloy cooling runs silently with no moving parts
  • Intel Core i5 3rd Gen at 1.70 GHz with 8 GB DDR3L handles industrial workloads
  • 512 GB mSATA SSD plus 2.5" SATA bay provides flexible storage expansion

Industrial 18.5-inch touch panel PC

This all-in-one computer integrates an Intel Core i5 third-generation processor running at 1.70GHz with 8GB of DDR3L memory and a 512GB mSATA SSD. The 18.5-inch TFT LED display offers a 1366 x 768 resolution and a 10-point projected capacitive touchscreen protected to IP65 on the front panel. An aluminium alloy fanless chassis enables silent, continuous 24/7 operation in industrial environments.

Suited for embedded automation and kiosk deployments

The unit fits embedded, wall-mounted, desktop or cantilever installations using the supplied buckle kits and a 454 x 276.5mm cut-out. Builders needing internal 2.5-inch SATA storage expansion or Mini PCIe wireless modules with a SIM slot will find the necessary slots available. Buyers who require a higher display brightness than 250cd/m², a wider operating temperature range beyond 0 to 50°C, or a fan-assisted cooling solution should consider alternative hardware.

10-point projected capacitive touchscreen

The multi-touch panel supports 200 million touches and delivers 86±5% transmittance at 550nm wavelength with 1000:1 contrast. This specification determines whether the human-machine interface meets the durability and environmental sealing demands of the target industrial application.

Istaknuto

  • IP65 front panel resists dust and water ingress
  • 10-point projected capacitive touch enables precise multi-touch control
  • Fanless aluminium alloy cooling runs silently with no moving parts
  • Intel Core i5 3rd Gen at 1.70 GHz with 8 GB DDR3L handles industrial workloads
  • 512 GB mSATA SSD plus 2.5" SATA bay provides flexible storage expansion

Specifikacije

ModelA12-PA-190TPC-CE6B(I53)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU Name1.70GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size18.5"
TouchscreenYes

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

What cut-out size does the 18.5" panel need for embedded mounting?

The opening hole measures 454 x 276.5 mm, matching the embedded buckle kits supplied.

How is the 12 V DC power connected and what step is often missed?

Plug the external 100-240 V AC adapter into the DC jack; the unit will auto-power on after a power failure if the BIOS setting is enabled.

Which memory module fits the single SODIMM slot for a future upgrade?

A DDR3L 1333/1600 SODIMM up to 8 GB; the slot is already populated at the maximum capacity.
