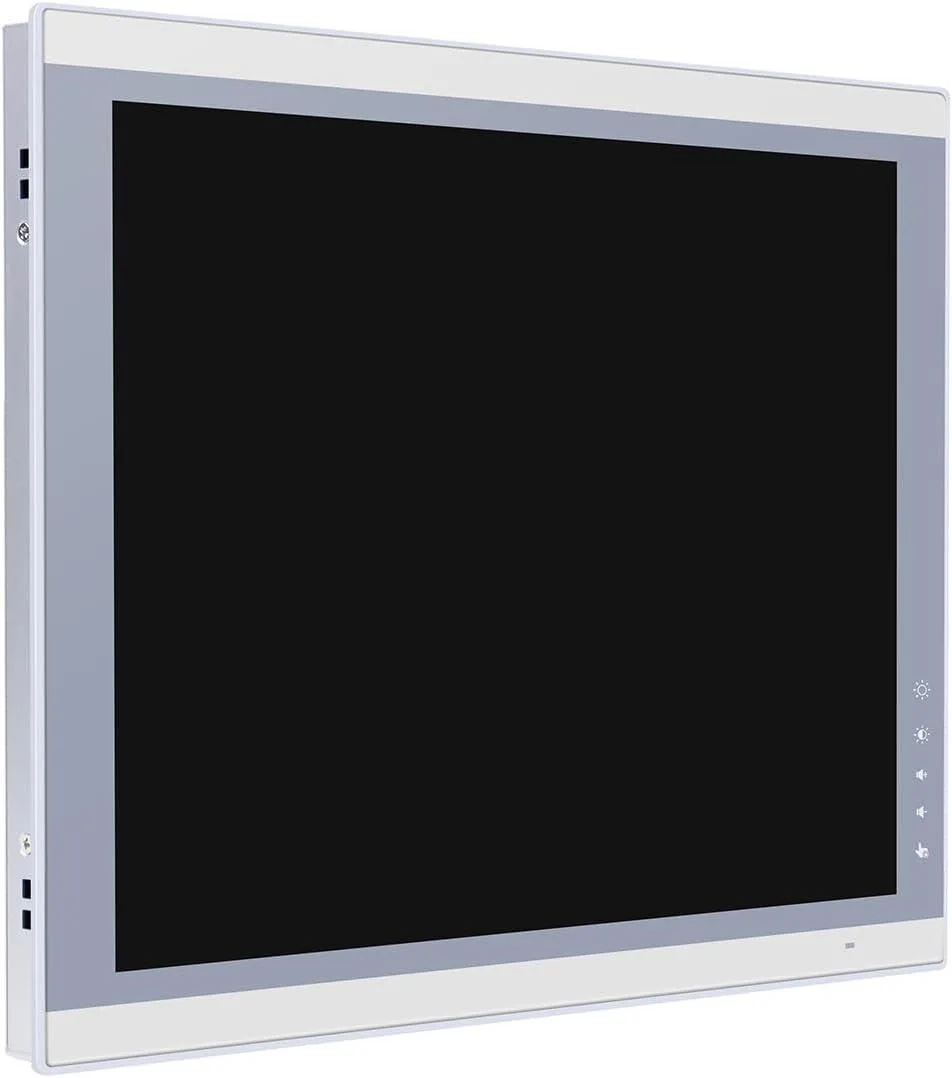

Gray 15-inch fanless all-in-one panel PC with IP65 front touchscreen

partaker

Partaker A23 15" IP65 All-in-One PC i7-6500U 8GB 256GB

SKU CH-X6P7-Z9FTQ

A 15-inch IP65-rated all-in-one with a 10-point capacitive touchscreen, Core i7-6500U, 8GB DDR4 and 256GB SSD, fanless aluminium cooling, dual LAN, dual COM and HDMI/VGA for 24/7 industrial deployment

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • CPU NameIntel Core i7-6500U
  • GPU/VGA TypeIntel HD Graphics 520

CPU Type Intel Core i7 6th Gen

CPU Name Intel Core i7-6500U

Memory Capacity 8GB DDR4

SSD 256GB

HDD None

  • IP65 front protection for harsh industrial environments
  • 10-point capacitive touch enables precise multi-finger control
  • Fanless aluminium cooling runs silently and resists dust
  • Intel Core i7-6500U with 8 GB DDR4 handles multitasking
  • Windows 11 Pro pre-installed for immediate deployment

Industrial panel PC for harsh environments

The Partaker A23 is a 15-inch all-in-one computer with a projected capacitive 10-point touchscreen and IP65 front protection. It runs Windows 11 Pro on an Intel Core i7-6500U with 8GB DDR4 and a 256GB SSD. The fanless aluminium chassis is built for 24/7 operation in dusty, humid or vibration-prone settings.

Fanless cooling and low power draw

An aluminium alloy heatsink dissipates heat without moving parts, so the system runs silently and resists dust ingress. The 12V DC input accepts 100-240V AC via the supplied adapter, keeping consumption low during continuous duty. Operating temperature spans 0 to 50°C with the fitted SSD, and the backlight is rated for 30000 hours minimum.

Mounting kit and expansion slots included

The package provides a 12V power supply, power cord and embedded mounting hardware for panel, wall, desktop or cantilever installation. Inside, one mSATA, one M.2 2280 NVME/SATA and one 2.5-inch SATA bay allow storage upgrades, while a Mini PCIe slot with a SIM holder supports Wi-Fi or 4G modules. Two COM ports and dual LAN suit legacy industrial protocols.

Istaknuto

  • IP65 front protection for harsh industrial environments
  • 10-point capacitive touch enables precise multi-finger control
  • Fanless aluminium cooling runs silently and resists dust
  • Intel Core i7-6500U with 8 GB DDR4 handles multitasking
  • Windows 11 Pro pre-installed for immediate deployment

Specifikacije

ModelA23-I7 6500U-8G256G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
CPU NameIntel Core i7-6500U
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR4
SSD256GB
HDDNo
Screen Size15"
TouchscreenYes

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How do I mount the A23 into a panel and which cut-out size is required?

Cut a 348 x 272 mm opening in the enclosure, insert the unit from the front, and secure it with the embedded mounting brackets supplied in the box.

Which storage slots can I use later to add capacity or replace the 256 GB drive?

One mSATA slot, one M.2 2280 slot that accepts NVME or SATA SSDs, and one 2.5 inch SATA bay for SSD or HDD are available inside the chassis.

At what temperature does the fanless cooling reach its limit during continuous operation?

The aluminium-alloy heatsink is rated for sustained use up to 50 °C ambient with the installed SSD; above that thermal throttling will occur.
