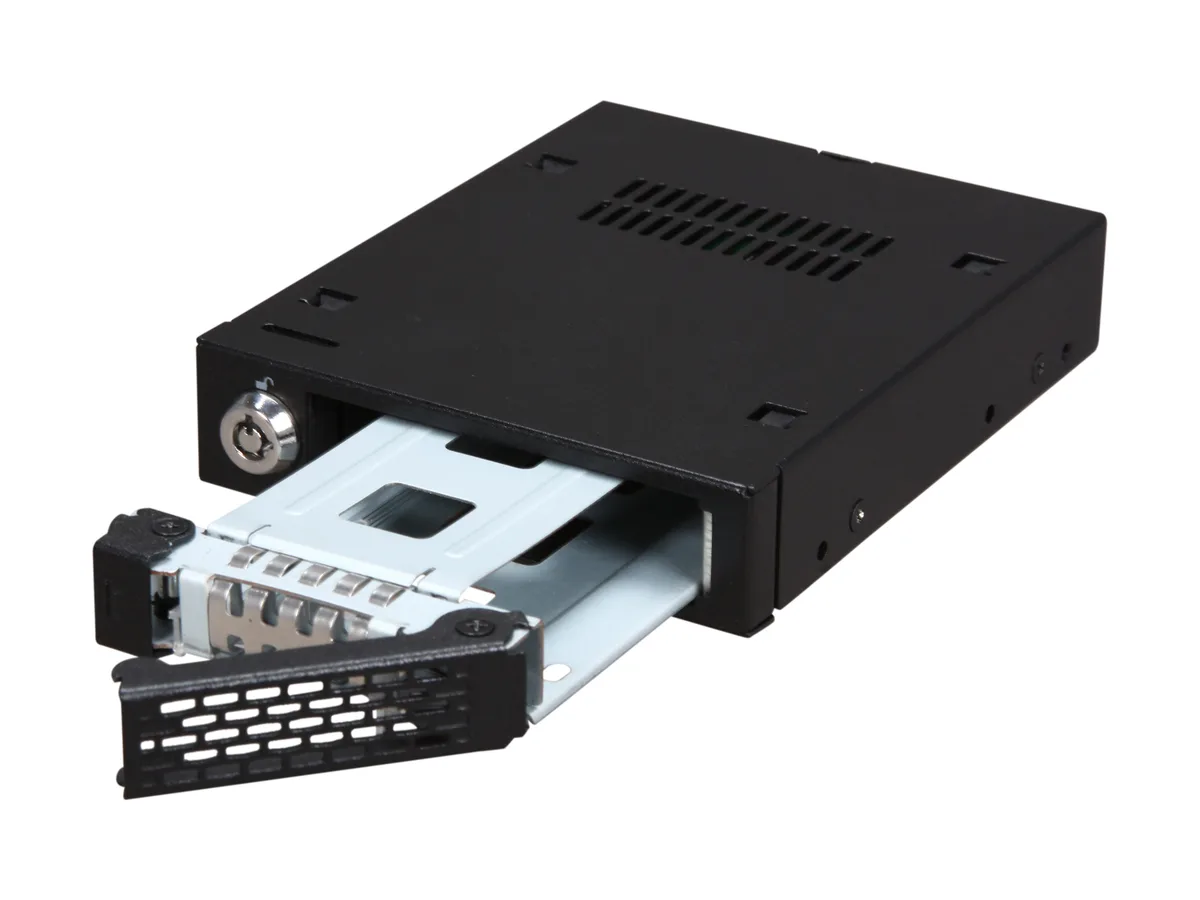

Matt black metal tray holding a 2.5 inch drive in a 3.5 inch bay

ICY DOCK

ICY DOCK MB991IK-B 2.5" SATA/SAS to 3.5" bay hdd accessory

SKU CH-EK04-BDQ7Y MPN MB991IK-B

A full-metal tray fits one 2.5" SATA or SAS drive into a 3.5" bay with a key lock and direct 15-pin connection

  • ColorMatt Black
  • Conversion Tray1 x 2.5" Drive to 3.5" Bay
  • Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseSingle Drive
  • SpecificationsHost Interface: 7 pin SATA x 2 Drive Fit: 2.5" SAS or SATA I

Model ToughArmors 1BAY-SAS

Még 4 konfiguráció megtekintése

Option 1 x 3.5in

  • Fits 2.5" SATA/SAS drives in a 3.5" bay for compact upgrades
  • Heavy-duty full-metal construction protects the drive in harsh environments
  • 2-segment key lock secures the drive against unauthorised removal
  • Supports SAS 2.0 dual-channel and SATA 6 Gb/s for high-speed transfers

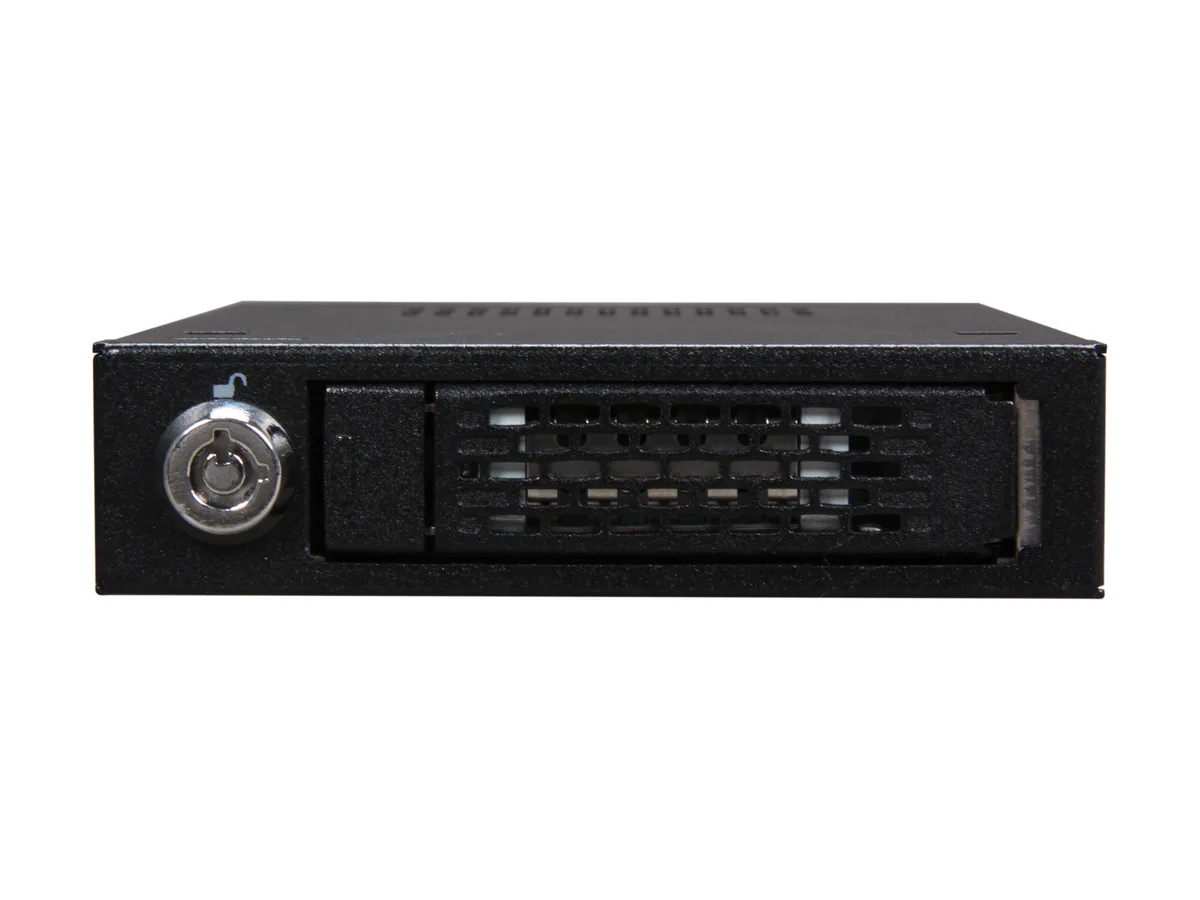

  • Front-panel LED shows drive status at a glance

Single-drive 2.5" to 3.5" mobile rack

The ICY DOCK MB991IK-B is a full-metal mobile rack that fits one 2.5" SATA or SAS hard drive or SSD into a single 3.5" device bay. It supports SATA I, II and III as well as SAS 2.0, delivering transfer rates up to 6 Gb/s depending on the drive used. A two-segment key lock secures the drive and the tray uses a 15-pin direct connection for insertion and removal. The unit is designed for systems that need hot-swap capability in a rugged enclosure.

Suited for single-drive hot-swap in tight bays

This rack serves builders who need one removable 2.5" drive in a 3.5" bay, such as in medical, military, media-server, IPC, HTPC or all-in-one systems. It is not for users who require space for more than one drive in the same bay. It is not for installations that cannot accommodate a 3.25" bay opening. It is not for environments where a plastic or tool-less tray is preferred over a locked metal design.

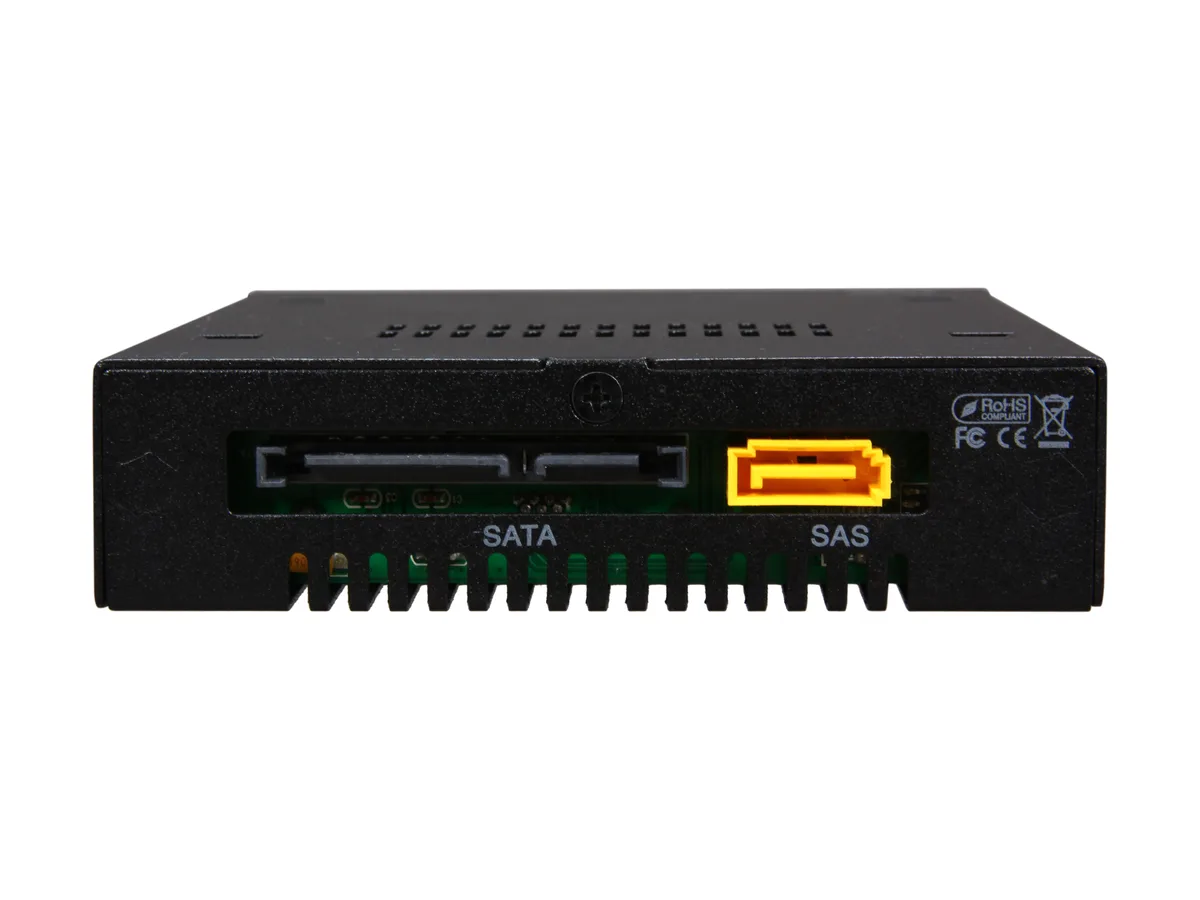

SAS dual-channel support via dual 7-pin SATA host

The specification that decides fit is the dual 7-pin SATA host connection enabling SAS dual-channel operation. If the host backplane or controller provides only a single SATA port, the second SAS channel will not be usable. Verify that your system can connect both 7-pin SATA cables before purchasing.

Erősségek

  • Fits 2.5" SATA/SAS drives in a 3.5" bay for compact upgrades
  • Heavy-duty full-metal construction protects the drive in harsh environments
  • 2-segment key lock secures the drive against unauthorised removal
  • Supports SAS 2.0 dual-channel and SATA 6 Gb/s for high-speed transfers
  • Front-panel LED shows drive status at a glance

Műszaki adatok

BrandICY DOCK
ModelMB991IK-B
ColorMatt Black
Conversion Tray1 x 2.5" Drive to 3.5" Bay
Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseSingle Drive
SpecificationsHost Interface: 7 pin SATA x 2
Drive Fit: 2.5" SAS or SATA I / II HDD / SSD x 1
Drive Bay: 3.25" Bay x 1
Transfer Rate: Up to 6 Gb / sec. (depending on hard drive speed)
Insert& Extract conection Via: 15 pin direct hard drive connection
Structure: SECC
Drive Cooling: Metal heat dispersion
LED Indication: Device Power & Drive Activity
LED Color: Green - Device Power, Amber - Drive Activity
Dimension (L x W x H): 5.32" x 4.00" x 1.01"
Weight: 0.88 lb.
FeaturesFits a 2.5" SAS / SATA SSD / HDD in a 3.5" device bay
Support SAS 2.0 & SATA 6 Gb/s
Support SAS Dual channel
Heavy duty full metal construction
2-segment safeguard key lock
Szállítási súly0.46 kg
Csomagméret160 × 112 × 36 mm

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

What are the exact bay and drive dimensions for the MB991IK-B?

The unit fits a single 2.5" SATA or SAS drive into one standard 3.5" (3.25") front-accessible bay.

Which installation step is most often missed with the 15-pin direct connection?

Align the 7-pin SATA and 15-pin power connectors on the tray with the backplane before sliding the drive in; forcing it without alignment bends pins.

When should the metal tray or key lock be replaced on this rack?

Replace the tray if its guide rails bend or the 15-pin contacts wear, and replace the lock cylinder if the two-segment key no longer turns smoothly.
