Chrome metal tray with key lock and thumb screw for 2.5 inch drive in 3.5 inch bay

ICY DOCK

ICY DOCK MB491SKL-B 2.5" SATA/SAS to 3.5" bay hdd accessory

SKU CH-FDB2-RH8RT MPN MB491SKL-B

Converts a 3.5" bay for one 2.5" SATA or SAS drive with a lockable metal tray

  • ColorChrome
  • Conversion Tray1 x 2.5" Drive to 3.5" Bay
  • Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseSingle Drive
  • Compatible Products2.5” SAS or SATA HDD/SSD (SAS host required)

Model ToughArmors 1BAY+LOCK

Még 4 konfiguráció megtekintése

Option 1-Bay (2.5in SATA/SAS)

  • Fits a 2.5" SATA/SAS drive into a 3.5" bay

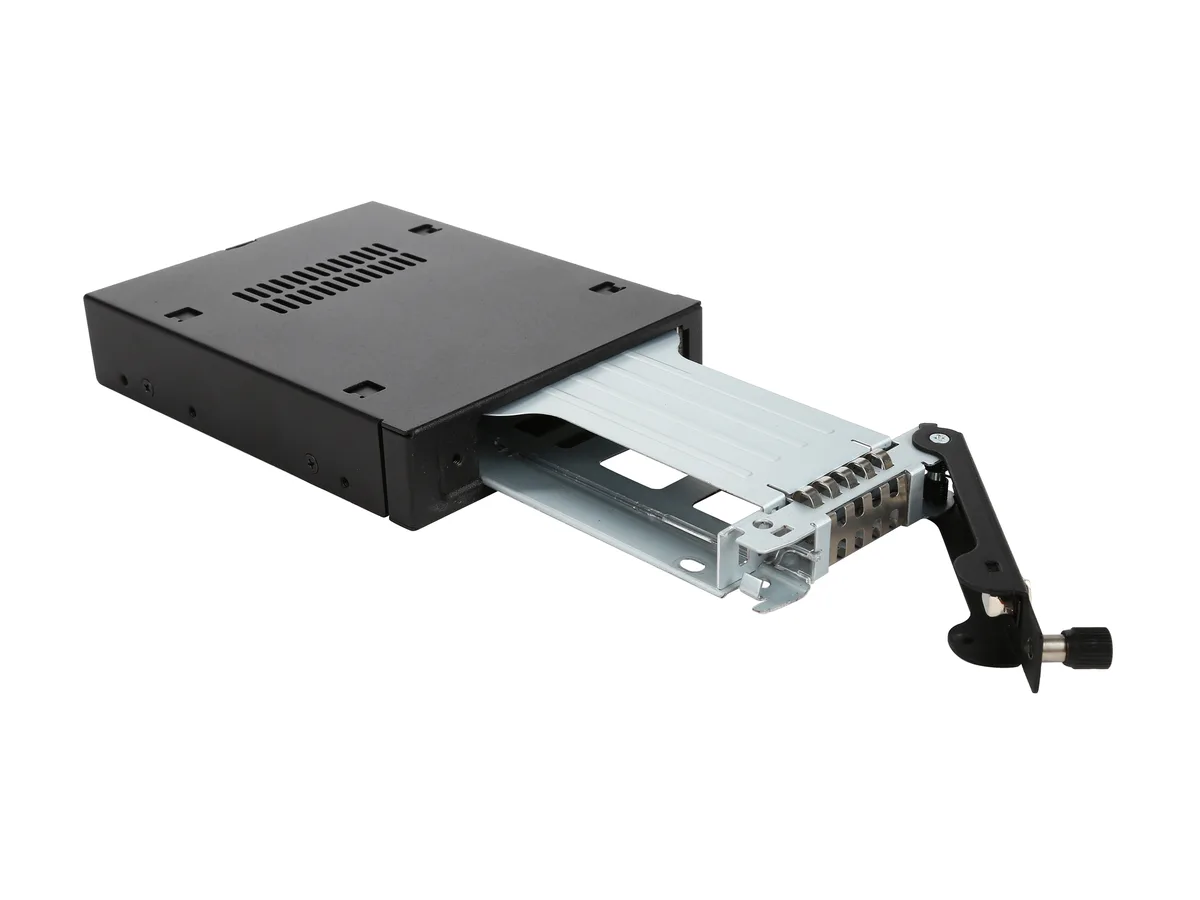

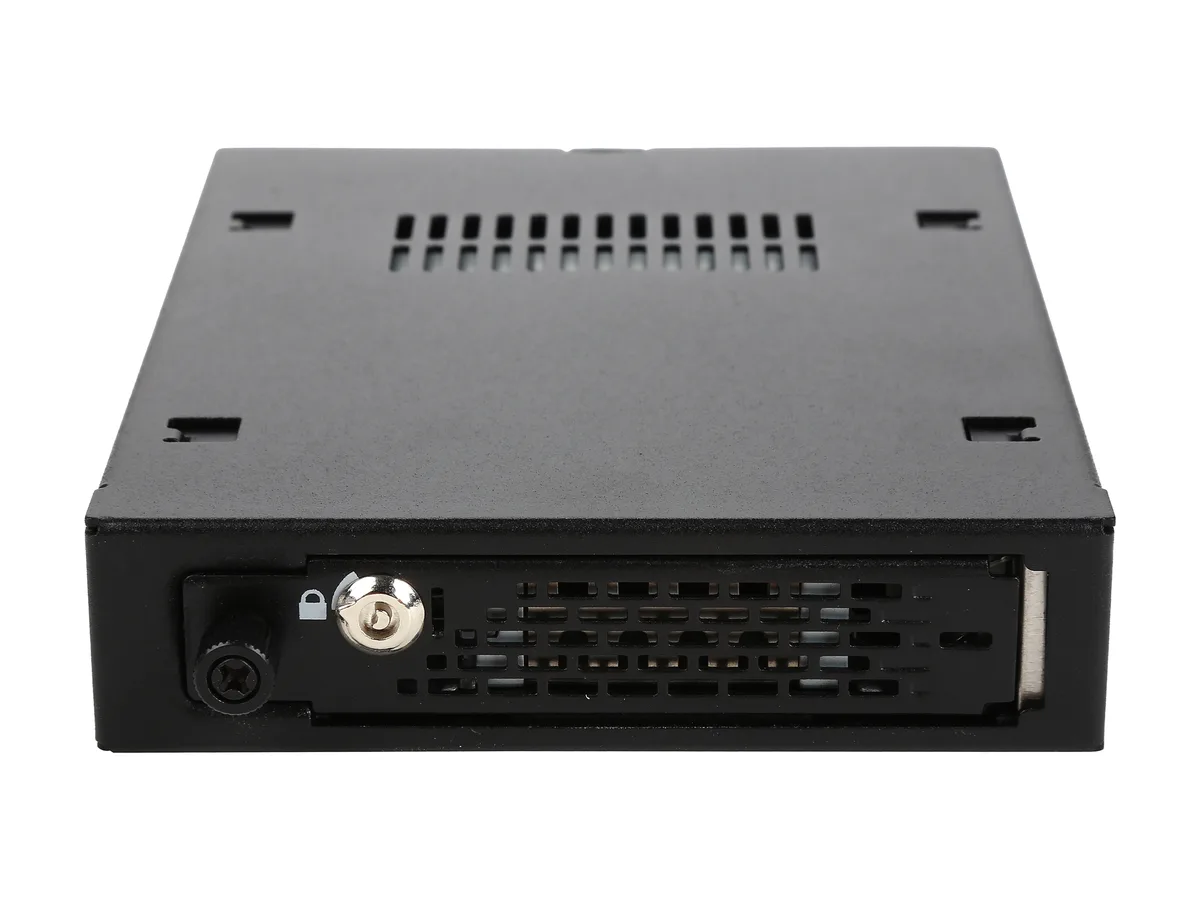

  • Removable tray with metal key lock and thumb screw
  • Supports 7mm, 9.5mm, 12.5mm and 15mm drive heights
  • Full metal construction for durability
  • 14-pin SAS and 15-pin power connectors for 6 Gb/sec transfer

Drive bay adapter for 2.5" drives

The ICY DOCK MB491SKL-B fits a single 2.5" SATA or SAS drive into a standard 3.5" front bay. It accepts 7mm, 9.5mm, 12.5mm and 15mm drive heights. A removable metal tray with key lock and thumb screw secures the drive. The unit supports up to 6 Gb/sec per channel.

Check host interface and bay access

Verify that your system provides a 3.5" SAS drive bay with a 14 pin SAS backplane connector and a 15 pin power connector. The host must support SAS for SAS drives; SATA drives work on SATA controllers. Ensure the front panel allows tray insertion and removal.

Adds hot-swap to a single bay

The full metal cage enables hot-swap capability for one drive without tools. It occupies one 3.5" bay and connects directly to the backplane. The tray design frees internal space by keeping the drive accessible from the front. No additional cables or brackets are required for installation.

Erősségek

  • Fits a 2.5" SATA/SAS drive into a 3.5" bay
  • Removable tray with metal key lock and thumb screw
  • Supports 7mm, 9.5mm, 12.5mm and 15mm drive heights
  • Full metal construction for durability
  • 14-pin SAS and 15-pin power connectors for 6 Gb/sec transfer

Műszaki adatok

BrandICY DOCK
ModelMB491SKL-B
ColorChrome
Conversion Tray1 x 2.5" Drive to 3.5" Bay
Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseSingle Drive
Compatible Products2.5” SAS or SATA HDD/SSD (SAS host required)
SpecificationsCompatible Drive Heights :
7mm, 9.5mm, 12.5mm &15mm
Device Interface:
14 pin SAS (Dual Channel)
Power Input:
15 pin power connector
Device Fit :
3.5" SAS drive bay
Transfer Rate :
Up to 6 Gb/sec per channel (depending on hard drive speed)
Material :
Stainless steel
Dimension (L x W x H) :
146.6 x 25.4 x 101.6mm
Weight :
210g
Package Contentst :
Device, user manual, screws
Szállítási súly0.45 kg
Csomagméret154 × 110 × 38 mm

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

What comes in the box with the MB491SKL-B and what must I buy separately?

The package includes the full-metal mobile rack cage, one removable EX-Secure Mini Tray, a metal key lock and thumb screws for installation. You must supply your own 2.5" SATA or SAS drive and have a 3.5" front bay with SAS backplane.

Which drive heights does the MB491SKL-B support so I know which model to choose?

The tray accepts 2.5" drives measuring 7 mm, 9.5 mm, 12.5 mm and 15 mm thick, covering standard SATA and SAS SSDs and HDDs in a single version.

What does the 6 Gb/s per channel figure mean once the MB491SKL-B is installed in my system?

Each SAS lane delivers up to 6 Gb/s, so a SATA III SSD runs at its full 6 Gb/s speed while a dual-channel SAS drive can use both lanes for higher throughput.
