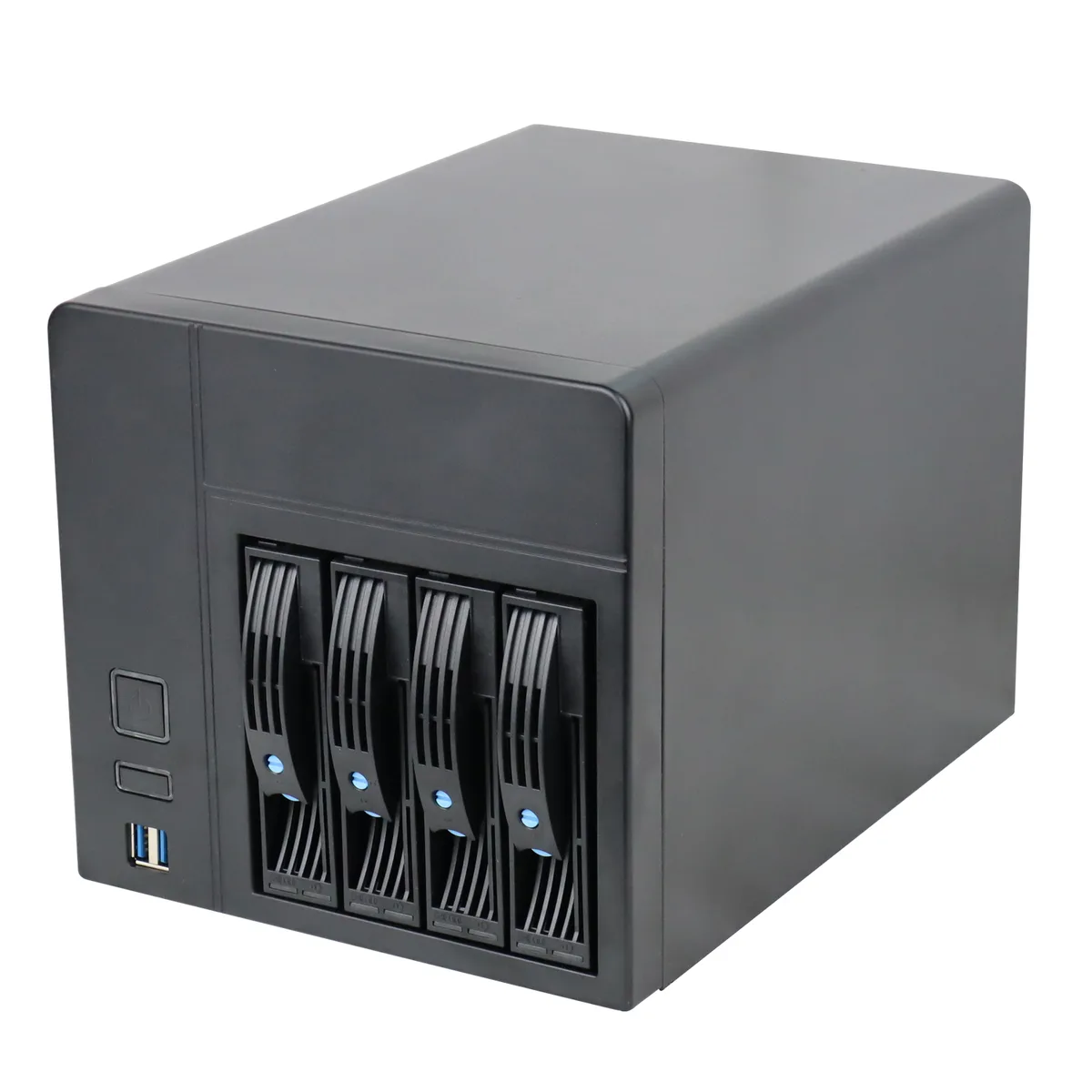

Black 4U server chassis with four front hot-swap drive bays

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 4U 4-Bay Hot-Swap NAS Server Chassis Mini-ITX 150W Flex PSU

SKU CH-K71W-97F5Y

A 4U rack-mount NAS chassis holding four hot-swap 3.5-inch SATA drives with a 150 W Flex PSU for Mini-ITX boards

  • Form Factor4U
  • ColorBlack
  • Hot-swap 3.5-inch bays with 6Gb/s SATA backplane
  • 150W Flex 1U PSU included for Mini-ITX builds
  • 0mm SGCC steel resists corrosion and fingerprints
  • Anti-EMI extraction trays show drive status via light guide
  • Rear 12025 fan cools four drives in compact 4U form

4U 4-Bay NAS Chassis

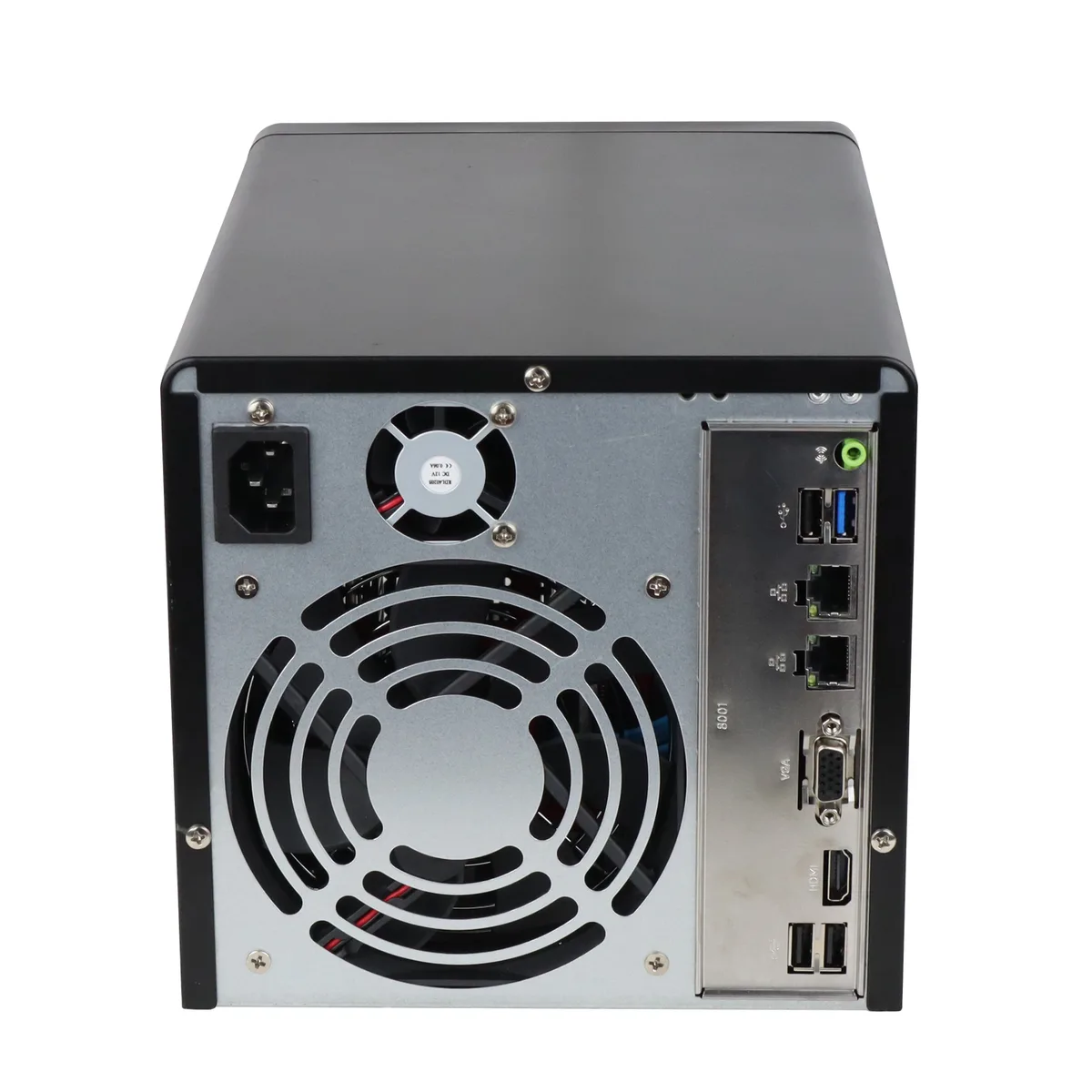

This 4U server chassis holds four hot-swap 3.5-inch SATA drive bays and accepts a Mini-ITX motherboard up to 170mm square. It ships with a 150W Flex PSU and a single rear 12025 fan for airflow. The steel frame uses 1.0mm SGCC zinc-coated panels with a sand-grain black finish.

6Gb/s SATA Backplane Limit

The integrated backplane runs at 6Gb/s SATA III, so every installed drive is capped at that interface speed regardless of the drive's own rating. Hot-swap trays include LED light guides for status indication, but the chassis provides only two front USB 2.0 ports for external connectivity. No additional drive interfaces or PCIe slots are present.

Four-Drive Capacity Headroom

Four bays give enough raw capacity for home storage, private cloud, office AV or distributed storage workloads that fit within four drives. The 150W Flex supply and single 12025 fan limit sustained heavy loads; CPU cooler height must stay below 3.5cm. Builds needing more than four drives, redundant power or higher-wattage components exceed what this enclosure can support.

Erősségek

  • Hot-swap 3.5-inch bays with 6Gb/s SATA backplane
  • 150W Flex 1U PSU included for Mini-ITX builds
  • 0mm SGCC steel resists corrosion and fingerprints
  • Anti-EMI extraction trays show drive status via light guide
  • Rear 12025 fan cools four drives in compact 4U form

Műszaki adatok

Form Factor4U
ColorBlack

Kérdések a termékről

Should I pick a chassis with four 3.5-inch bays or one that also fits 2.5-inch drives?

This unit includes four 3.5-inch hot-swap bays that also accept 2.5-inch drives, so a single model covers both drive sizes.

What does the 6 Gb/s SATA backplane deliver once the chassis is built?

The backplane runs at SATA III 6 Gb/s, letting each installed drive reach the full SATA III transfer ceiling.

Which power supply standard does the 150 W unit follow, and what does that limit?

It uses a Flex 1U 150 W supply, so the total system draw — motherboard, CPU, four drives and fan — must stay within 150 W.
