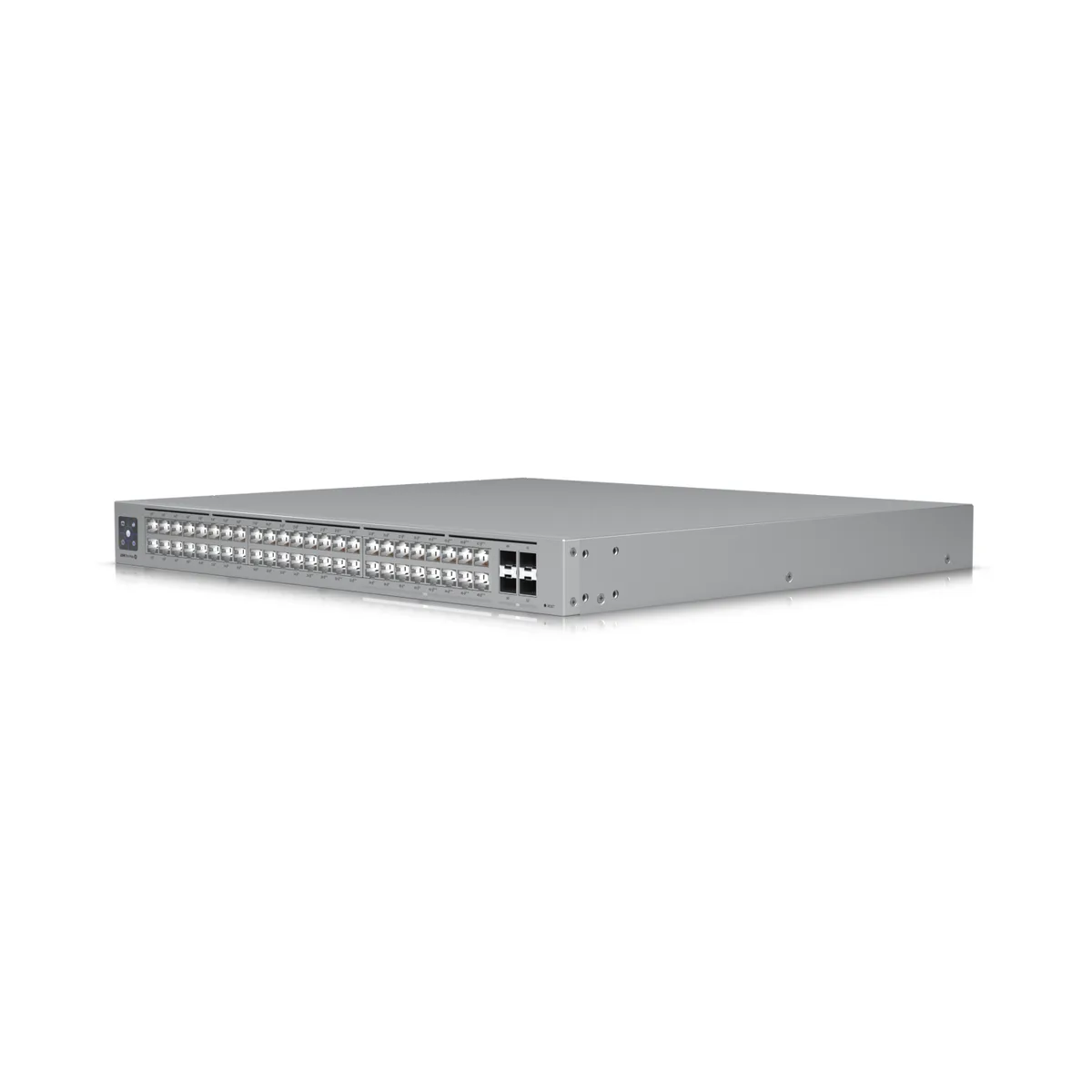

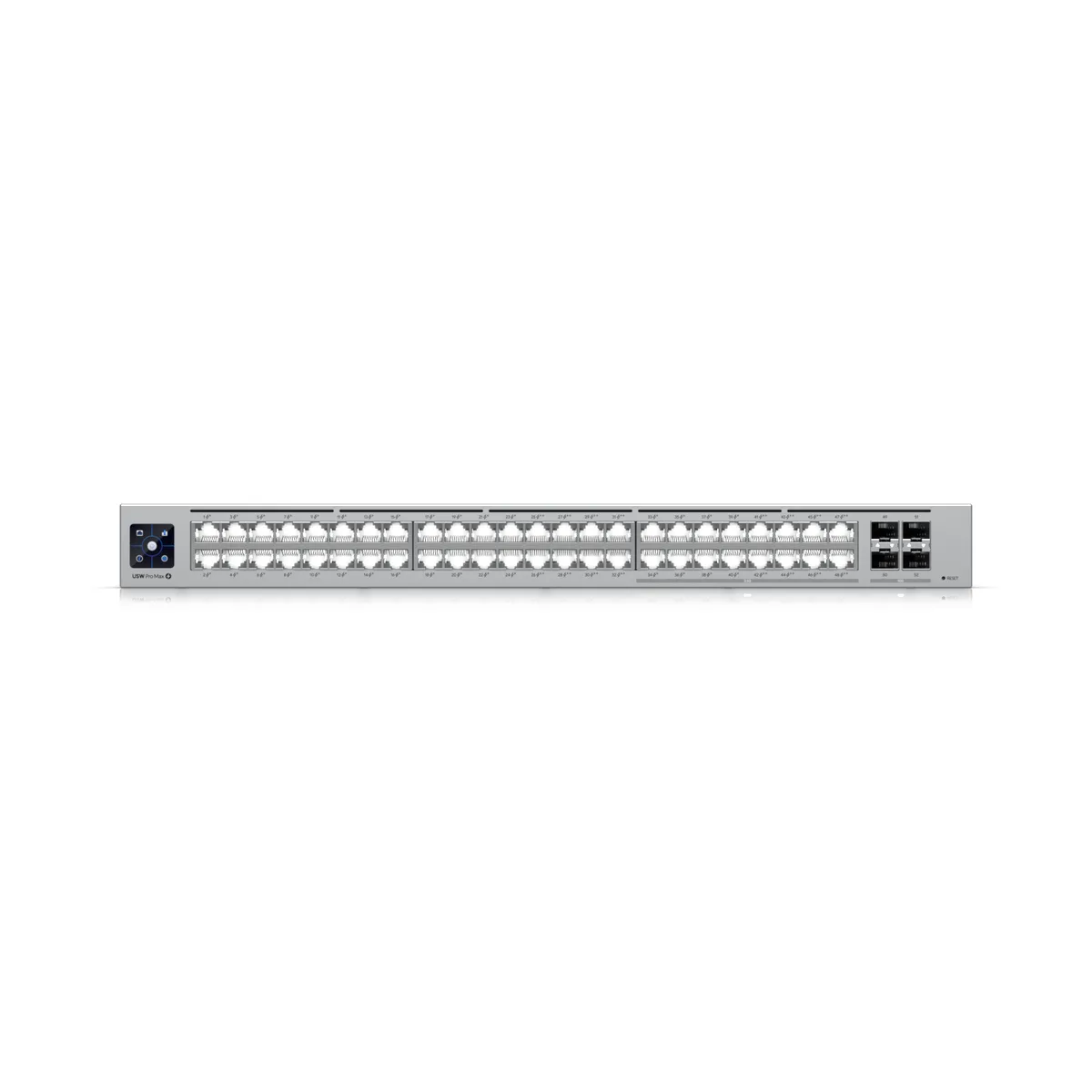

Silver rack-mount network switch, 48 RJ45 ports and four SFP+ cages, front status LEDs, 1U height

Ubiquiti Networks

Ubiquiti Networks USW-Pro-Max-48-PoE (720W) 48-port network switch

SKU CH-P2PZ-HCHMK MPN USW-Pro-Max-48-PoE (720W)

A 48-port managed Layer 3 switch with 32 GbE and 16 2.5 GbE RJ45 ports, four 10G SFP+ uplinks, 720 W PoE budget and 112 Gbps non-blocking throughput

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 4 x SFP+
  • Primary Port SpeedTotal non-blocking throughput 112 Gbps Switching capacity 22
  • Primary Port Type(32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ p
  • Management InterfaceEthernet In-Band

Model Pro Max 48 PoE

Primary Port 48 Port

  • Layer 3 routing and ACLs for network segmentation
  • 16 ports at 2.5 GbE with PoE++ up to 60W
  • 32 GbE ports including 24 PoE+ and 8 PoE++
  • Four 10G SFP+ uplinks for high-speed backbone
  • 720W total PoE budget powers dense device deployments

48-port Layer 3 PoE++ switch

The Ubiquiti USW-Pro-Max-48-PoE is a rackmount managed switch with 48 RJ45 ports and four 10G SFP+ uplinks. It provides Layer 3 routing including static routes, DHCP relay and inter-VLAN routing. Total non-blocking throughput reaches 112 Gbps with a 224 Gbps switching capacity. The unit ships new with mounting accessories included.

Suits networks needing high-density PoE++

This switch fits deployments that require up to 720 W of PoE budget across 48 ports, with 16 ports capable of 60 W PoE++ and 2.5 GbE speeds. It also supports Etherlighting for port identification. Buyers who do not need Layer 3 features or PoE++ power levels should look at simpler models. Sites without 10G uplink requirements will not use the SFP+ ports.

720 W total PoE budget decides suitability

The single specification that determines fit is the 720 W PoE power budget. It must cover the combined draw of all powered devices such as access points, cameras and VoIP phones. If the planned load exceeds this figure, an additional power source or a different switch is required. The 112 Gbps throughput and 166.656 Mpps forwarding rate support the switching fabric.

Erősségek

  • Layer 3 routing and ACLs for network segmentation
  • 16 ports at 2.5 GbE with PoE++ up to 60W
  • 32 GbE ports including 24 PoE+ and 8 PoE++
  • Four 10G SFP+ uplinks for high-speed backbone
  • 720W total PoE budget powers dense device deployments

Műszaki adatok

BrandUbiquiti Networks
SeriesNetwork Switches
ModelPro Max 48 PoE
Part NumberUSW-Pro-Max-48-PoE (720W)
FormatRackmount
Network Management TypeManaged
Primary Ports48 x RJ45 + 4 x SFP+
Primary Port SpeedTotal non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Forwarding rate 166.656 Mpps
Primary Port Type(32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
Management InterfaceEthernet In-Band
VLAN SupportYes
Jumbo FramesYes
PoEYes
Layer3
Layer 2 FeaturesIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 FeaturesDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Port MirroringYes
LEDsSystem Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status
ButtonFactory reset
PoE Ports(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
PowerPower method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 820W
Supported voltage range 100—240V AC
Total available PoE 720W
Max Power Consumption100W (Excluding PoE output)
Dimensions442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
WeightWithout mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
CertificationCE, FCC, IC
System RequirementUniFi Network Version 8.0.24 and later
Temperature-5 to 40° C (23 to 104° F)
Humidity10 to 90% noncondensing
FeaturesManaged with UniFi Network 8.0.24 and later
Szállítási súly8.04 kg
Csomagméret541 × 521 × 119 mm

A modell további verziói

4 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

What rack depth does the 442.4 x 400 x 44 mm switch need?

The unit is 400 mm deep, so the rack must provide at least 400 mm of usable depth.

Which step is often missed when mounting the switch in a rack?

Fit the supplied mounting accessories to the switch first, then secure the assembly to the rack posts.

When will the internal fan assembly need replacement?

The switch uses internal cooling fans; plan to replace them when airflow noise increases or the system-status LED signals a thermal warning.
