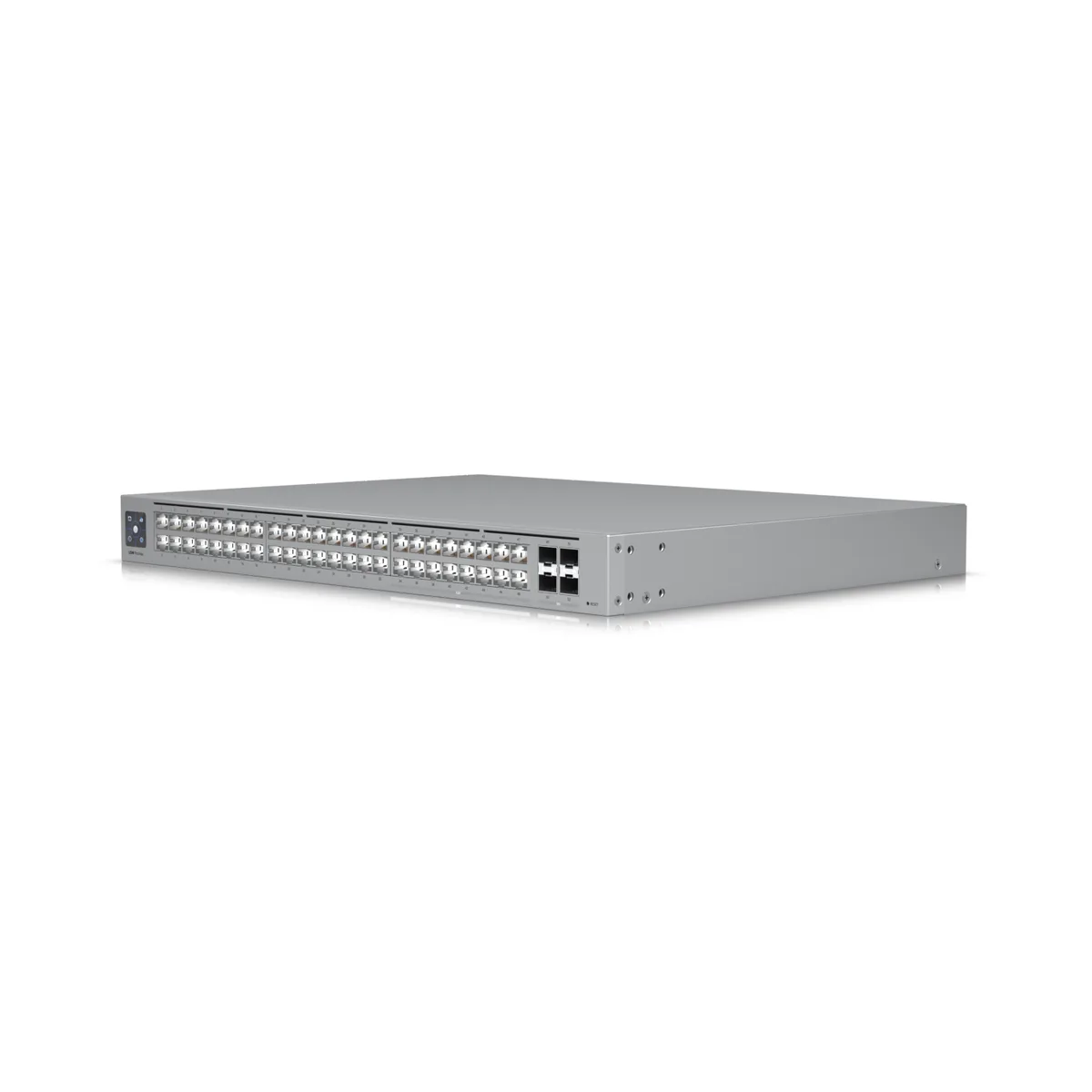

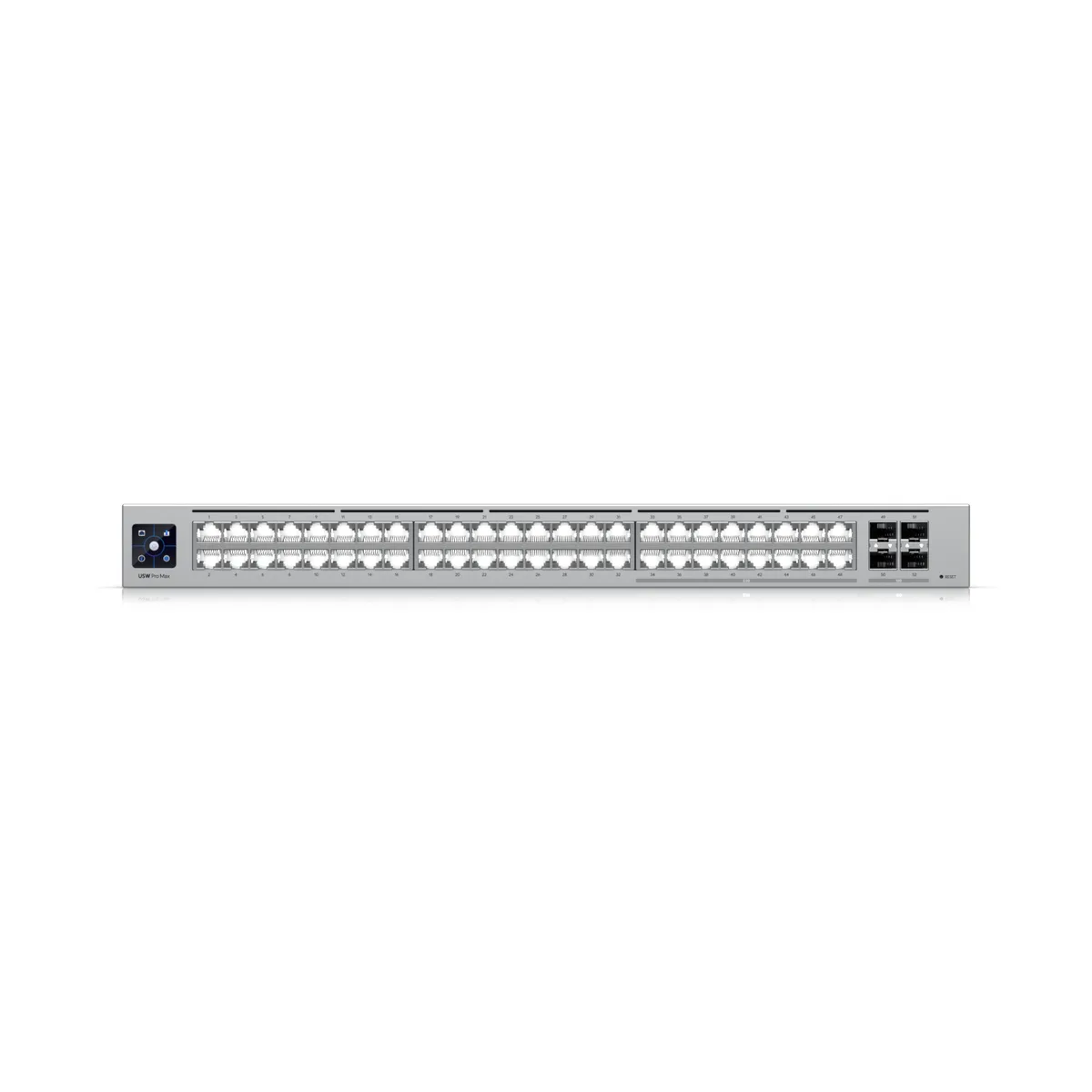

Silver rack-mount switch, 1U high, 48 RJ45 and 4 SFP+ ports, Etherlighting LEDs

Ubiquiti Networks

Ubiquiti Networks USW-Pro-Max-48 48-port Layer 3 network switch

SKU CH-MMD4-P0AJG MPN USW-Pro-Max-48

A 48-port managed Layer 3 rackmount switch with 32 GbE and 16 2.5 GbE RJ45 ports plus four 10G SFP+ uplinks, 224 Gbps switching capacity and Etherlighting port identification

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 4 x SFP+
  • Primary Port SpeedTotal non-blocking throughput 112 Gbps Switching capacity 22
  • Primary Port Type(32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ p
  • Management InterfaceEthernet In-Band

Model Pro Max 48

Primary Port 48 Port

  • Layer 3 routing enables inter-VLAN and static routes for network segmentation
  • 48 ports combine 32 GbE, 16 at 2.5 GbE, and four 10G SFP+ uplinks
  • Etherlighting ports show speed, link and native VLAN status at a glance
  • 224 Gbps switching capacity with 166.656 Mpps forwarding handles heavy traffic loads
  • Redundant DC input ready for USP-RPS backup power supply

48-port Layer 3 switch for managed networks

The USW-Pro-Max-48 is a rackmount managed switch built for networks that need Layer 3 routing between local VLANs. It provides 48 RJ45 downlinks and four 10G SFP+ uplinks in a single 1U appliance. Administrators configure it through UniFi Network 8.0.24 or later.

Etherlighting ports and DC backup input

Each RJ45 port uses Etherlighting illumination to show link speed, status and native VLAN at a glance, especially when paired with Etherlighting patch cables. A USP-RPS DC input sits alongside the universal AC supply so the switch can stay online during a power-source failure. No PoE circuitry is present, keeping the maximum draw to 100 W.

112 Gbps non-blocking throughput with 2.5 GbE access

Sixteen ports negotiate at 2.5 GbE while thirty-two operate at 1 GbE, giving mixed-speed clients headroom without oversubscribing the 112 Gbps fabric. The four 10G SFP+ uplinks handle aggregation to core switches or servers. Networks that require PoE for phones, cameras or access points will need a different model.

Erősségek

  • Layer 3 routing enables inter-VLAN and static routes for network segmentation
  • 48 ports combine 32 GbE, 16 at 2.5 GbE, and four 10G SFP+ uplinks
  • Etherlighting ports show speed, link and native VLAN status at a glance
  • 224 Gbps switching capacity with 166.656 Mpps forwarding handles heavy traffic loads
  • Redundant DC input ready for USP-RPS backup power supply

Műszaki adatok

BrandUbiquiti
SeriesNetwork Switch
ModelPro Max 48
Part NumberUSW-Pro-Max-48
FormatRackmount
Network Management TypeManaged
Primary Ports48 x RJ45 + 4 x SFP+
Primary Port SpeedTotal non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Forwarding rate 166.656 Mpps
Primary Port Type(32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
Management InterfaceEthernet In-Band
PoENo
Layer3
Layer 2 FeaturesIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 FeaturesDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Port MirroringYes
LEDsSystem Status
RPS Status
ButtonFactory reset
Power(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Max Power Consumption100 W
Dimensions442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
WeightWithout mounting brackets: 4.8 kg (10.6 lb)
With mounting brackets: 4.9 kg (10.8 lb)
CertificationCE, FCC, IC
System RequirementUniFi Networks Version 8.0.24 and later
Temperature-5 to 40° C (23 to 104° F)
Humidity10 to 90% noncondensing
Szállítási súly5.92 kg
Csomagméret521 × 432 × 122 mm

A modell további verziói

4 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

What is the maximum power the USW-Pro-Max-48 will draw when fully loaded?

The switch has a maximum power consumption of 100 W under full load.

Which throughput limit is reached first when all 48 ports run at wire speed?

Total non-blocking throughput is 112 Gbps while switching capacity is 224 Gbps, so the 112 Gbps aggregate limit appears first.

How much heat must the rack dissipate when the switch runs continuously at full load?

At the 100 W maximum power rating, the unit converts that electrical draw directly into heat, requiring the rack airflow to handle 100 W of thermal load.
