Red 2U rackmount steel server chassis with two front hot-swap drive bays

iStarUSA Inc.

iStarUSA Inc. D200ND-2T7SA-RD 2U Red Server Chassis

SKU CH-0BSC-1V3E2 MPN D200ND-2T7SA-RD

A compact 2U rackmount chassis in red steel with two hot-swap 3.5" bays, three expansion slots and a single 80 mm fan

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorRed
  • Case MaterialSteel
  • Motherboard CompatibilityATX / Micro ATX
  • External 3.5" Drive Bays2

Model D200ND-2T7SA-RD

  • Hot-swap bays let you replace drives without downtime
  • Compact 2U height fits dense rack installations
  • Steel construction protects components in demanding environments
  • Single 80mm fan provides directed airflow for cooling
  • ATX and Micro ATX board support covers common server builds

Compact 2U rackmount chassis

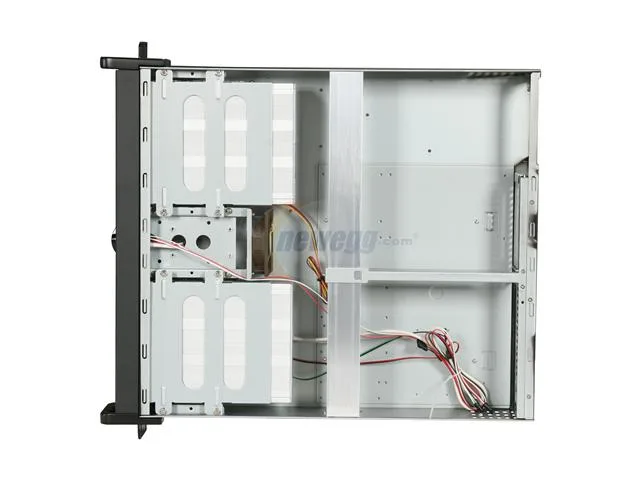

The iStarUSA D200ND-2T7SA-RD is a 2U rackmount server chassis finished in red steel. It accepts ATX and Micro ATX motherboards and provides three expansion slots for add-in cards. The unit is suited for builders assembling a compact rack server where space is limited.

Single 80 mm fan airflow

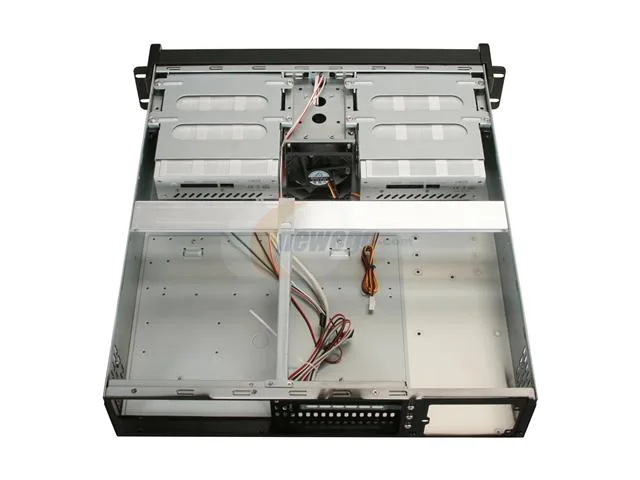

Cooling is handled by one 80 mm fan mounted in the chassis. The fan draws air across the motherboard and the two hot-swap drive bays during normal operation. Power draw and acoustic output will vary with the installed components and workload.

Two hot-swap bays and rails included

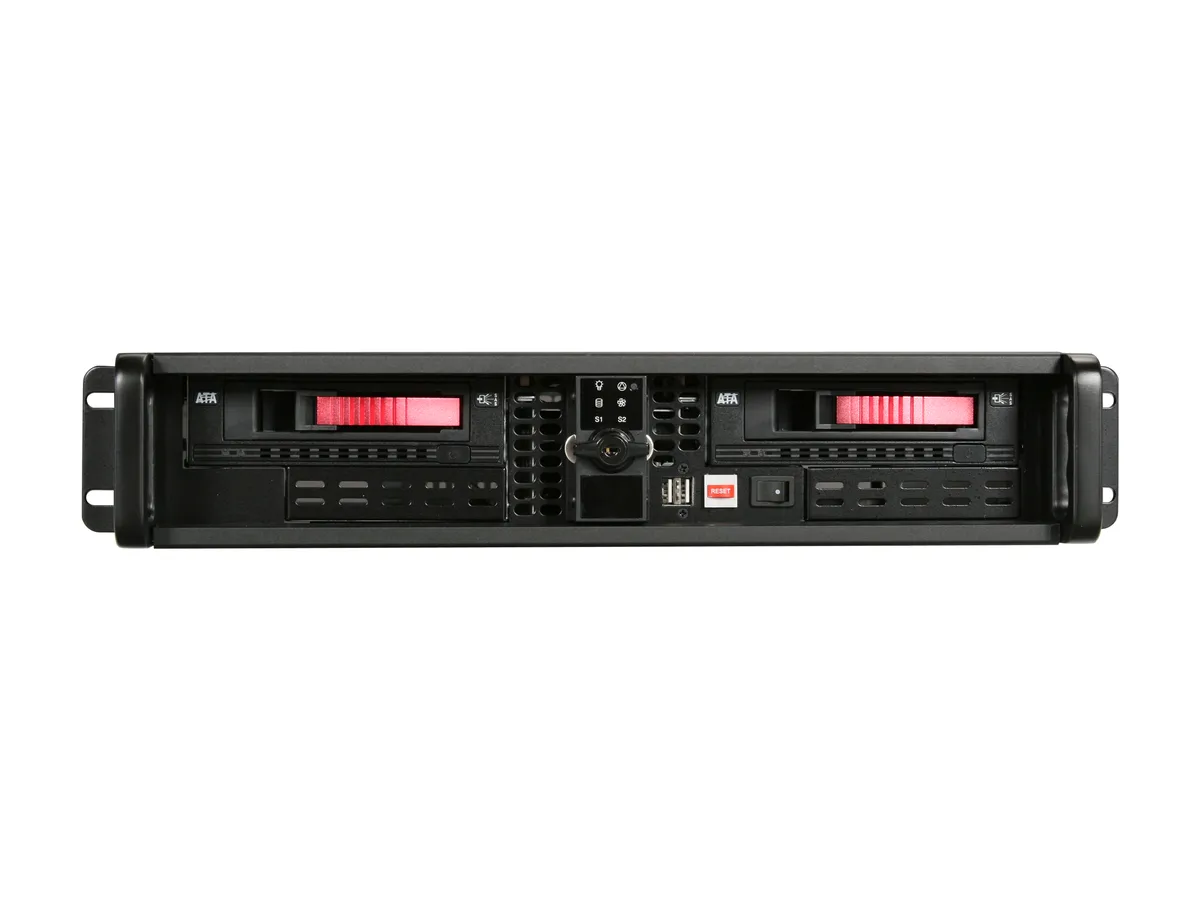

Two front-access hot-swap 3.5 inch drive bays allow drives to be swapped without powering down the system. Two additional external 3.5 inch bays are available for fixed devices. Mounting rails are supplied for installation in a standard 19 inch rack.

Helstu kostir

  • Hot-swap bays let you replace drives without downtime
  • Compact 2U height fits dense rack installations
  • Steel construction protects components in demanding environments
  • Single 80mm fan provides directed airflow for cooling
  • ATX and Micro ATX board support covers common server builds

Tæknilýsing

BrandiStarUSA
ModelD200ND-2T7SA-RD
Chassis TypeRackmount
Form Factor2U
ColorRed
Case MaterialSteel
Motherboard CompatibilityATX / Micro ATX
External 3.5" Drive Bays2
Hot-Swap Drive Bays2
Expansion Slots3
80mm Fans1
Dimensions20.8" x 19.0" x 3.5"
Sendingarþyngd14.97 kg
Stærð sendingar679 × 559 × 216 mm

Aðrar útgáfur af þessari vöru

4 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

How do I install the 2 hot-swap drive bays and what step is often missed?

Mount the chassis using the included rails, then slide drives into the front bays until they click; the step often missed is fully seating each drive so the backplane connector engages.

What maintenance will the single 80mm fan need over time?

The 80mm fan should be cleaned of dust every few months and replaced if bearing noise appears, as it is the only active airflow source for the 2U enclosure.

What limit appears first when the chassis runs under sustained load?

With only one 80mm fan, thermal headroom is the first constraint; prolonged high-wattage components will raise internal temperatures faster than the single fan can exhaust.
