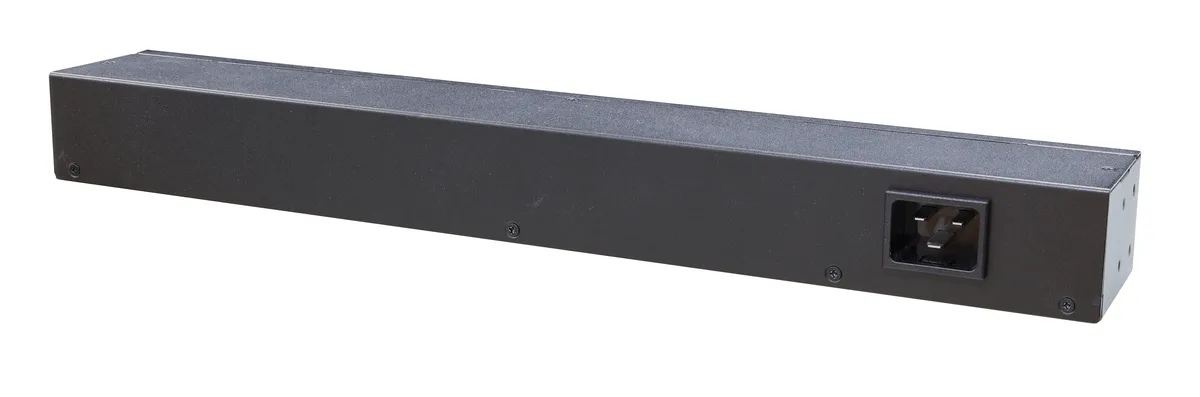

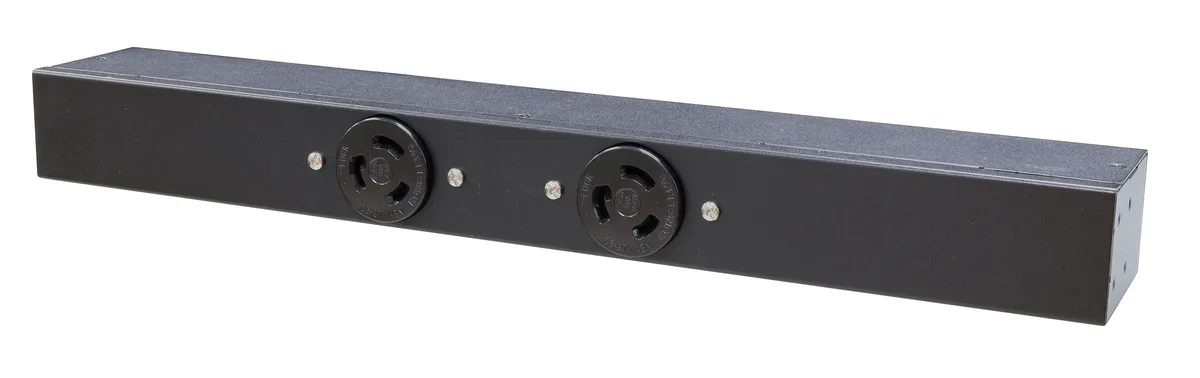

Black metal 1U rack PDU with two front NEMA L6-20R outlets and six-foot hardwire cord

MINUTEMAN

MINUTEMAN OEPD202L620HVHW PDU 208V 20A 2×L6-20R 6ft HW 1U/0U

SKU CH-YPXD-G9BYM MPN OEPD202L620HVHW

Distributes 208 V power to two NEMA L6-20R outlets from a 20 A hardwired feed with a 6 ft cord, mountable horizontally in 1U or vertically in 0U

  • Rack Size1U
  • StyleHorizontal Installation, 0U Vertical Installation
  • CertificationsUL 60950-1, cUL, CE
  • Maximum Input Current20A
  • Input Connector(s)Hardwire
  • Cord Length6 ft

Model OEPD202L620HVHW

Sjá 8 stillingar til viðbótar

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • 20 A capacity powers dense rack loads
  • Hardwire input secures permanent installations
  • Dual L6-20R outlets serve high-power devices
  • 1U or 0U mounting fits any rack layout
  • UL 60950-1, cUL and CE certified safety

OEPD 208 V 20 A PDU for rack power

The Minuteman OEPD202L620HVHW is a 208 VAC, 20-amp power distribution unit built for server racks and network cabinets. It supplies two front-mounted NEMA L6-20R outlets and accepts a hardwired six-foot input cord. The chassis fits a 1U horizontal slot or mounts vertically in 0U orientation. It carries UL 60950-1, cUL and CE certifications.

Upgrade from basic strips or single-outlet feeds

This unit replaces simple power strips when locking L6-20R receptacles and hardwire input are required for secure connections. The jump is worth it when equipment demands 208 V service and the installer needs both horizontal and vertical mounting flexibility without extra brackets. It does not suit buyers who need more than two outlets or integrated surge protection.

Hardwire install with 1U or 0U mounting

Installation requires terminating the six-foot cord directly to a branch circuit, so a qualified electrician is normally needed. The included stand-off bracket enables 0U vertical mounting on most racks. Common issues include underestimating the electrician time for hardwire termination and forgetting that only two outlets are available for connected devices.

Helstu kostir

  • 20 A capacity powers dense rack loads
  • Hardwire input secures permanent installations
  • Dual L6-20R outlets serve high-power devices
  • 1U or 0U mounting fits any rack layout
  • UL 60950-1, cUL and CE certified safety

Tæknilýsing

BrandMINUTEMAN
SeriesOE Series
ModelOEPD202L620HVHW
Rack Size1U
StyleHorizontal Installation, 0U Vertical Installation
CertificationsUL 60950-1, cUL, CE
Maximum Input Current20A
Input Connector(s)Hardwire
Cord Length6 ft
Output Connector(s)(2) L6-20R
FeaturesLonger power cords
Most Minuteman PDU units have up to 15-ft power cords, to allow for seamless installations
More standard outlets
Minuteman PDU units have 6, 8, 10, 14, 18, or 24 outlets. Most of the Minuteman PDUs have additional front outlets for improved access
Configuration versatility
Minuteman PDU units have a multi-form factor with 1U and 0U configurations allowing for either horizontal or vertical placement. 1U products ship with a stand-off mounting bracket, at no additional cost, that allows for vertical installation on most racks and enclosures
Locking (L) and Hardwire (
Sendingarþyngd1.57 kg
Stærð sendingar432 × 66 × 46 mm

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What rack space and mounting options does the 1U/0U PDU require?

It fits a single 1U horizontal slot or can be mounted vertically in 0U orientation using the included stand-off bracket for most racks and enclosures.

How is the 6-foot hardwire input cord connected, and what step is often missed?

A qualified electrician must terminate the hardwire leads to a 208 V 20 A branch circuit; the step often missed is verifying the circuit breaker rating matches the PDU's 20 A maximum input current.

What maintenance or replacement will the two NEMA L6-20R outlets need over time?

Inspect the locking outlets periodically for contact wear or heat discoloration; replace the PDU if the L6-20R receptacles no longer grip plugs securely or show signs of overheating.
