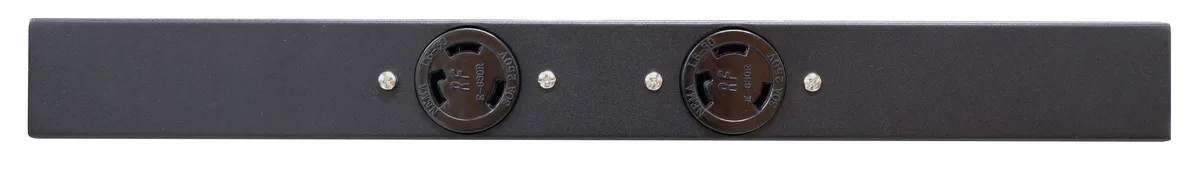

Black metal 1U rack PDU with two L6-30R outlets and 6 ft hardwire cord

MINUTEMAN

MINUTEMAN OEPD302L630HVHW PDU 208V 30A 2×L6-30R 6ft hardwire 1U/0U

SKU CH-AGVS-CP4QX MPN OEPD302L630HVHW

Distributes 208 VAC at 30 A through two L6-30R outlets with a 6 ft hardwire cord, mountable horizontally or vertically

  • Rack Size1U
  • StyleHorizontal Installation , 0U Vertical Installation
  • Certifications62368-1 Certification
  • Maximum Input Current30A
  • Input Connector(s)Hardwire
  • Cord Length6 ft

Model OEPD302L630HVHW

Sjá 8 stillingar til viðbótar

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • Delivers 208 VAC at 30 A for high-density server racks
  • Hardwire input eliminates plug compatibility issues in permanent installations
  • Two NEMA L6-30R outlets provide locking connections for critical equipment
  • Mounts horizontally in 1U or vertically in 0U for flexible rack layouts
  • UL 62368-1 certified for verified electrical safety compliance

208V 30A Hardwire PDU

This power distribution unit delivers 208VAC at 30-amp capacity through two front-mounted NEMA L6-30R outlets. It is built for server racks and network cabinets that require a compact, hardwired power feed without a branded label. The six-foot input cord connects directly to facility wiring for a permanent installation.

Horizontal or Vertical Mounting

The 1U form factor includes a stand-off bracket so the unit can be installed horizontally in a standard rack or vertically in a 0U configuration. This flexibility suits both dense equipment rows and side-mounted cable management channels. UL 62368-1 certification confirms compliance with safety standards for IT power equipment.

Replaces Basic Strip Units

Installations that currently rely on uncertified power strips or lower-amperage PDUs gain locking outlets and a hardwired connection that resists accidental disconnection. The two-outlet density is not suited for deployments needing six or more receptacles per unit. Buyers requiring surge protection should select an OES-series model instead.

Helstu kostir

  • Delivers 208 VAC at 30 A for high-density server racks
  • Hardwire input eliminates plug compatibility issues in permanent installations
  • Two NEMA L6-30R outlets provide locking connections for critical equipment
  • Mounts horizontally in 1U or vertically in 0U for flexible rack layouts
  • UL 62368-1 certified for verified electrical safety compliance

Tæknilýsing

BrandMINUTEMAN
SeriesOE Series
ModelOEPD302L630HVHW
Rack Size1U
StyleHorizontal Installation , 0U Vertical Installation
Certifications62368-1 Certification
Maximum Input Current30A
Input Connector(s)Hardwire
Cord Length6 ft
Output Connector(s)(2) L6-30R
FeaturesLonger power cords
Most Minuteman PDU units have up to 15-ft power cords, to allow for seamless installations
More standard outlets
Minuteman PDU units have 6, 8, 10, 14, 18, or 24 outlets. Most of the Minuteman PDUs have additional front outlets for improved access
Configuration versatility
Minuteman PDU units have a multi-form factor with 1U and 0U configurations allowing for either horizontal or vertical placement. 1U products ship with a stand-off mounting bracket, at no additional cost, that allows for vertical installation on most racks and enclosures
Locking (L) and Hardwire (
Sendingarþyngd2.13 kg
Stærð sendingar432 × 89 × 43 mm

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What is the maximum continuous current this PDU can handle before the 30 A input limit is reached?

The unit is rated for a maximum input current of 30 A at 208 VAC, so sustained loads above that level will trip the upstream breaker.

How much heat or fan noise does the OEPD302L630HVHW produce when fully loaded all day?

This PDU has no active cooling components; it dissipates heat passively and operates silently regardless of load.

Which receptacles or cables must I already have to connect equipment to the two L6-30R outlets?

You will need mating NEMA L6-30P plugs on your devices or suitable adapter cords that terminate in L6-30P.
