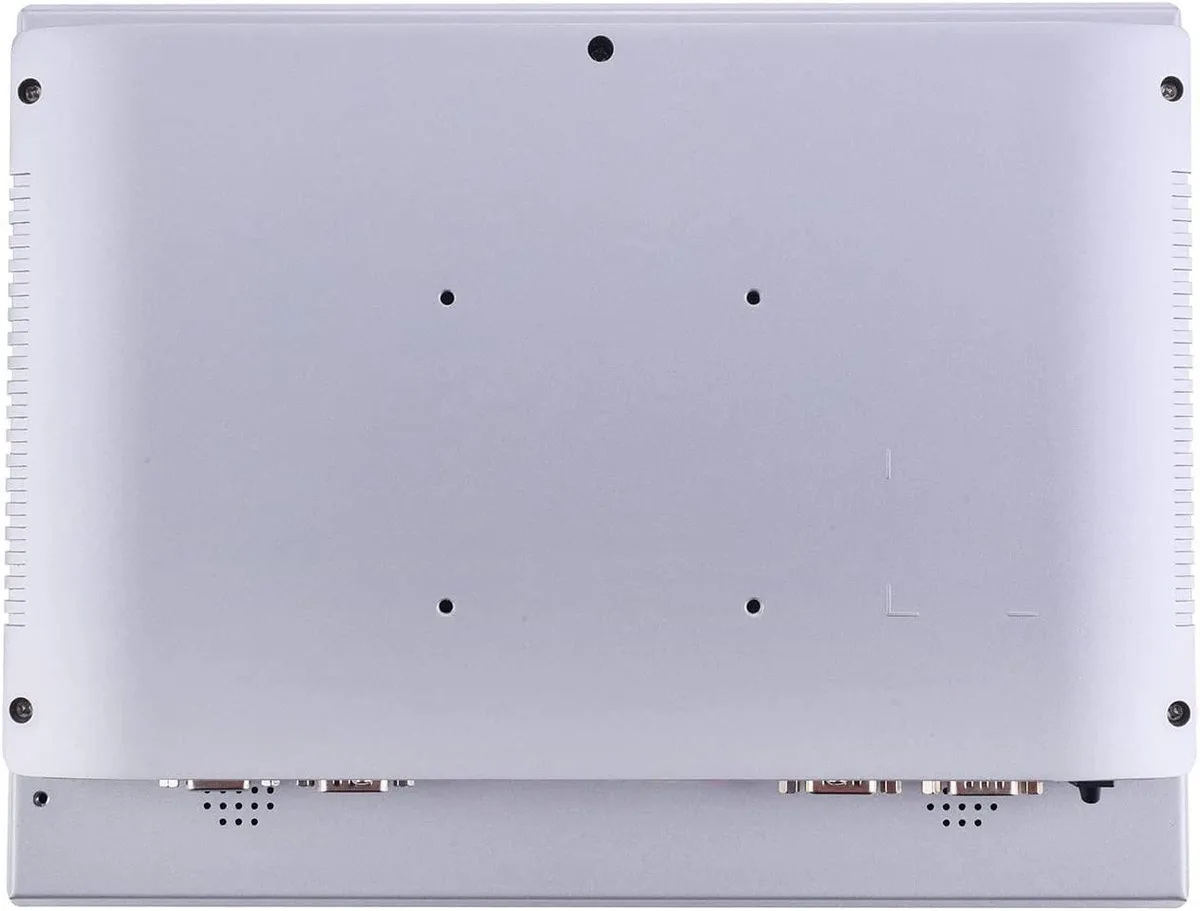

Silver 12.1 inch industrial all-in-one panel PC with resistive touchscreen and fanless aluminium housing

partaker

Partaker A2 12.1" industrial panel PC Core i5 2.00GHz 8GB DDR3 256GB SSD

SKU CH-BJ7W-DVCFB

A 12.1-inch fanless industrial panel PC with an IP65 front, 5-wire resistive touchscreen, Core i5 2.00 GHz, 8 GB DDR3L and 256 GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel Iris Graphics 540

GPU Intel Iris Graphics 540

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

HDD None

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • IP65 front-panel protection for harsh environments
  • Fanless aluminium chassis enables silent 0–50 °C operation
  • 1″ 1024×768 resistive touchscreen rated 200 million touches
  • Intel Core i5 2.00 GHz with 8 GB DDR3 and 256 GB SSD
  • HDMI, VGA, dual LAN, four USB, two COM and Mini PCIe expansion

Industrial panel PC with resistive touch

The Partaker A2 is a 12.1 inch fanless all-in-one computer built around a 6th generation Intel Core i5 running at 2.00GHz. It ships with 8GB DDR3L memory, a 256GB mSATA SSD and Windows 10 Pro pre-installed. The aluminium chassis carries an IP65-rated front panel and a 5-wire resistive touchscreen rated for 200 million touches.

Suits embedded automation and kiosk roles

This unit targets integrators who need a compact, fanless system with legacy I/O including two COM ports, VGA, HDMI and dual USB 3.0 and 2.0 ports. The operating range of 0 to 50°C with SSD and the 100-240V AC power supply suit cabinet or wall mounting. Buyers requiring capacitive multi-touch, higher brightness or a larger display area should consider other platforms.

12.1" 1024x768 resistive touchscreen decides fit

The panel delivers 350 cd/m² brightness, 1000:1 contrast and 80° viewing angles in all directions. Its 5-wire resistive layer works with gloves or stylus and survives high-temperature environments. If the application demands a wider aspect ratio, higher resolution or capacitive response, this screen specification will not match the requirement.

Helstu kostir

  • IP65 front-panel protection for harsh environments
  • Fanless aluminium chassis enables silent 0–50 °C operation
  • 1″ 1024×768 resistive touchscreen rated 200 million touches
  • Intel Core i5 2.00 GHz with 8 GB DDR3 and 256 GB SSD
  • HDMI, VGA, dual LAN, four USB, two COM and Mini PCIe expansion

Tæknilýsing

ModelA2-PA-121TPC-CE5B(I56)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU Name2.00GHz
GPU/VGA TypeIntel Iris Graphics 540
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

How long will the 5-wire resistive touchscreen on the A2 panel PC last before it needs replacing?

The touchscreen is rated for 200 million touches, so replacement depends on how heavily the screen is used in your application.

What limits continuous operation of the fanless Core i5 unit first — thermal throttling or the 50 °C operating ceiling?

The aluminium chassis is rated for 0–50 °C with the installed SSD; sustained loads that push the chassis beyond 50 °C will trigger throttling before any other limit appears.

How much heat and power does the 12.1" A2 draw when it runs 24/7 in an enclosed cabinet?

The fanless design dissipates the Core i5 and 350 cd/m² backlight through the aluminium housing on a 12 V DC supply; exact wattage varies with workload but no active cooling is required.
