Silver 12.1 inch industrial panel PC with resistive touchscreen and aluminium fanless housing

partaker

Partaker A2 12.1" Industrial Panel PC i5-4th 1.60GHz 8GB 256GB

SKU CH-FPC2-WKCRM

A 12.1-inch IP65-rated industrial panel PC with a resistive touchscreen, Intel Core i5 1.60GHz processor, 8GB DDR3 RAM and a 256GB SSD in a fanless aluminium chassis

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU Name1.60GHz
  • GPU/VGA TypeIntel HD Graphics 4400

GPU Intel HD Graphics 4400

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

HDD None

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • 5-wire resistive touch endures 200 million touches
  • 60 GHz Intel Core i5 with 8 GB DDR3 and 256 GB SSD
  • VGA, HDMI, dual LAN, four USB and two COM ports

Compact industrial all-in-one

The Partaker A2 is a 12.1-inch fanless panel PC built around a 4th-generation Intel Core i5 processor running at 1.60 GHz. It ships with 8 GB of DDR3L memory, a 256 GB mSATA SSD and Windows 10 Pro pre-installed. The aluminium chassis carries an IP65-rated front panel and a high-temperature five-wire resistive touchscreen rated for 200 million touches.

Suited for embedded control and monitoring

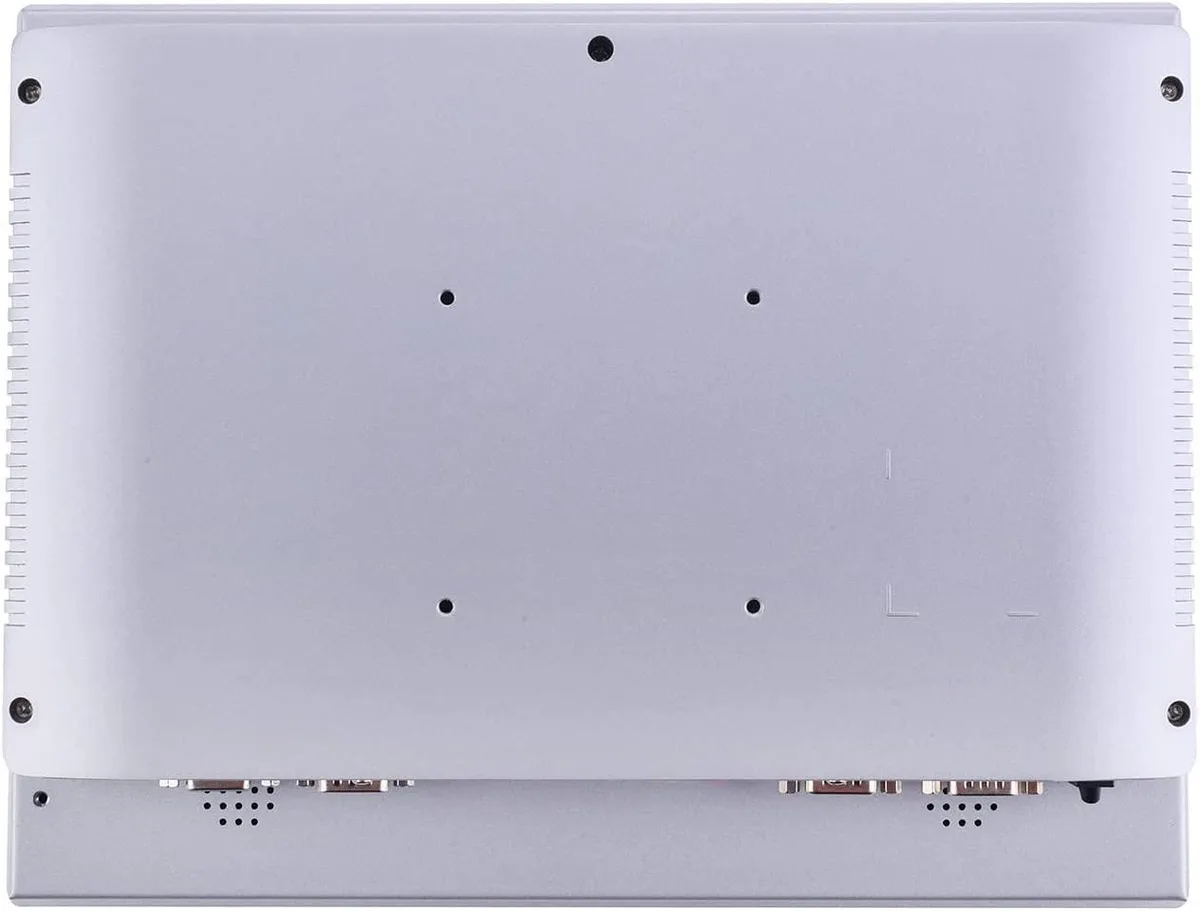

Engineers who need a compact, sealed unit for machine interfaces, kiosks or process visualisation will appreciate the VESA 75 mounting, wide DC input and legacy COM ports. Buyers who require a capacitive multi-touch screen, a larger display diagonal, active cooling or a newer processor generation should look elsewhere.

The resistive touchscreen defines the use case

The 12.1-inch TFT LED panel delivers a 1024 x 768 resolution at 350 cd/m² brightness with 80-degree viewing angles in all directions. Its five-wire resistive layer operates reliably from 0 to 50 °C with the installed SSD and survives 200 million actuations, making it the decisive specification for gloved or stylus-driven industrial environments.

Helstu kostir

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • 5-wire resistive touch endures 200 million touches
  • 60 GHz Intel Core i5 with 8 GB DDR3 and 256 GB SSD
  • VGA, HDMI, dual LAN, four USB and two COM ports

Tæknilýsing

ModelA2-PA-121TPC-CE5B(I54)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU Name1.60GHz
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What power supply is required for the DC 12 V input?

The unit ships with a 100-240 V AC to 12 V DC power supply and power cord, so no separate adapter is needed.

Can I keep using my existing VGA monitor alongside the built-in 12.1" 1024 x 768 display?

Yes, the HDMI and VGA ports can drive an external monitor simultaneously with the internal panel.

How do I verify the 5-wire resistive touchscreen is operating correctly after installation?

Touch response should register across the full 12.1" area; the controller supports up to 200 million touches and 86±5% transmittance at 550 nm.
