Gray 17 inch all-in-one industrial panel PC with flat IP65 capacitive touchscreen and fanless aluminum chassis

partaker

partaker A29 17" IP65 all-in-one PC i5-7200U 16GB 512GB

SKU CH-ZVSJ-91053

17-inch IP65 touchscreen all-in-one PC with fanless cooling, Core i5-7200U, 16GB RAM and 512GB storage for industrial use

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 7th Gen
  • CPU NameIntel Core i5-7200U

A29 17" Capacitive I5 7200U 16GB RAM / 512GB SSD

  • IP65 front panel resists dust and water jets in harsh environments
  • Capacitive touch rated for 50 million touches ensures long HMI life
  • Fanless aluminium cooling runs silent from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 and two COM ports simplify industrial connectivity
  • Windows 11 Pro on Core i5-7200U with 16 GB DDR4 and 512 GB SSD ready for automation tasks

Industrial all-in-one for automation

The Partaker A29 is a 17 inch all-in-one PC built for factory floors and process control. Its IP65-rated flat front panel resists dust and water jets, while the projected capacitive touchscreen handles gloved operation. An Intel Core i5-7200U with 16 GB DDR4 and a 512 GB SSD runs Windows 11 Pro out of the box.

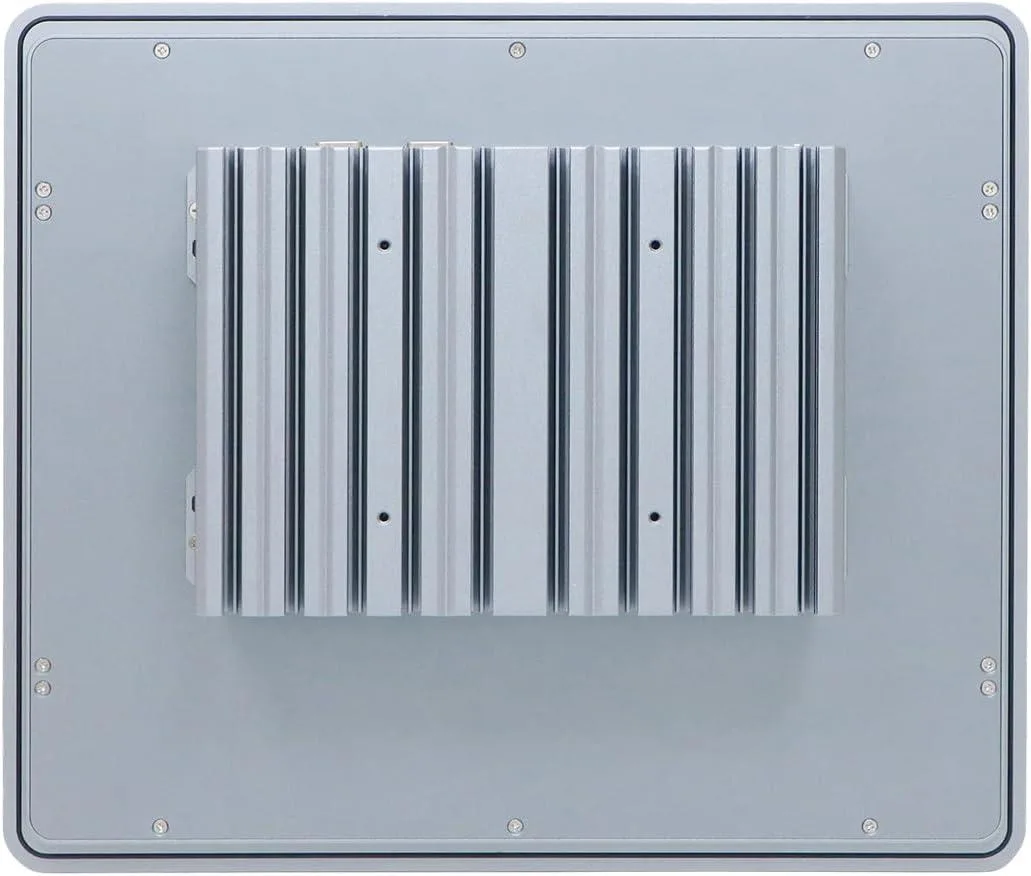

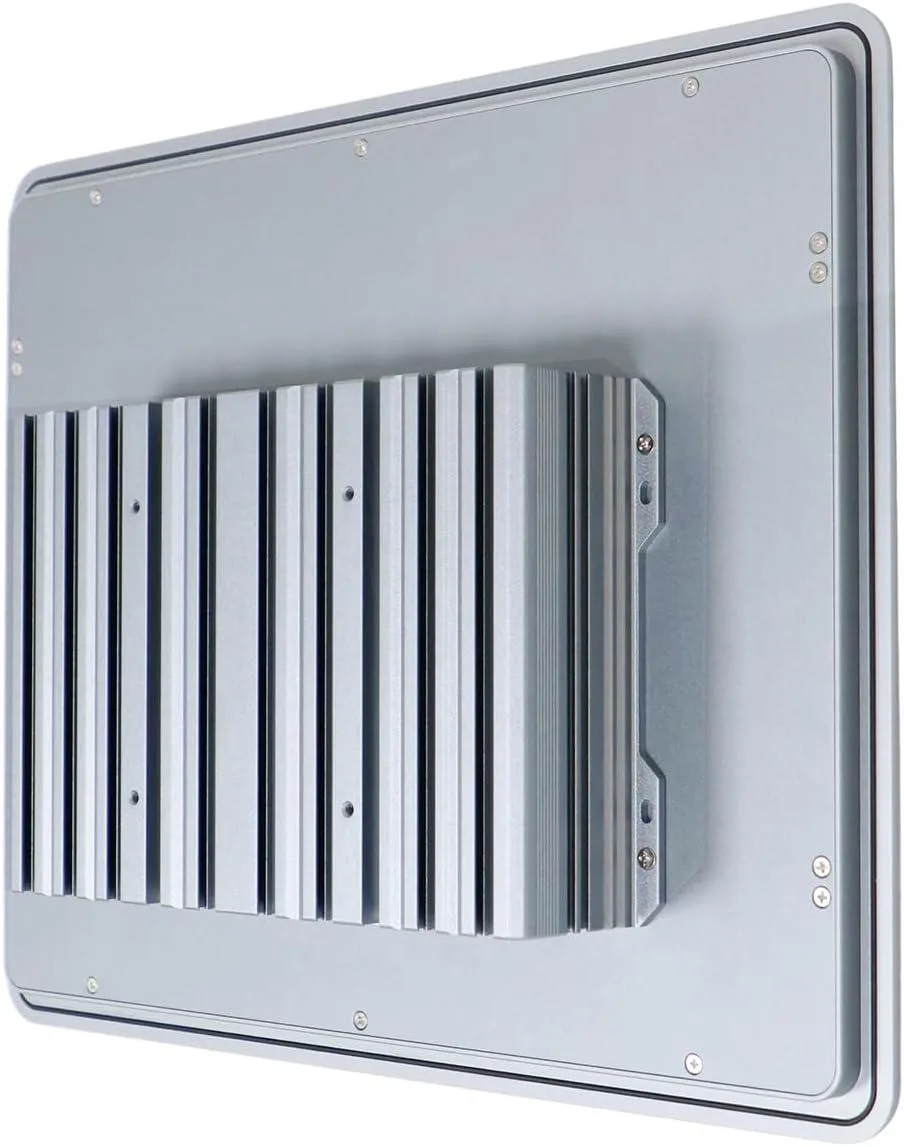

Fanless thermal design and power

Passive aluminium cooling keeps the system silent and dust-free during continuous 24/7 duty. The unit operates from -20 °C to 60 °C with the installed SSD and tolerates 5 % to 95 % non-condensing humidity. A 12 V DC input accepts 100–240 V AC via the supplied adapter, with an optional 9–36 V wide-range version for vehicle or cabinet supply.

50-million-touch capacitive panel

The 1280 × 1024 5:4 TFT LCD delivers 250 cd/m² brightness and full viewing angles for clear readouts in bright halls. Industrial capacitive touch is rated beyond 50 million actuations, so the screen survives years of repetitive HMI use. Buyers who need a higher resolution display or a larger screen diagonal should look elsewhere.

Helstu kostir

  • IP65 front panel resists dust and water jets in harsh environments
  • Capacitive touch rated for 50 million touches ensures long HMI life
  • Fanless aluminium cooling runs silent from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 and two COM ports simplify industrial connectivity
  • Windows 11 Pro on Core i5-7200U with 16 GB DDR4 and 512 GB SSD ready for automation tasks

Tæknilýsing

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 7th Gen
CPU NameIntel Core i5-7200U
Screen Size17"
Screen TypeMulti-Touch Screen

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

How do I mount the A29 17" IP65 panel PC into a 389 x 321 mm cut-out, and which step is often missed?

Fasten the four embedded mounting clips to the chassis first, then slide the unit into the cut-out and tighten each clip evenly; the step often missed is pre-attaching the clips before insertion.

Which storage drives can I add later to the second SATA bay or the mSATA slot?

The system accepts one 2.5-inch SATA SSD or HDD and one mSATA SSD; both slots support SATA protocol only.

At what ambient temperature does the fanless aluminium cooling reach its limit during continuous operation?

The rated operating ceiling is 60 °C with an SSD installed; sustained loads above this temperature may trigger thermal throttling.
