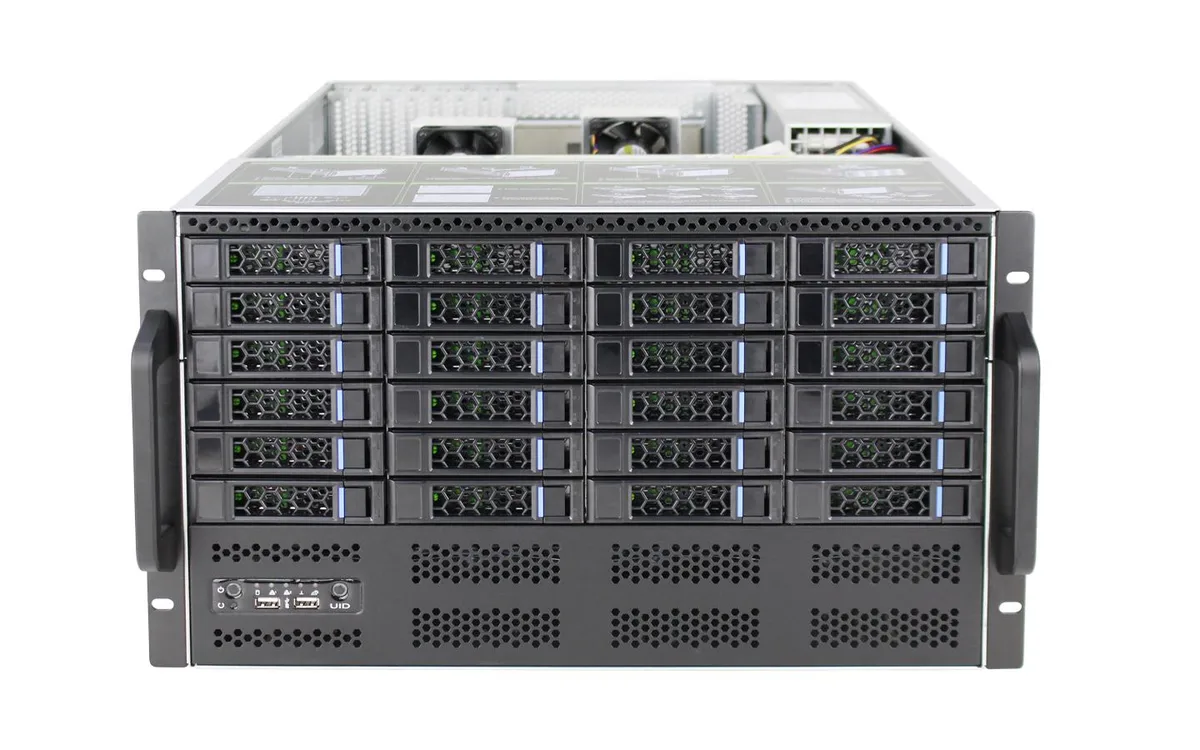

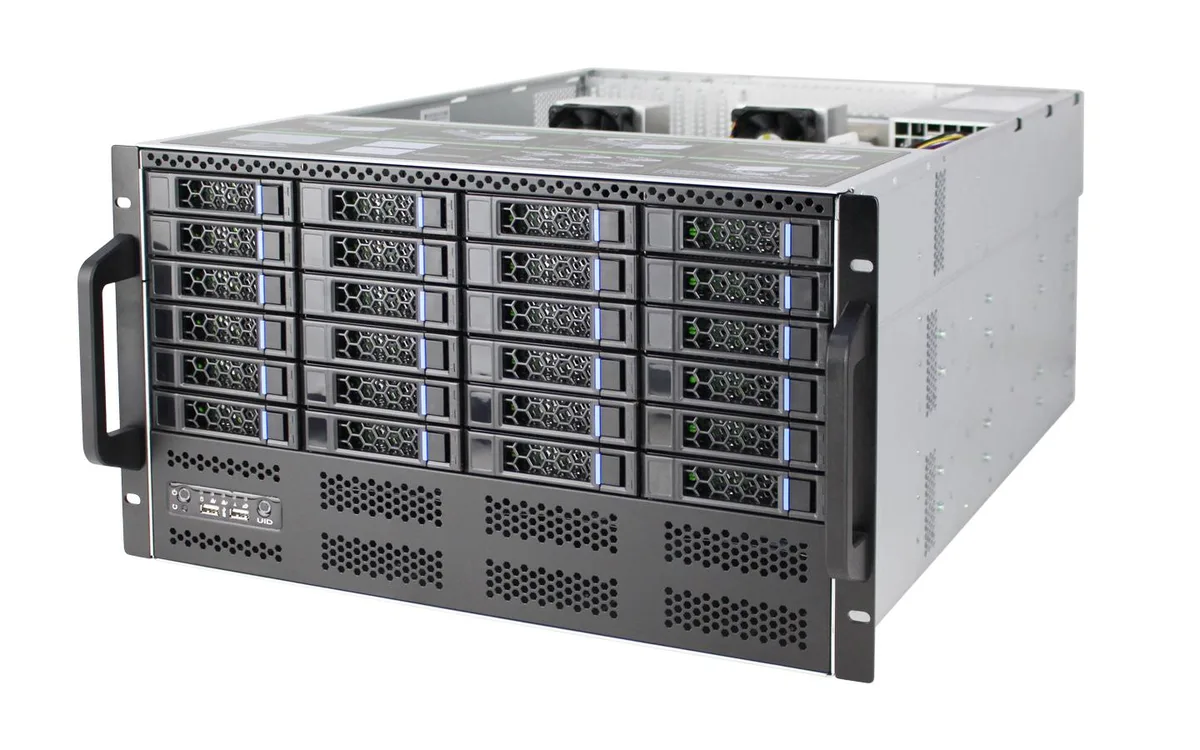

Silver 6U rackmount server chassis with 48 front hot-swap drive trays

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 6U Rackmount Server Chassis 48×3.5″ Hot-Swap 12Gb/s Backplane

SKU CH-SRTS-A5BKK

A 6U rackmount chassis holding 48 hot-swap 3.5″ drives on a 12Gb/s SAS backplane with seven half-height expansion slots

  • Chassis TypeRackmount
  • Form Factor6U
  • 48 hot-swap 3.5″ bays for massive storage density
  • 12Gb/s expander backplane with SFF-8643 Mini-SAS HD interface
  • 6U rackmount depth 650 mm fits standard 19″ cabinets
  • Seven hot-swap fans (three 12038, four 8038) deliver high airflow
  • Seven half-height PCIe slots plus dual 2.5″ internal drive bays

6U rackmount chassis with 48 hot-swap bays

This 6U rackmount server chassis provides 48 front-accessible 3.5-inch hot-swap drive bays and two internal 2.5-inch bays. It is built for storage-dense deployments such as cloud storage, big data and security monitoring. The unit fits a standard 19-inch rack and supports E-ATX motherboards up to 12 by 13 inches.

12Gb/s expander backplane with hot-swap cooling

A 12Gb/s expander backplane uses Mini-SAS HD SFF-8643 connectors and includes a temperature-control chipset. Six 12038 and four 8038 ball-bearing fans are hot-swappable and deliver high static pressure to sustain airflow across fully populated drive trays during continuous operation.

Seven half-height slots and 2U power format

Seven half-height PCI/PCIe expansion slots are available for RAID controllers or networking cards. Power is supplied by standard or redundant 2U power supplies. Front-panel controls include power, reset, USB 2.0, power LED, HDD LED and two NID LEDs. Three-section ball-bearing or simple slides are fitted for rack installation.

Helstu kostir

  • 48 hot-swap 3.5″ bays for massive storage density
  • 12Gb/s expander backplane with SFF-8643 Mini-SAS HD interface
  • 6U rackmount depth 650 mm fits standard 19″ cabinets
  • Seven hot-swap fans (three 12038, four 8038) deliver high airflow
  • Seven half-height PCIe slots plus dual 2.5″ internal drive bays

Tæknilýsing

Chassis TypeRackmount
Form Factor6U

Spurningar um þessa vöru

How loud and hot does the 6U chassis get when its 3×12038 and 4×8038 ball fans run continuously?

The chassis uses three 12038 and four 8038 hot-swap ball fans rated for high speed, high air pressure and high air volume to move heat from 48 drive bays and two 2.5″ bays.

Which host interface and cables do I need to connect the 12Gb/s expander backplane with Mini-SAS HD (SFF-8643) ports?

The backplane presents Mini-SAS HD SFF-8643 connectors; you must supply a RAID card or HBA with matching SFF-8643 ports and compatible Mini-SAS HD cables.

Will an existing E-ATX motherboard measuring 12″×13″ fit the 7 half-height PCIe slots and 2U power supply bay?

The chassis supports E-ATX boards up to 12″×13″, provides seven half-height expansion slots and accepts standard or redundant 2U power supplies.
