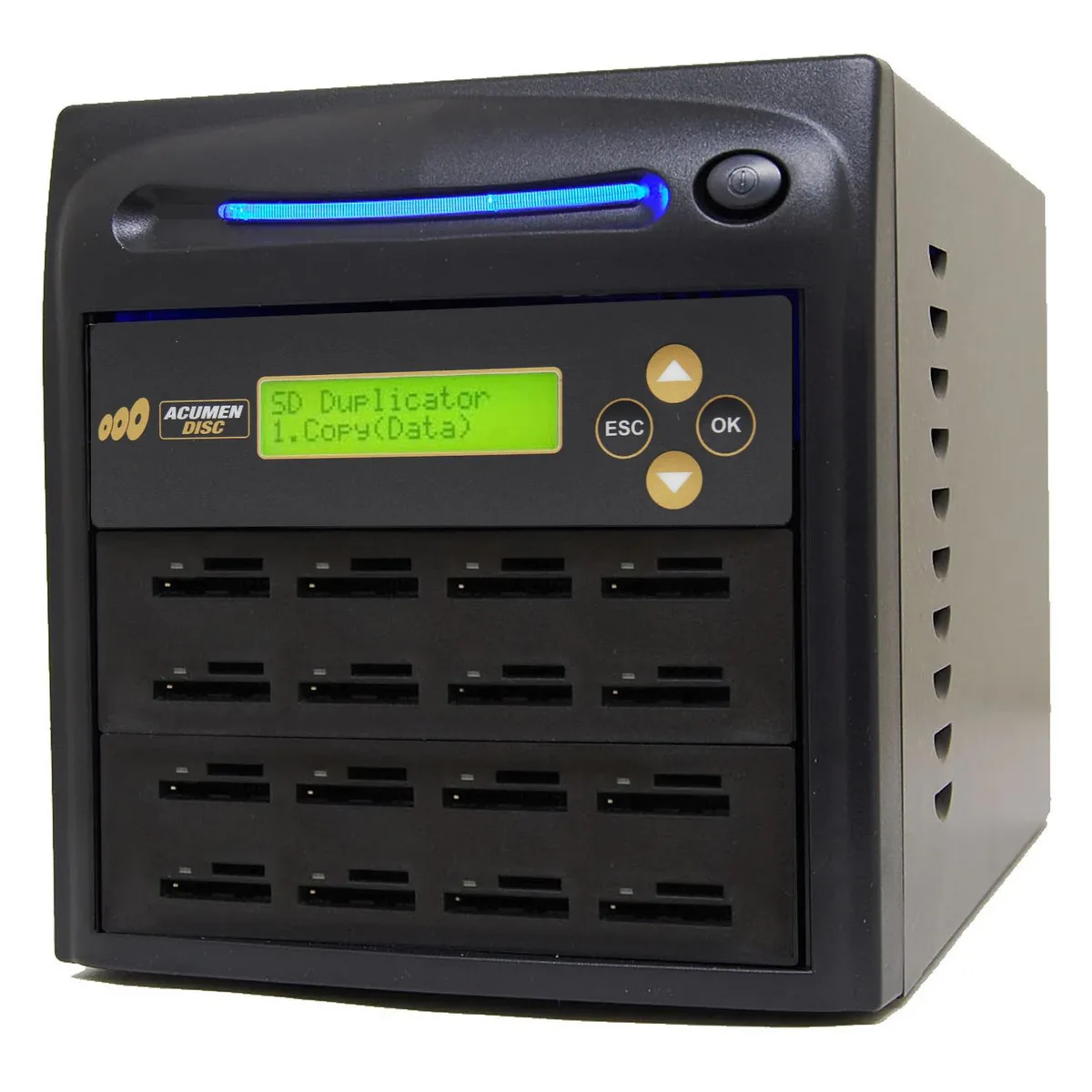

Black tower duplicator with 16 LCD characters and 15 SD card slots

Acumen Disc

Acumen Disc SD 3.0 Elite 1:15 Duplicator AD15-SDC100

SKU CH-244S-XFEG7

Standalone SD and MicroSD duplicator copies one source to 15 targets at up to 100 MB/s with DoD-compliant erase modes

  • TypeSD/MicroSD Duplicator
  • Target1 to 15
  • ControllerAcumen Disc
  • Buffer Memory128M
  • Supported MediaSecure Digital (SD) / MicroSD TF
  • Data Transfer Rate6GB/min
  • Copies up to 15 cards simultaneously at 6GB per minute
  • Standalone operation needs no computer or software for secure use
  • Two dedicated slots handle SD and MicroSD without adapters
  • Four DoD-compliant erase modes including 3-pass and 7-pass standards
  • 128 MB buffer enables asynchronous copying from built-in memory

Standalone SD 3.0 Duplicator

The Acumen Disc SD 3.0 Elite AD15-SDC100 is a standalone duplicator for Secure Digital and MicroSD cards. It copies from one source slot to fifteen destination slots without a computer connection. The unit targets high-volume cloning and sanitisation workflows in forensic, industrial and archival environments. Operation is managed through a 16 x 2 LCD panel.

Thermals and Power

The duplicator runs from an internal AC supply rated for 115-230 V at 50/60 Hz. No external host or software is required, so the system draws power only during active copy or erase cycles. The 128 MB buffer memory allows each channel to operate asynchronously, reducing sustained load on the controller. Noise and thermal output remain low in typical office or lab settings.

Build Integration

Two dedicated media slots accept full-size SD and MicroSD cards directly, removing the need for adapters. The standalone design frees up a workstation and eliminates host-interface bottlenecks. Supported erase modes include DoD 3-pass and 7-pass to the 5220.22-M standard for data sanitisation. Format options cover Auto, FAT and FAT32 structures.

Ciri-ciri utama

  • Copies up to 15 cards simultaneously at 6GB per minute
  • Standalone operation needs no computer or software for secure use
  • Two dedicated slots handle SD and MicroSD without adapters
  • Four DoD-compliant erase modes including 3-pass and 7-pass standards
  • 128 MB buffer enables asynchronous copying from built-in memory

Spesifikasi

BrandAcumen Disc
ModelAcumen Disc SD 3.0 Elite
Part NumberAD15-SDC100
TypeSD/MicroSD Duplicator
Target1 to 15
ControllerAcumen Disc
Buffer Memory128M
Supported MediaSecure Digital (SD) / MicroSD TF
Data Transfer Rate6GB/min
Data Source ROM1 SD Slot for Source Reading
Data Destination Burner15 SD Slots for SD to SD Copy
Display16 x 2 LCD
Operating TypeStandalone
Panel ColorBlack
Load TypeSlot
Power SupplyAC: 115-230 V, 50/60 Hz
Package Contentssee pictures for details

Soalan tentang produk ini

How do I set up the 1-to-15 SD duplicator and what step is often missed?

Connect the unit to 115-230 V AC power, insert the source SD card into the single source slot and up to 15 target cards into the destination slots, then use the 16 x 2 LCD menu to select copy mode; the step often missed is choosing between System-and-Files Quick Copy or Whole-Media Full Copy before starting.

What maintenance or replacement will the duplicator need over time?

The SD card slots are rated for repeated insertion cycles; keep them free of dust and debris, and if a slot becomes loose or fails to read cards reliably, the slot module can be replaced by a technician.

What limit appears first during sustained high-volume copying?

The 128 MB buffer memory and the 100 MB per second per channel transfer rate set the practical ceiling; actual sustained throughput depends on the speed class of the SD or MicroSD media being used.
