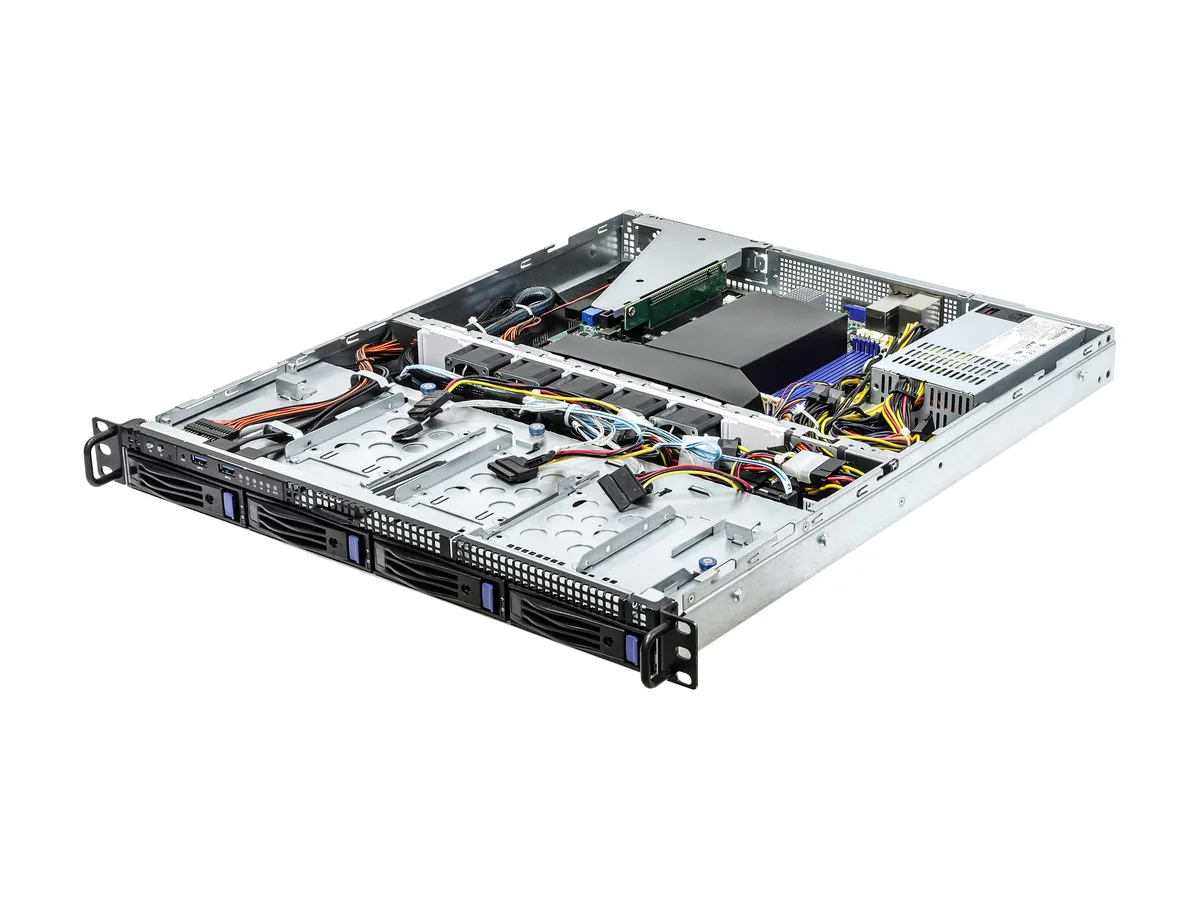

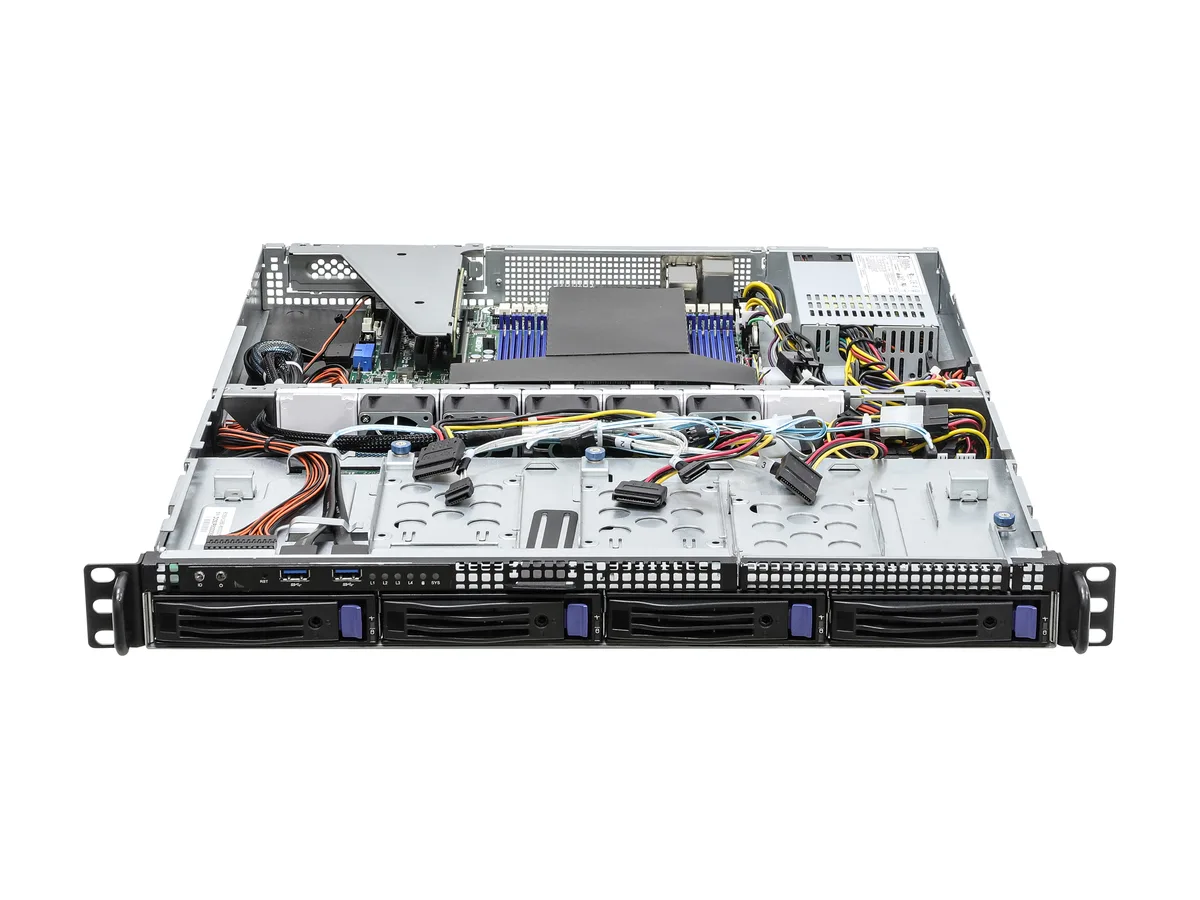

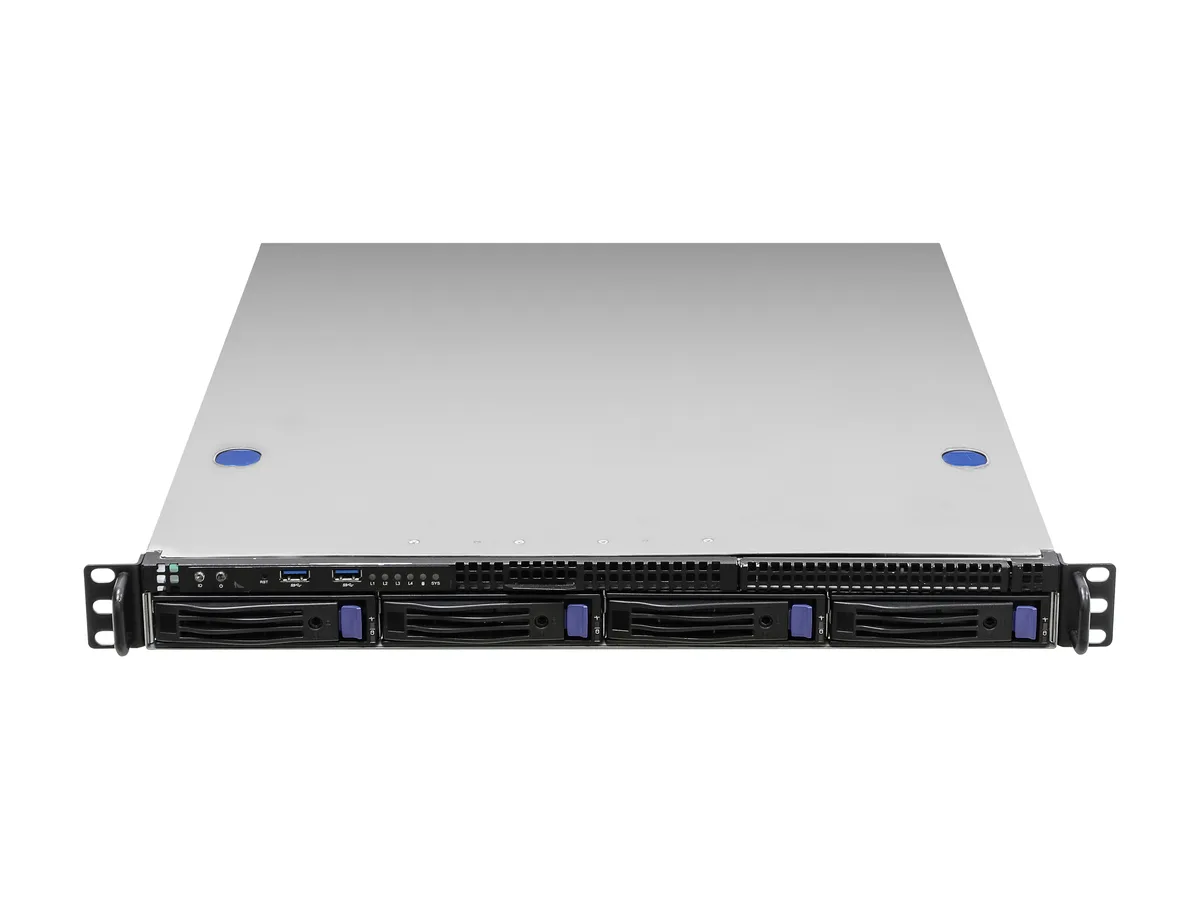

Silver 1U rackmount server chassis with front drive bays and ports

ASRock Rack

ASRock Rack 1U4LW-ROME/2T 1U rackmount barebone server

SKU CH-9B1K-3BBCC MPN 1U4LW-ROME/2T

A 1U rackmount barebone supporting AMD EPYC 7002 and 7003 processors with 8 DIMM slots, 10 Gigabit LAN, four hot-swap 3.5-inch bays and a 600W Platinum power supply

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupport AMD EPYC 7003* and 7002 Series Processors *A BIOS up
  • CPU SocketSocket SP3
  • Installed CPUNo CPU Installed
  • Max Processors1
  • 1U rackmount form factor fits dense server deployments
  • Supports AMD EPYC 7002 and 7003 series processors with BIOS update
  • Eight DIMM slots enable RDIMM or LRDIMM memory up to 3200 MHz
  • Ten-gigabit dual-port Intel X710-AT2 LAN plus dedicated IPMI
  • Four hot-swap 3.5-inch and three fixed 2.5-inch SATA drive bays

1U EPYC barebone for general-purpose workloads

The ASRock Rack 1U4LW-ROME/2T is a 1U rackmount server barebone designed for general-purpose deployments. It accepts a single AMD EPYC 7002 or 7003 series processor in a Socket SP3 socket. No CPU or memory is installed, so the buyer provides both.

Suits single-socket builds

This platform suits integrators building a single-processor server that needs front-accessible 3.5-inch hot-swap bays and internal 2.5-inch SATA bays. It is not for buyers who need dual-processor support, more than one full-height half-length PCIe 4.0 x16 slot, or 10 Gigabit Ethernet beyond the two onboard ports.

Single Socket SP3 processor limit

The chassis supports a maximum of one processor, fixing the compute ceiling at a single EPYC CPU. That constraint decides whether the barebone matches the intended workload.

Ciri-ciri utama

  • 1U rackmount form factor fits dense server deployments
  • Supports AMD EPYC 7002 and 7003 series processors with BIOS update
  • Eight DIMM slots enable RDIMM or LRDIMM memory up to 3200 MHz
  • Ten-gigabit dual-port Intel X710-AT2 LAN plus dedicated IPMI
  • Four hot-swap 3.5-inch and three fixed 2.5-inch SATA drive bays

Spesifikasi

BrandASRock Rack
Model1U4LW-ROME/2T
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupport AMD EPYC 7003* and 7002 Series Processors
*A BIOS update is required to support AMD EPYC 7003 Series Processors.
CPU SocketSocket SP3
Installed CPUNo CPU Installed
Max Processors1
Memory Slots8 DIMM slots (1DPC)
Installed Memory SizeNo Memory Installed
Memory Type SupportedRDIMM/ LRDIMM: up to 3200 MHz
NVDIMM: up to 2666 MHz
Installed HDDNo Storage Installed
GPU/VPUAspeed AST2500
PCI ExpressRear: 1 FHHL PCIe4.0 x16
First LANIntel X710-AT2
Max. LAN Speed10 Gigabit
2.5" Bays3 x Fixed 2.5'' SATA Internal drive bays
Hot-Swap Bays4 x Hot-swap 3.5'' SATA External drive bays
Front USB2 x USB 3.0
COM1 x DB9
VGA1
Rear USB2 x USB 3.2 Gen1
RJ452 x RJ45 (10GbE) by Intel X710-AT2
1 x Dedicated IPMI
Max. PowerSingle PSU, 600W, 80-PLUS Platinum

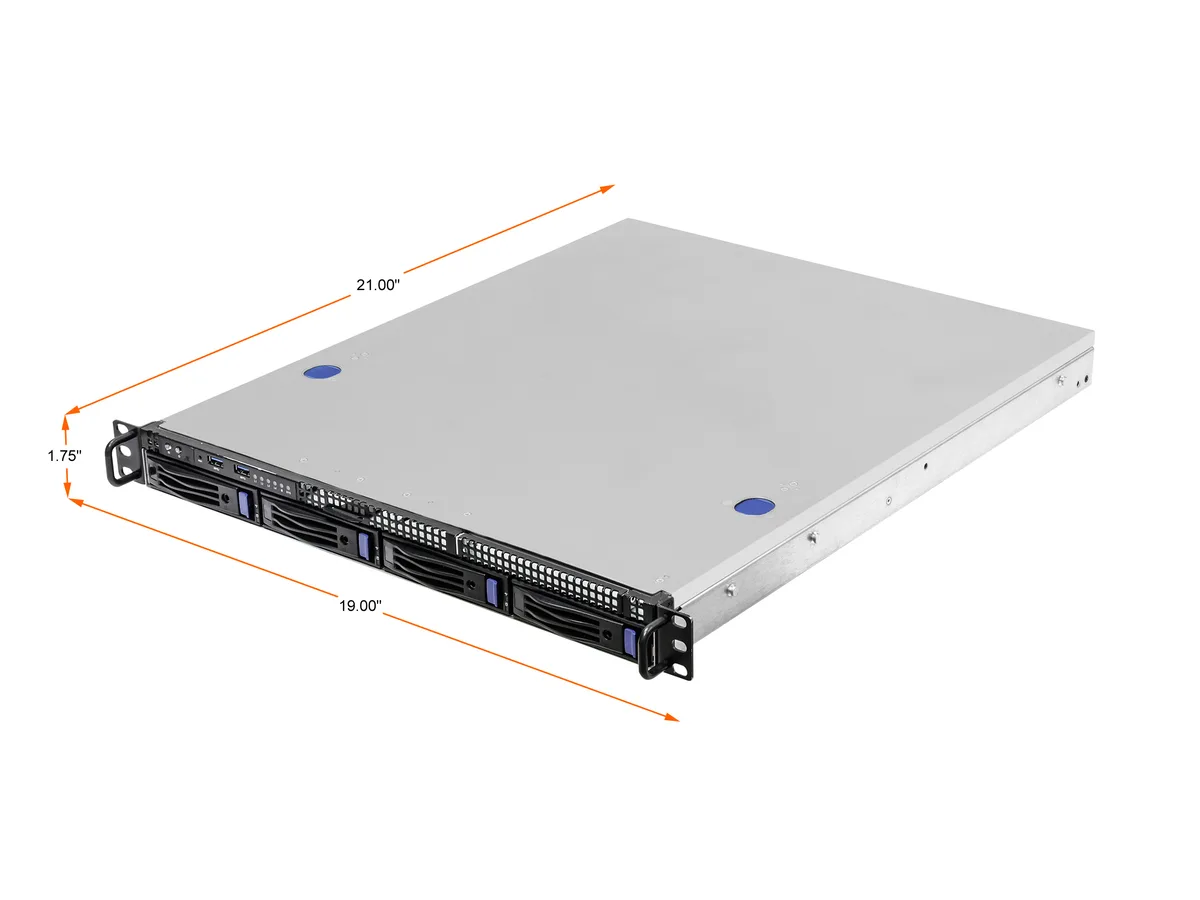

Dimensions1.75" x 19.00" x 21.00"
Berat penghantaran20.41 kg
Dimensi bungkusan711 × 660 × 203 mm

Soalan tentang produk ini

Should I choose the 7002 or 7003 series EPYC processor for this barebone?

Both series fit the SP3 socket, but the 7003 series requires a BIOS update before it will boot. If you want to avoid that step, select a 7002 series CPU; otherwise plan the update first.

What does the 10 Gigabit LAN figure mean once the server is running?

The Intel X710-AT2 controller provides two RJ45 ports that each negotiate up to 10 Gb/s over copper cabling, so throughput is limited by the 10 GbE link and the PCIe 4.0 x16 slot it occupies.

What does the PCIe 4.0 x16 slot cap in practice?

The single full-height half-length slot runs at PCIe 4.0 x16 electrical, so any add-in card is limited to that generation and lane width; the slot shares the CPU root complex, so total bandwidth cannot exceed the x16 ceiling.
