Green PCIe expansion card with three USB-C and four USB-A ports on a metal bracket

ESTONE

ESTONE PCIE24A3C3.2 PCIe USB 3.2 7-Port 10Gbps Card

SKU CH-WFR8-SBPTG

Adds seven USB 3.2 Gen 2 ports — three Type-C and four Type-A — at 10 Gbps through a single PCIe slot

  • TypePCI to USB Card
  • External USB Ports7x USB Ports
  • StandardUSB 3.2
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds seven USB 3.2 ports through one PCIe x1 slot
  • Three Type-C and four Type-A connectors for mixed devices
  • Up to 10 Gbps transfer speed for large files
  • Powered from the PCIe slot with no extra cable needed
  • Works with Windows 7 through 11 and Mac OS 10.8.2+

7-Port USB 3.2 Expansion Card

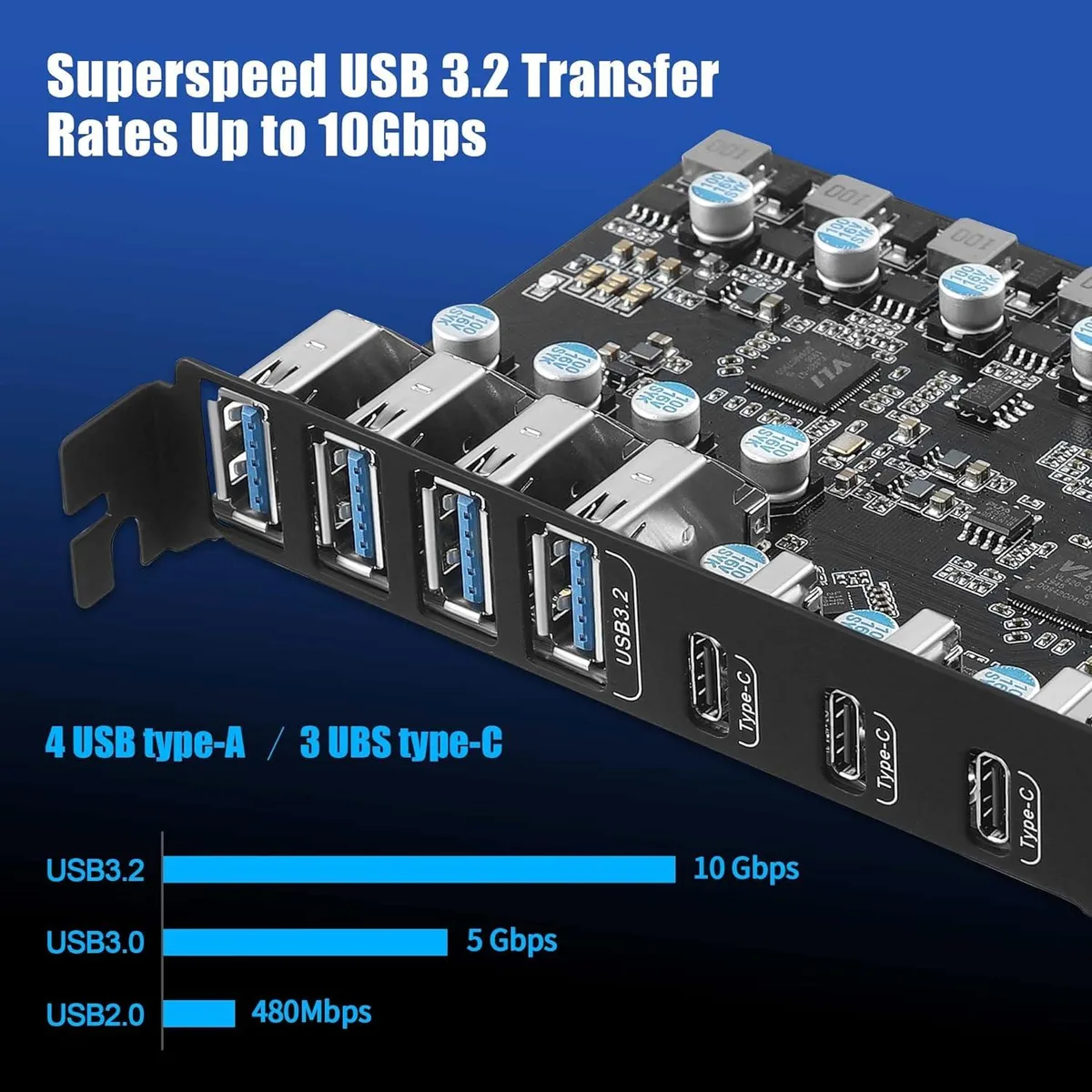

The ESTONE PCIE24A3C3.2 adds seven USB 3.2 Gen 2 ports to a desktop PC through a single PCI Express slot. It provides three USB Type-C and four USB Type-A connectors, each running at up to 10 Gbps. The card is aimed at users who need more high-speed ports for external drives, peripherals or data-intensive workflows.

Driver-First Installation

The card fits a PCI Express x1, x4, x8 or x16 slot and draws power from the slot itself, so no external power cable is required. Windows 7, 8, 8.1, Server 2008 and XP need the Renesas/VLI driver from the included CD or a download; Windows 10, 11 and macOS 10.8.2 or later work without extra drivers. A common issue is forgetting to install the driver on older Windows versions, which leaves the ports invisible to the system.

Bandwidth and Protocol Limits

All seven ports share the bandwidth of the single PCI Express lane, so simultaneous transfers on multiple devices will not reach the per-port 10 Gbps maximum. The card carries only USB data signals; it does not support video output, Thunderbolt protocol or monitor connections. Actual speeds are also limited by the connected device and cable quality.

Ciri-ciri utama

  • Adds seven USB 3.2 ports through one PCIe x1 slot
  • Three Type-C and four Type-A connectors for mixed devices
  • Up to 10 Gbps transfer speed for large files
  • Powered from the PCIe slot with no extra cable needed
  • Works with Windows 7 through 11 and Mac OS 10.8.2+

Spesifikasi

BrandESTONE
SeriesPCIE24A3C3.2
ModelPCIE24A3C3.2
TypePCI to USB Card
External USB Ports7x USB Ports
StandardUSB 3.2
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications7 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.2 driver for your computer first.
Supports PCI Express 3.0 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (3X USB-C - 4X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Operating System Supports Windows XP/Vista/2008 Server/7/8/10 and Mac Pro 4.1,5.1,7.1(models 2010 to 2020) / Linux Mint ,Ubuntu 20.04
FeaturesMaximum extension,Most USB interfaces: Update your Computer to 7 ports USB3.2--3 Port Type C and 4 ports Type A 3.2, You can connect keyboard, mouse, external hard drives, CD/DVD drives, webcams,usb printers, scanners, game controllers,USB VR, digital cameras, etc
Increasing Efficiency: Supports transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:The actual transmission speed is limited by the setting of the device connected
Widely compatibility: USB 3.2 Backwards compatible with USB 3.0, 2.0 and
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Soalan tentang produk ini

How can I verify the card is delivering 10 Gbps transfers after installation?

Connect a USB 3.2 Gen 2 storage device and measure read/write speeds in your OS; sustained throughput near 10 Gbps confirms the PCIe x1 lane and Renesas/VLI controller are operating correctly.

What comes in the box and what must I source separately?

The package includes the PCIe expansion card, a driver CD, two mounting screws and a user manual; no external power cable or additional brackets are supplied.

Should I choose the 3×Type-C / 4×Type-A layout or a different port mix?

This model only offers the fixed 3×Type-C and 4×Type-A configuration; select it when you need both connector types for mixed peripherals.
