Green PCB card with twelve SATA ports and three power splitters

GLOTRENDS

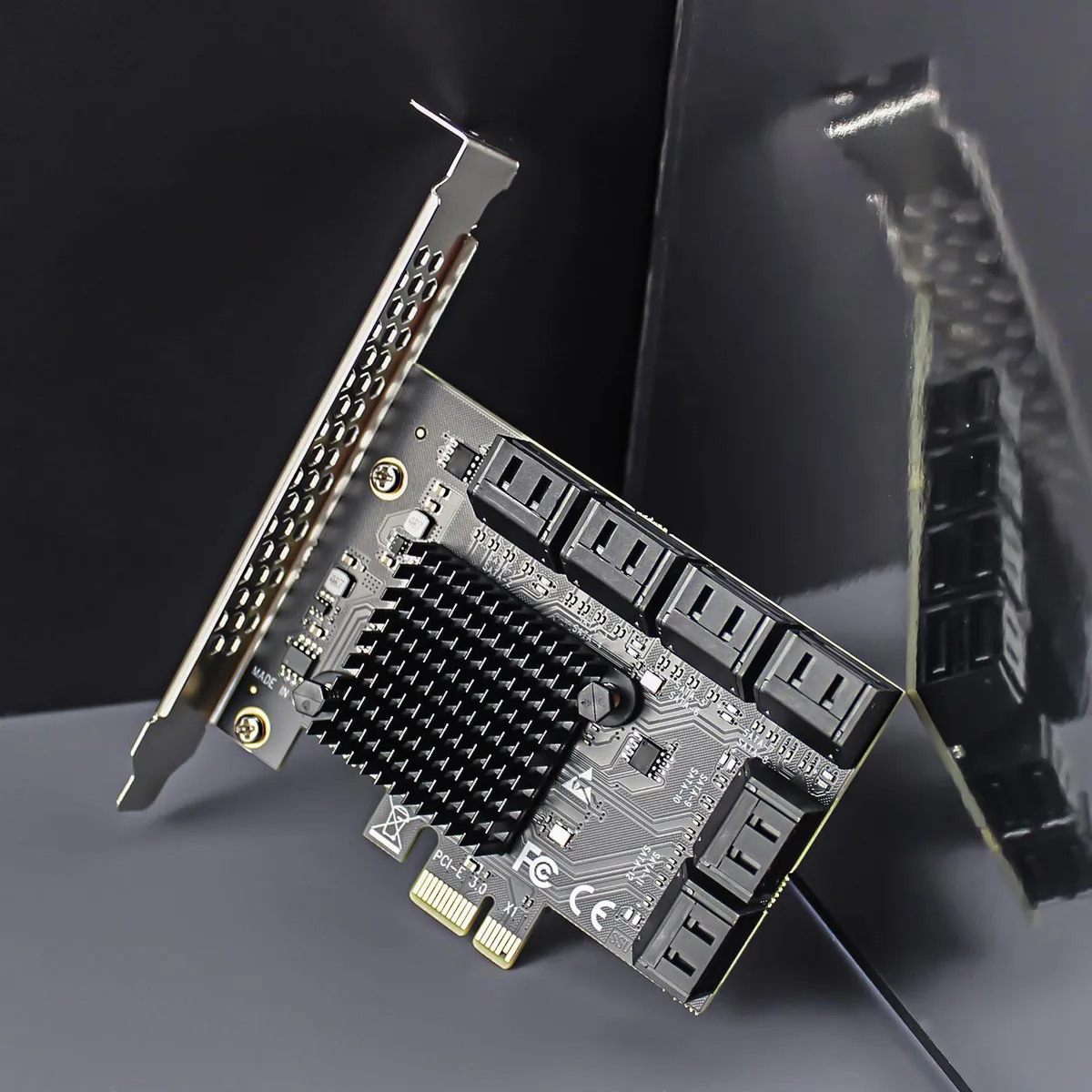

GLOTRENDS SA3112J 12-port PCIe SATA expansion card

SKU CH-6NEY-KM3WF MPN SA3112J

Adds twelve SATA III ports through a single PCIe 3.0 x1 slot using JMB575 and ASM1064 controllers

  • TypePCI Express to SATA Card

Option 12-Port, X1

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • Connect 12 SATA drives through one PCIe X1 slot
  • 2 JMB575 plus 1 ASM1064 controllers manage all ports
  • Plug-and-play on Windows, Mac OS, Linux and NAS
  • Includes 12 SATA cables and three 1-to-5 power splitters
  • Red LED shows card activity and data transfer status

12-port PCIe SATA expansion card

The GLOTRENDS SA3112J adds twelve SATA III 6 Gbps ports through a single PCI Express 3.0 x1 slot, letting a desktop PC, server or NAS address up to twelve SATA drives at once. It uses two JMB575 and one ASM1064 controllers to provide AHCI mode for software RAID or storage-pool configurations, though hardware RAID is not supported and the card cannot boot an operating system.

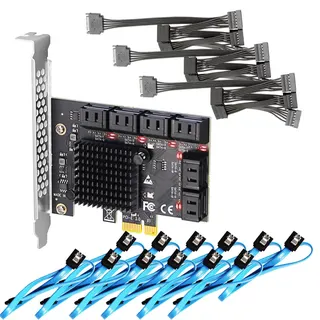

Bundled cables and power splitters

Twelve SATA III data cables and three 1-to-5 SATA power splitter cables are included, so every drive port can be connected without sourcing extra parts. The splitters draw power from the system’s existing SATA power connectors, simplifying large drive deployments.

Suits high-density storage builds.

Builders who need many affordable SATA connections for bulk storage, ZFS pools or software RAID arrays will find the card practical. Users requiring a bootable controller, hardware RAID offload or full 6 Gbps per port simultaneously should consider other solutions.

Ciri-ciri utama

  • Connect 12 SATA drives through one PCIe X1 slot
  • 2 JMB575 plus 1 ASM1064 controllers manage all ports
  • Plug-and-play on Windows, Mac OS, Linux and NAS
  • Includes 12 SATA cables and three 1-to-5 power splitters
  • Red LED shows card activity and data transfer status

Spesifikasi

TypePCI Express to SATA Card

Versi lain model ini

2 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

Will the JMB575 and ASM1064 controllers on the SA3112J need firmware updates or driver reinstallation over time?

The card uses plug-and-play AHCI mode on Windows, Mac OS, Linux and NAS; Windows 7 requires a one-time manual driver install from the maker's link, after that no further controller maintenance is expected.

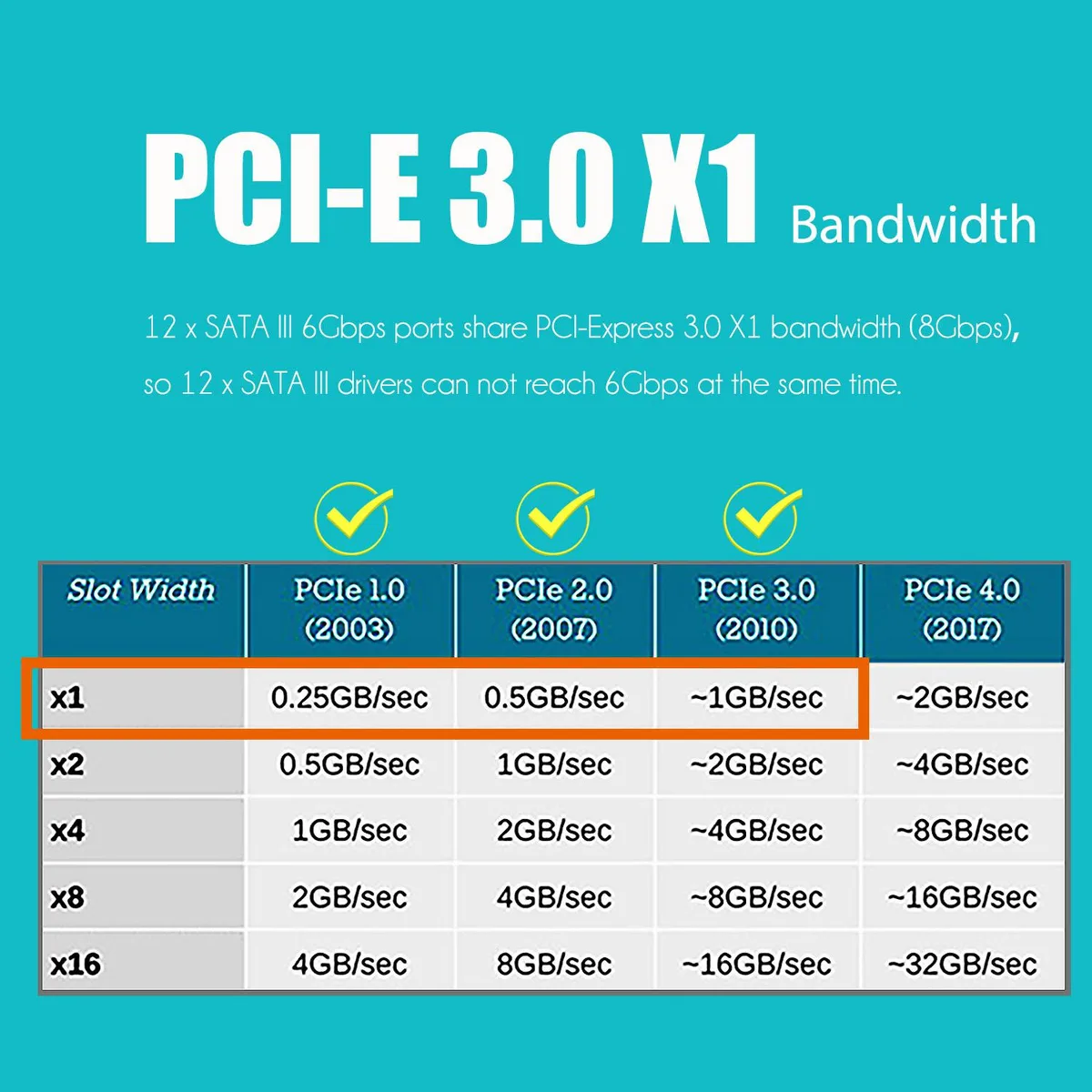

Does the single PCIe 3.0 x1 link become the bottleneck before the twelve SATA III 6Gbps ports saturate?

Yes, twelve ports share one PCIe 3.0 x1 lane capped at 8Gbps, so combined throughput tops out around 1GB/s and individual drives cannot all hit 6Gbps simultaneously.

How much heat and power does the SA3112J add when all twelve drives run continuously?

The board has no onboard fan; heat comes only from the two JMB575 and one ASM1064 chips, and drive power is supplied externally through the three included 1:5 SATA splitter cables.
