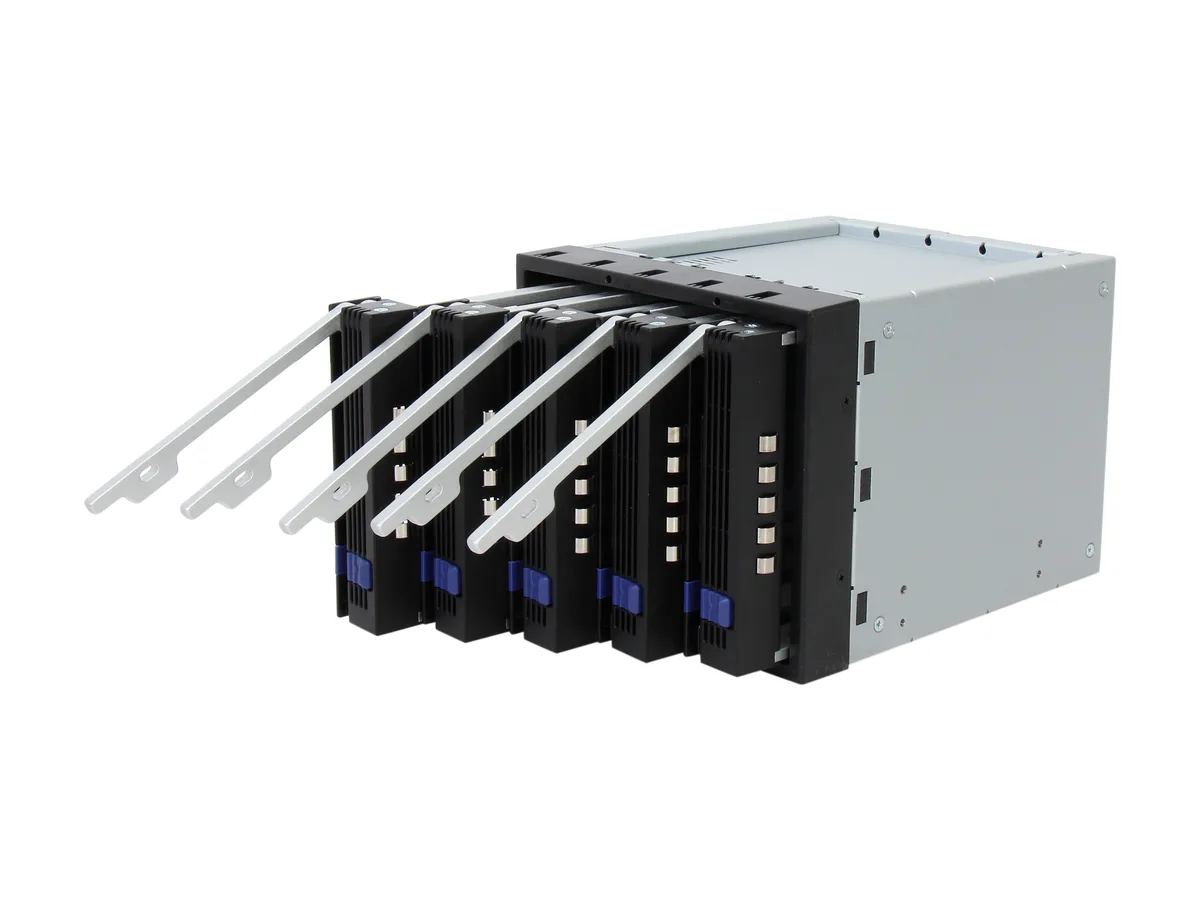

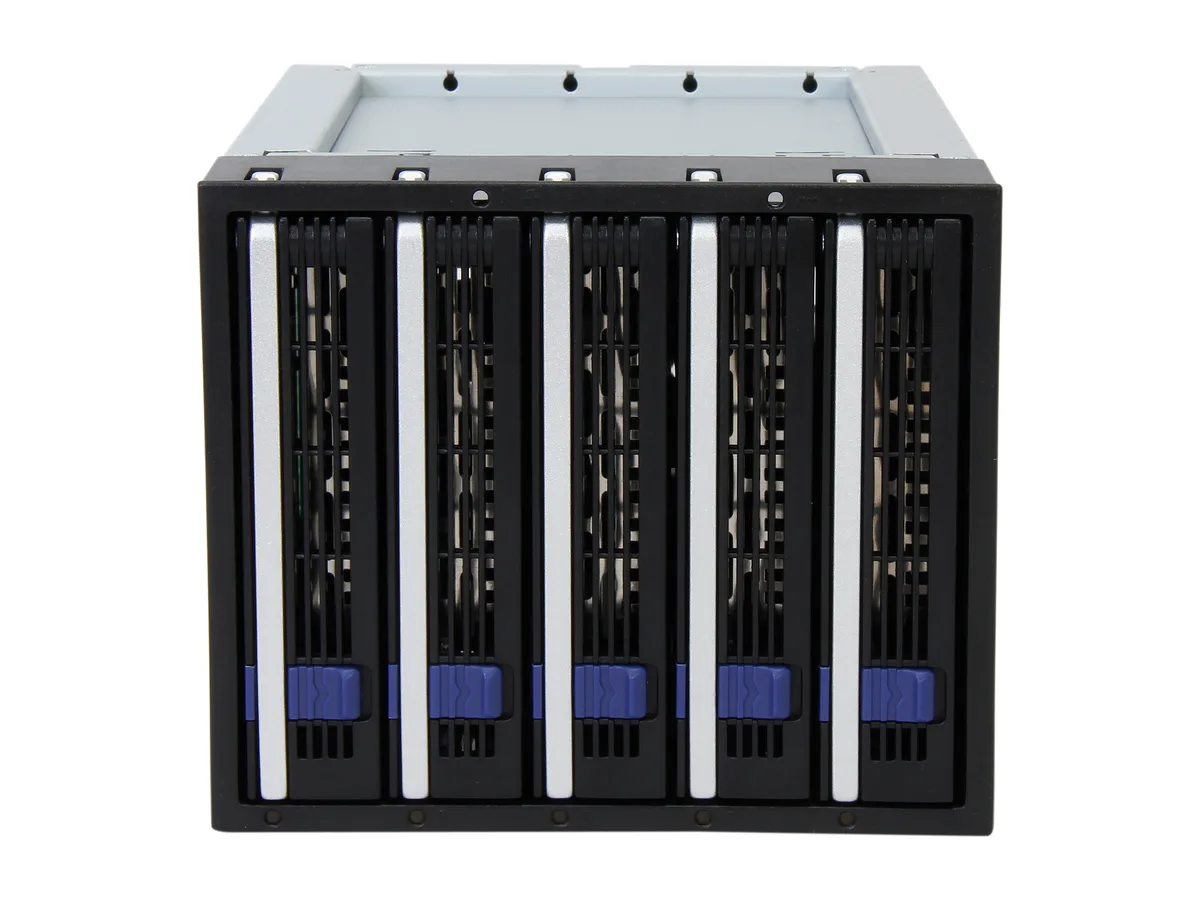

Black metal cage with five 3.5-inch drive trays and a 92mm fan

ICY DOCK

ICY DOCK MB155SP-B 5×3.5" in 3×5.25" SATA hot-swap cage

SKU CH-853S-M8E4W MPN MB155SP-B

Holds five 3.5" SATA drives in three 5.25" bays with hot-swap support and a 92mm cooling fan

  • ColorBlack
  • Conversion Tray3 x 5.25" Drive to 5 x 3.5" Bay
  • Mobile Rack Drives SupportMulti 3.5" Drives to Multi 5.25" Bays
  • Mobile Rack InterfaceSATA I/II/III
  • Protection CaseMultiple Drives
  • SpecificationsColor: Black Drive Fit: 5 x 3.5" SATA 1.5 / 3 / 6 Gbit/s har

Model 3 x 5.25in

Option 5 Bay

  • Hot-swap five 3.5" SATA drives without powering down
  • Fits five drives in only three 5.25" bays
  • 92 mm fan directs airflow straight to drives
  • Full metal body dissipates heat during heavy workloads
  • Interchangeable trays work with MB45X, MB559 and MB561 cages

5×3.5" SATA hot-swap cage

The ICY DOCK MB155SP-B fits five 3.5" SATA hard drives into three 5.25" device bays. A full-metal backplane and 92mm fan deliver direct airflow across all drives. Each bay uses a 15-pin SATA power connector and a 7-pin SATA data port. Hot-swap trays allow drive changes without powering down the system.

Server builders and dense storage users

This unit suits administrators who need maximum 3.5" density in limited 5.25" space and want hardware hot-swap capability. Builders using 2.5" drives, SAS-only backplanes, or enclosures without 5.25" bays cannot install this cage. Systems requiring tool-less tray ejection or single-drive power control will not find those features here.

6 Gbps SATA backplane speed

The backplane supports SATA I, II and III at up to 6 Gbps per drive. SAS 3.0 single-channel operation up to 12 Gbps is also supported. Drive throughput is limited by the SATA interface and the host controller, not by the cage itself.

Ciri-ciri utama

  • Hot-swap five 3.5" SATA drives without powering down
  • Fits five drives in only three 5.25" bays
  • 92 mm fan directs airflow straight to drives
  • Full metal body dissipates heat during heavy workloads
  • Interchangeable trays work with MB45X, MB559 and MB561 cages

Spesifikasi

BrandICY DOCK
ModelMB155SP-B
ColorBlack
Conversion Tray3 x 5.25" Drive to 5 x 3.5" Bay
Mobile Rack Drives SupportMulti 3.5" Drives to Multi 5.25" Bays
Mobile Rack InterfaceSATA I/II/III
Protection CaseMultiple Drives
SpecificationsColor: Black
Drive Fit: 5 x 3.5" SATA 1.5 / 3 / 6 Gbit/s hard drives
Drive Bay: 3 x 5.25" half height device bay
Host Interface: 5 x 7pin SATA port
Power Input: 3 x 15pin SATA Power
Transfer Rate: Up to 6Gb/sec. (depending on hard drive speed)
Insert& Extract connection via: Direct SATA hard drive connection
Structure: Metal body w/ partial plastic
Drive Cooling:

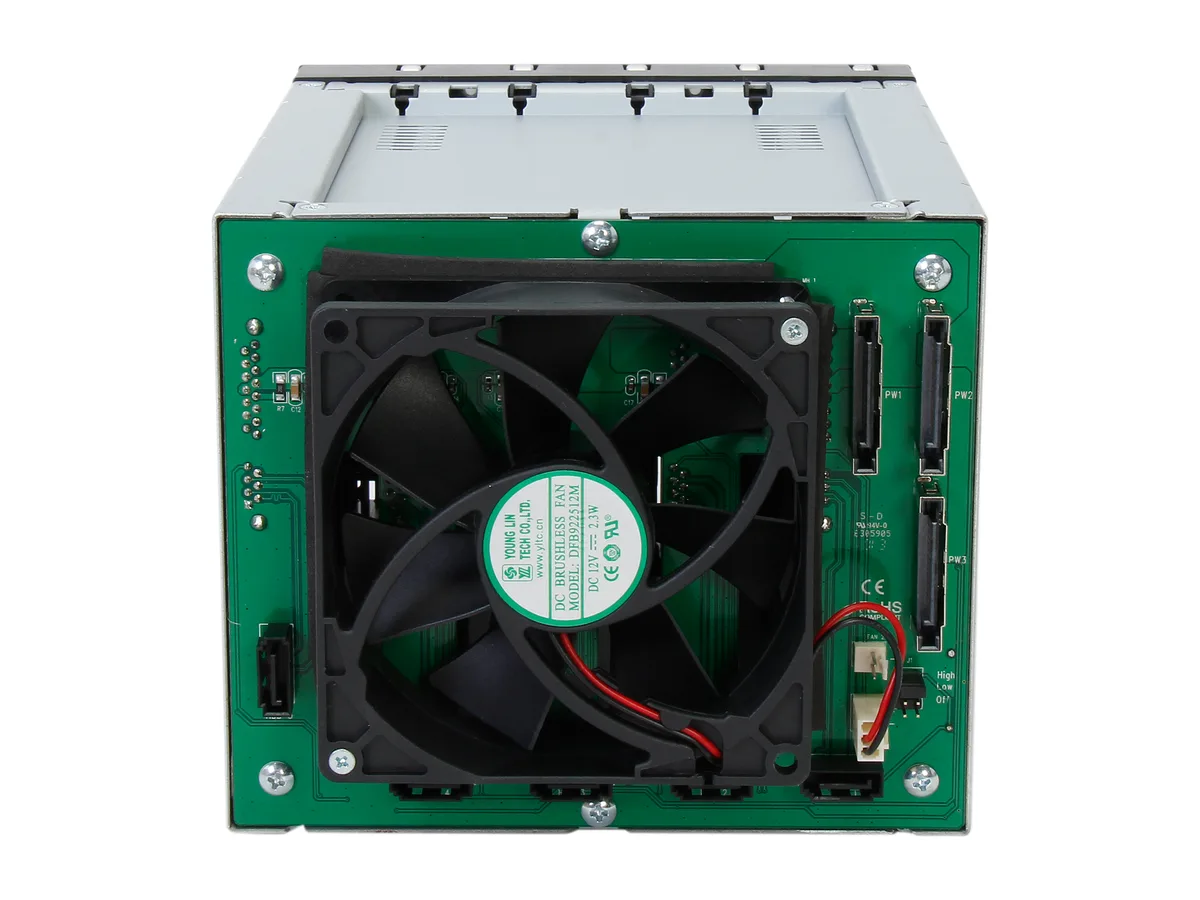

Replaceable 92 x 92 x 25mm cooling fan
Compatible with most 92mm fans with 2pin/ 3pin connector
Metal chassis heat dispersion
3 mode fan speed jumper of high / low / off
Power Indicator: Solid Green LED (Power On)
HDD Access
Features5 in 3 RAID backplane module.
Fits five 3.5" SATA I / II / III (SATA 6Gbps) hard drives in three 5.25" device bay & fully supports SATA Hot-Swap function.
Large 92mm cooling fan with full metal body for excellent heat dissipation for the most intense applications.
Compact and space saving to fit multiple drives.
Interchangeable EZ-Tray tray design for internal drive security, exchangeability, expandability and maintenance capabilities. Compatible with DataCage Classic MB45X, ICYBento MB559 & ICYCube MB561 series.
Enhanced Direct Air Flow Design - Shuts off most vents while adding lar
Berat penghantaran1.97 kg
Dimensi bungkusan290 × 218 × 193 mm

Versi lain model ini

1 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

How do I install the MB155SP-B into three 5.25" bays and connect the drives?

Slide the unit into three front-facing 5.25" half-height bays, secure it with screws, attach five SATA data cables to the backplane ports, then plug three 15-pin SATA power connectors into the unit before inserting drives into the EZ-Tray carriers.

What maintenance will the 92mm cooling fan require over time?

The 92mm fan is the only moving part; periodically clean dust from its blades and the metal body vents with compressed air to maintain airflow, and replace the fan if bearing noise appears.

At what transfer rate does the backplane cap sustained throughput?

The SATA 6Gbps backplane limits each drive to 6Gb/sec, so sustained sequential traffic cannot exceed that ceiling even if the drives themselves are faster.
