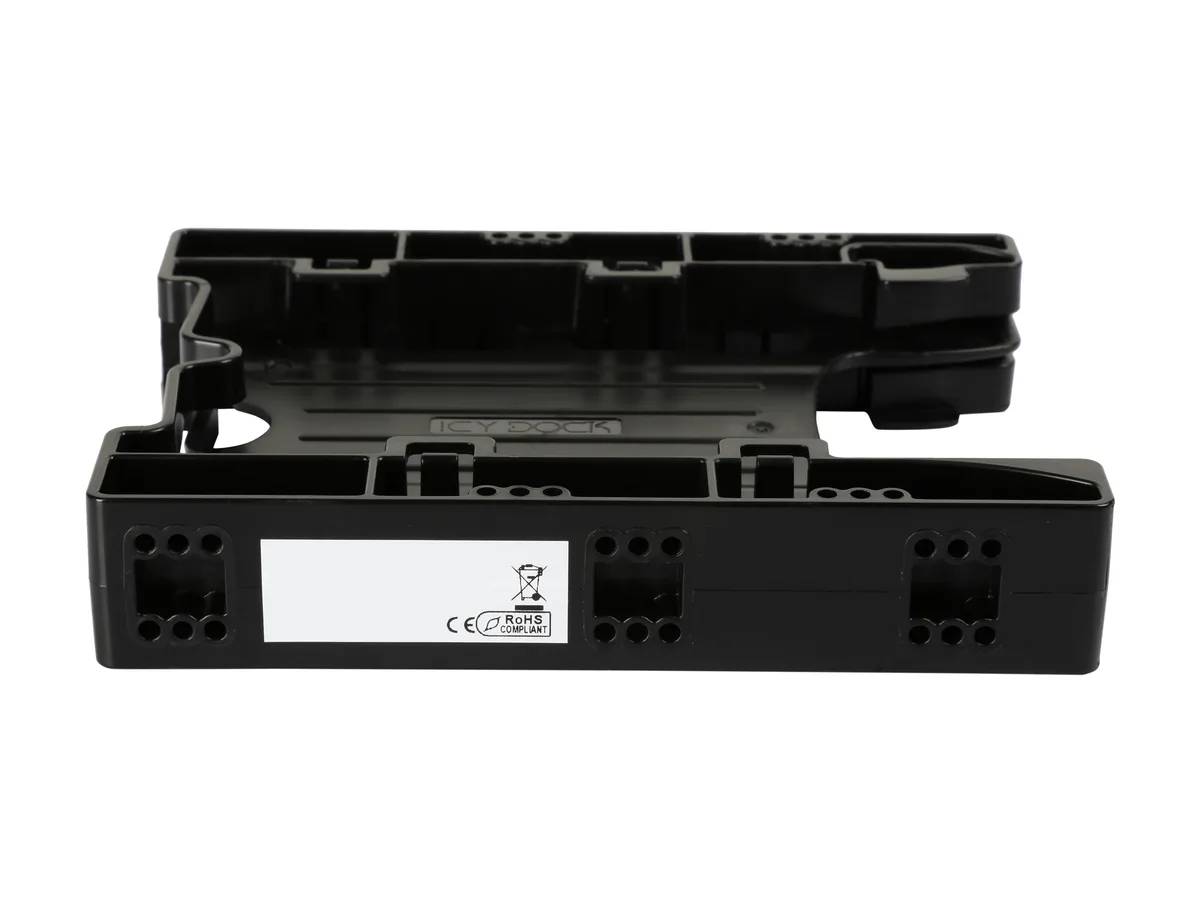

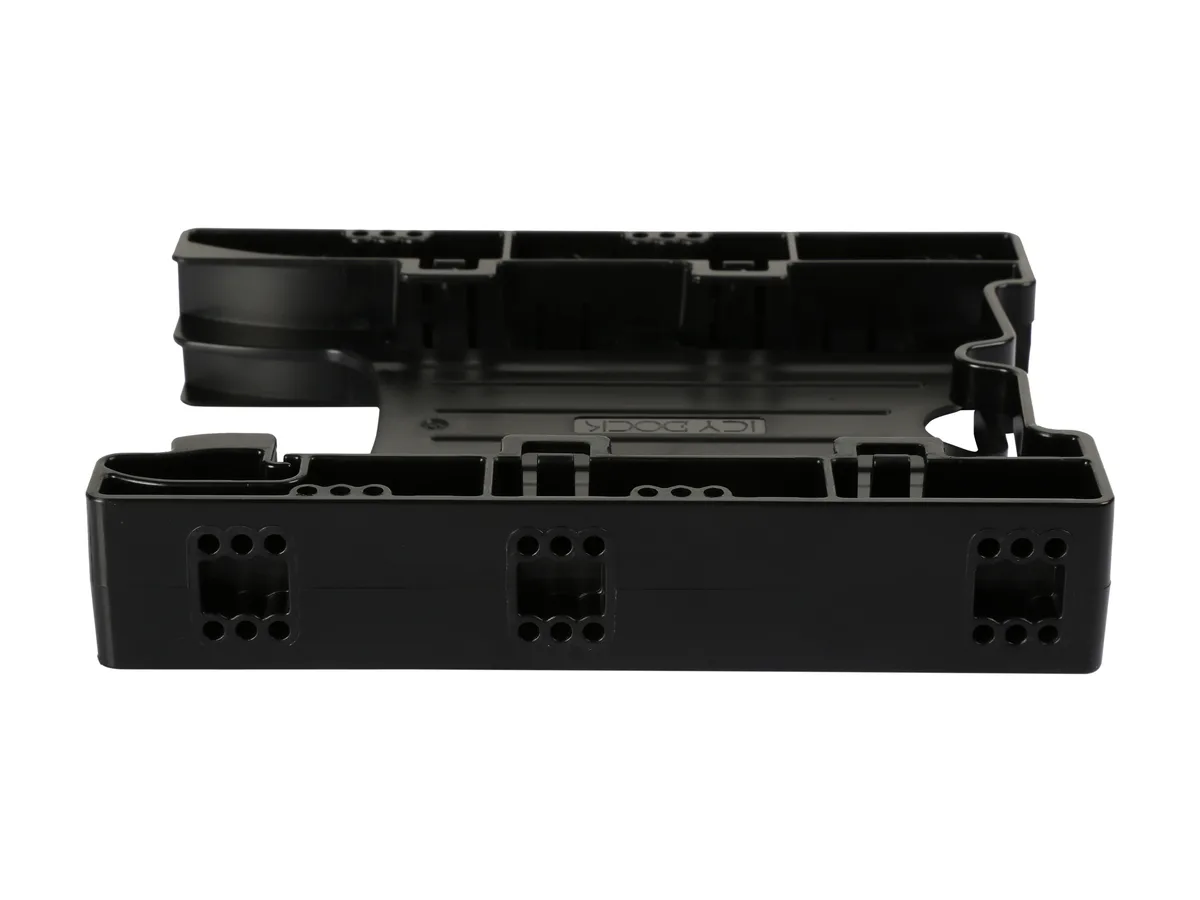

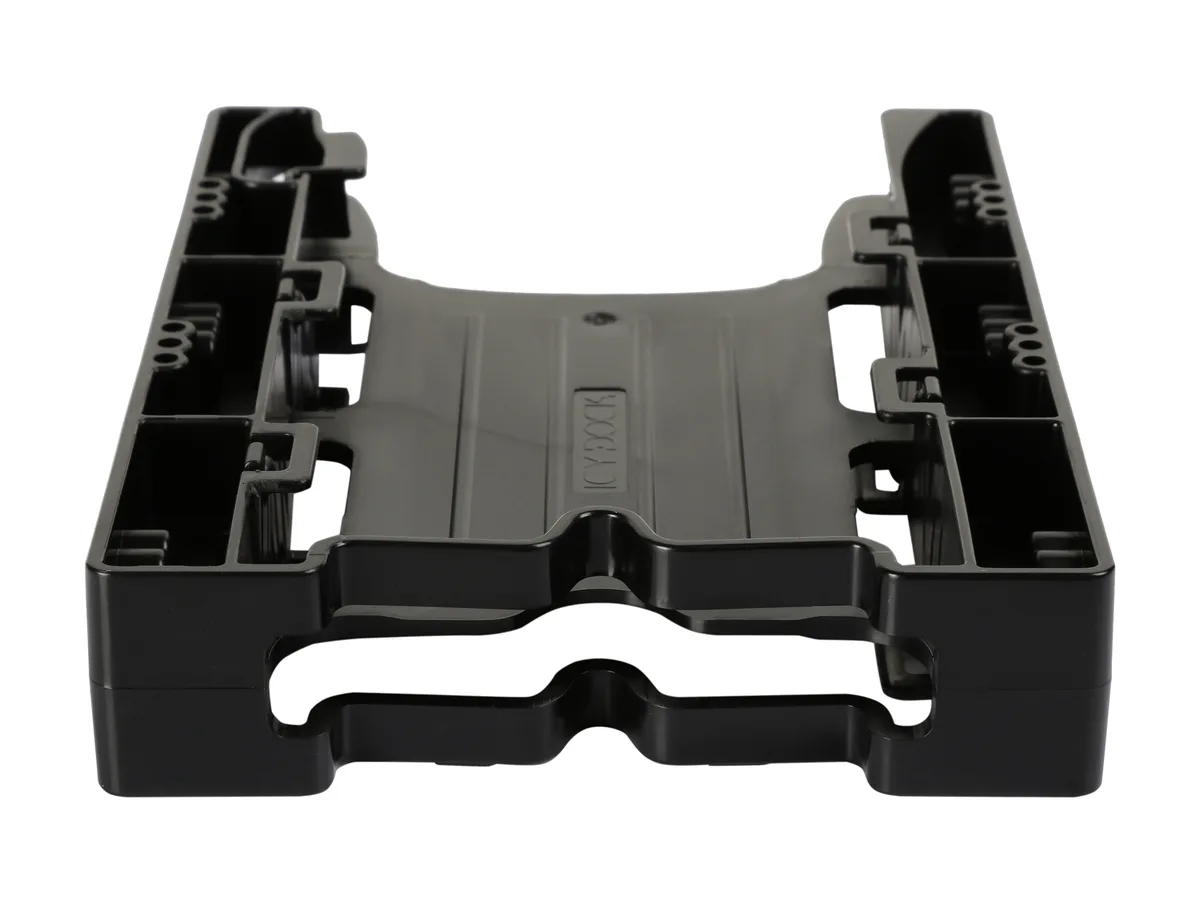

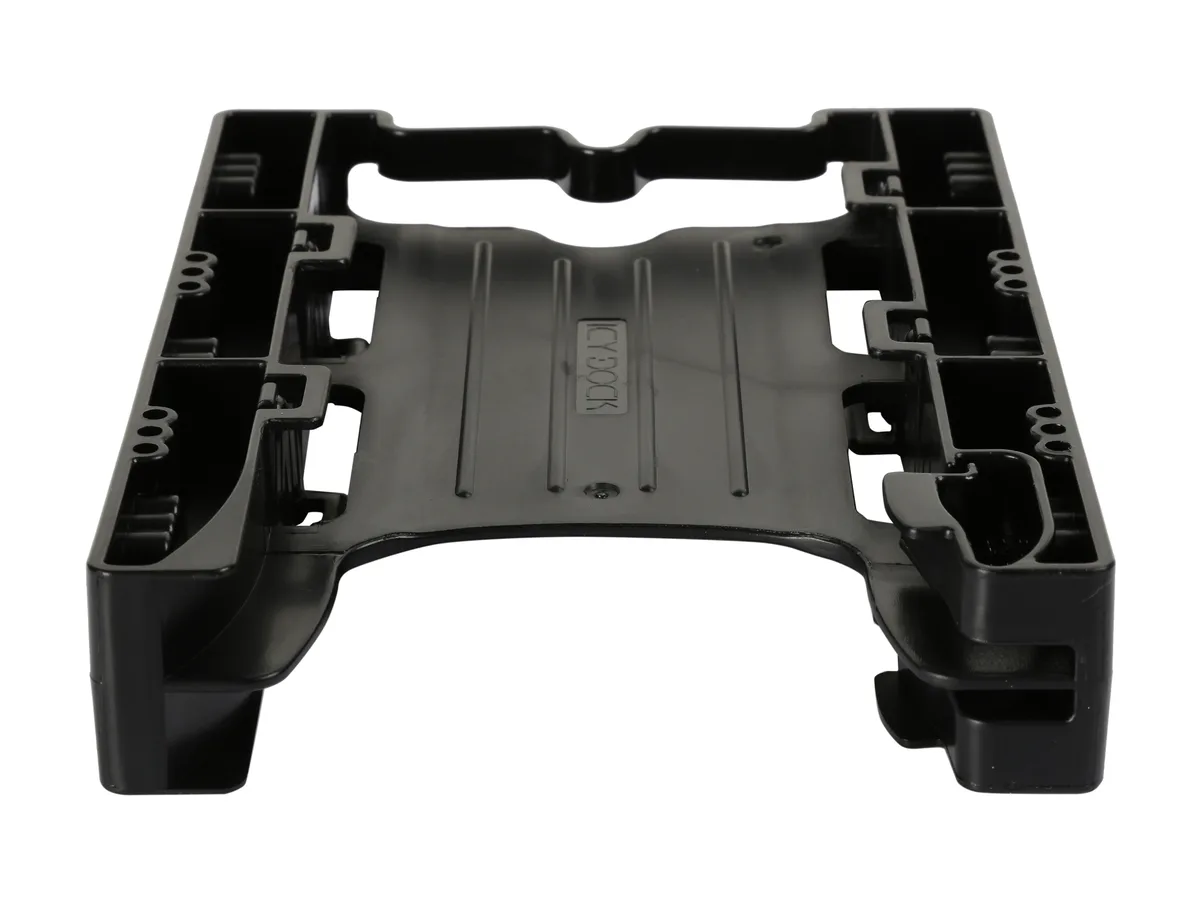

Black dual 2.5-inch to 3.5-inch drive bay adapter bracket

ICY DOCK

ICY DOCK MB290SP-B DUAL 2 x 2.5" to 3.5" hdd accessory

SKU CH-T1YQ-5FXMV MPN MB290SP-B DUAL

Mounts two 2.5" SATA drives into one 3.5" bay with anti-vibration design

  • ColorBlack
  • Conversion Tray2 x 2.5" Drive to 3.5" Bay
  • SpecificationsSupport Drive Height: 7mm - 9.5mm 5.30" x 4.17" x 1.00" 0.13

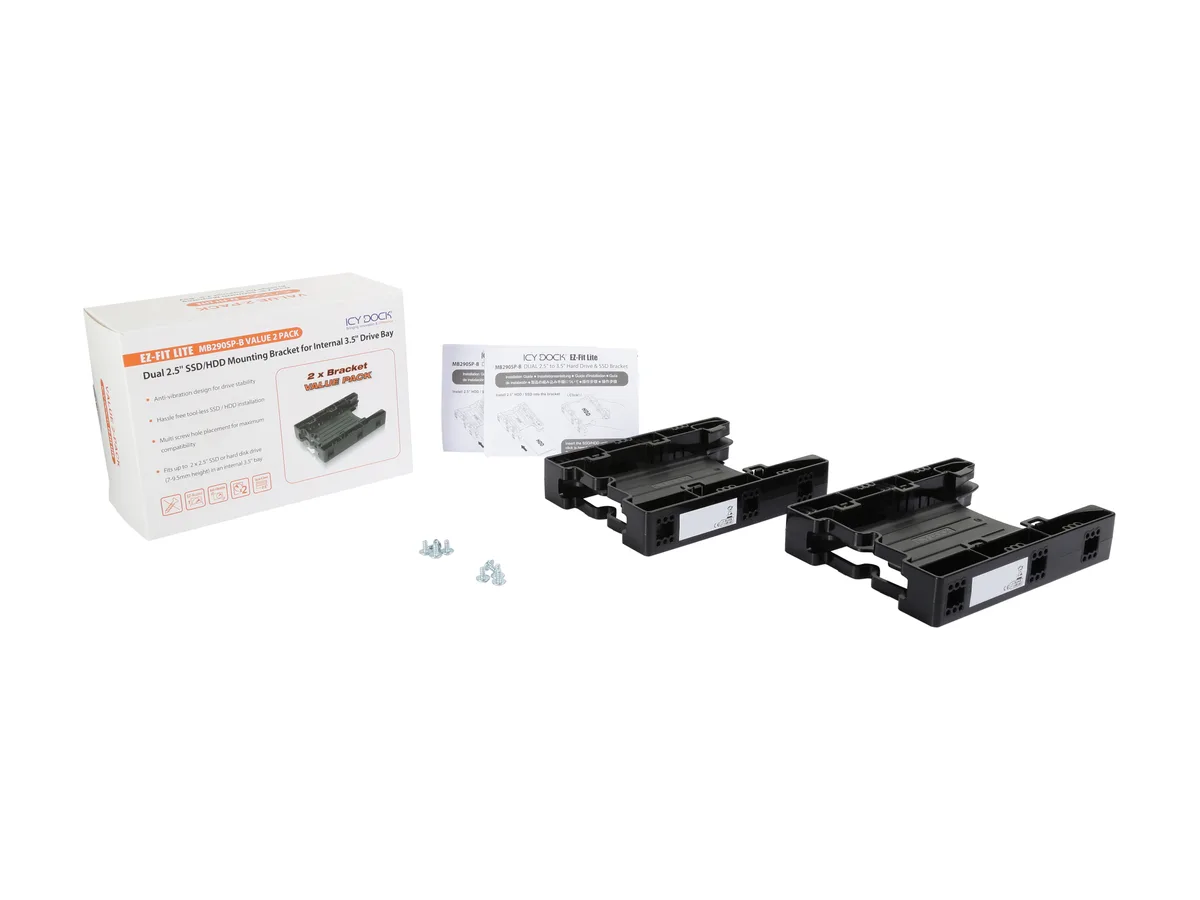

  • Package ContentsDevice x 1, User Manual x 1, Screw x 4
  • FeaturesDurable one-piece design Anti-Vibration design for improved

Model Brackets Versatile x2

  • Mount two 2.5" drives in one 3.5" bay
  • Anti-vibration design protects drives during operation
  • Supports 7mm to 9.5mm drive heights
  • Durable one-piece construction adds rigidity
  • Quick-release mechanism simplifies drive swaps

Dual 2.5" to 3.5" Drive Adapter

The ICY DOCK MB290SP-B DUAL is a black mounting bracket that converts a single internal 3.5" drive bay into space for two 2.5" SATA SSDs or HDDs. It accepts drives between 7mm and 9.5mm thick and uses a one-piece metal frame with anti-vibration features.

Suits compact builds with limited bays

Builders who need to add a pair of 2.5" drives without sacrificing multiple 3.5" slots will find this tray efficient. It is not for systems that only offer 2.5" mounting points or for installations requiring hot-swap trays or tool-free carrier mechanisms.

Supports 7mm to 9.5mm drive height

The tray accommodates standard 2.5" SATA drives within the 7mm to 9.5mm height range. Four screws are included for securing the drives. Thicker drives fall outside the specified tolerance and cannot be mounted.

Ciri-ciri utama

  • Mount two 2.5" drives in one 3.5" bay
  • Anti-vibration design protects drives during operation
  • Supports 7mm to 9.5mm drive heights
  • Durable one-piece construction adds rigidity
  • Quick-release mechanism simplifies drive swaps

Spesifikasi

BrandICY DOCK
ModelMB290SP-B DUAL
ColorBlack
Conversion Tray2 x 2.5" Drive to 3.5" Bay
SpecificationsSupport Drive Height: 7mm - 9.5mm
5.30" x 4.17" x 1.00"
0.13 lb.
Package ContentsDevice x 1, User Manual x 1, Screw x 4
FeaturesDurable one-piece design
Anti-Vibration design for improved reliability
Fits 2 x 2.5" SATA / IDE SSD/HDD into a single internal 3.5" drive bay
Compatible with 2.5" SSD & HDD with 7mm to 9.5mm drive height
Quick release eject mechanism for hassle free tool-less drive installation
Universally designed screw placement for maximum compatibility
60 screw holes provide maximum flexibility of installation
Berat penghantaran0.23 kg
Dimensi bungkusan168 × 119 × 74 mm

Versi lain model ini

4 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

How do I install two 2.5" drives into the 3.5" bay using this bracket?

Slide each 2.5" SATA or IDE SSD or HDD with a height between 7mm and 9.5mm into the tray until it clicks into the quick-release latch, then secure the tray into your 3.5" bay with the four included screws.

What maintenance will this mounting kit require over time?

The one-piece black design has no moving parts beyond the release latches; simply keep the bay free of dust and verify the four mounting screws remain snug during any system service.

What is the first limitation I will hit when running two drives continuously in this adapter?

The tray holds drives up to 9.5mm tall, so thicker 2.5" drives cannot be used, and the bracket adds no active cooling, so sustained workloads rely entirely on case airflow.
