Small green circuit board with USB-C port and pre-soldered pin headers

LORDWORLD

LORDWORLD ESP32-C3FN4 Mini Development Board Pre-Soldered Header

SKU CH-TN51-59B6S

Compact IoT board with RISC-V processor at 160 MHz, 2.4 GHz Wi-Fi, Bluetooth 5, 400 KB SRAM and 15 GPIO pins

  • RISC-V 32-bit single-core processor at 160MHz enables fast edge computing
  • 4GHz Wi-Fi 802.11 b/g/n plus Bluetooth 5 gives wireless connectivity
  • 400KB SRAM and 384KB ROM with 4MB Flash provides ample memory
  • 15 GPIO pins with 3 SPI, I2C, 2 UART, I2S, 2 ADC allow flexible I/O
  • USB Type-C with integrated serial controller simplifies programming and power

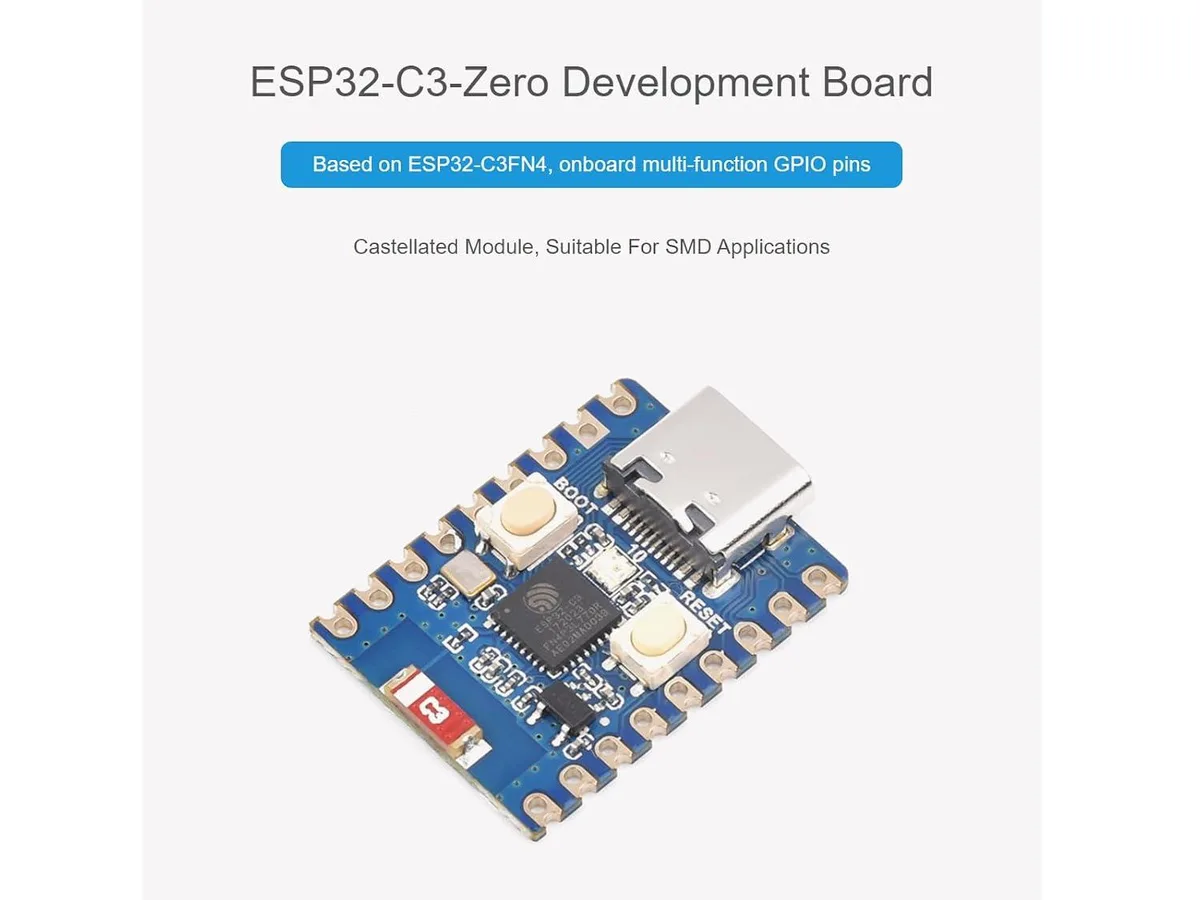

ESP32-C3FN4 Mini Development Board

This ESP32-C3FN4 mini development board is a low-power IoT edge device built around a RISC-V 32-bit single-core processor. It targets makers and engineers prototyping wireless projects that need integrated connectivity in a compact form factor. The board arrives with headers pre-soldered for immediate breadboard use.

RISC-V 32-bit single-core processor at 160MHz

The deciding specification is the RISC-V 32-bit single-core processor running at up to 160MHz. It provides 400KB SRAM and 384KB ROM alongside 4MB onboard Flash memory. Buyers who need more processing cores or larger memory capacity should consider other platforms.

Low-power operation with USB Type-C

The SoC supports flexible clock and independent power-supply controls to achieve low power consumption across different scenarios. An onboard ceramic antenna handles 2.4GHz Wi-Fi 802.11 b/g/n and Bluetooth 5 LE. A USB Type-C port provides the serial interface and power during development.

Ciri-ciri utama

  • RISC-V 32-bit single-core processor at 160MHz enables fast edge computing
  • 4GHz Wi-Fi 802.11 b/g/n plus Bluetooth 5 gives wireless connectivity
  • 400KB SRAM and 384KB ROM with 4MB Flash provides ample memory
  • 15 GPIO pins with 3 SPI, I2C, 2 UART, I2S, 2 ADC allow flexible I/O
  • USB Type-C with integrated serial controller simplifies programming and power

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

How does the 160 MHz RISC-V processor perform in a real project?

The 32-bit single core running at up to 160 MHz handles typical IoT sensor tasks and protocol stacks with the 400 KB SRAM and 4 MB flash provided.

What does the 2.4 GHz 802.11 b/g/n Wi-Fi and Bluetooth 5 connection actually deliver?

The board provides 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE through its onboard ceramic antenna for wireless communication.

What do I need to mount or connect the 15 GPIO pins and castellated edges?

The board comes with pre-soldered headers for the 15 GPIO pins and castellated edges that allow direct soldering to a carrier board.
