LORDWORLD ESP32-S3 7 inch LCD development board with IPS display

LORDWORLD

LORDWORLD ESP32-S3 7 inch LCD Development Board Type B 1024×600

SKU CH-MNRR-TD82B

A 7-inch IPS touchscreen runs at 1024×600 with 65K colours and a 170° viewing angle, backed by an ESP32-S3 with adjustable backlight, lithium-battery monitoring and sensor, CAN.

  • Sharp visuals from 1024 × 600 IPS panel

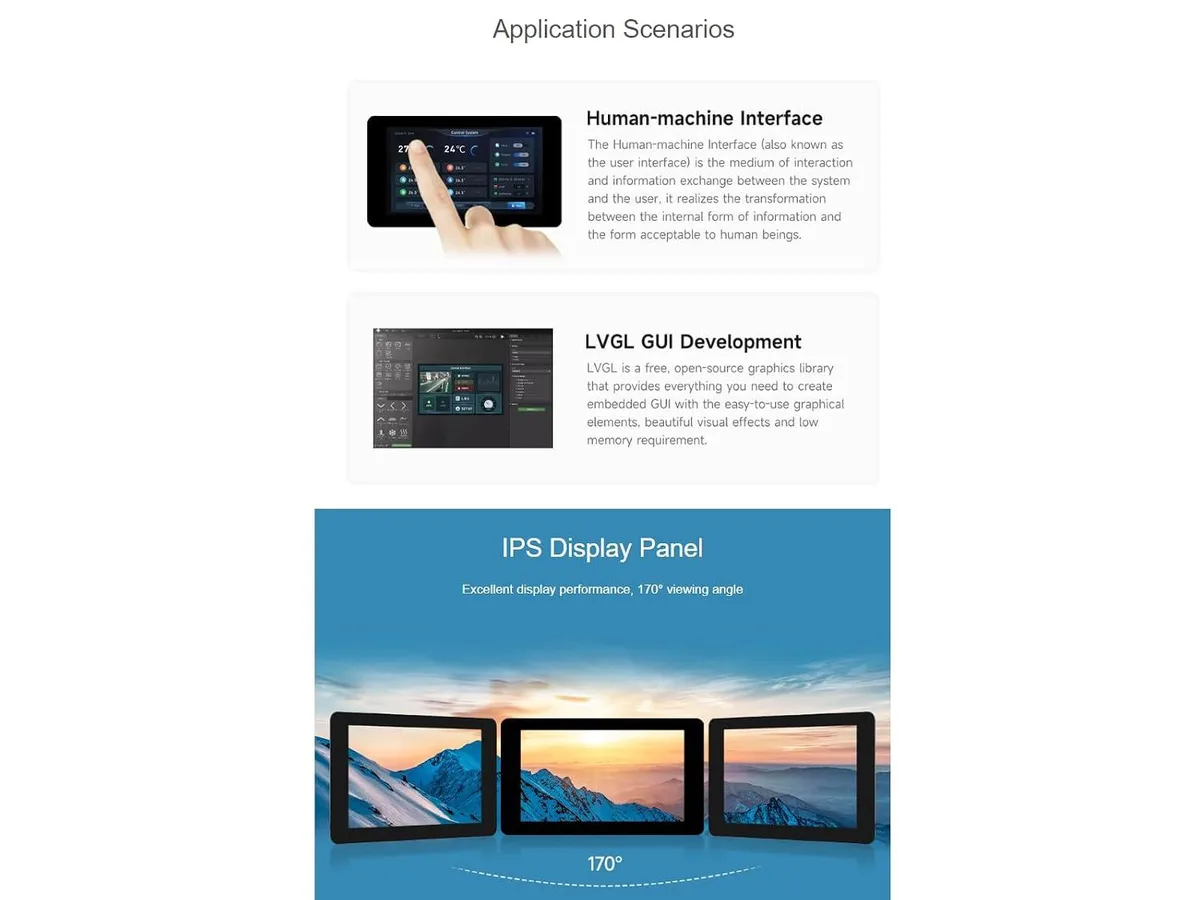

  • Wide 170° viewing angle keeps colours accurate
  • Adjustable backlight suits bright or dim settings
  • Built-in lithium battery voltage monitoring aids portable use
  • Expand via sensor, CAN, RS485 and I2C interfaces

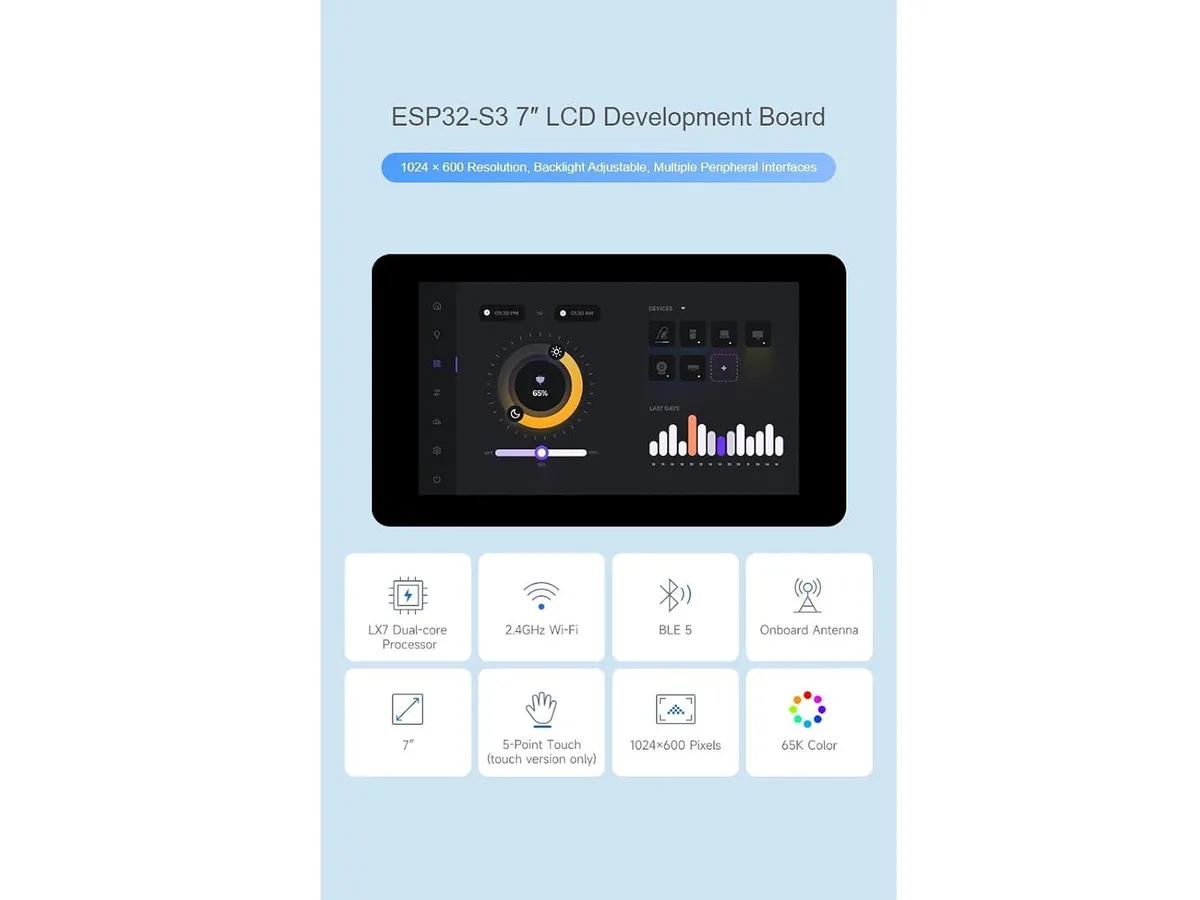

ESP32-S3 7 inch IPS Development Board

The LORDWORLD board integrates an ESP32-S3 microcontroller with a 7 inch IPS LCD panel that shows 1024 × 600 pixels at 65K colour depth. Adjustable backlight and a 170° viewing angle keep the image readable from different positions. On-board lithium battery voltage monitoring adds convenience for portable prototypes.

Target users and limitations

Makers building IoT edge devices that need a built‑in colour touchscreen, CAN, RS485 or I2C expansion will find the interfaces ready to use. Developers who require a larger display, higher pixel density or a different processor architecture should evaluate alternative platforms.

Sustained operation behaviour

The IPS panel maintains consistent colour and contrast during long running sessions without the wash‑out seen in some TN screens. Backlight adjustment lets the system reduce power draw and heat when full brightness is unnecessary. The ESP32-S3 continues to service sensor, CAN and RS485 traffic reliably over extended periods.

Ciri-ciri utama

  • Sharp visuals from 1024 × 600 IPS panel
  • Wide 170° viewing angle keeps colours accurate
  • Adjustable backlight suits bright or dim settings
  • Built-in lithium battery voltage monitoring aids portable use
  • Expand via sensor, CAN, RS485 and I2C interfaces

Spesifikasi

BrandLORDWORLD

Soalan tentang produk ini

What power source is required for the lithium battery voltage monitoring feature on this board?

A lithium battery must be connected to the board for the voltage monitoring function to operate.

Can I connect legacy RS485 sensors to the available interfaces on this development board?

Yes, the board includes an RS485 interface that supports expansion with compatible peripherals.

How can I verify the display is operating at the correct 1024 × 600 resolution after setup?

The screen will render 65K colours across the 7 inch IPS panel at a 170° viewing angle when configured properly.
